Features:

• Shower element with brushed stainless steel drain channel
• Linear Channel Position - CENTRE
• Drain OUTLET Position - CENTRE of Channel
• Drainage rate of up to 0.6 l/s
• Stainless steel bar can be inverted and tiled on the back
• Fixed grate height of 15mm
• Bar and frame made of stainless steel
• Smooth, easy-clean surface with self-cleaning effect

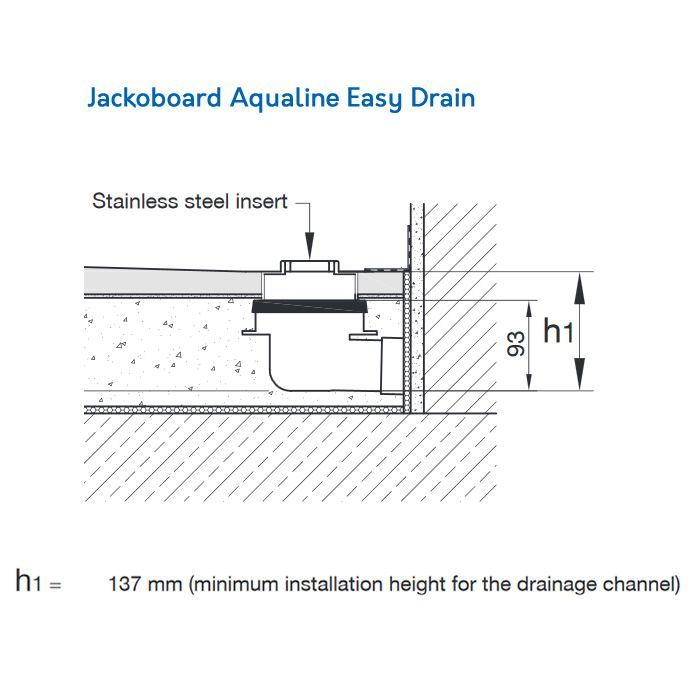

• Low installation height
• Water trap height: 22 mm
• Specifically developed for installation on suspended timber floors

Ships With:

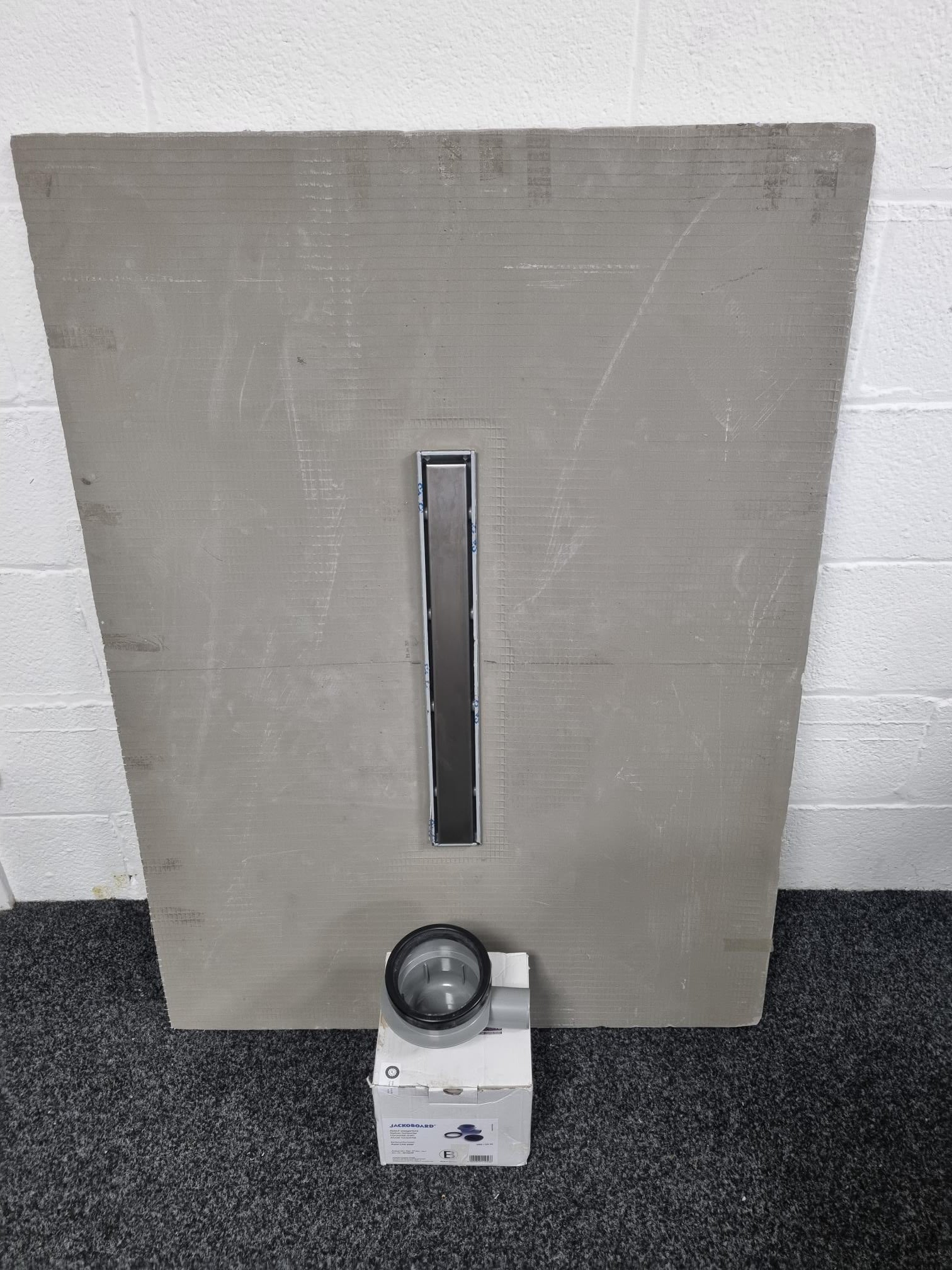

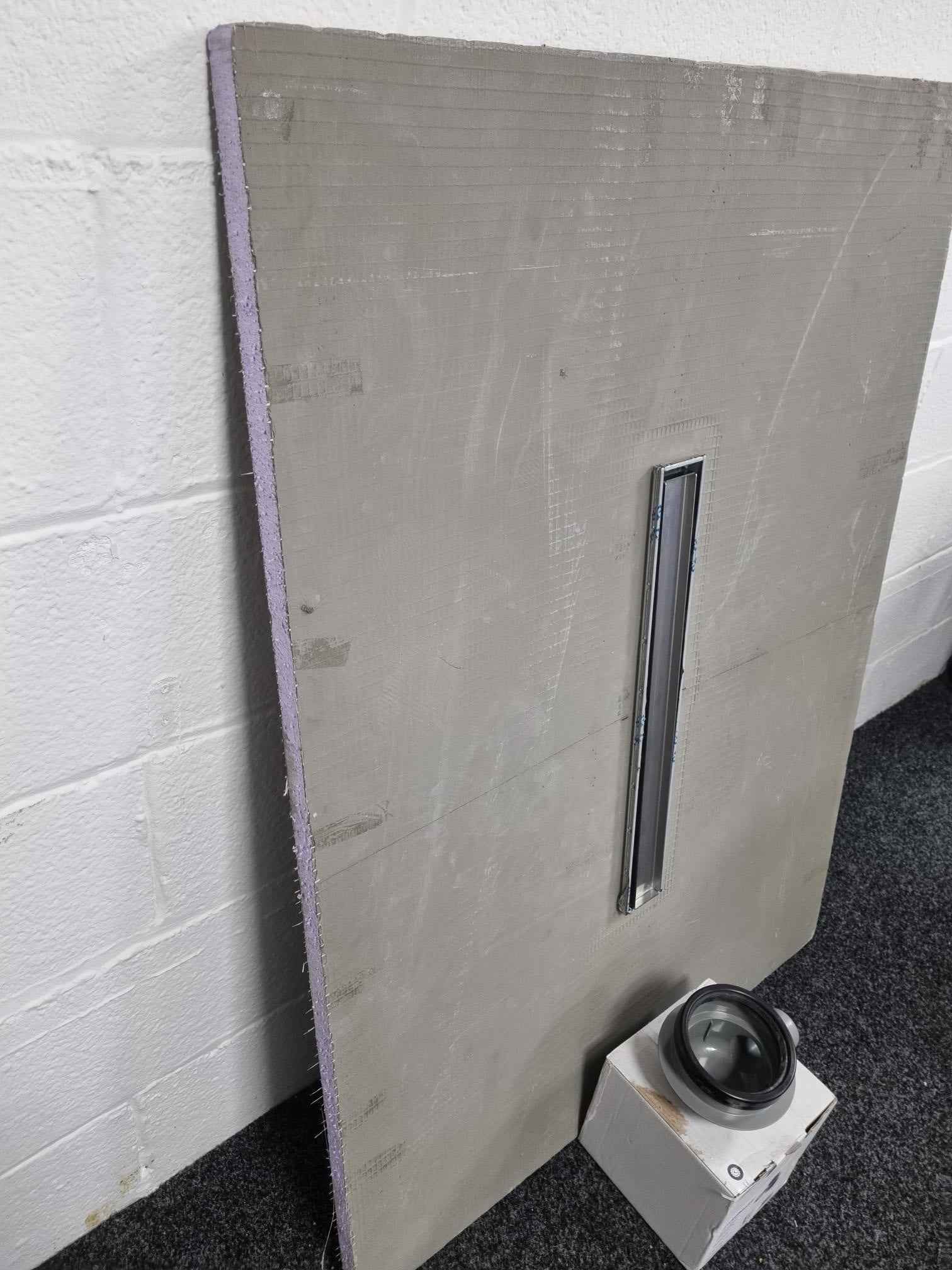

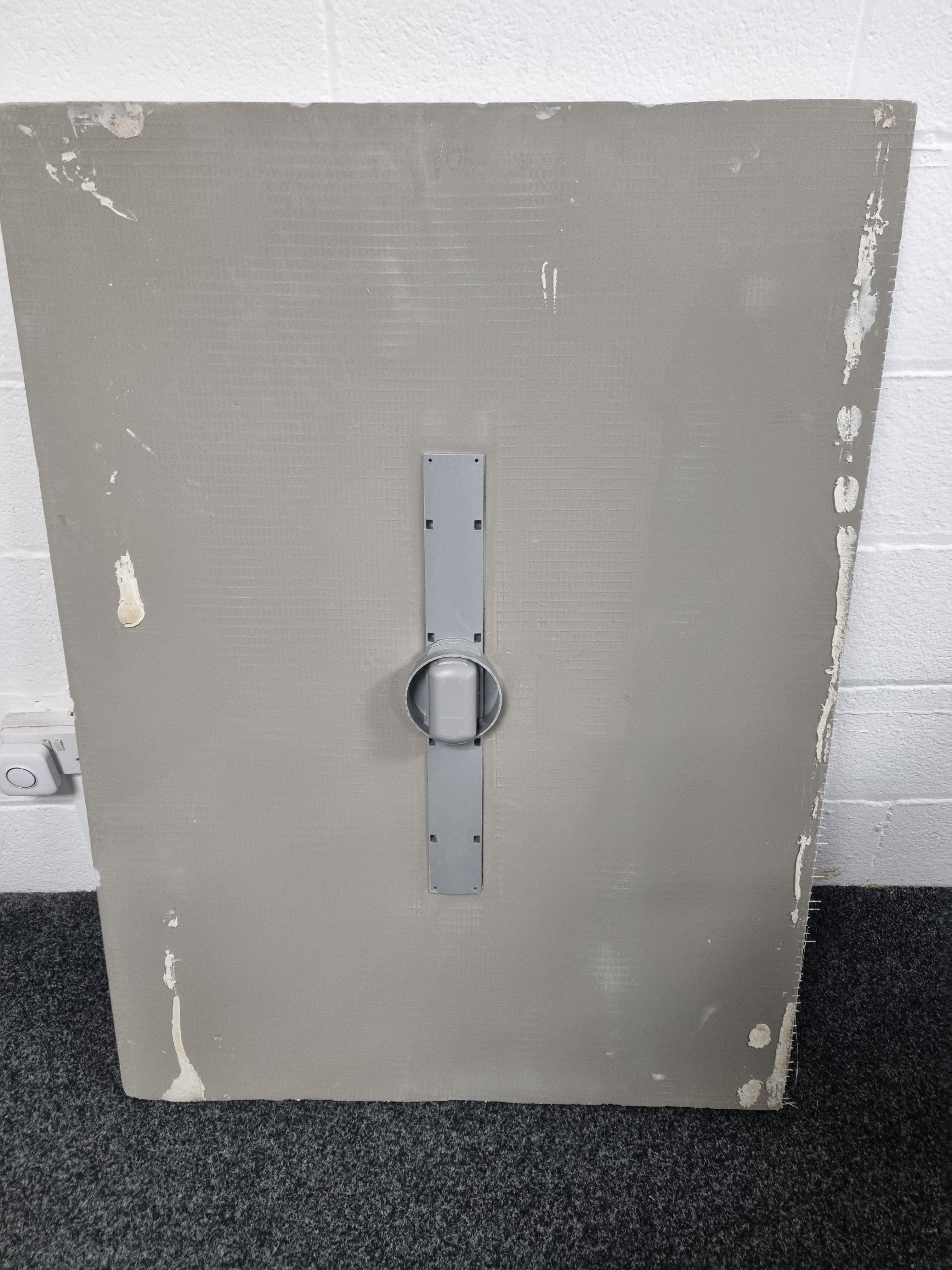

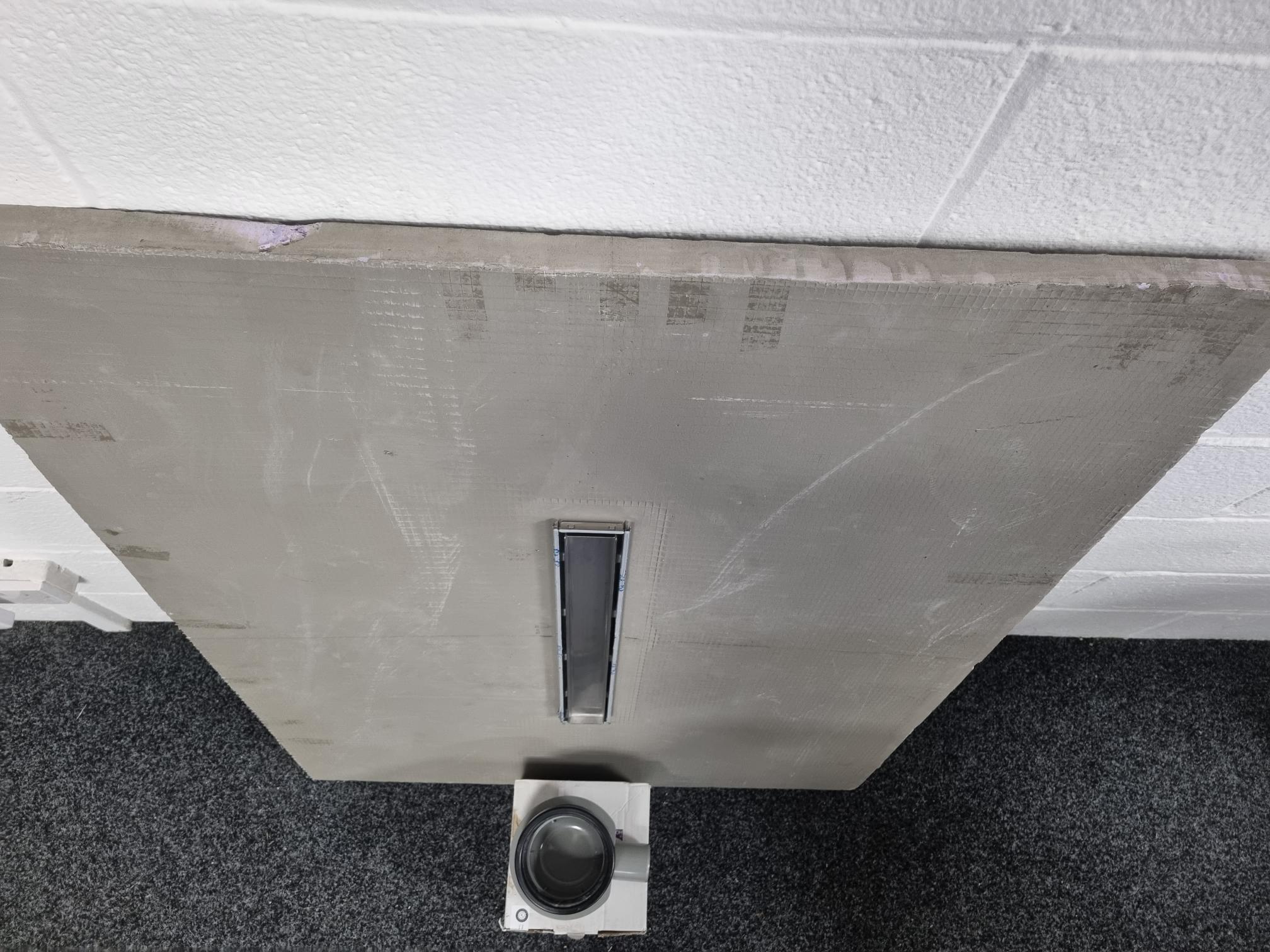

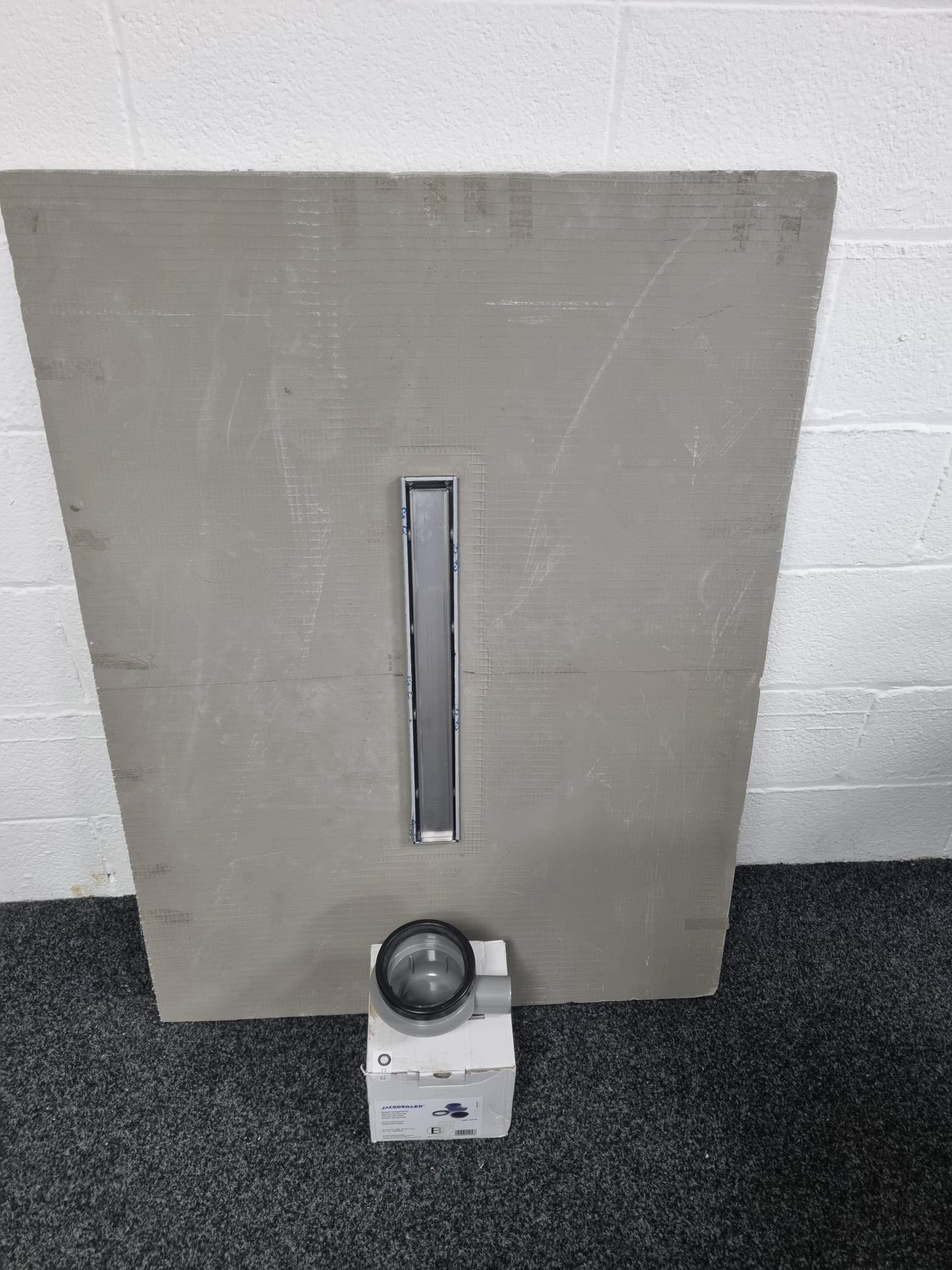

• 1200 x 900 x 30mm linear tray former with CENTRE drain trough.
• Linear channel cover
• Fast flow drain outlet
• Fitting Instructions

Aqua Line Easy Fitting Instructions - Suspended Timber Floor
Aqua Line Easy Fitting Instructions - Solid Floor
Choosing the Correct Wet Room Tray
Wet Room FAQ's

Further help & advice: If you need further help or advice, please give our experts a call on 0800 280 8008, use the live chat function (in the bottom right corner) or send an email to info@wetrooms-online.com

Jackoboard Plano Insulated Tile Backer Board

Jackoboard Plano Insulated Tile Backer Board is the ideal board for boarding out wet room floors and walls prior to tiling. Thanks to their extruded polystyrene foam core and the special coating on both sides, the JACKOBOARD® construction boards are the ideal base for plaster and tile. The surfaces of the JACKOBOARD® system provide a strong primer and can be used on virtually any substrate. At the same time, they are water repellent, thermally insulating, light and sturdy.

Suitable for all flat or vertical surfaces made of any material. Simple to use for novices and experts alike. Compatible with almost every type of under floor heating and ready for tiling with no further preparation (please check with under floor heating manufacturer).

JACKOBOARD® Plano. The construction boards can be cut to any desired shape and to any dimension. Thanks to the different thicknesses, there is no limit to the design flexibility of the construction boards for wall, floor and construction applications. They can be used on virtually any substrate and master every challenge thanks to their easy use.

Suitable for:
• Use on Walls & Floors
• Tiling
• Under Floor Heating
• Wet Rooms, Walk in Showers, Spas

Each board measures 600 x 1200mm. Available in 6mm, 10mm, 12mm, 20mm & 30mm thickness

Full product details: Jackoboard Plano Insulated Tile Backer Board

Jackoboard Paint-On Tanking Kit:

The Jackoboard tanking kit contains a rapid drying, brush/roller applied, single part flexible liquid membrane for use on rigid surfaces in bathrooms, wetrooms and showers. It can also be used to waterproof existing surfaces such as plaster, plasterboard or timber.

Suitable for all flat or vertical surfaces made of any material. Simple to use for novices and experts alike. Compatible with almost every type of under floor heating and ready for tiling with no further preparation (please check with under floor heating manufacturer).

For use under ceramic coverings in wet rooms, showers and bathrooms. Coverage 5 - 6sqm under normal conditions with recommended two coats.

Jackoboard Tanking Kit:
• 1 x 4KG Tanking liquid
• 1 x 1 Litre Primer Liquid

• 1 x 10 metre tape for wall and floor joints
• 2 x Internal sealing corners

Full product details: Jackoboard Wet Room Tanking Kit

Sommer Evolve Wet Room Shower Screen

Add an optional quality Sommer Evolve 8mm thick by 2000mm high toughened safety glass shower screen in a choice of widths, finished with an easy clean coating as standard, comes complete with wall bracket and support arm (700mm screen & above).

Available in of 400mm, 500mm, 600mm, 700mm, 760mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm or 1400mm length shower screens#

A life time guarantee and toughened 8mm glass gives you substance and style, in addition all Sommer wet room shower screens offer many premium features:

• Bclean coating: Easy clean glass finish
• Life time guarantee
• Toughened 8mm thick glass
• 2000mm high
• Wall fixing profile supplied
• Adjustable bracing bar supplied (1m)
• Fittings available in Chrome or Black
• Adjustment for secure and easy fixing (see below for further details)
• Optional floor to ceiling post available (Max height 2.6m) - Cannot be used in conjunction with optional 300mm return panel.
• Optional Angled Stabilising bar available (300mm)
• CE Approved - Toughened 8mm thick glass
• European safety glass approved - EN12150-1

#Screen sizes are nominal. All panels are undersized to allow for tiling when fitting to shower trays.

Sommer wet room shower screens are highly versatile and can be installed in many configurations including, One panel in a corner, One panel in an alcove, Walk through (with the use of two optional floor to ceiling posts), and with two panels in a corner to create a walk in enclosure.

Full product details: Sommer Evolve Wet Room Shower Screen
