Contour Swift Level Access Shower Tray 1400 x 745mm

£486.46
£579.12

Price inclusive of VAT

SKU : SWIF1400-01

Selection Subtotal:

£486.46

Call our EXPERTS on FREEPHONE 0800 280 8008

100% money back guarantee if not fully satisfied*

Rated EXCELLENT by our customers

FREE delivery on orders
over £300

Description

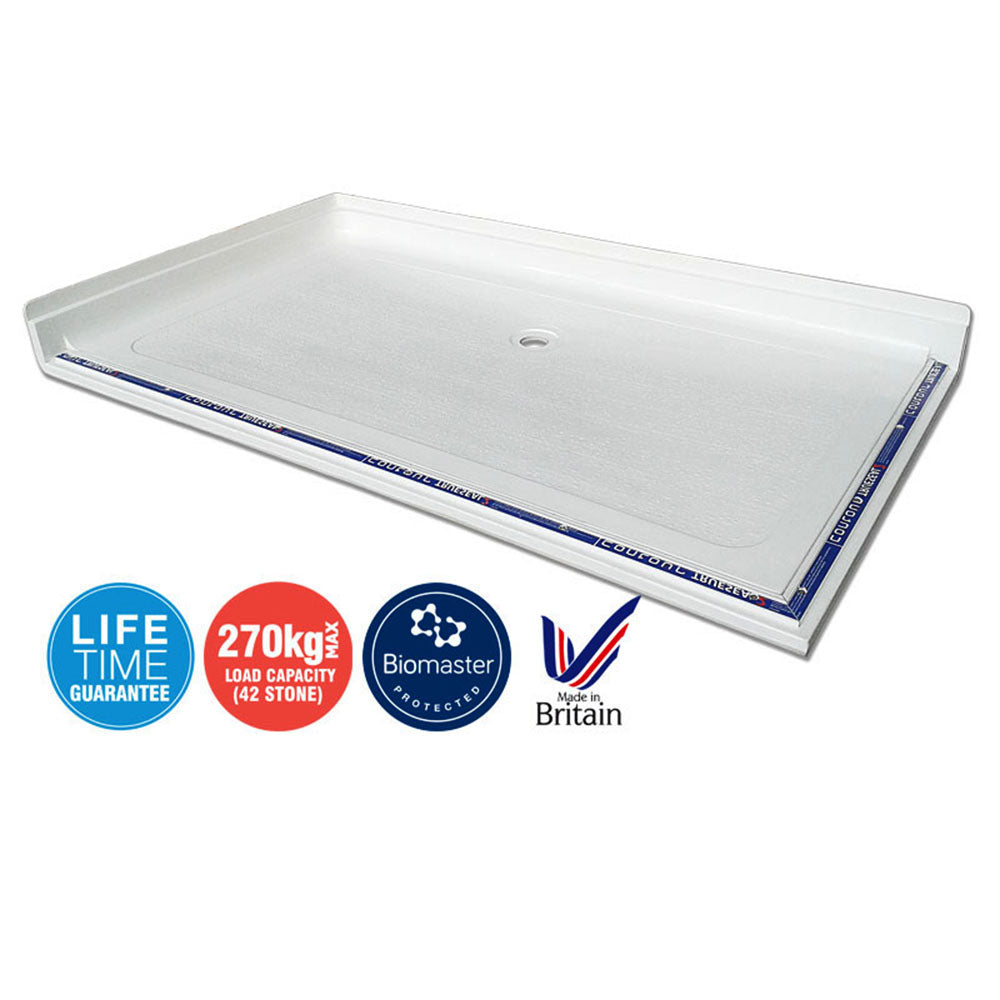

The Contour Swift Barrier Free Level Access Shower Tray range using Trueseal2 is designed as a level access shower. This shower tray provides a practical corner entry showering solution for users with mobility difficulties or requiring wheelchair access. Swift level access shower trays are manufactured using reinforced glass fibre GRP construction to form a strong and consistent shower tray. The shower tray features Anti-slip surface for an assured underfoot grip in addition to intergrated Biomaster antibacterial product protection.

The TRUESEAL2 floor edge profile, allows vinyl flooring to be hot seam welded directly onto the tray, creating a perfect watertight join. The Swift tray can also be used with a tiled floor, simply specify the tiled floor option and the tray will be provided without the TRUESEAL2 floor edge profile (cannot be removed onsite).

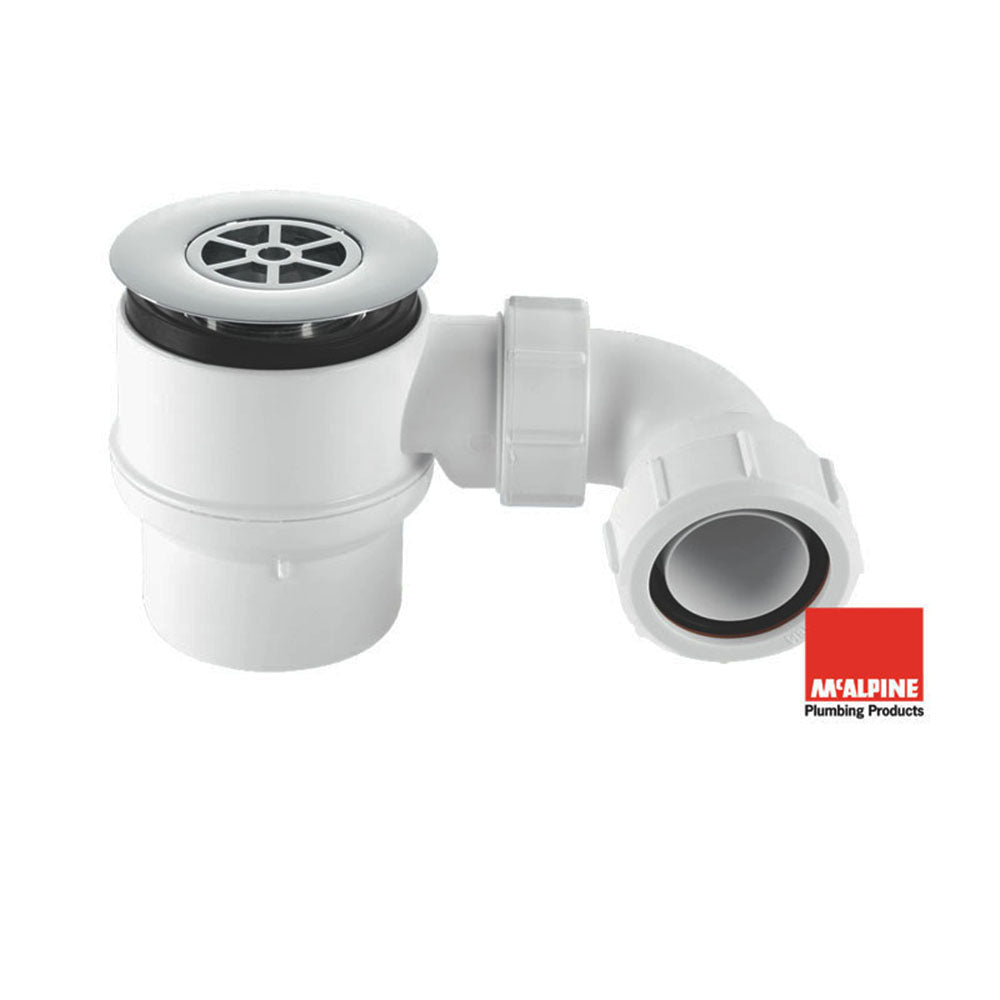

Supplied with McAlpine gravity waste with chrome grid.

Specification/Technical:

  • CORNER Entry
  • Size: 1400 x 745mm
  • Tray depth into existing floor only 14mm (excluding drain)
  • Drain depth below tray:95mm
  • Supplied with McAlpine STW8B-95 gravity waste, flow rate up to 22 l/m.
  • Tested to withstand 42 Stone / 270Kg across the entire surface area to simulate a standing person.
  • Hot seam weld the vinyl sheet flooring directly onto the tray’s unique TRUESEAL2 floor edge profile, creating a perfect watertight join.
  • Complies with DIN51097 Barefoot Slip Test.
  • Swift level access shower trays exclusively incorporate Biomaster antibacterial product protection

Key Points:

  • Provides a practical, corner entry showering solution for users with mobility difficulties or requiring wheelchair access.
  • Anti-slip surface for an assured underfoot grip.
  • Installation friendly, no need for intricate corner seam welds.
  • Hot seam weld the vinyl sheet flooring directly onto the tray’s unique
  • TRUESEAL2 floor edge profile, creating a perfect watertight join.

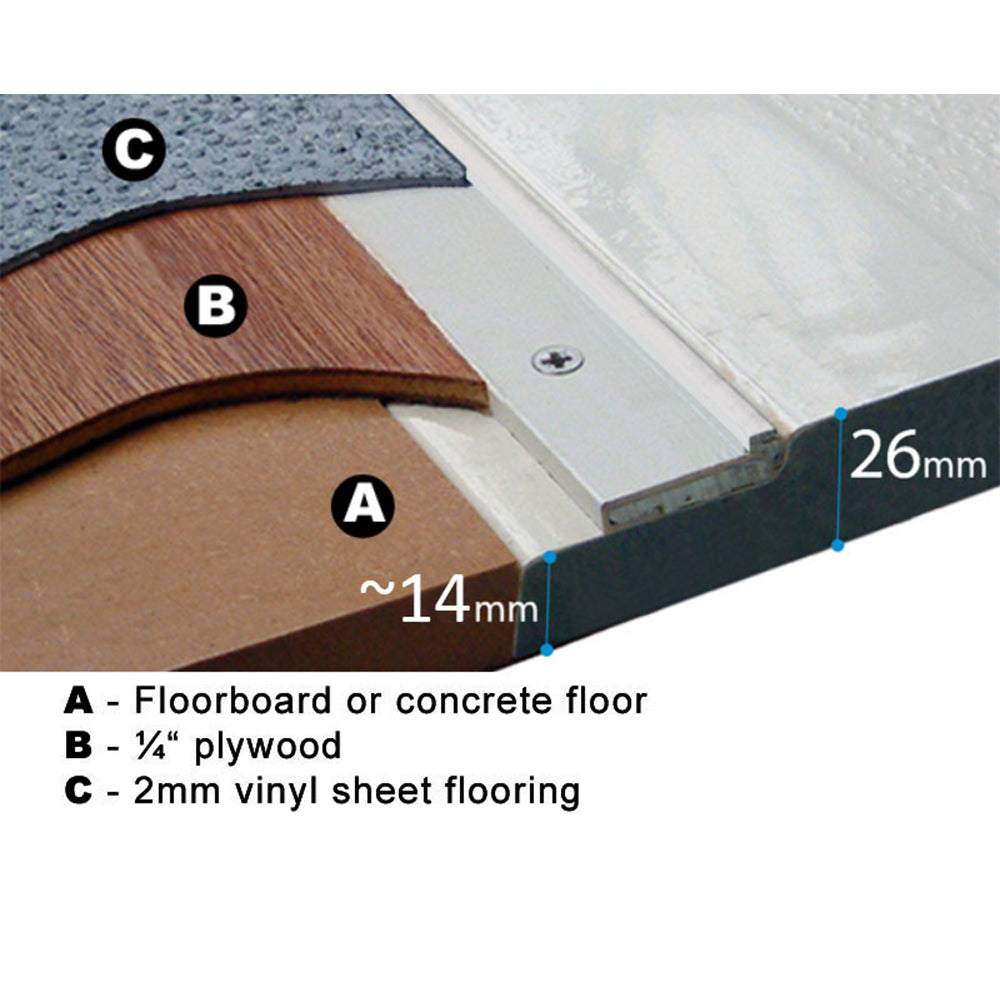

  • Only requires the removal of ~14mm of flooring, the equivalent of a floorboard, (apart from the trap area where additional space is required).
  • Locate in wooden or solid floor settings, minimal need for additional support under the tray required.
  • Shower tray, enclosure and ancillary equipment can be installed during one site visit, leaving the flooring to be fitted afterwards.

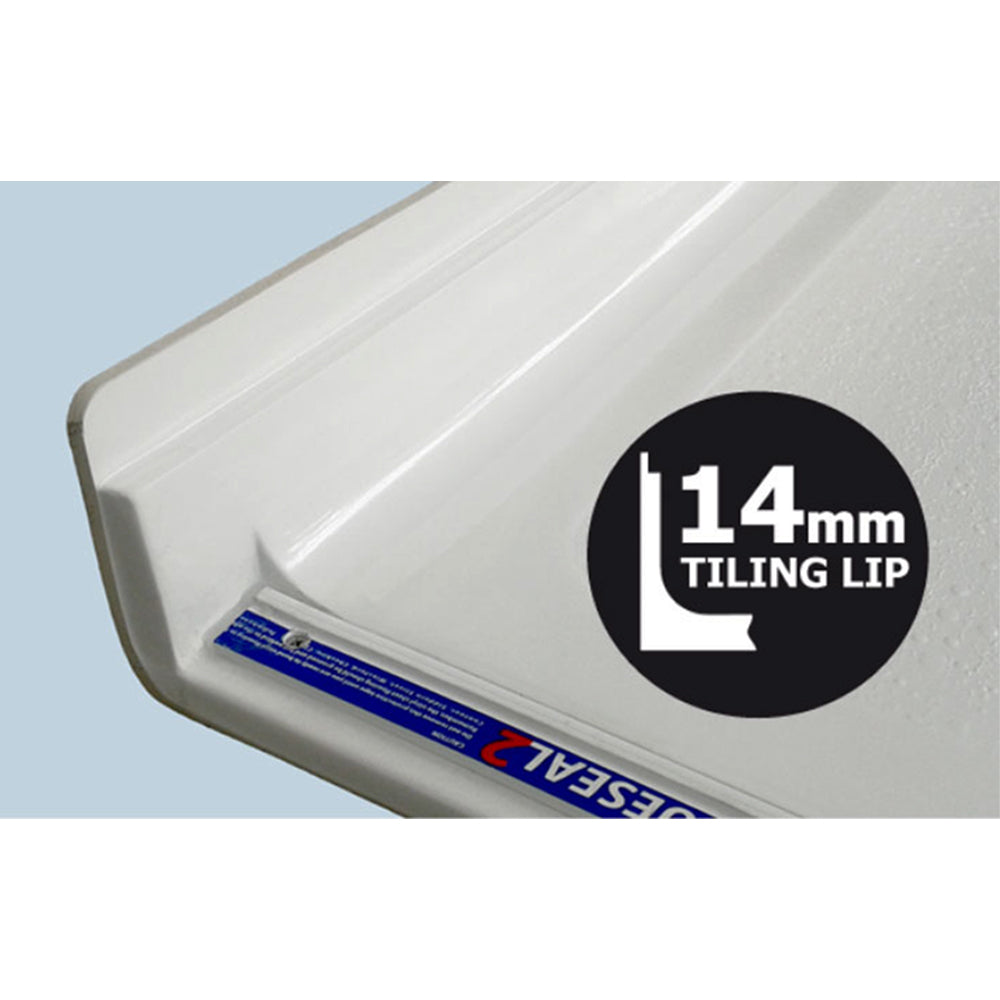

  • 14mm tiling lip is watertight and will accommodate wallboards or wall tiles.
  • Can be used with floor tiles by omitting TRUESEAL2, please state when ordering.
  • Exclusively incorporates antibacterial product protection.
  • Lifetime guarantee.
  • Handed & non-handed tray options available.

For Vinyl or Tiled Flooring ?
Please advise on purchase if you intend to use vinyl or tiled flooring to finish your floor to your tray. If tiled the tray will be supplied without the Trueseal2 threshold.

Please note: That the 'for tiled floor' version of the tray is a made to order item, as such it has a delivery time scale of 10 - 15 working days. As a made to order item it is NON RETURNABLE. Please double check measurements prior to ordering.

Downloads:
Contour Swift fitting instructions



Contour Swift Suitability

Description

The Contour Swift Barrier Free Level Access Shower Tray range using Trueseal2 is designed as a level access shower. This shower tray provides a practical corner entry showering solution for users with mobility difficulties or requiring wheelchair access. Swift level access shower trays are manufactured using reinforced glass fibre GRP construction to form a strong and consistent shower tray. The shower tray features Anti-slip surface for an assured underfoot grip in addition to intergrated Biomaster antibacterial product protection.

The TRUESEAL2 floor edge profile, allows vinyl flooring to be hot seam welded directly onto the tray, creating a perfect watertight join. The Swift tray can also be used with a tiled floor, simply specify the tiled floor option and the tray will be provided without the TRUESEAL2 floor edge profile (cannot be removed onsite).

Supplied with McAlpine gravity waste with chrome grid.

Specification/Technical:

  • CORNER Entry
  • Size: 1400 x 745mm
  • Tray depth into existing floor only 14mm (excluding drain)
  • Drain depth below tray:95mm
  • Supplied with McAlpine STW8B-95 gravity waste, flow rate up to 22 l/m.
  • Tested to withstand 42 Stone / 270Kg across the entire surface area to simulate a standing person.
  • Hot seam weld the vinyl sheet flooring directly onto the tray’s unique TRUESEAL2 floor edge profile, creating a perfect watertight join.
  • Complies with DIN51097 Barefoot Slip Test.
  • Swift level access shower trays exclusively incorporate Biomaster antibacterial product protection

Key Points:

  • Provides a practical, corner entry showering solution for users with mobility difficulties or requiring wheelchair access.
  • Anti-slip surface for an assured underfoot grip.
  • Installation friendly, no need for intricate corner seam welds.
  • Hot seam weld the vinyl sheet flooring directly onto the tray’s unique
  • TRUESEAL2 floor edge profile, creating a perfect watertight join.
  • Only requires the removal of ~14mm of flooring, the equivalent of a floorboard, (apart from the trap area where additional space is required).
  • Locate in wooden or solid floor settings, minimal need for additional support under the tray required.
  • Shower tray, enclosure and ancillary equipment can be installed during one site visit, leaving the flooring to be fitted afterwards.
  • 14mm tiling lip is watertight and will accommodate wallboards or wall tiles.
  • Can be used with floor tiles by omitting TRUESEAL2, please state when ordering.
  • Exclusively incorporates antibacterial product protection.
  • Lifetime guarantee.
  • Handed & non-handed tray options available.

For Vinyl or Tiled Flooring ?
Please advise on purchase if you intend to use vinyl or tiled flooring to finish your floor to your tray. If tiled the tray will be supplied without the Trueseal2 threshold.

Please note: That the 'for tiled floor' version of the tray is a made to order item, as such it has a delivery time scale of 10 - 15 working days. As a made to order item it is NON RETURNABLE. Please double check measurements prior to ordering.

Downloads:
Contour Swift fitting instructions



Contour Swift Suitability
