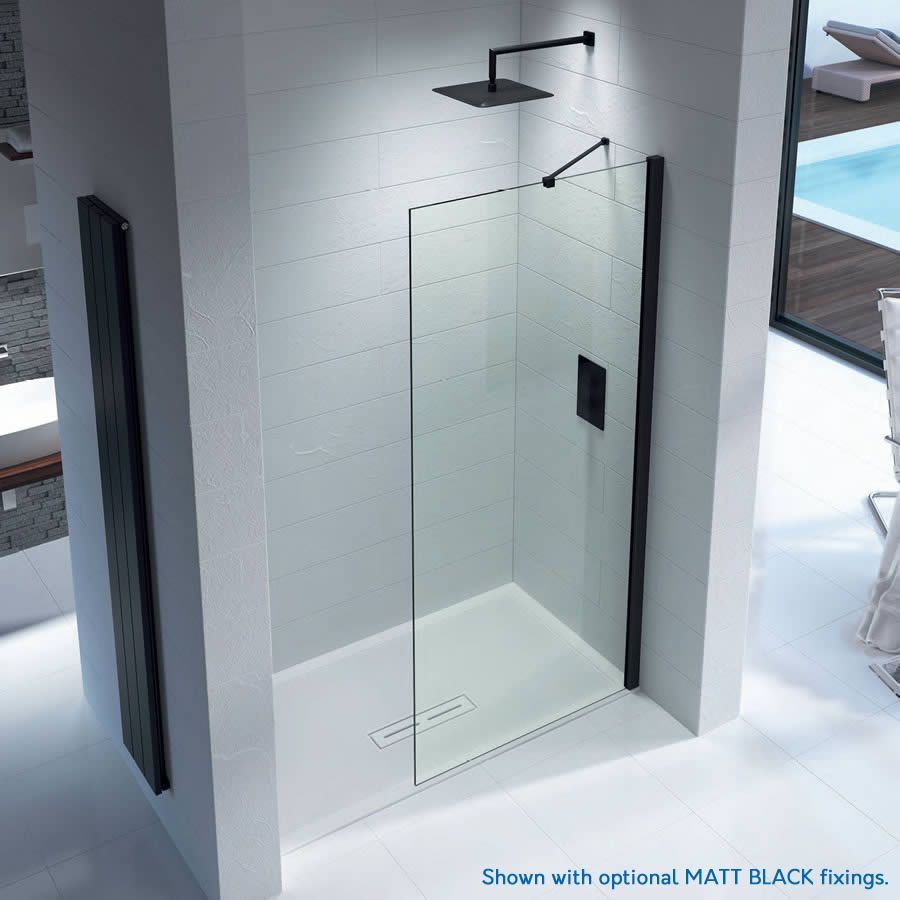

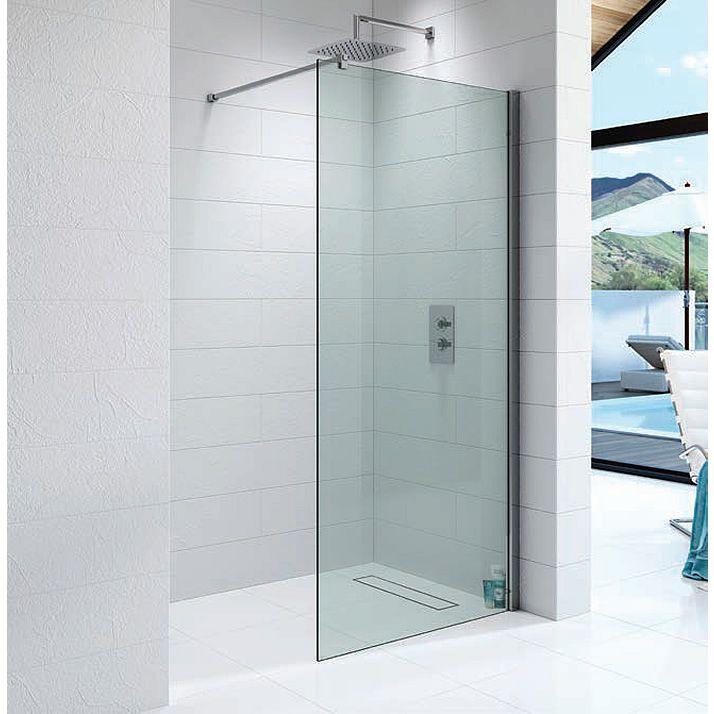

Kudos Ultimate - Wet Room Shower Screen - 760mm. 8mm or 10mm Thick
SKU : 5WP760
You May Also Need
Selection Subtotal:
£291.75
Manufactured in the Lake District by KUDOS Shower Products, ultimate2 Shower Screen Panels offer the ultimate in choice and versatility.
The extensive range of toughened safety glass panels are available in both 8mm & 10mm glass thickness, as well as two sizes of stunning 8mm curved glass options. With ultimate you can create a showering area to suit virtually any situation and with a choice of fixings in chrome or matte black you are certain to find the solution needed to create your perfect shower.
Sized to suit fitting to shower trays as well as tiled wet room floors KUDOS ultimate also offer fixed, hinged & fold away deflector Panels.
All ultimate2 products are covered by the KUDOS Lifetime Guarantee‡ for complete peace of mind.
Key Features:
760mm wide# (Actual screen size 715mm)
Adjustments 720 - 740mm
Overall 1985mm high including fittings
8mm or 10mm screen thickness
Suitable for fitting to shower trays or directly onto wet room floors
Choice of high quality fixings to suit all situations
Choice of silver or matt black finish
Lifeshield easy-clean glass protection
Lifetime guarantee‡
For details about optional fixings / stabilising bars and deflector panels please see the appropriate 'Tab' above.
#Sizes shown are nominal. All panels are undersized by 45mm to allow for tiling when fitting to shower trays.
‡Guarantee applies to material and manufacturing defects only.
Fixing / Stabilising Bars
Because of all the design / fixing combinations that Kudos shower screens offer, they are NOT SUPPLIED with fixings / bracing bars. Therefore, you need to separately purchase a fixing / bracing bar suitable for your installation.
The most popular type of fixing for any shower screen is the wall fixing, so that the shower screen can be mounted against a wall. This can be easily added to your order by selecting the option near the 'Buy Now' button above.

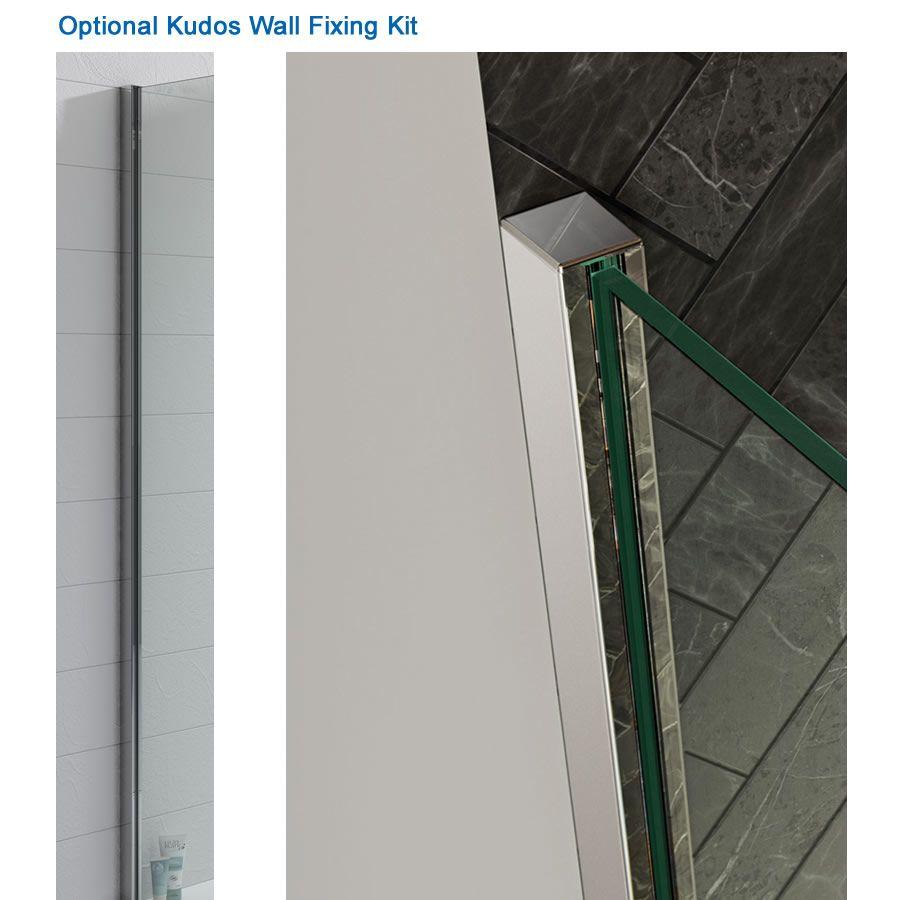

Wall Fixing Channel Profile:
In most shower screen installations the screen will be mounted against a wall using a wall channel / profile the same height as the shower screen.
The wall mounting channel profile for the Kudos Ultimate shower screens are availble in polished silver / chrome or matte black finish.
Suitable for 8mm or 10mm thick glass.
Length - 1985mm
Chrome / Polished silver or matt black finish.
Front Panel Fixing Kit:
Front shower screen stabilising bar for use with Kudos Ultimate 2 shower screens.
Suitable for 8mm or 10mm thick glass.
Length - 1000mm - Trim to size
Extension to 1500mm available
Chrome / Polished silver or matt black finish.
Side Panel Fixing Kit:
Side shower screen stabilising bar for use with Kudos Ultimate 2 shower screens, used to stabilise a side panel to a front panel.
Suitable for 8mm or 10mm thick glass.
Length - 1000mm - Trim to size
Chrome / Polished silver or matt black finish.
Please note: A front fixing kit will also be required.
Glass to Ceiling Bracing Arm:
Glass to ceiling shower screen stabilising bar for use with Kudos Ultimate 2 shower screens.
Suitable for 8mm or 10mm thick glass.
Length - 600mm - Trim to size - can be cut down to a minimum size of 115mm.
Chrome / Polished silver or matt black finish.
Angled / Corner Bracing Arm:
Angled / corner shower screen stabilising bar for use with Kudos Ultimate 2 shower screens. Used to stabilise the screen against the wall, in addition to the wall profile.
Suitable for 8mm or 10mm thick glass.
Length - 300mm or 500mm
Chrome / Polished silver or matt black finish.
Kudos Ultimate Deflector Panels
Designed to contain over-spray and splashing within the showering area, Kudos ultimate deflector panels are available in three styles, each option is able to be retro-fitted and can be added at a later date if required. Enjoy the pleasure and appearance of a walk-in shower even where space is at a premium. With the ability to fit a deflector panel it is now possible to create a functional and stunning enclosure even as small as 1400mm.
Please note: Kudos Ultimate Deflecter panels are a 'handed' product, therefore it is important to choose the correct side - LEFT or RIGHT (They are NOT interchangeable). Please refer to and enlarge the image above to help you choose the correct side. If in doubt please email info@wetrooms-online.com with a sketch of the layout so we can assist you.
Fixed Deflector Panel:
Supplied with fixings to connect to standard fixing kit recess or corner. This 255mm fixed deflector panel provides a 90o angled barrier to prevent splashing outside of the
showering area. Available in both 8 & 10mm glass thickness.
Not suitable for use with angled or ceiling fixing kit. Not for use with curved panels
Click for: Fixed Deflector Panel Full Product Details
Hinged Deflector Panel:
Available in 300 or 400mm widths in both 8 & 10mm glass thickness, the hinged deflector rotates through 180o for easy access. Featuring heavy duty hinges with crystal clear seals for minimalist appearance. Available in both 8 & 10mm glass thickness and featuring heavy duty hinges and crystal clear vertical seal.
Suitable for use with flat and curved panel enclosures and all ultimate fixing kits.
Click for: Hinged Deflector Panel Full Product Details - 300mm
Click for: Hinged Deflector Panel Full Product Details - 400mm
Fold-Away Hinged Deflector Panel:
Designed to fit neatly behind the front panel when not in use, the 300mm Fold-Away deflector panel stops at a 45O angle to the front panel when in use to provide the optimum protection from over-spray. Available in both 8 & 10mm glass thickness.
Suitable for use with flat panel enclosures and all ultimate fixing kits.
