wedi Fundo RioLigno Linear Shower Element - 900 x 900 x 25mm

£517.82

Price inclusive of VAT

SKU : 075100200-01

Selection Subtotal:

£517.82

Call our EXPERTS on FREEPHONE 0800 280 8008

100% money back guarantee if not fully satisfied*

Rated EXCELLENT by our customers

FREE delivery on orders
over £300

Description

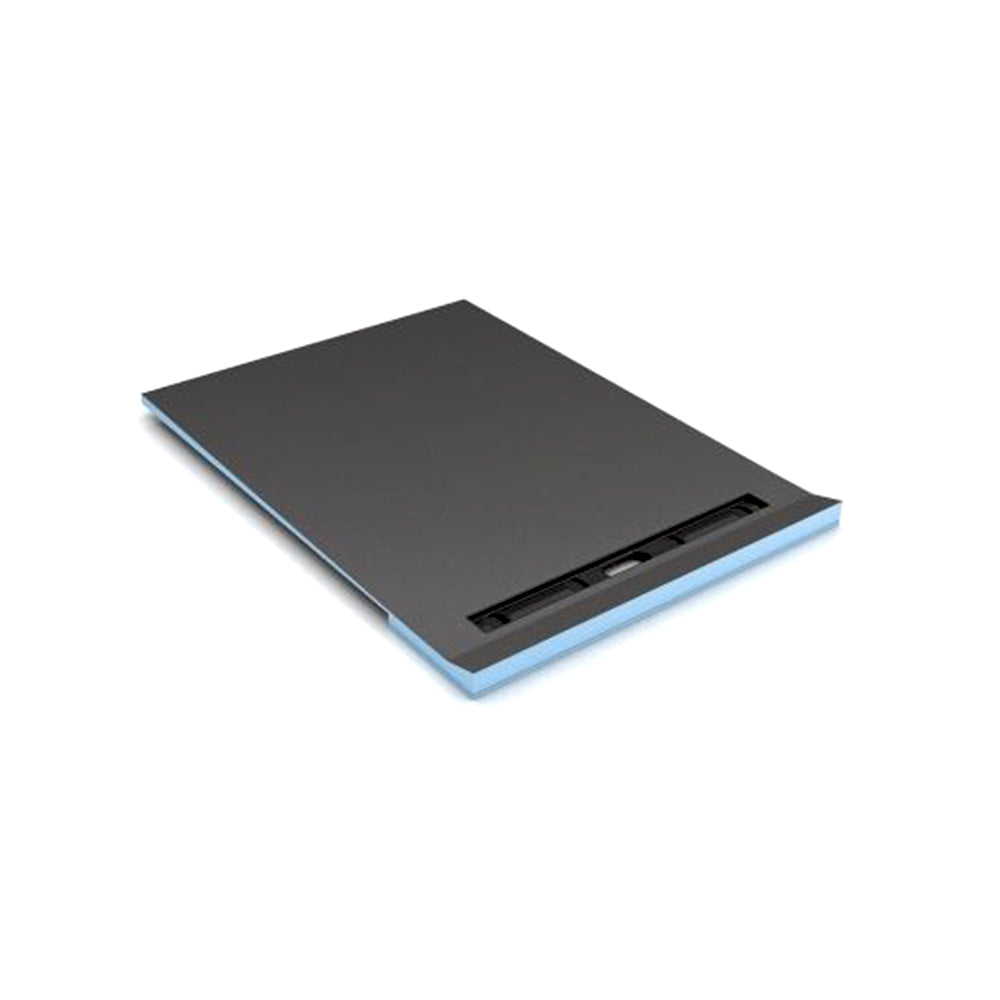

wedi Fundo RioLingo Linear Shower Element

wedi provides a wide array of waterproofing products that allow unlimited design possibilities for bathroom installations. The basis of wedi solutions, the wedi board is waterproof to its core, lightweight and at the same time robust, easy to cut to required dimensions and provides excellent thermal insulation. The wedi range is famous for its directly tileable elements that create a 100% waterproof barrier protecting the bathroom against mould and fungi.

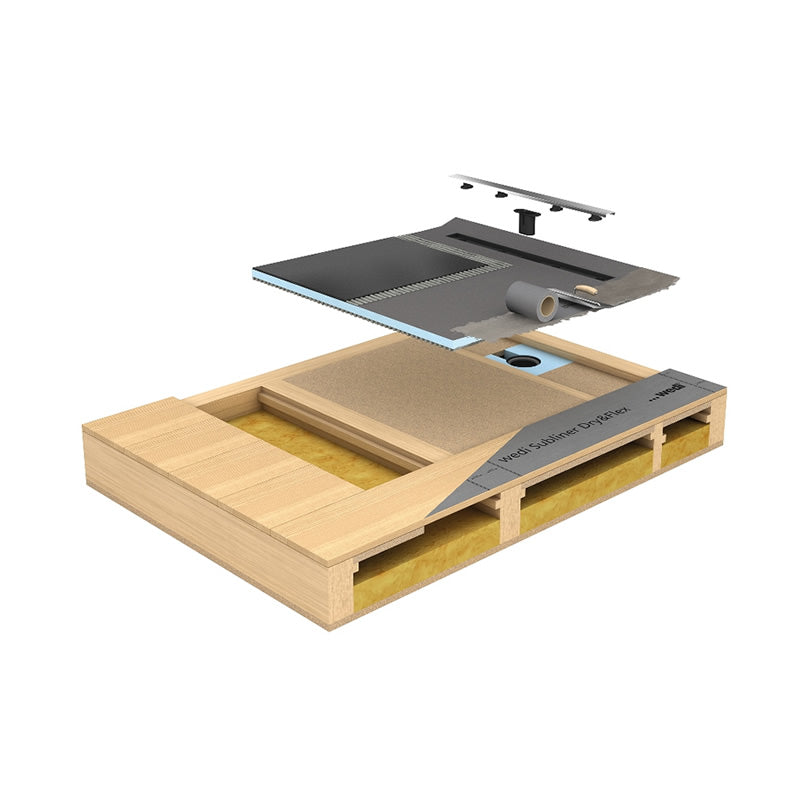

The shower element with linear drainage especially for suspended timber floors. The Fundo RioLigno is a complement to the Fundo Ligno shower element that has been established on the market for many years. It offers a flush-to-floor solution with elegant linear drainage for timber floors. With its outer edge of just 25 mm, the Fundo RioLigno shower element fits wonderfully into the existing wooden surface layer without cutting into floor joists or building up further height. The new wedi Fundo channel drain substructure element was specially designed for use with the Fundo RioLigno. The pre-formed foam element guarantees reliable support and accurate aligning of the drain underneath the shower element eliminating the time-consuming building and filling with mortar/screed thus speeds up the installation even further. An additional bonus: Fundo RioLigno is 100 % compatible with wedi channel drains and covers as well as with slope profiles and preformed sloped lip-end sealing tapes from wedi.

Special care must be taken when sealing surfaces that are sensitive to moisture. Thanks to being sealed and tested in the factory, just like all other Fundo floor elements, the RioLigno is easy and safe to install and is 100% compatible with other wedi system components.

Please note: NOT suitable for use with wet room screens to left or right of tray - For use in alcove sistuation only.

Specification:

Size: 900 x 900 x 25mm
Channel length: 700mm
Drain & Channel cover NOT included

Drain & channel cover:

The drain and channel cover is not included as standard with the wedi Fundo Primo, therefore it will need to be purchased if required. A number of options are available as follows:

Drain - DN50 Horizontal: Minimum installation depth 130mm - Flow rate 0.80 l/s / 48.0 l/m
Drain - DN40 Mini Max Low profile: Minimum installation depth 80mm - Flow rate 0.50 l/s / 30.0 l/m

To make installation of the drain easier a drain substructure is optionally available. The substructure supports the drain body, eliminating the need to cement the drain body in.

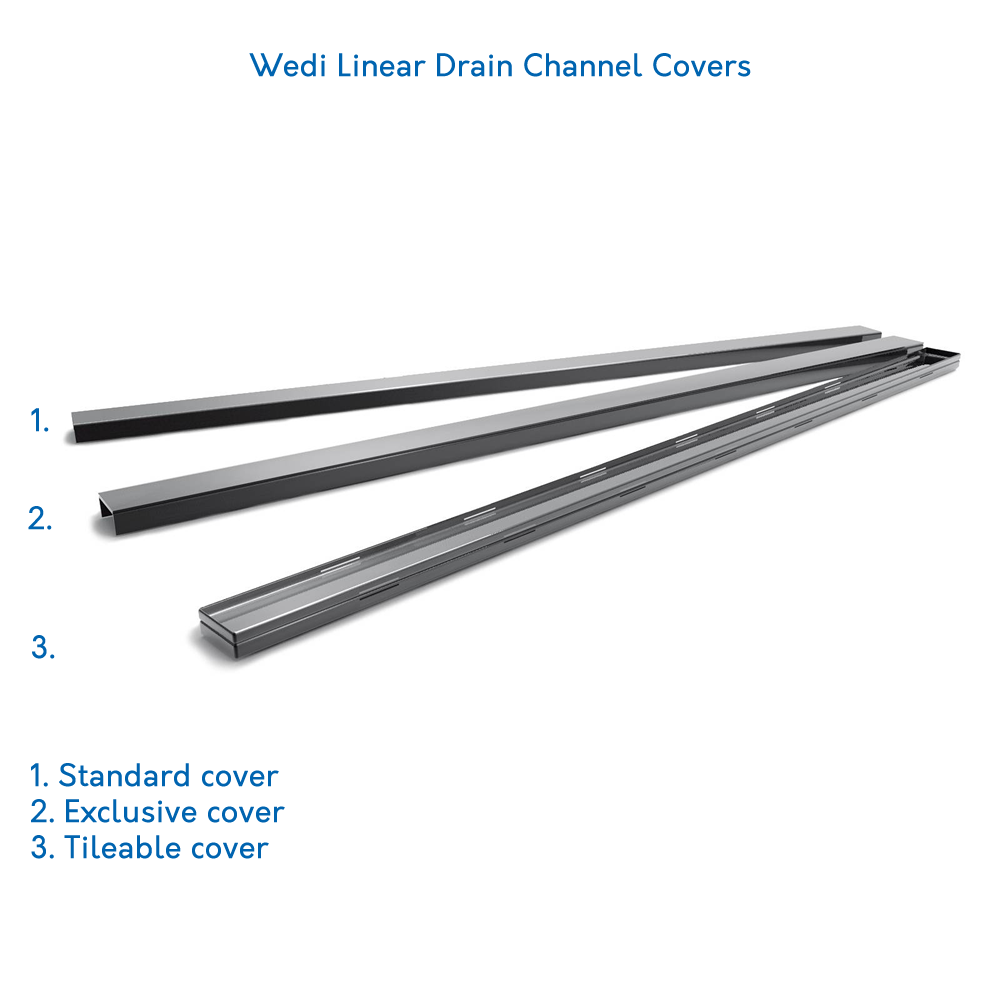

Channel cover:

It’s the details, which give a bathroom its special touch! For anyone who opts for a tileable floor-level shower, the design is important. The element should fit into the bathroom harmoniously. A small but excellent eye-catcher for this is the drain grate. wedi offers the corresponding systemised cover technology for the floor-level shower elements with linear drain.

  • Design variations: standard, exclusive and tileable
  • These drains can be combined with the following Fundo series Fundo Riolito Neo, Fundo Riolito, Fundo Riofino, Fundo RioLigno and Fundo Plano Linea
  • Channel cover with integrated height adjustment

Downloads:
wedi Fundo RioLigno Shower solution for timber floor - Information sheet

wedi rioligno linear shower element



wedi
