Additional Drain Outlet For WetBase Linear Wet Room Tray

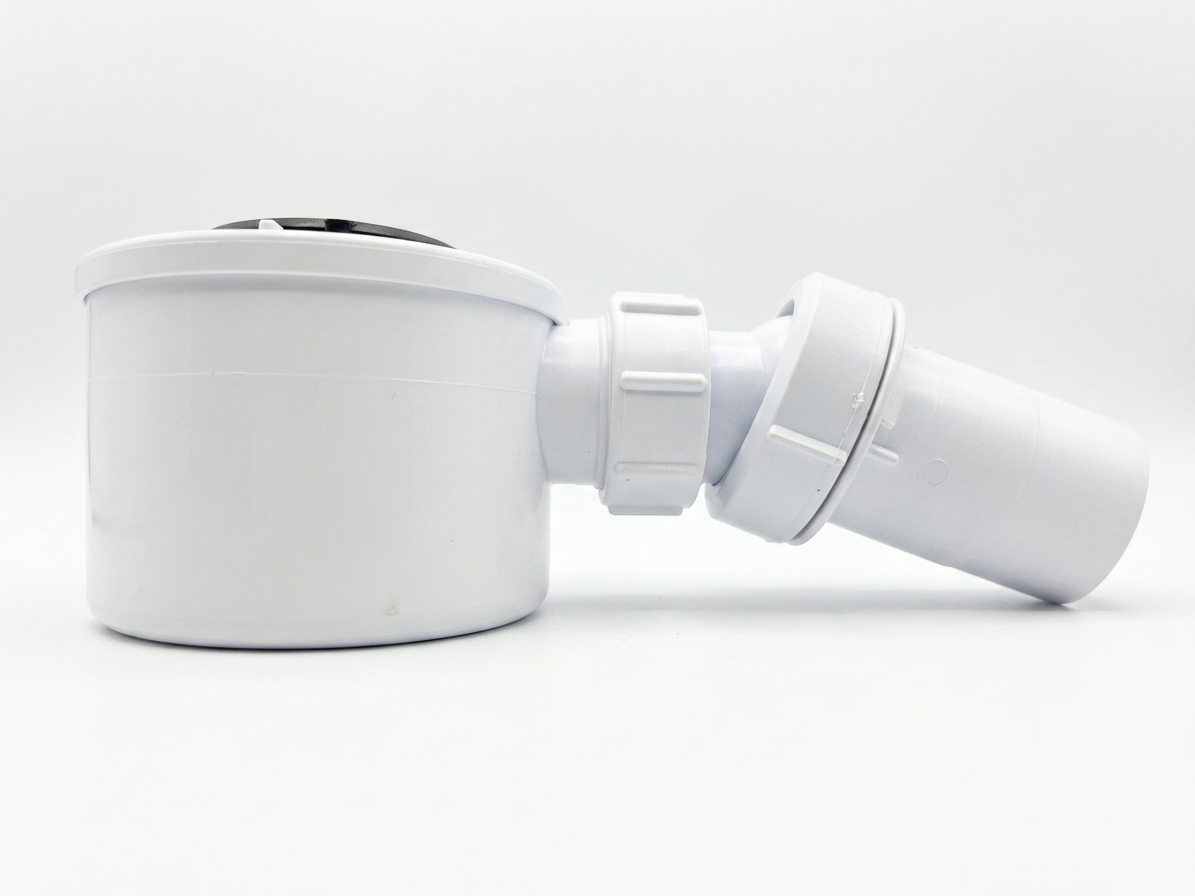

The McAlpine CD-ST90-1.5T drain outlet, is manufactured by McAlpine exclusively for Wetrooms Online for use with WetBase Linear only.

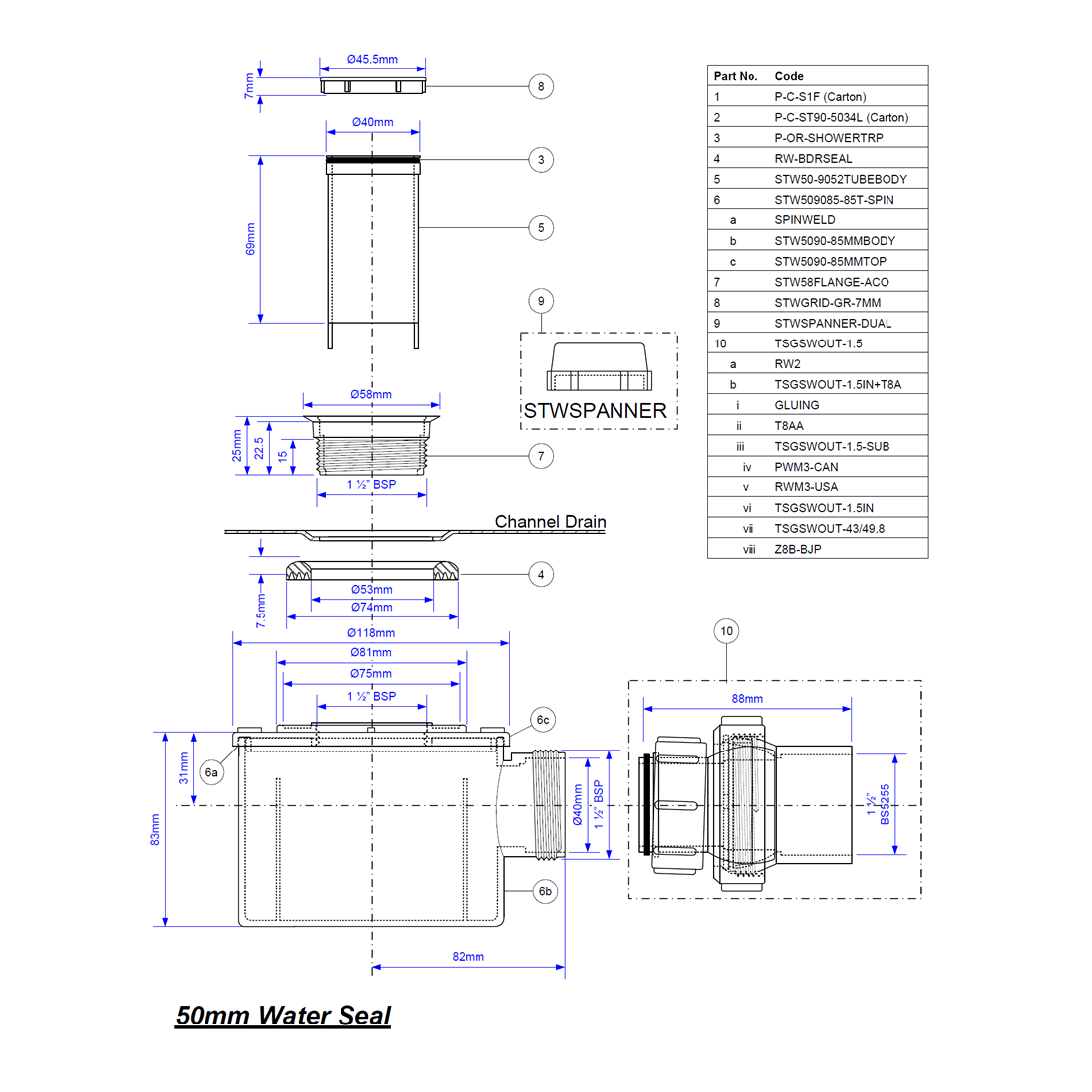

At just 83mm deep it's one of the shallowest wet room drain outlets available — a higher exit point, 360° rotation and a multi-angle knuckle joint create the fall needed even on shallow joists.

The trap body is rated to a flow rate of 34 L/min, tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002 — and for high-power showers and rainfall shower heads, a second outlet can be added to the channel to double that capacity.

Please note: This drain body is NOT suitable as a standalone product and is designed EXCLUSIVELY for use with the Wetrooms Online WetBase Linear wet room shower tray only.
