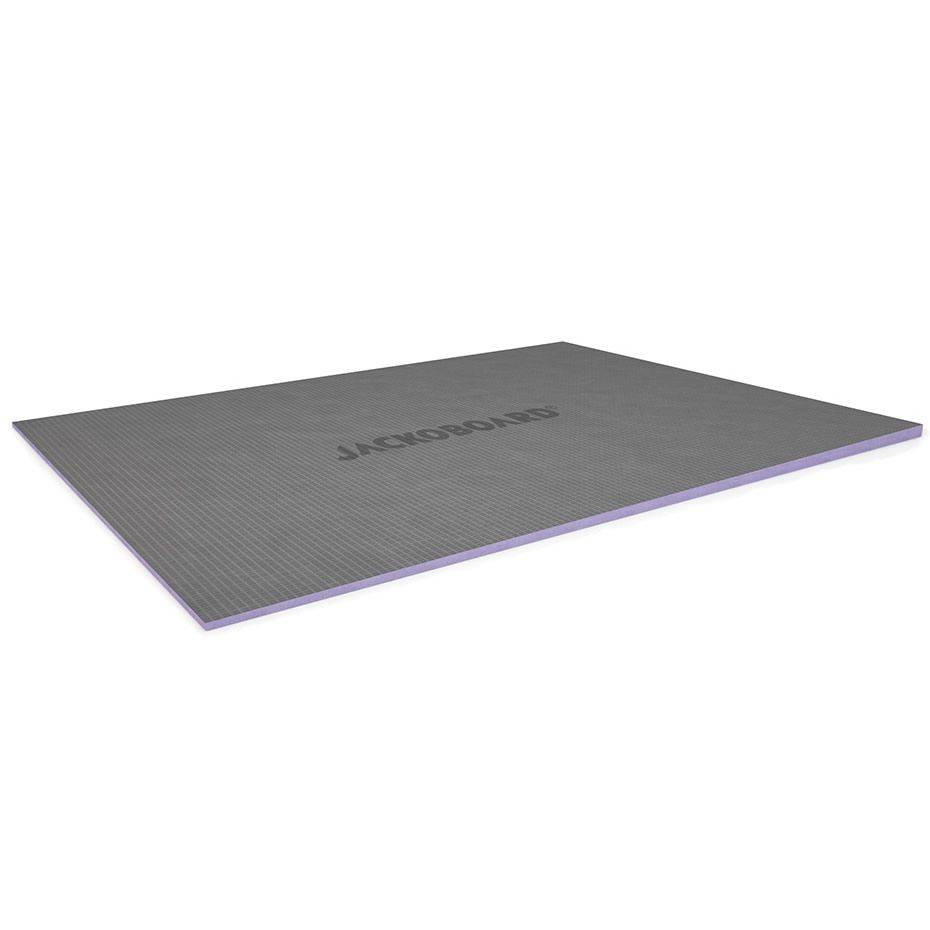

Jackoboard Wedgeboard is a tile backer board with an in-built slope. It is ideal for creating a wet room floor using a linear drain channel, as the correct slope for the efficient drainage of water is present. Simply tile the floor. If to be wheelchair accessible minimum tile size is 50mm x 50mm.
The Jackoboard Wedgeboard can be laid on top of existing concrete or wooden floors. The water repellent and insulation properties of Wedgeboard make it the ideal substrate for tiling onto.

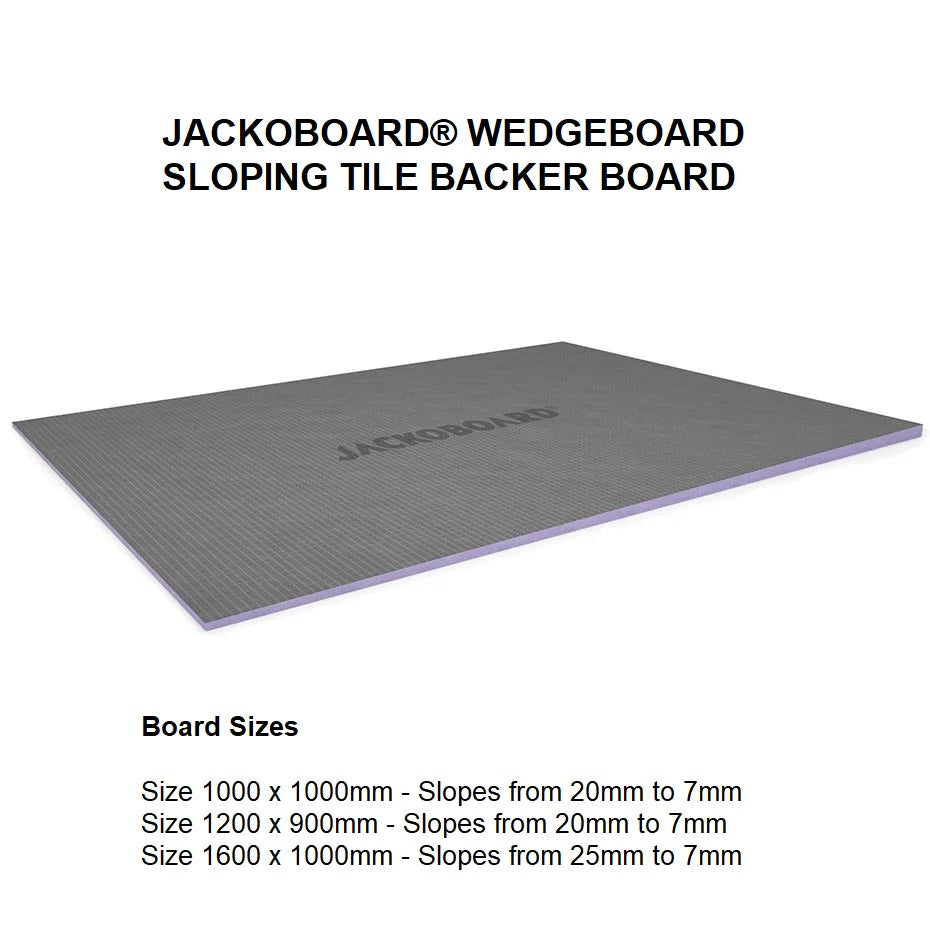

Board Sizes:
- Size 1000 x 1000mm - Slopes from 20mm to 7mm
- Size 1200 x 900mm - Slopes from 20mm to 7mm
- Size 1600 x 1000mm - Slopes from 25mm to 7mm
Characteristics JACKOBOARD® Wedgeboard:
- Sloping board for the creation of free draining tiled floor areas
- Each boards varys in thickness sloping from a high point bo the lowest point
- Manufactured from JACKOBOARD®
- XPS core with reinforced coating on both sides
Advantages JACKOBOARD® Wedgeboard:
- Drain system inclusive solid stainless steel grate
- Low installation height
- Water repellent
- CNC milled fall
- >High compressive strength > 300 kPa
Jackoboard Wedgeboard is a tile backer board with an in-built slope. It is ideal for creating a wet room floor using a linear drain channel, as the correct slope for the efficient drainage of water is present. Simply tile the floor. If to be wheelchair accessible minimum tile size is 50mm x 50mm.
The Jackoboard Wedgeboard can be laid on top of existing concrete or wooden floors. The water repellent and insulation properties of Wedgeboard make it the ideal substrate for tiling onto.
Board Sizes:
- Size 1000 x 1000mm - Slopes from 20mm to 7mm
- Size 1200 x 900mm - Slopes from 20mm to 7mm
- Size 1600 x 1000mm - Slopes from 25mm to 7mm
Characteristics JACKOBOARD® Wedgeboard:
- Sloping board for the creation of free draining tiled floor areas
- Each boards varys in thickness sloping from a high point bo the lowest point
- Manufactured from JACKOBOARD®
- XPS core with reinforced coating on both sides
Advantages JACKOBOARD® Wedgeboard:
- Drain system inclusive solid stainless steel grate
- Low installation height
- Water repellent
- CNC milled fall
- >High compressive strength > 300 kPa
Jackoboard
JACKOBOARD® are one of the leading manufacturers of XPS (extruded polystyrene foam) solutions offering a wide range of XPS foam insulation boards, wet room trays and building board solutions.
Designed & manufactured in Germany, market leading JACKOBOARD® Plano construction boards, building system and wet room trays are water-repellent and easy to work with. Finished with a special coating, they are ready to be tiled, rendered or plastered.
Explore the complete JACKOBOARD® building system range today:
