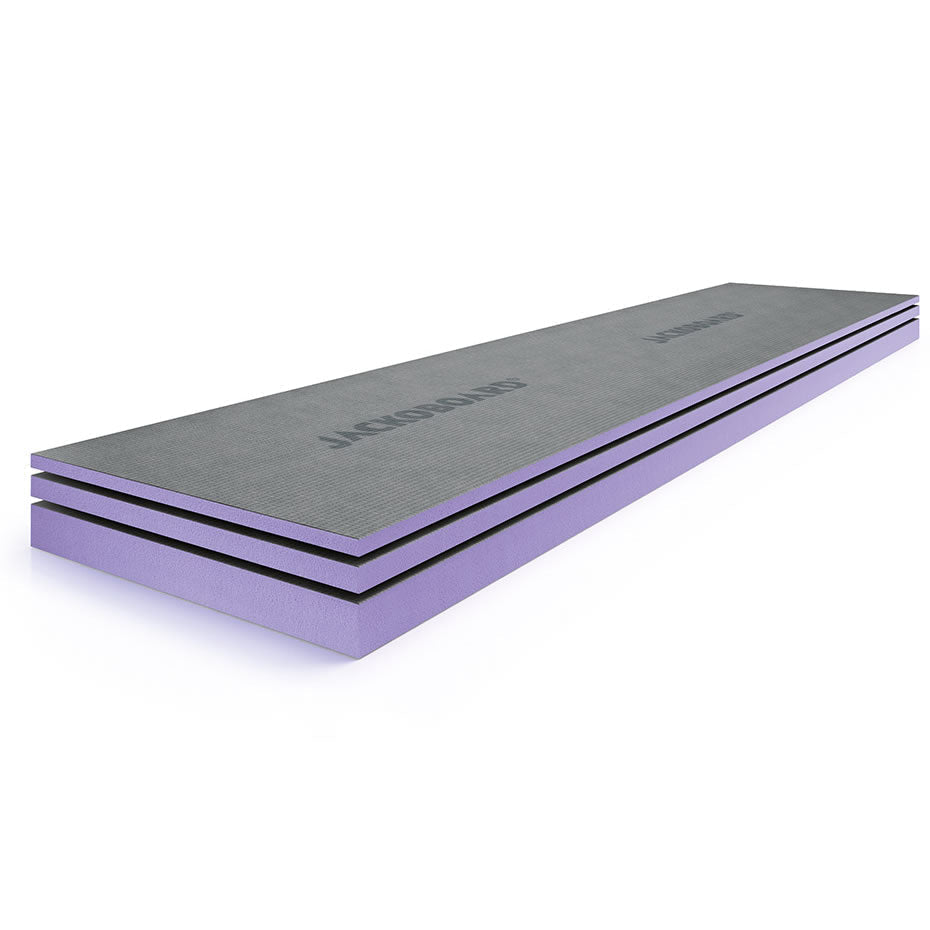

Size: 600 x 1200 x 30mm
Pack Qty: 1 Board
Walls, floors, bath panelling, furniture or individual designs: the versatility of the construction board JACKOBOARD® Plano is unique. Whether you are planning a complete bathroom, individual washstands, shower structures or special single pieces, ideas take on a tangible form with
JACKOBOARD® Plano. The construction boards can be cut to any desired shape and to any dimension. Thanks to the different thicknesses, there is no limit to the design flexibility of the construction boards for wall, floor and construction applications. They can be used on virtually any substrate and master every challenge thanks to their easy use.
Thanks to their extruded polystyrene foam core and the special coating on both sides, the JACKOBOARD® construction boards are the ideal base for plaster and tile. The surfaces of the JACKOBOARD® system provide a strong primer and can be used on virtually any substrate. At the same time, they are water repellent, thermally insulating, light and sturdy.
No matter what the old substrate is made of, JACKOBOARD® Plano is the solution for bathroom renovations. These questions are frequently asked during bathroom renovation. JACKOBOARD® Plano offers a simple answer. Uneven walls can be levelled, and flat, uniform surfaces can be created with the JACKOBOARD® construction boards. Combined with the JACKOBOARD® metal plugs, the JACKOBOARD® construction boards can also be used on non-adhesive old wall coverings. The construction boards are permanently fixed by the metal plugs on the substrate and provide a safe and adhesive substrate for the tile coverings.
Suitable for:

Use on Walls & Floors
Tiling
Under Floor Heating
Wet Rooms, Walk in Showers, Spas
Each board measures: 600 x 1200 x 30mm
Floor or Wall Area - to nearest m2 | No of Boards required |
1m2 | 2 |
2m2 | 3 |
3m2 | 5 |
4m2 | 6 |
5m2 | 7 |
6m2 | 9 |
7m2 | 10 |
8m2 | 12 |
9m2 | 13 |
10m2 | 14 |
11m2 | 16 |
12m2 | 17 |
13m2 | 19 |
14m2 | 20 |
15m2 | 21 |
Downloads
Jackoboard Plano Construction Board System
Jackoboard Plano fitting instructions - floor
Jackoboard Plano fitting instructions - Wall
Jackoboard Plano BBA Certificate
Size: 600 x 1200 x 30mm
Pack Qty: 1 Board
Walls, floors, bath panelling, furniture or individual designs: the versatility of the construction board JACKOBOARD® Plano is unique. Whether you are planning a complete bathroom, individual washstands, shower structures or special single pieces, ideas take on a tangible form with
JACKOBOARD® Plano. The construction boards can be cut to any desired shape and to any dimension. Thanks to the different thicknesses, there is no limit to the design flexibility of the construction boards for wall, floor and construction applications. They can be used on virtually any substrate and master every challenge thanks to their easy use.
Thanks to their extruded polystyrene foam core and the special coating on both sides, the JACKOBOARD® construction boards are the ideal base for plaster and tile. The surfaces of the JACKOBOARD® system provide a strong primer and can be used on virtually any substrate. At the same time, they are water repellent, thermally insulating, light and sturdy.
No matter what the old substrate is made of, JACKOBOARD® Plano is the solution for bathroom renovations. These questions are frequently asked during bathroom renovation. JACKOBOARD® Plano offers a simple answer. Uneven walls can be levelled, and flat, uniform surfaces can be created with the JACKOBOARD® construction boards. Combined with the JACKOBOARD® metal plugs, the JACKOBOARD® construction boards can also be used on non-adhesive old wall coverings. The construction boards are permanently fixed by the metal plugs on the substrate and provide a safe and adhesive substrate for the tile coverings.
Suitable for:

Use on Walls & Floors
Tiling
Under Floor Heating
Wet Rooms, Walk in Showers, Spas
Each board measures: 600 x 1200 x 30mm
Floor or Wall Area - to nearest m2 | No of Boards required |
1m2 | 2 |
2m2 | 3 |
3m2 | 5 |
4m2 | 6 |
5m2 | 7 |
6m2 | 9 |
7m2 | 10 |
8m2 | 12 |
9m2 | 13 |
10m2 | 14 |
11m2 | 16 |
12m2 | 17 |
13m2 | 19 |
14m2 | 20 |
15m2 | 21 |
Downloads
Jackoboard Plano Construction Board System
Jackoboard Plano fitting instructions - floor
Jackoboard Plano fitting instructions - Wall
Jackoboard Plano BBA Certificate

Jackoboard
JACKOBOARD® are one of the leading manufacturers of XPS (extruded polystyrene foam) solutions offering a wide range of XPS foam insulation boards, wet room trays and building board solutions.
Designed & manufactured in Germany, market leading JACKOBOARD® Plano construction boards, building system and wet room trays are water-repellent and easy to work with. Finished with a special coating, they are ready to be tiled, rendered or plastered.
Explore the complete JACKOBOARD® building system range today:
