Merlyn Level25 Wet Room Shower Tray & Drain - 1700 x 800mm

£765.00
£956.00

Price inclusive of VAT

SKU : L178RT

Delivery Approx 2 - 3 Working Days

You May Also Need

£230.00 Merlyn 8mm Wetroom Panel
£49.58 Merlyn Chrome Shower Screen Squeegee Wiper & Bracket
£190.00 Merlyn 8MM Wetroom Shower Screen Deflector Panel - 300mm

Selection Subtotal:

£765.00

Call our EXPERTS on FREEPHONE 0800 280 8008

100% money back guarantee if not fully satisfied*

Rated EXCELLENT by our customers

FREE delivery on orders
over £300

Description
Optional Merlyn 8mm Wetroom Panel

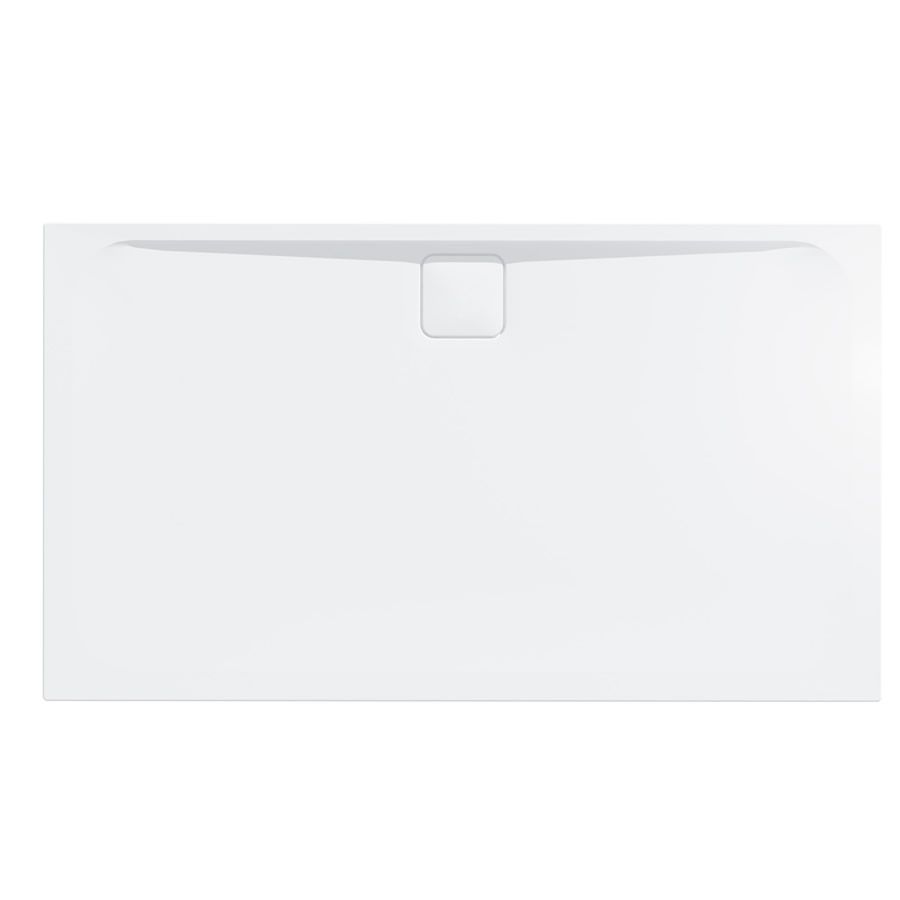

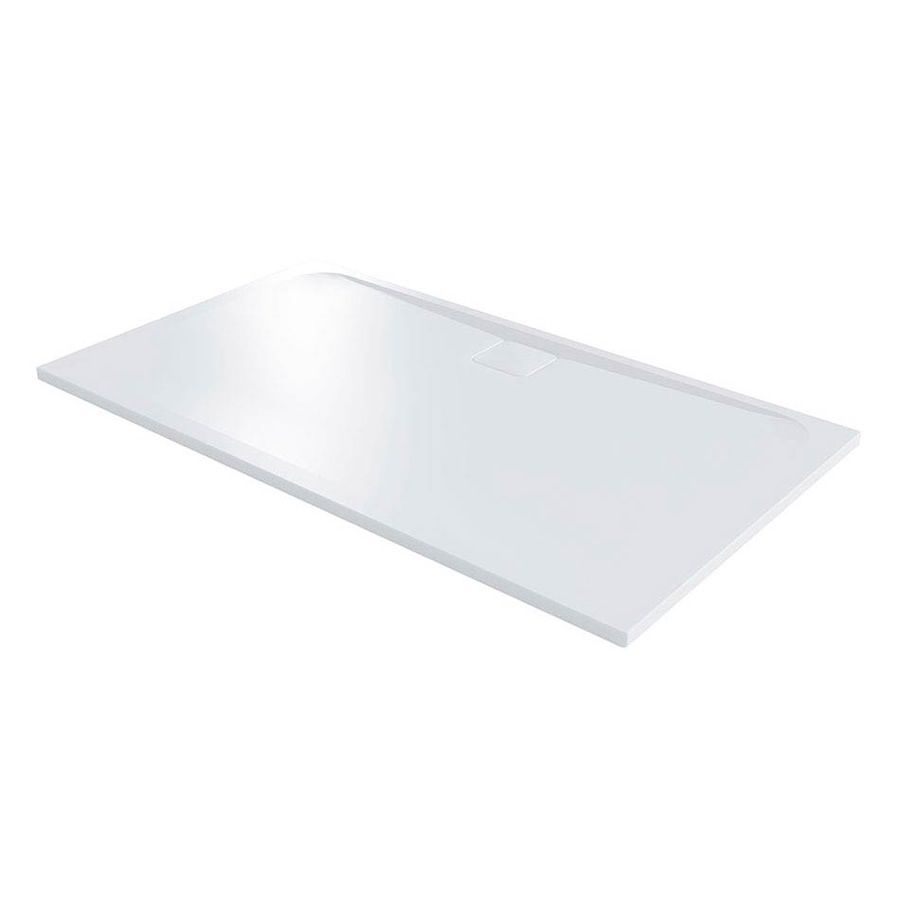

For the ultimate in minimalist chic the Merlyn Level25 shower tray is sleek and ultra slim, creating a modern and contemporary feel for any bathroom. At only 25mm high this shower tray can be fitted flush to the floor, encompassing all the benefits of a wetroom floor and accessibility. Alternatively, the Level25 shower tray can be mounted on top of the floor, to give a small step into the showering area. The discreet integrated waste cover ensures it is aesthetically pleasing to the eye but highly functional.

Unlike many shower trays at this price point, the Merlyn Level25 comes with a 90mm fast flow drain included, additionally the Merlyn Level25 shower tray is capped with an easy to clean surface that provides a chemical resistant, anti-bacterial solution due to it’s ultra-smooth, non-porous surface.

At a glance:
Size - 1700 x 800 x 25mm
Ultra slim 25mm low level tray
Sleek minimalist design
Discreet integrated waste cover
Top acrylic capped ABS layer
Stone Resin Bottom ABS layer

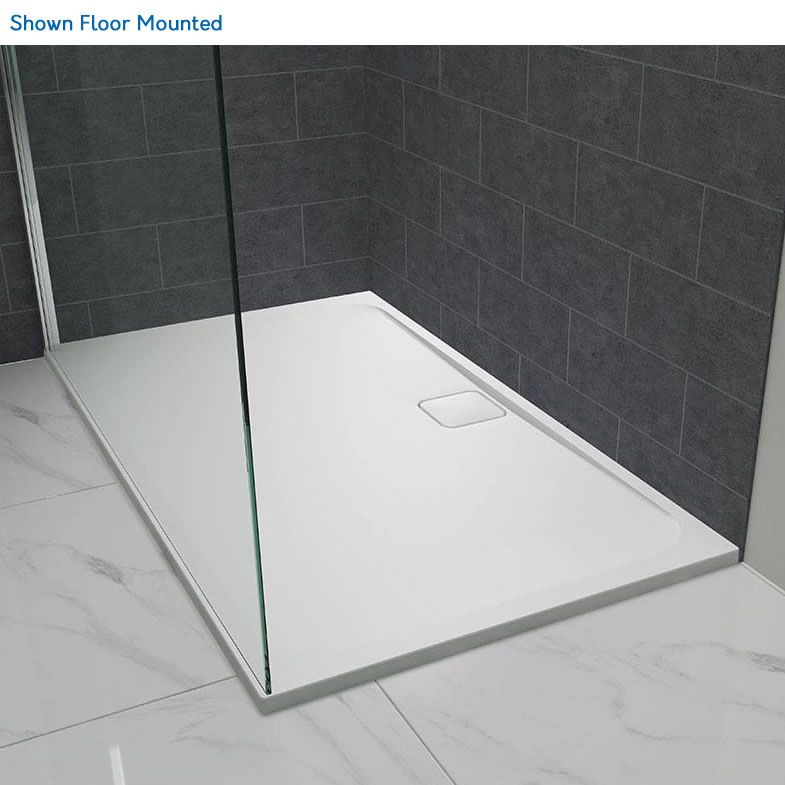

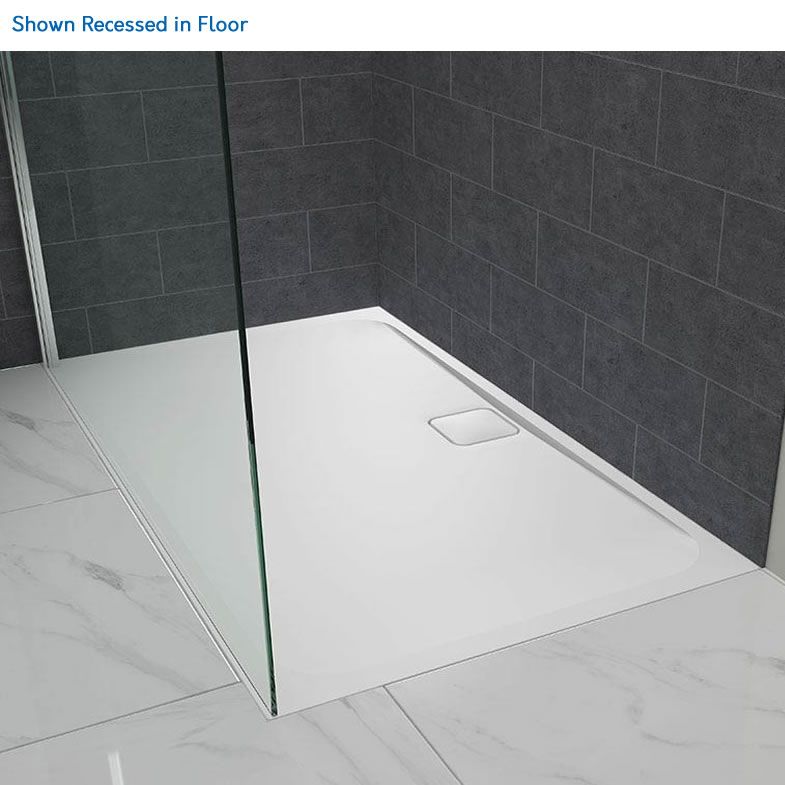

Can be fitted on or level with floor
Comes with 90mm fast flow waste
Shower tray 25 year guarantee

Drain Locations:

Merlyn Level 25 Shower Tray Size Chart

Important:
Please ensure that the shower head is not positioned directly over the waste as this may restrict flow rate.
The Level25 tray must be fitted with the waste positioned along the back wall and not to the front.

Downloads:
Merlyn Level25 Shower Tray fitting instructions

Checking the tray level prior to installation:

Important information & Considerations:

  • These trays are very heavy and will require at least two persons for handling.
  • Trays should be stored flat
  • It is up to the designer or installer to ensure that the tray and enclosure combination is arranged in such a way that water retention meets the customers needs.
  • The waste has the capacity to carry away 29L/Min. High powered systems may exceed this. Please check with the manufacturer.
  • Please ensure that the shower head is not positioned directly over the waste as this may restrict water flow rate.
  • Please ensure that the colour and size of shower tray are as per your order before installation.
  • You must inspect the product thoroughly before installation. Fitting the product is acceptance of quality.
  • The trays are handmade from natural material. Please allow for height variances due to manufacturing tolerances.
  • For open ended shower screens please consult your installer.
  • Shower trays must be fitted as per the fitting instruction. Deviation from the pre installation checks or fitting installation will void the guarantee.
  • When wet, the surface of the majority of shower trays will show an increase in the potential for slipping. This is particularly the case when soap, shampoo, bath oil etc. are used. It is important that designers, installers and users are aware of this.

Please note: Images are for illustration purposes only. The colours and finishes shown above are as accurate as possible with the limits of screen display.

MERLYN 8MM Wetroom Panel

MERLYN 8MM Wetroom Panel

Simple yet stylish, our 8mm Wetroom Panels come in a choice of colours - Matt Black, Brushed Bronze, Brushed Brass, and Chrome. You have the choice to mix and match many combinations of shapes and sizes to any space you require. At MERLYN, we understand that every wetroom space is different, which is why we have designed a modular system of wetroom panels that can be combined to fit any area.

Returns Notice: We are unable to accept returns of this item once the packaging has been opened, unless the product is damaged or faulty.

Features:

  • Height: 2015mm (Including rail)
  • All panels from 700mm & above come with a 1000mm stabilising bar
  • Available Sizes: 300mm, 400mm, 500mm, 600mm, 700mm, 760mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm, 1400mm, 1600mm
  • * All shower screens are nominally sized, see screen adjustment tab for measurements
  • 8mm toughened glass
  • Available Finishes: Standard Chrome, Matt Black, Brushed Brass, and Brushed Bronze
  • Strong & sturdy constructions
  • 3m support post can be retro-fitted to glass thickness of 8mm
  • Suitable for recess or corner situation
  • Optional Swivel panel can be retrofitted to any 8mm wetroom panel
  • Easy clean Mershield Stayclear protected glass
  • Reversible
  • Corner profile option available
  • Wetroom compatible
  • 20-year Guarantee
Merlyn 8mm Sizes
Merlyn 8mm Sizes

Description

For the ultimate in minimalist chic the Merlyn Level25 shower tray is sleek and ultra slim, creating a modern and contemporary feel for any bathroom. At only 25mm high this shower tray can be fitted flush to the floor, encompassing all the benefits of a wetroom floor and accessibility. Alternatively, the Level25 shower tray can be mounted on top of the floor, to give a small step into the showering area. The discreet integrated waste cover ensures it is aesthetically pleasing to the eye but highly functional.

Unlike many shower trays at this price point, the Merlyn Level25 comes with a 90mm fast flow drain included, additionally the Merlyn Level25 shower tray is capped with an easy to clean surface that provides a chemical resistant, anti-bacterial solution due to it’s ultra-smooth, non-porous surface.

At a glance:
Size - 1700 x 800 x 25mm
Ultra slim 25mm low level tray
Sleek minimalist design
Discreet integrated waste cover
Top acrylic capped ABS layer
Stone Resin Bottom ABS layer
Can be fitted on or level with floor
Comes with 90mm fast flow waste
Shower tray 25 year guarantee

Drain Locations:

Merlyn Level 25 Shower Tray Size Chart

Important:
Please ensure that the shower head is not positioned directly over the waste as this may restrict flow rate.
The Level25 tray must be fitted with the waste positioned along the back wall and not to the front.

Downloads:
Merlyn Level25 Shower Tray fitting instructions

Checking the tray level prior to installation:

Important information & Considerations:

  • These trays are very heavy and will require at least two persons for handling.
  • Trays should be stored flat
  • It is up to the designer or installer to ensure that the tray and enclosure combination is arranged in such a way that water retention meets the customers needs.
  • The waste has the capacity to carry away 29L/Min. High powered systems may exceed this. Please check with the manufacturer.
  • Please ensure that the shower head is not positioned directly over the waste as this may restrict water flow rate.
  • Please ensure that the colour and size of shower tray are as per your order before installation.
  • You must inspect the product thoroughly before installation. Fitting the product is acceptance of quality.
  • The trays are handmade from natural material. Please allow for height variances due to manufacturing tolerances.
  • For open ended shower screens please consult your installer.
  • Shower trays must be fitted as per the fitting instruction. Deviation from the pre installation checks or fitting installation will void the guarantee.
  • When wet, the surface of the majority of shower trays will show an increase in the potential for slipping. This is particularly the case when soap, shampoo, bath oil etc. are used. It is important that designers, installers and users are aware of this.

Please note: Images are for illustration purposes only. The colours and finishes shown above are as accurate as possible with the limits of screen display.

Optional Merlyn 8mm Wetroom Panel

MERLYN 8MM Wetroom Panel

MERLYN 8MM Wetroom Panel

Simple yet stylish, our 8mm Wetroom Panels come in a choice of colours - Matt Black, Brushed Bronze, Brushed Brass, and Chrome. You have the choice to mix and match many combinations of shapes and sizes to any space you require. At MERLYN, we understand that every wetroom space is different, which is why we have designed a modular system of wetroom panels that can be combined to fit any area.

Returns Notice: We are unable to accept returns of this item once the packaging has been opened, unless the product is damaged or faulty.

Features:

  • Height: 2015mm (Including rail)
  • All panels from 700mm & above come with a 1000mm stabilising bar
  • Available Sizes: 300mm, 400mm, 500mm, 600mm, 700mm, 760mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm, 1400mm, 1600mm
  • * All shower screens are nominally sized, see screen adjustment tab for measurements
  • 8mm toughened glass
  • Available Finishes: Standard Chrome, Matt Black, Brushed Brass, and Brushed Bronze
  • Strong & sturdy constructions
  • 3m support post can be retro-fitted to glass thickness of 8mm
  • Suitable for recess or corner situation
  • Optional Swivel panel can be retrofitted to any 8mm wetroom panel
  • Easy clean Mershield Stayclear protected glass
  • Reversible
  • Corner profile option available
  • Wetroom compatible
  • 20-year Guarantee
Merlyn 8mm Sizes
Merlyn 8mm Sizes
