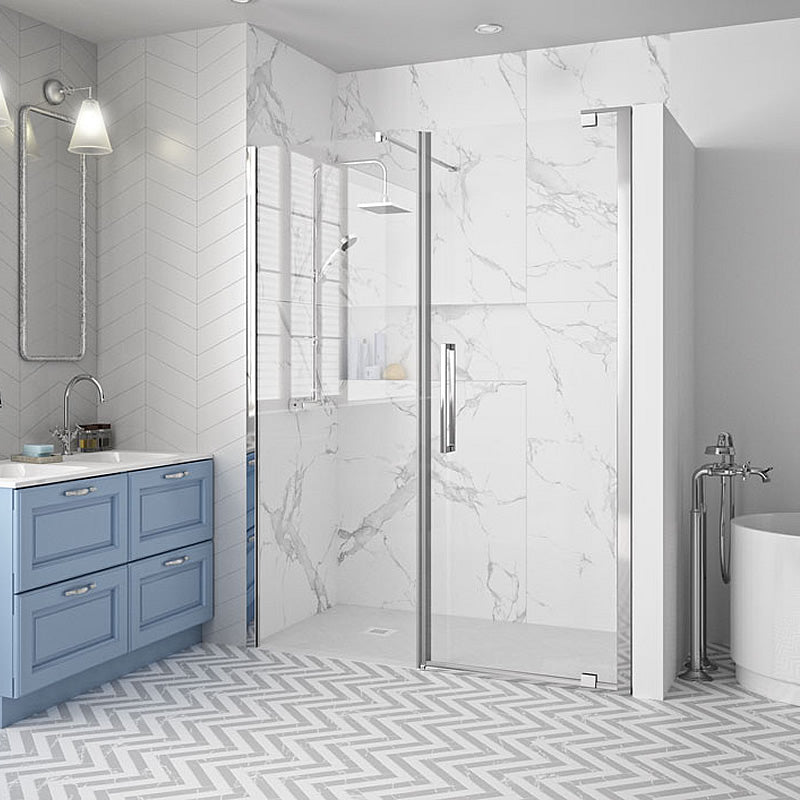

The Merlyn 10 Series Pivot door & Inline is bound to impress in any bathroom; from the reassuringly substantial 10mm thick toughened glass to the solid feeling in your hand as the door opens in one smooth motion.

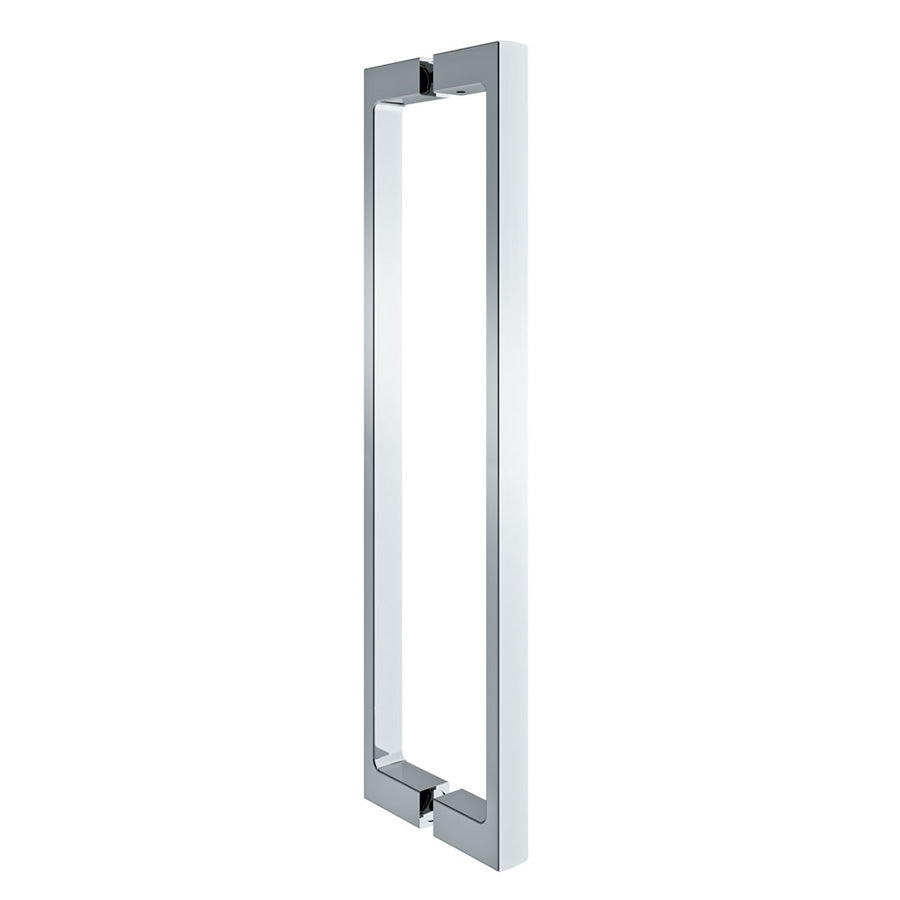

The Inline panel is available in different sizes. The solid chrome angular double handle provides a style statement that befits the beauty of this door.
Features:
Height: 2030mm
10mm toughened glass
Easy clean Mershield Stayclear protected glass
Lifetime Guarantee
Solid chrome handle
Reversible
Wetroom compatible
Fully concealed fixings
CE Approved - Toughened 10mm thick glass
European safety glass approved - EN14428 & EN12150
Meresheild Stayclear:
Mershield Stayclear acts as a protective coating which when applied to glass, helps the glass to remain shiny and new without the need for tiresome cleaning.
When cleaned correctly it helps prevent the build up of limescale and soap deposits making the shower glass “Easy to Clean”.
How it Works
Mershield Stayclear coating creates a smooth layer over the surface of natural glass, lowering surface friction, making it easier for water, soap and lime deposits to run off the glass.
Adjustments:
A total of 35mm adjustment (max of 12mm adjustment in wall profile on closing side for out of true walls i.e. on right hand side of image shown).
Size: | TRAY Finish Adjustment | Door Size | Inline Panel Size |
1200mm | 1150 - 1190mm | 800mm | 400mm |
1400mm | 1350 - 1390mm | 800mm | 600mm |
1500mm | 1450 - 1490mm | 900mm | 600mm |
1600mm | 1550 - 1590mm | 800mm | 800mm |
1700mm | 1650 - 1690mm | 900mm | 800mm |
1800mm | 1750 - 1790mm | 1000mm | 800mm |
Important:
Please Note: Moving panel door must close onto the inline panel.
For wetroom installation, please reduce Side Panel Tray Finish Adjustment by 10mm.
