Sunstone Underfloor Heating PVC Heating Mat - 150W
SKU : SSMat 1.0
You May Also Need
Selection Subtotal:
£40.00

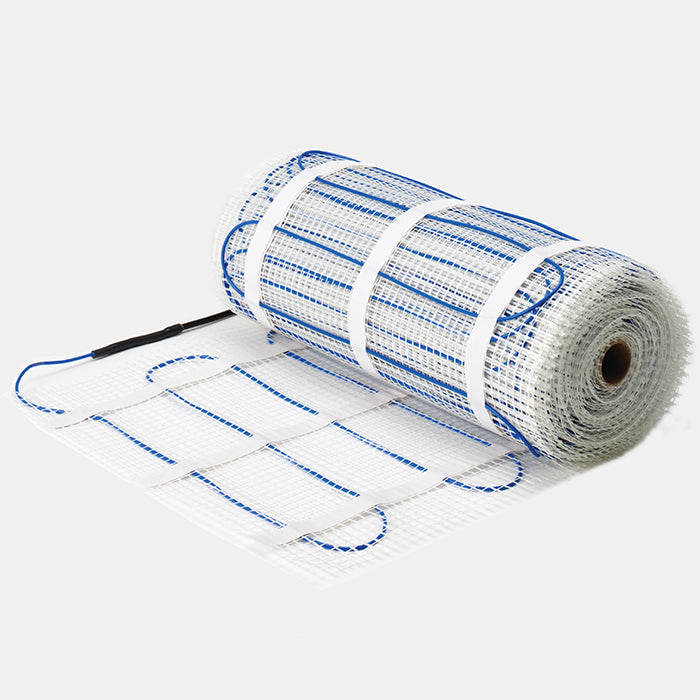

The Heat Mat is an energy-efficient electric floor heater that brings radiant warmth to cold bathroom floors. Ideal for use with stone or ceramic floor tiles, the Heat Mat offers a hassle-free installation and has little to no impact on floor heights. It features a pre-spaced, dual-core heating cable attached to a fibreglass mesh mat with an innovative adhesive backing which securely binds the mat to the subfloor.
The Heat Mat is available in a wide range of sizes, making it suitable for regular-shaped bathrooms of all styles.
Features:
- Quick installation times - features adhesive backing
- Low-profile heater - ideal for bathroom renovations
- Wide range of sizes
- CE and UKCA marked - highest safety standards
- 10 year warranty
Specification:
- Operating Voltage: 230 V AC : 50 Hz
- Output Rating: 150 W/m²
- Width: 500 mm (0.5 m)
- Cable Thickness: 3 mm
- Heating Cores: Single-strand, dual core
- Earth Protection: Copper earth wire with aluminium screen
- Inner Insulation: ETFE
- Outer Insulation: PVC
- IP Rating: IPX7
- Min. Installation Temperature: - 10 °C
- Connection: 3 m “coldtail” connection
Sunstone Heating Mat Size Guide
SSMAT - 150 W/m2 Mat Heater
| Model | Dimensions | Heated Area (m2) |
Power (W) |
Amperage (A) |
Resistance (Ω) |
Resistance Band (-5% Ω +5%) |
| SSMat 1.0 | 0.5 x 2.0m | 1.0 | 150 | 0.65 | 352.7 | 335.1 - 370.3 |
| SSMat 1.5 | 0.5 x 3.0m | 1.5 | 225 | 0.98 | 235.1 | 223.3 - 246.9 |
| SSMat 2.0 | 0.5 x 4.0m | 2.0 | 300 | 1.30 | 176.3 | 167.5 - 185.1 |
| SSMat 2.5 | 0.5 x 5.0m | 2.5 | 375 | 1.63 | 141.1 | 134.0 - 148.2 |
| SSMat 3.0 | 0.5 x 6.0m | 3.0 | 450 | 1.96 | 117.6 | 111.7 - 123.5 |
| SSMat 3.5 | 0.5 x 7.0m | 3.5 | 525 | 2.28 | 100.8 | 95.8 - 105.8 |
| SSMat 4.0 | 0.5 x 8.0m | 4.0 | 600 | 2.61 | 88.2 | 83.8 - 92.6 |
| SSMat 4.5 | 0.5 x 9.0m | 4.5 | 675 | 2.93 | 78.4 | 74.5 - 82.3 |
| SSMat 5.0 | 0.5 x 10.0m | 5.0 | 750 | 3.26 | 70.5 | 67.0 - 74 |
| SSMat 6.0 | 0.5 x 12.0m | 6.0 | 900 | 3.91 | 58.8 | 55.9 - 61.7 |
| SSMat 7.0 | 0.5 x 14.0m | 7.0 | 1050 | 4.57 | 50.4 | 47.9 - 52.9 |
| SSMat 8.0 | 0.5 x 16.0m | 8.0 | 1200 | 5.22 | 44.1 | 41.9 - 46.3 |
| SSMat 9.0 | 0.5 x 18.0m | 9.0 | 1350 | 5.87 | 39.2 | 37.2 - 41.2 |
| SSMat 10.0 | 0.5 x 20.0m | 10.0 | 1500 | 6.52 | 35.3 | 33.5 - 37.1 |
| SSMat 12.0 | 0.5 x 24.0m | 12.0 | 1800 | 7.83 | 29.4 | 27.9 - 30.9 |
| SSMat 15.0 | 0.5 x 30.0m | 15.0 | 2250 | 9.78 | 23.5 | 22.3 - 24.7 |
