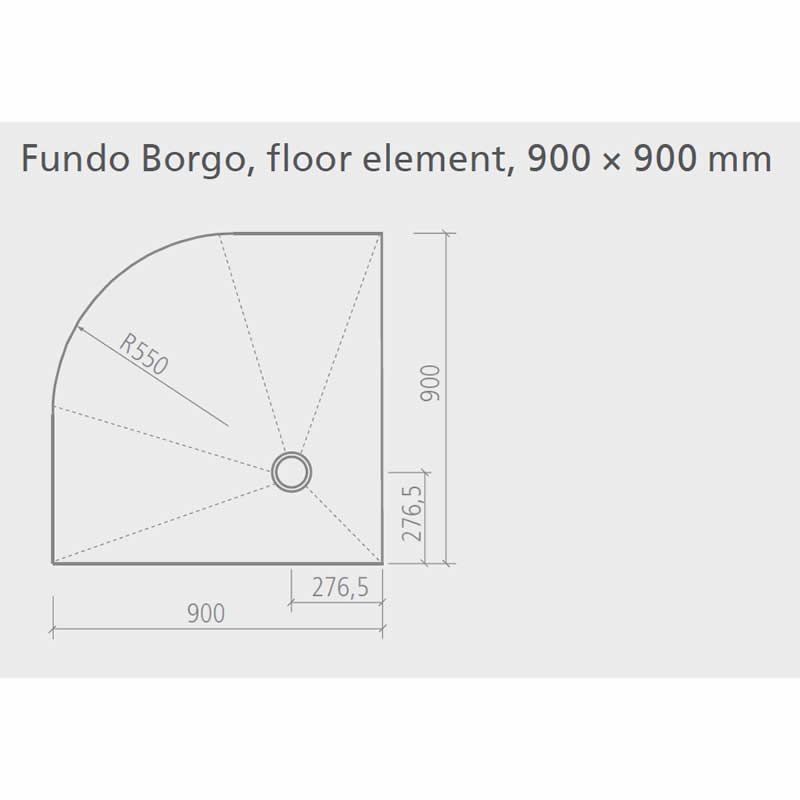

Wedi Fundo Borgo Shower Tray Former - QUADRANT - 900 x 900 x 40mm - CORNER Drain

Copy from Here (this label will be hidden)

Add your 3 titles here (this label will be hidden)

To Here (this label will be hidden)

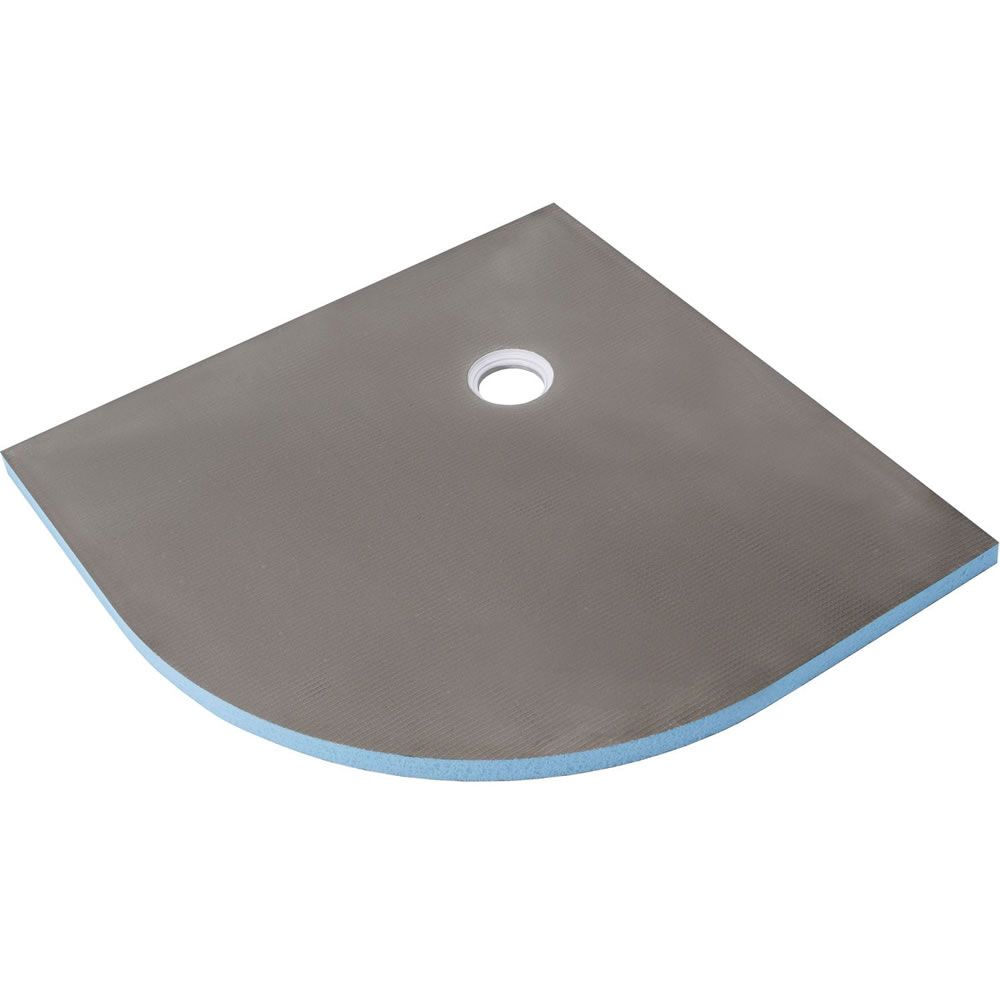

Fundo floor elements from wedi offer a reliable and efficient solution for the construction of waterproof, floor level showers. Featuring a fitted and sealed floor drain (available seperatley), a supplementary factory applied waterproof coating and a predefined slope, they require far less work on any project and therefore save the installer a lot of time.

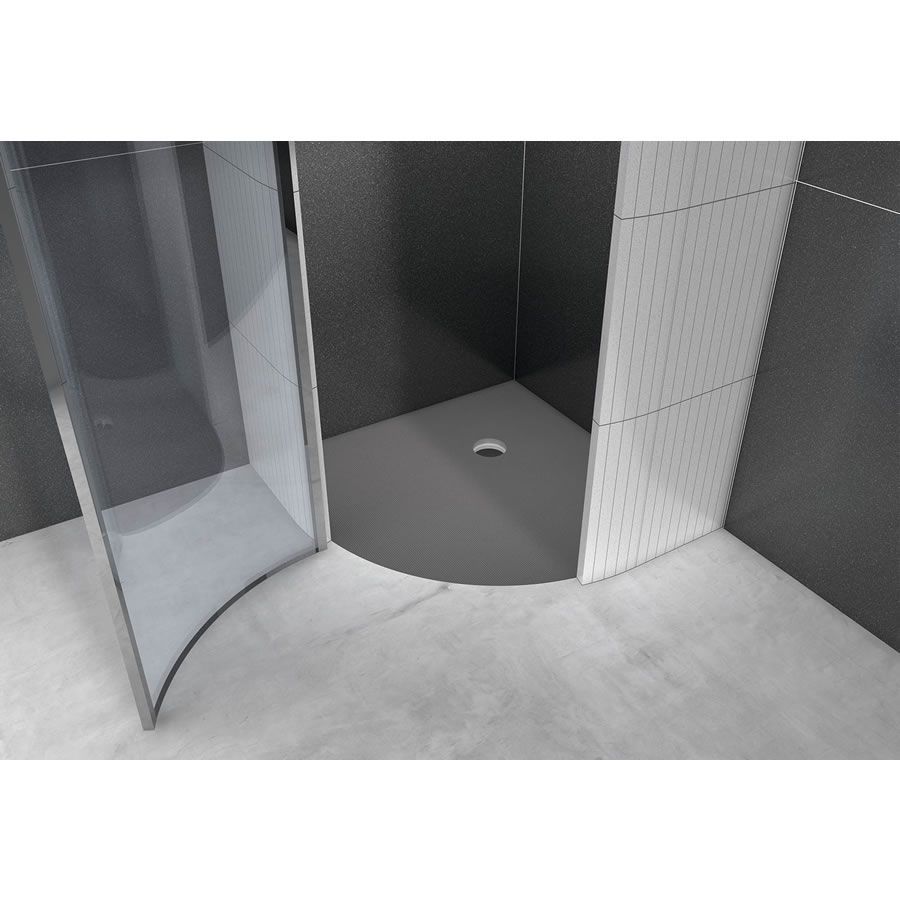

If you would prefer, or indeed have to, fit your shower into the corner of a room, yet still want to include curved lines in your design concept, then wedi Fundo Borgo floor elements are just the thing. Design and functionality combined in one product. The tileable floor units are not only highly practical and reliable, but they have also opened up a whole new world of design possibilities for wet rooms and bathrooms.

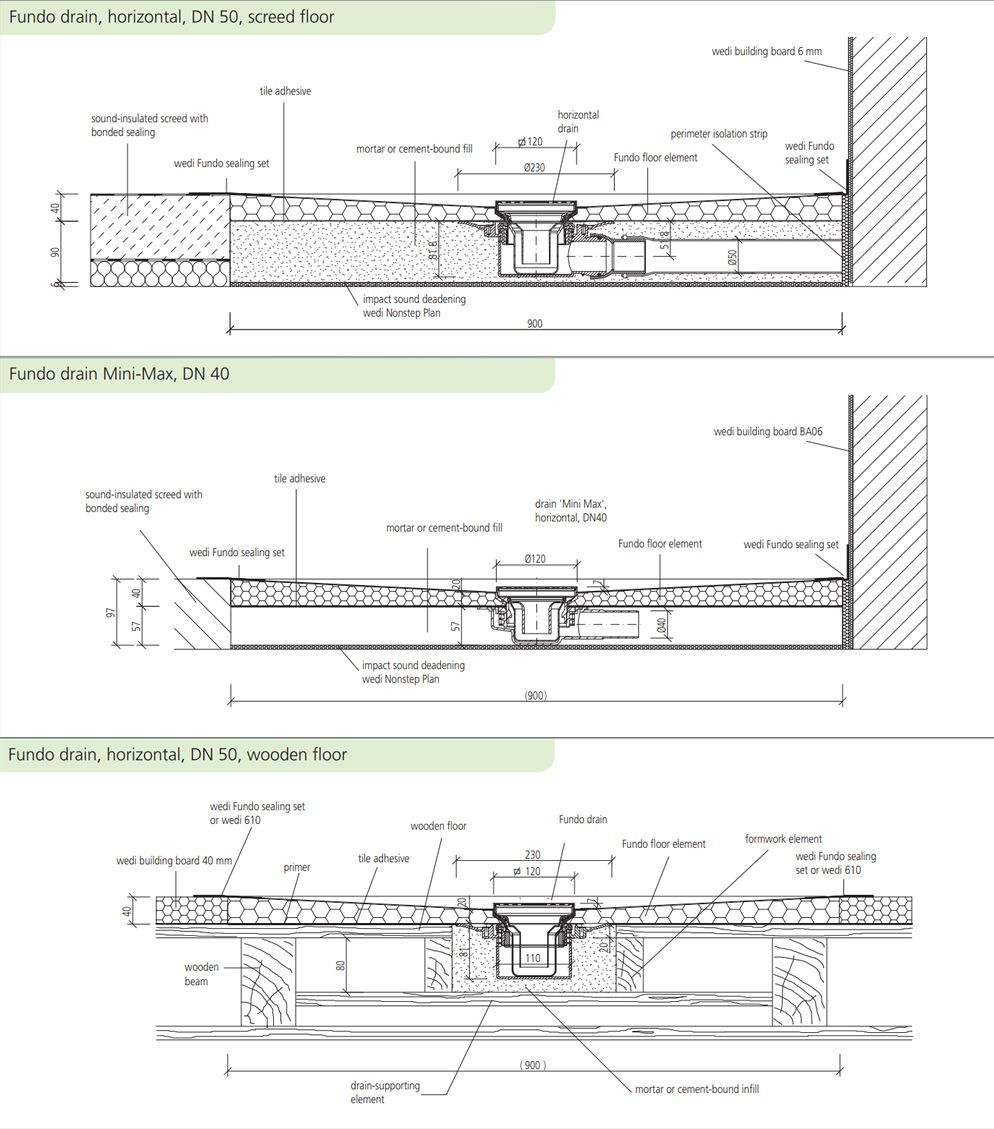

Whilst the Wedi Fundo Borgo is primarily designed for use in a concrete screed floor it can be laid on top of a wooden floor (excluding traditional floor boards). The drain is laid inside the floor structure and will need supporting with a concrete screed infill or the Wedi Fundo drain substrate. Please see below instructions. Alternatively for suspended wooden floors (traditional floorboards) please see the Wedi Fundo Ligno wet room former.

Drain:

A drain is not included as standard with the Wedi Fundo Borgo, therefore it will need to be purchased if required. A number of options are available as follows:

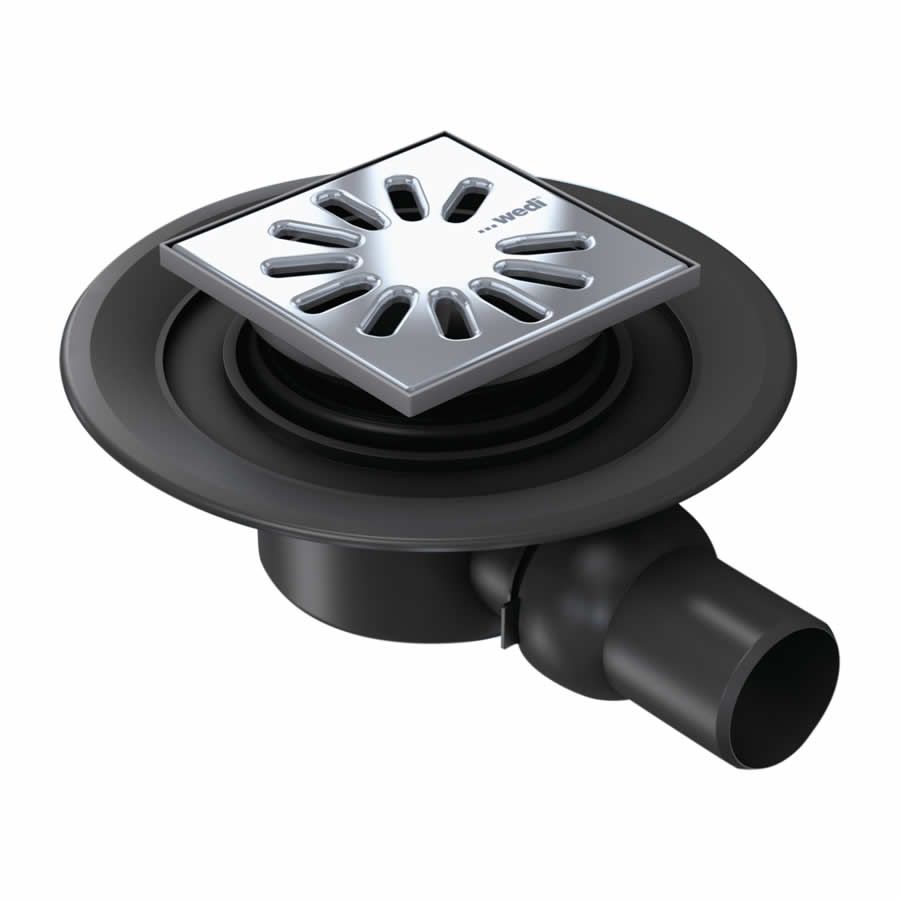

DN50 Square: Depth below tray 90mm - Flow rate 0.80 l/s / 48.0 l/m
DN50 Round: Depth below tray 90mm - Flow rate 0.80 l/s / 48.0 l/m
DN40 Mini Max Low profile: Depth below tray 57mm - Flow rate 0.50 l/s / 30.0 l/m

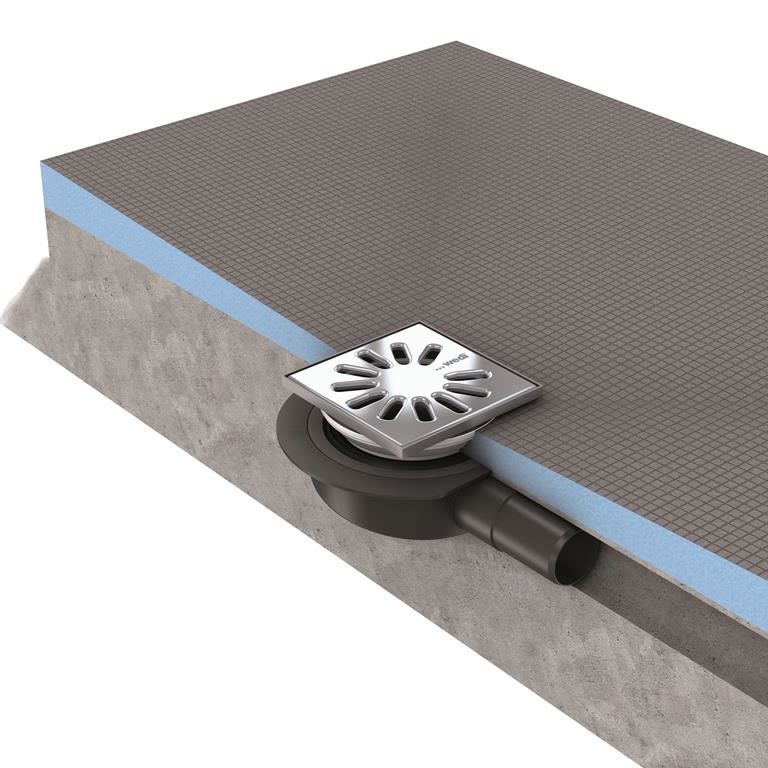

To make installation of the drain easier a drain substructure is optionally available. The substructure supports the drain body, eliminating the need to cement the drain body in.

Additionally, alternative drain grates (standard supplied) are available to purchase separately.

Waterproofing/Sealing:

The Wedi Fundo Primo wet room tray former is itself 100% waterproof, including the core. This means that should it become damaged the tray former is still waterproof. If a Wedi Fundo Primo tray is joined to Wedi Building Board using the Wedi 610 Hybrid Adhesive and Sealant, as per the manufacturer’s instructions, then that joint will be 100% waterproof. However, we strongly advise the taping of all joints with waterproof tape, and then sealing the whole area with the Wedi Sealing Kit to provide extra assurances on the waterproofing and peace of mind for years to come.

Key points:

100% waterproof core (even when damaged)
Manufactured from extruded polystyrene rigid foam,reinforced with glass fibre on both sides and finished with a polymer-modified cement coating
In-built fall to drain
Mold and mildew proof
Thermally insulating
Light weight
40mm deep

Wedi Fundo Borgo Technical Data Sheet
Wedi Fundo Borgo Screed Floor Fitting Instructions
Wedi Fundo Borgo Wooden Floor Fitting Instructions
Wedi Shower Elements BBA Certificate No:14/5126
