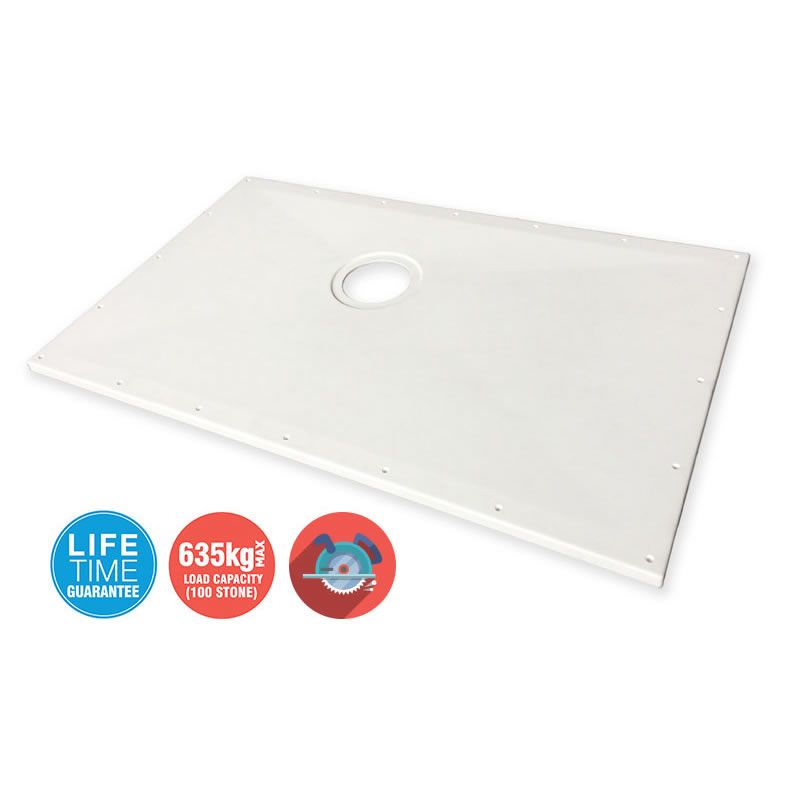

Contour ShowerDec Wet Room Shower Tray Floor Former - 1200 x 900mm

£246.00
£410.64

SKU : SD1200x900

Order in the next: 00 hours, 00 minutes, 00 seconds for Same Day Shipping*

Delivery Approx 1 - 2 Working Days

Selection Subtotal:

£246.00

Call our EXPERTS on FREEPHONE 0800 280 8008

100% money back guarantee if not fully satisfied*

Rated EXCELLENT by our customers

FREE delivery on orders
over £100

Description
Key Features
You May Also Need - Options
Data Sheet Downloads

Copy from Here (this label will be hidden)

Add your 3 titles here (this label will be hidden)

Specification
Suitable For
Not Suitable For

Add your 3 lists here (this label will be hidden)

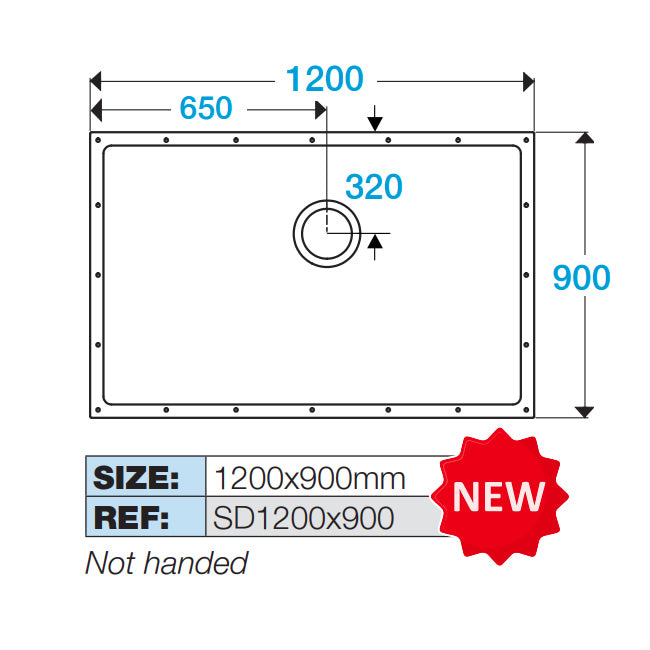

  • 1200 x 900 x 24mm
  • Under Support NOT Required
  • Tiled, Vinyl & Pumped Drain Options
  • Supports up to 100st / 653kg
  • Can be trimmed
  • Lifetime Guarantee*
  • Wood or Concrete Subfloor
  • Tiled Floor Finish
  • Vinyl Floor Finish
  • Wet Rooms
  • Level Access
  • Raised on Platform
  • Use with Wheelchair
  • Fitting direct on Joists
  • Underfloor Heating
  • Micro Cement

To Here (this label will be hidden)

The ShowerDec from Contour is an incredibly strong wet room / walk in shower former tray that is suitable for tiled or vinyl floor finish, and can be installed in wooden or concrete sub floors. Designed for level access  wet rooms and shower areas, the ShowerDec is suitable for use with wheelchairs and similar devices, with out the need for under supporting.

The ShowerDec is tested to withstand 100 stone / 635Kg across the entire surface area to simulate a standing person. At just 24mm thick the ShowerDec is suitable for installing direct onto floor joists, the remaining floor should then be boarded to the same level.

ShowerDec floor formers are available in 12 size options and can be further cut to size using a circular saw or jigsaw. The ShowerDec features offset drain positions designed to avoid joists, trays are not handed. A standard vinyl waste and stainless steel tile and vinyl waste options are available, in addition  to a pumped outlet (pump available separately

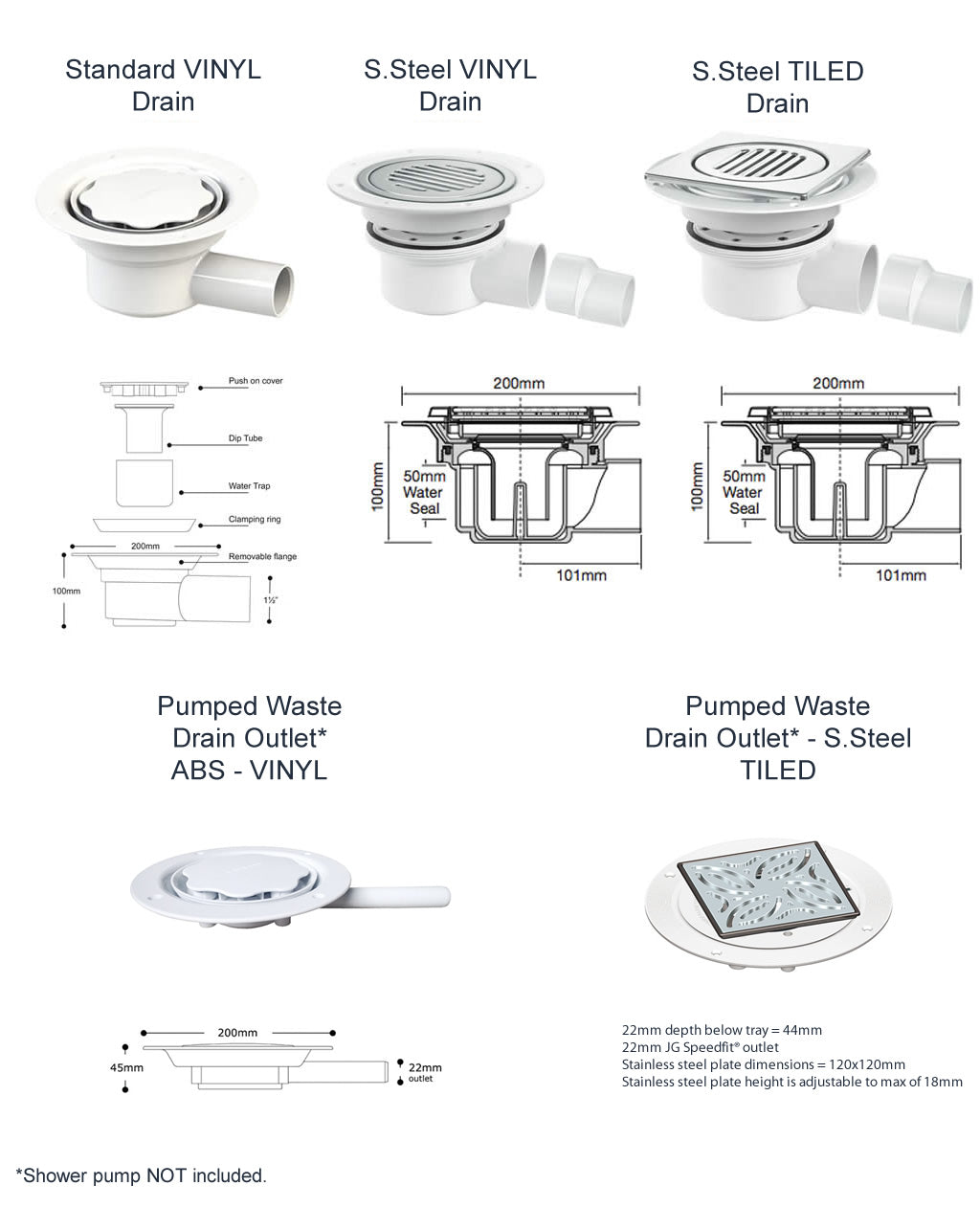

Waste Options:

The Contour Shower Dec is NOT supplied with a waste as standard. Please specific  your option when ordering.

CTW01 - ABS white VINYL drain:

  • 2 part, 50mm water seal trapped waste for use with a wet room floor former.
  • Bolts together for easy installation.
  • Push on cover plate with removable inner cup for cleaning.
  • Flow rate in excess of 26 litres per minute.
  • 1½” outlet.
  • Tested in accordance with EN274-2:2002
  • Top access, easy to clean.
  • Manufactured in white ABS, will withstand wheelchair loadings.
  • 100mm deep.

TSG52 - ABS drain body with Stainless steel grate for vinyl (round) or tiled (square) floor (please specify):

  • Stainless steel option for use with vinyl safety flooring (round grate) or tiled floor (square grate).
  • 2 part, 50mm water seal trapped gully.
  • Flow rate in excess of 40 litres per minute.
  • 1½” outlet.
  • Top access, easy to clean.
  • Gully manufactured in white ABS, will withstand wheelchair loadings.
  • 100mm deep.

CUW01 - Outlet for use with shower waste pumps (does not include pump):

  • Use with a wet room floor former and flexible vinyl sheet flooring.
  • To be used in conjunction with a shower waste pump.
  • Push on cover plate, with 22mm outlet.
  • Top access, easy to clean.
  • Manufactured in white ABS, will withstand wheelchair loadings.
  • Increased outlet length for easier installation.
  • 45mm deep.


This Product May Be Purchasable VAT Free


If you are purchasing wet room equipment and fittings (trays, grab rails and seats etc) and are registered disabled, or they are for use by a person registered as disabled, you may be eligible for VAT relief on the items.

For full details and eligibility criteria please see the following page:
VAT Relief on Wet Room Purchases

Installer Friendly:

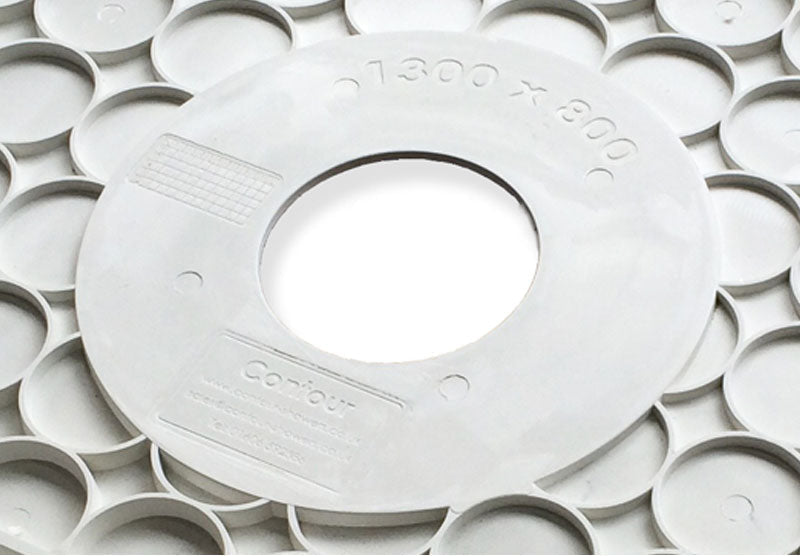

  • No raised collar around the underside of the waste making installation on timber floors easier.
  • 40mm flat area around the floor former perimeter for door placement and water retention.
  • Larger shower area, ideal for wheelchairs.

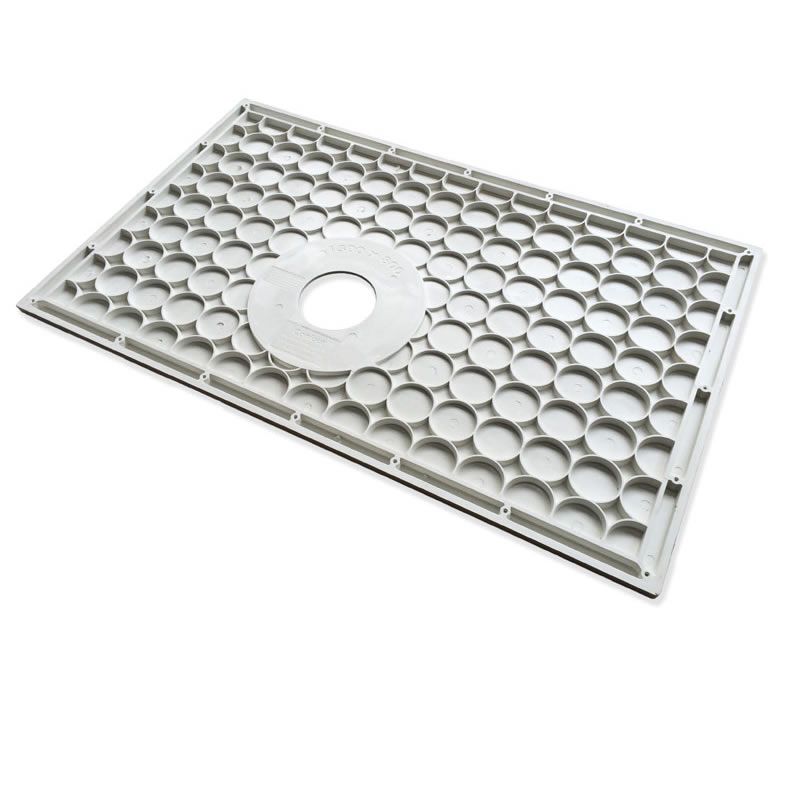

  • Circular ribbed underside designed for setting into a concrete or screed base and eliminates slippage when installing.
  • Textured top surface allows excellent adhesion of vinyl flooring.
  • Offset waste positions to avoid joists.
  • Excellent falls of approximately 2% - 2.5% built into the top surface - ‘BEST IN CLASS’.
  • Pre-formed semi-drilled fixing points for secure installation.
  • Can be cut to size in virtually any position using a circular saw or jigsaw.
  • Suitable for timber & screeded floors

*Tested in accordance with a standard floor with 16” joist centres of 47mm width and supported around the floor former outer edges.

Contour P12 Shower Waste Pump:

Contour P12 Shower Waste Pump

The Contour P12 Shower Waste Pump is the only quiet, un-blockable, maintenance FREE and variable speed shower waste pump for when gravity drainage is unavailable.

Features:

Silent operation.
Reliable peristaltic pump design. Water travels through a sealed tube reducing the risk of blockage.
Variable speed transformer allows precise control of the pump speed to match the shower flow rate.

Benefits:

  • Maintenance free with a 5 YEAR WARRANTY.
  • Low running costs due to the 24v DC efficient energy motor.
  • Wallplate with quick release pump bracket.
  • Suitable for electric and mixer showers. (Additional flow switch required for mixer shower installations).
  • Complete with a 2-metre length of 22mm flexible pipe for improved performance.
  • Link directly to a Redring Selectronic Premier WP, Mira Advance ATL Flex Extra or Triton Omnicare eliminating the flow switch.
  • Not handed for easy and quick installation.

Box Contents:

  • Contour P12 Shower Pump
  • 1 x Flowswitch
  • Fitting / User Instructions

Full product description:Contour P12 Shower Waste Pump





Jackoboard Paint-On Tanking Kit:

Jackoboard Paint-On tanking kit

The Jackoboard tanking kit contains a rapid drying, brush/roller applied, single part flexible liquid membrane for use on rigid surfaces in bathrooms, wetrooms and showers. It can also be used to waterproof existing surfaces such as plaster, plasterboard or timber.

Suitable for all flat or vertical surfaces made of any material. Simple to use for novices and experts alike. Compatible with almost every type of under floor heating and ready for tiling with no further preparation (please check with under floor heating manufacturer).

For use under ceramic coverings in wet rooms, showers and bathrooms. Coverage 5 - 6sqm under normal conditions with recommended two coats.

Jackoboard Paint-On tanking kit contents:

  • 4kg (2.5 litre) Tanking solution
  • 1 litre primer for timber/plasterboard
  • 10m sealing tape
  • 2 x internal corners seals

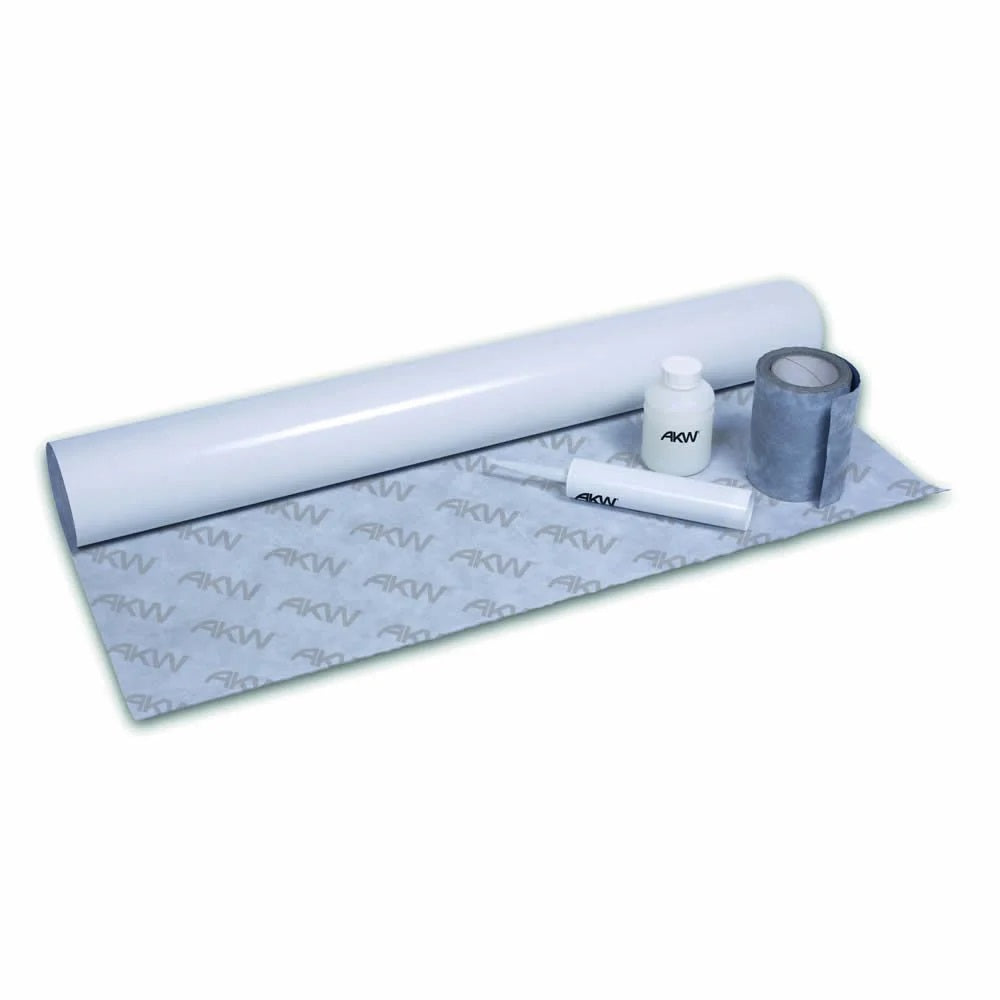

Contour Wet Room Tanking Membrane:

Contour Wet Room Tanking Membrane

Contour wetroom tanking membrane is a unique bituminous, pre-formed flexible self-adhesive waterproof membrane. Consisting of a 1mm thick rubberised waterproof layer, incorporating a fabric mesh on one side.

Probably one of the best tanking membranes available for use in wetroom applications as it provides a thick industrial strength impermeable barrier to any water that may escape beneath the tiles. The membrane is self-adhesive and comes on a roll. Once installed tiles can be applied immediately - there is no curing time.

Although particularly suited to floor applications the membrane can also be applied to walls as an additional precaution. However, there is a maximum weight limit for wall mounted tiles when using and this should not exceed 20kg/m2.

The membrane can be used with underfloor heating. Note: Maximum effective temperature for is 32oC and should not be exceeded. Electrical heating max 150w.

Contour offer 2 different kit sizes of tanking membrane, 5m2 and 10m2.

At A Glance:

  • It is ideal for use on substrates, such as timber, masonry, concrete, plasterboards, gypsum & tile backer boards
  • Once Applied is ready to tile immediately, no drying time
  • Membrane is cold applied, consisting of a 1mm thick butyl waterproof layer, incorporating a fleece on one side
  • Factory controlled thickness
  • Self-adhesive mat
  • 100% waterproof
  • No heating equipment required
  • Can be installed over a thermal board. Heating restricted at 32°. Electrical heating max 150w.
  • Lifetime of tile Guarantee when installed as per the manufacturers recommendations

Contour Wet Room Membrane Kit Contains:

  • 5m² or 10m² of membrane (5m/10m x 1m)
  • 500ml primer
  • 10m Reinforcing tape
  • 1 x Jointing compound
  • 4 x preformed internal corners





Sommer Evolve Wet Room Shower Screen

Sommer Evolve Wet Room Screen

Add an optional quality Sommer Evolve 8mm thick by 2000mm high toughened safety glass shower screen in a choice of widths, finished with an easy clean coating as standard, comes complete with wall bracket and support arm (700mm screen & above).

Available in of 400mm, 500mm, 600mm, 700mm, 760mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm or 1400mm length shower screens#

A life time guarantee and toughened 8mm glass gives you substance and style, in addition all Sommer wet room shower screens offer many premium features:

  • Bclean coating: Easy clean glass finish
  • Life time guarantee
  • Toughened 8mm thick glass
  • 2000mm high
  • Wall fixing profile supplied
  • Adjustable bracing bar supplied (1m)
  • Fittings available in Chrome or Black
  • Adjustment for secure and easy fixing (see below for further details)
  • Optional floor to ceiling post available (Max height 2.6m) - Cannot be used in conjunction with optional 300mm return panel.
  • Optional Angled Stabalising bar available (300mm)
  • CE Approved - Toughened 8mm thick glass
  • European safety glass approved - EN12150-1

#Screen sizes are nominal. All panels are undersized to allow for tiling when fitting to shower trays.

Sommer wet room shower screens are highly versatile and can be installed in many configurations including, One panel in a corner, One panel in an alcove, Walk through (with the use of two optional floor to ceiling posts), and with two panels in a corner to create a walk in enclosure.
