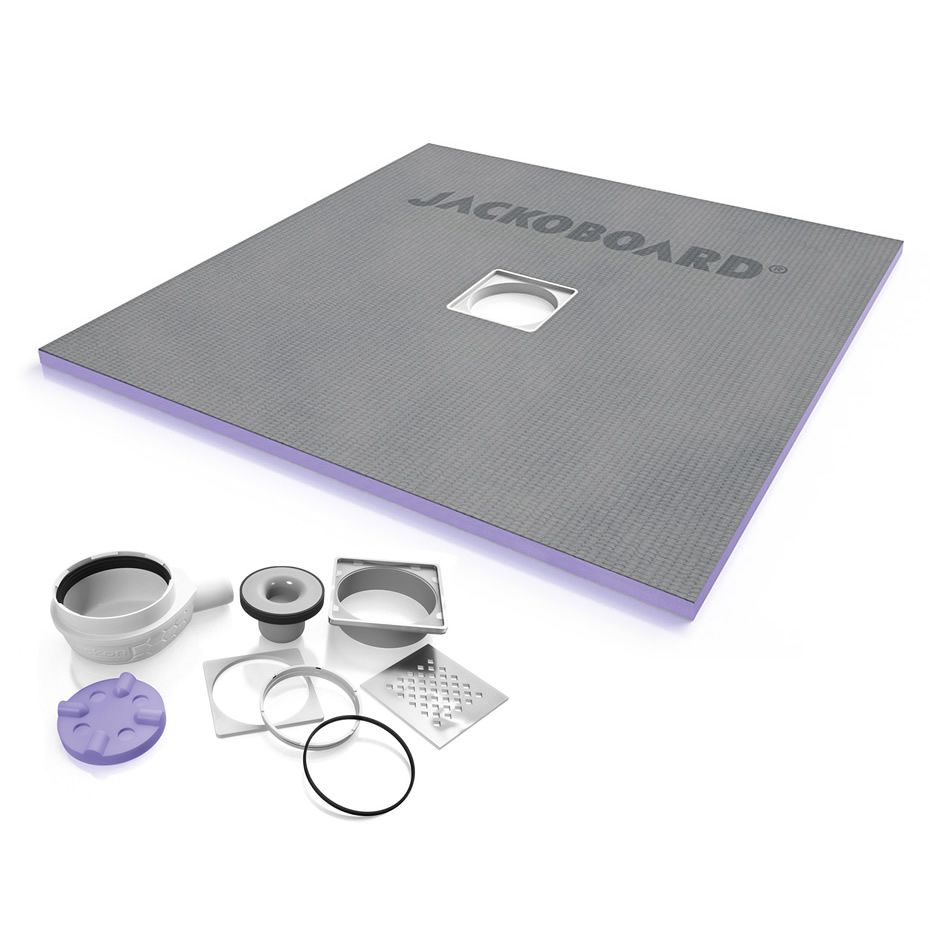

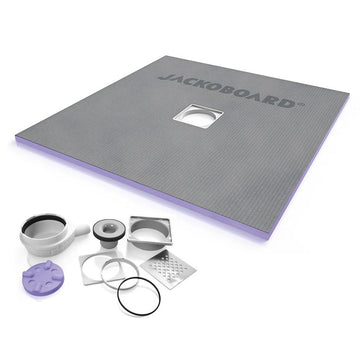

Jackoboard Aqua Flat Wet Room Tray

Ideal for level access showering on suspended timber floors

At just 20 or 25mm thick, JACKOBOARD® Aqua Flat shower tray floor formers are ideally suited... Read More >

Ideal for level access showering on suspended timber floors

At just 20 or 25mm thick, JACKOBOARD® Aqua Flat shower tray floor formers are ideally suited for building wet room level access showers on suspended timber floors. They have a water-repellent core made of extruded polystyrene foam (XPS) and an extremely low installation height with an incorporated drainage fall, machine CNC milled for accuracy. They also feature a special coating on both sides that permits direct tiling without the need for additional preparatory work.

Coupled with excellent thermal insulation properties the Jackoboard Aqua Flat is the perfect substrate for the laying of underfloor heating mats, helping to keep the warmth in the room intended.

Product characteristics JACKOBOARD® Aqua Flat:

Made of extruded polystyrene foam
Water-repellent
With special coating on both sides
Tiles can be applied directly
Integral CNC machines drainage fall
Thicknesses: 20 or 25 mm
Excellent thermal insulation properties λD = 0.035 W/(m·K)
Drainage flow rate > 0.9 l/s
Wheelchair-accessible
Compressive strength > 300 kPa

Benefits JACKOBOARD® Aqua Flat:

Extremely low installation height
Available in many custom shapes and sizes (e.g. square, rectangular)
Different drain systems with a selection of individual positions, including solid stainless steel grate
Sealed drain flange

Filters
