Contour P12 Shower Waste Pump

£468.00
£639.72

SKU : 05PP01

Selection Subtotal:

£468.00

Call our EXPERTS on FREEPHONE 0800 280 8008

100% money back guarantee if not fully satisfied*

Rated EXCELLENT by our customers

FREE delivery on orders
over £100

Description

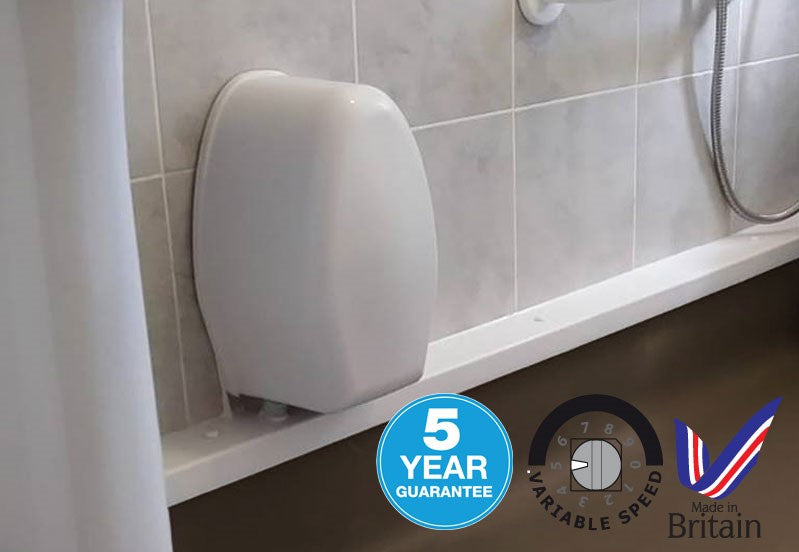

The Contour P12 Shower Waste Pump is the only quiet, unblockable, maintenance FREE and variable speed shower waste pump for when gravity drainage is unavailable.


Features

• Near silent operation.
• Reliable peristaltic pump design. Water travels through a sealed tube reducing the risk of blockage.
• Variable speed transformer allows precise control of the pump speed to match the shower flow rate.


Benefits
• Maintenance free with a 5 YEAR WARRANTY.
• Low running costs due to the 24v DC efficient energy motor.
• Wallplate with quick release pump bracket.
• Suitable for electric and mixer showers. (Additional flow switch required for mixer shower installations).
• Complete with a 2-metre length of 22mm flexible pipe for improved performance.
• Link directly to a Redring Selectronic Premier WP, Mira Advance ATL Flex Extra or Triton Omnicare eliminating the flow switch.
• Not handed for easy and quick installation.

Box Contents
Contour P12 Shower Pump
1 x Flowswitch
Fitting / User Instructions

P12 Shower Waste Pump Specification

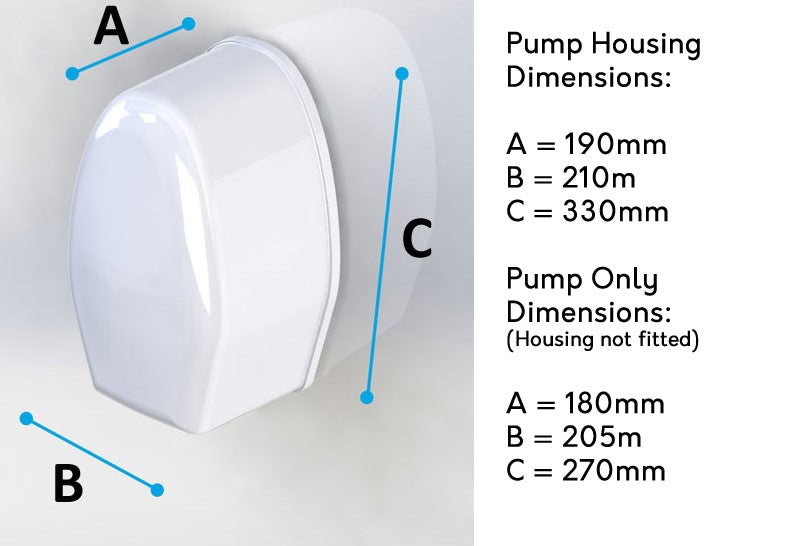

Pump housing dimensions: A: 190mm B: 210mm C: 330mm
Maximum flow rate: Upto 12 l/m
Variable speed: Yes
Retro-fit: Yes
Compatible wastes: Yes, 22mm outlet*
Individually factory water tested: Yes
Power rating: 24v DC
Inlet & outlet connection: 22mm

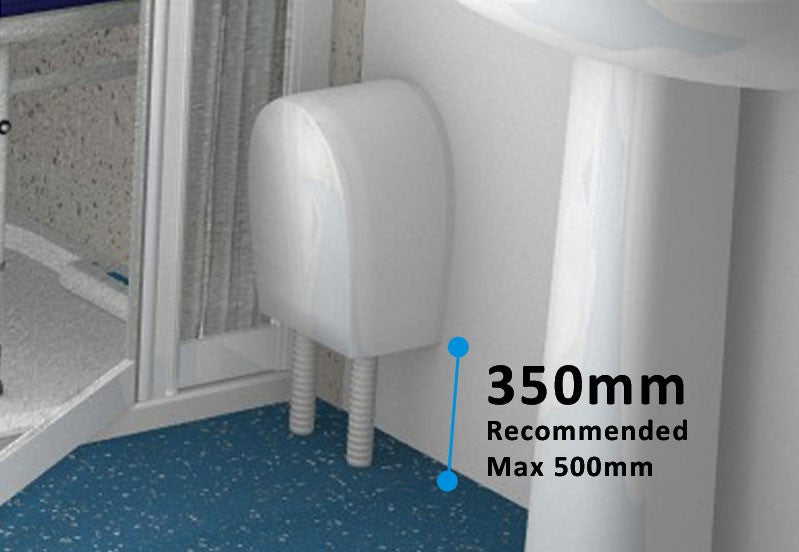

To achieve optimum shower pump performance of 12 litres per minute we recommend the shower pump be installed no higher than 350mm from the top of the shower waste outlet to the underside of the wall plate. The shower pump can be installed up to a maximum height of 500mm to the underside of the wall plate, but this will reduce the pumps overall performance.


Electrical Control Box
Power consumption (intermittent rating): 36 Watts
Supply rating: 2.5 amp fast blow fuse
IP rating: IP65 for bathrooms**
*Outlet from the pump must be 22mm
**Never install directly in the showering area.
