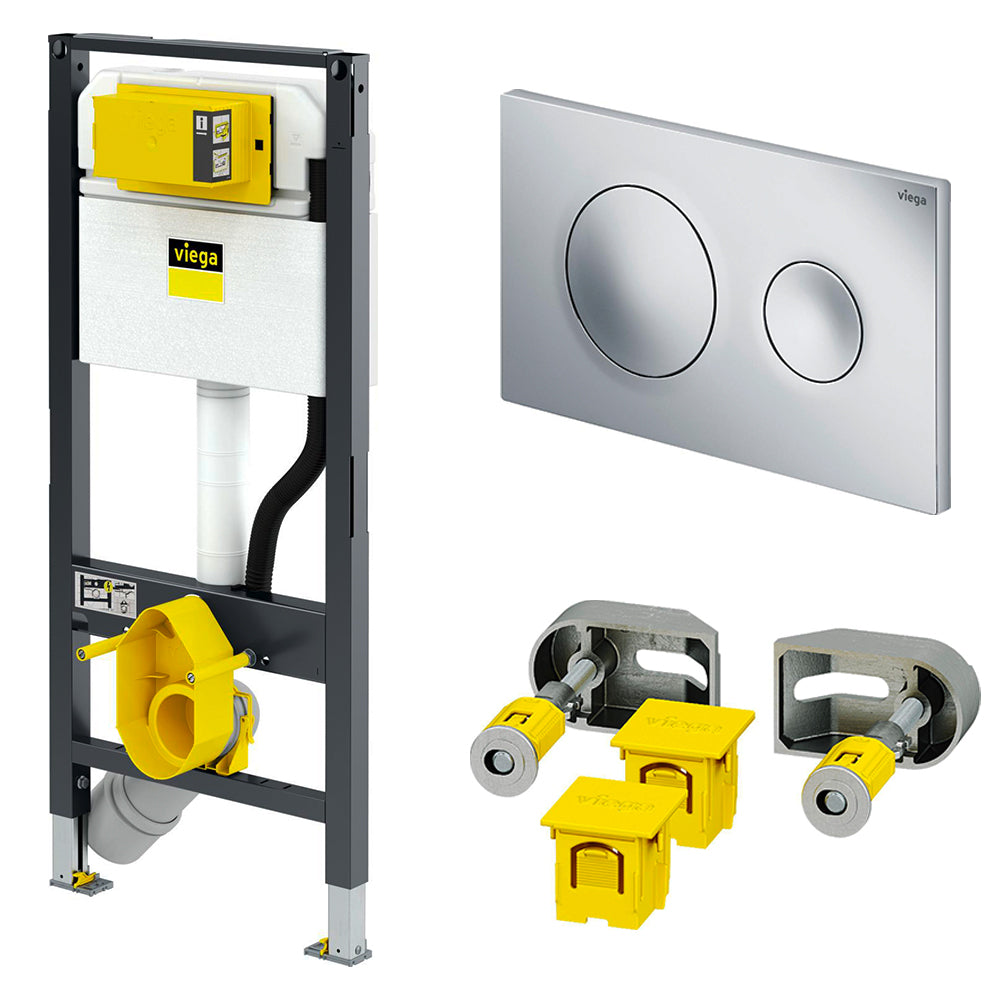

Viega Prevista WC Installation Frame Package: Frame 112 x 50 cm, Flush Plate & Fixings - VPV1

£299.99

SKU : VIEGASETPV1

Selection Subtotal:

£299.99

Call our EXPERTS on FREEPHONE 0800 280 8008

100% money back guarantee if not fully satisfied*

Rated EXCELLENT by our customers

FREE delivery on orders
over £100

Description

The Viega Prevista Dry WC Element Package is ideal for wall hung toilets containing all the fixtures to set it up. The frame is finished with a powder coated frame (40x40) that has been tested to take up to 400kg in weight and has a lockable foot for adjusting the construction height. Wall mounted furniture cleverly makes a compact bathroom appear less cluttered and more spacious, with a range of frame sizes to suit each specification.

Frame specifications

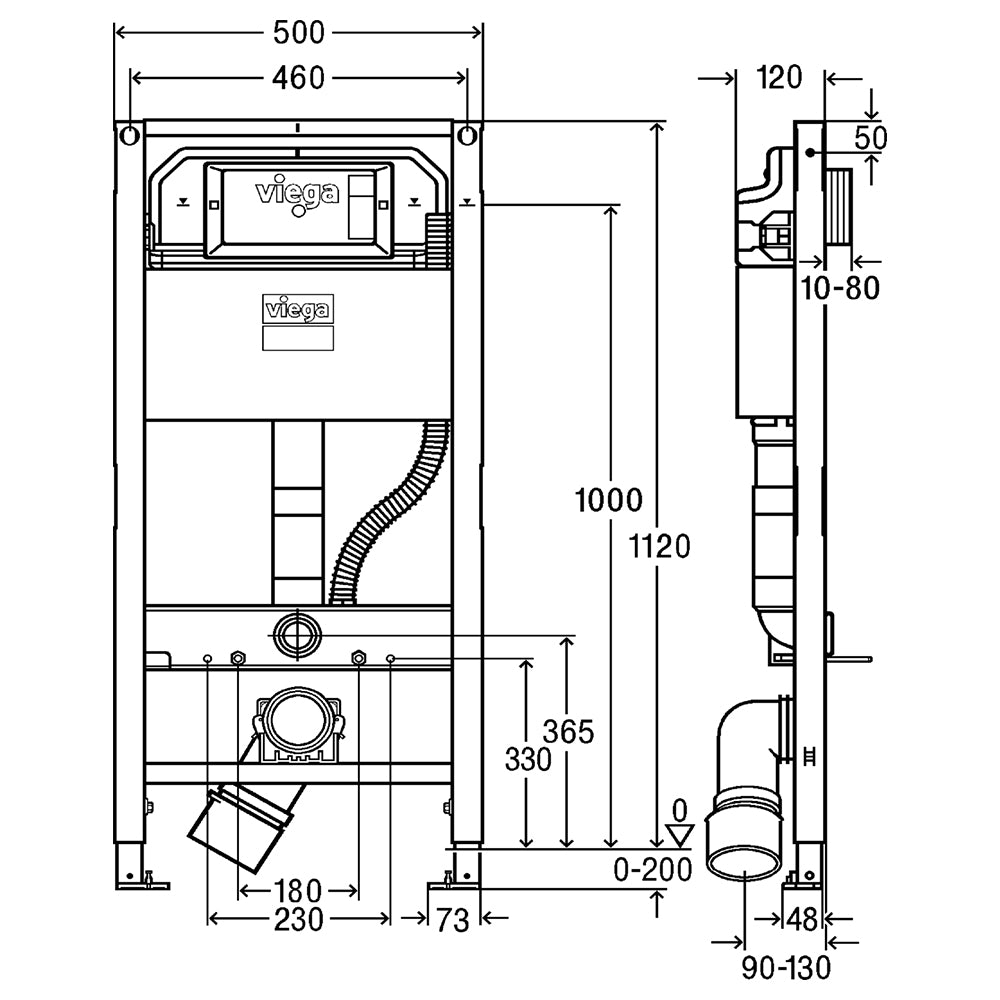

  • WC Element dimensions: Height: 112cm Width: 50cm Depth: 12cm
  • The WC element is compatible with all common WC ceramics, even with larger projection (barrier-free).
  • The fixing element is suitable for barrier-free installation. Supports and hinged handles can be mounted on the fixing element.
  • Suitable Walls: Masonry walls, Concreted walls, Metal support profiles.
  • The installation depth is maximum 200 mm.
  • The WC element can only be used in combination with wall-hung WCs (fixing gauges for bore hole 180 mm or 230 mm).
  • The WC element has an R ½ inch water connection.
  • The corresponding empty pipe is required when preparing the remote flush actuation.
  • The odour extraction system is suitable for reducing odour nuisance in indoor bathrooms and highly frequented toilet facilities. The odour extraction system is connected to the ventilation system directly.
  • An additional water and power connection is required to extend the WC element to the shower WC. Power must be connected on site.
  • The WC element can be extended by a remote flush actuation or by an electronic actuation, as well as by sensitive flush plates. The cables for these electrical actuation versions must be laid in front of the cladding.

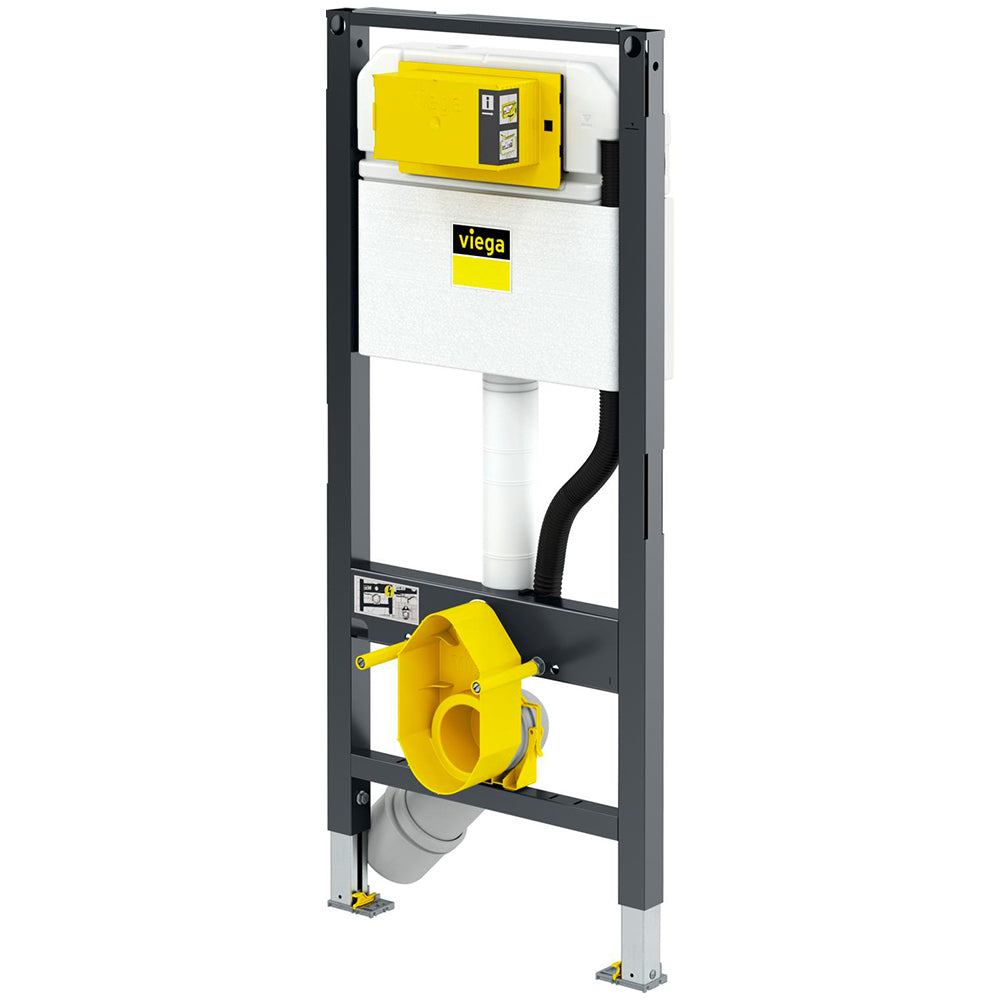

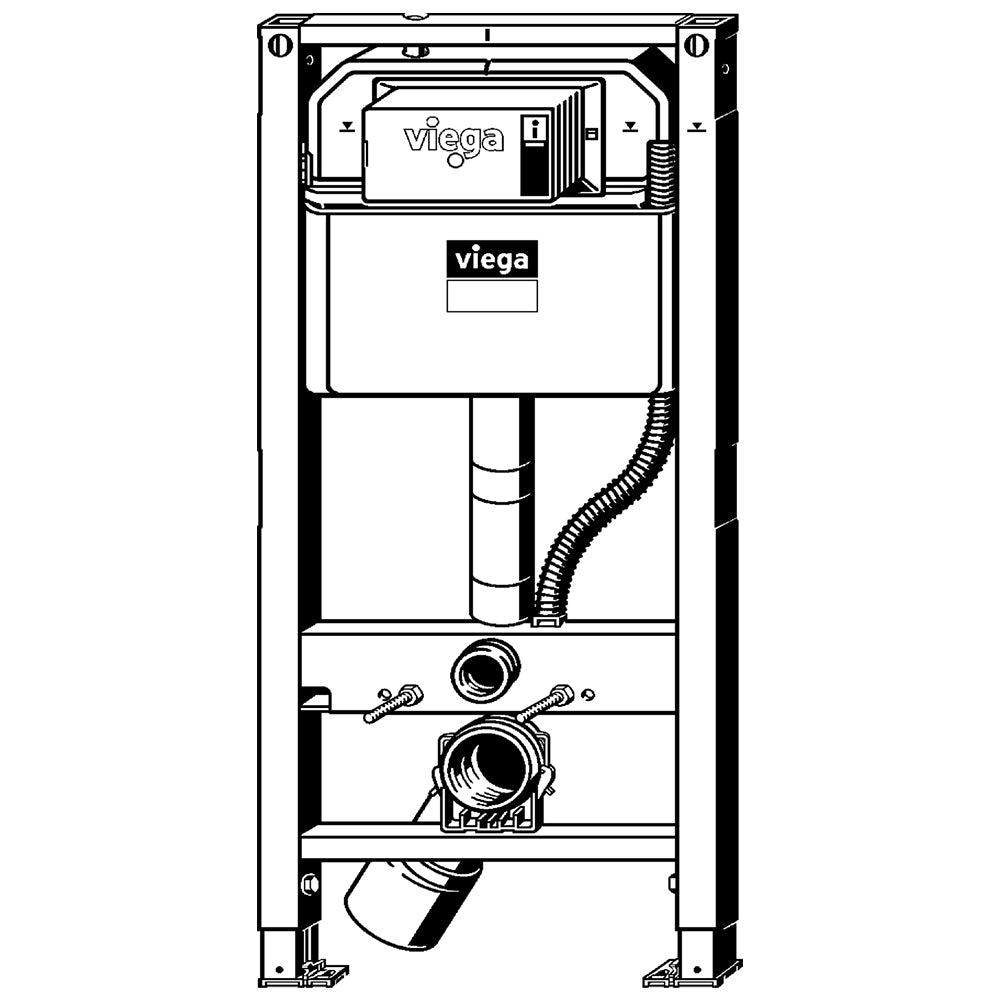

The WC element is equipped as follows:
Viega-Prevista-WC-Frame-771980

1. 3H concealed cistern
2. Empty pipe for shower WC connection
3. Holder for drain elbow
4. Drain elbow
5. Reducer
6. Threaded rods for fixing sanitary objects (gauges for bore hole 180 or 230 mm)
7. Screws and dowels for fixing in the floor
8. Screws for fixing in support profile
9. Mounting set for WC ceramic
10. flushing pipe
11. WC connection socket with lip seal
12. Site protection
13. Revision shaft cover
14. Corner valve


Technical Information

  • Small flush volume factory setting approx. 3 l
  • Small flush volume setting range approx. 2–4 l
  • Large flush volume setting range approx. 3.5–7.5 l
  • Max. load 400 kg
  • Max. projection 700 mm

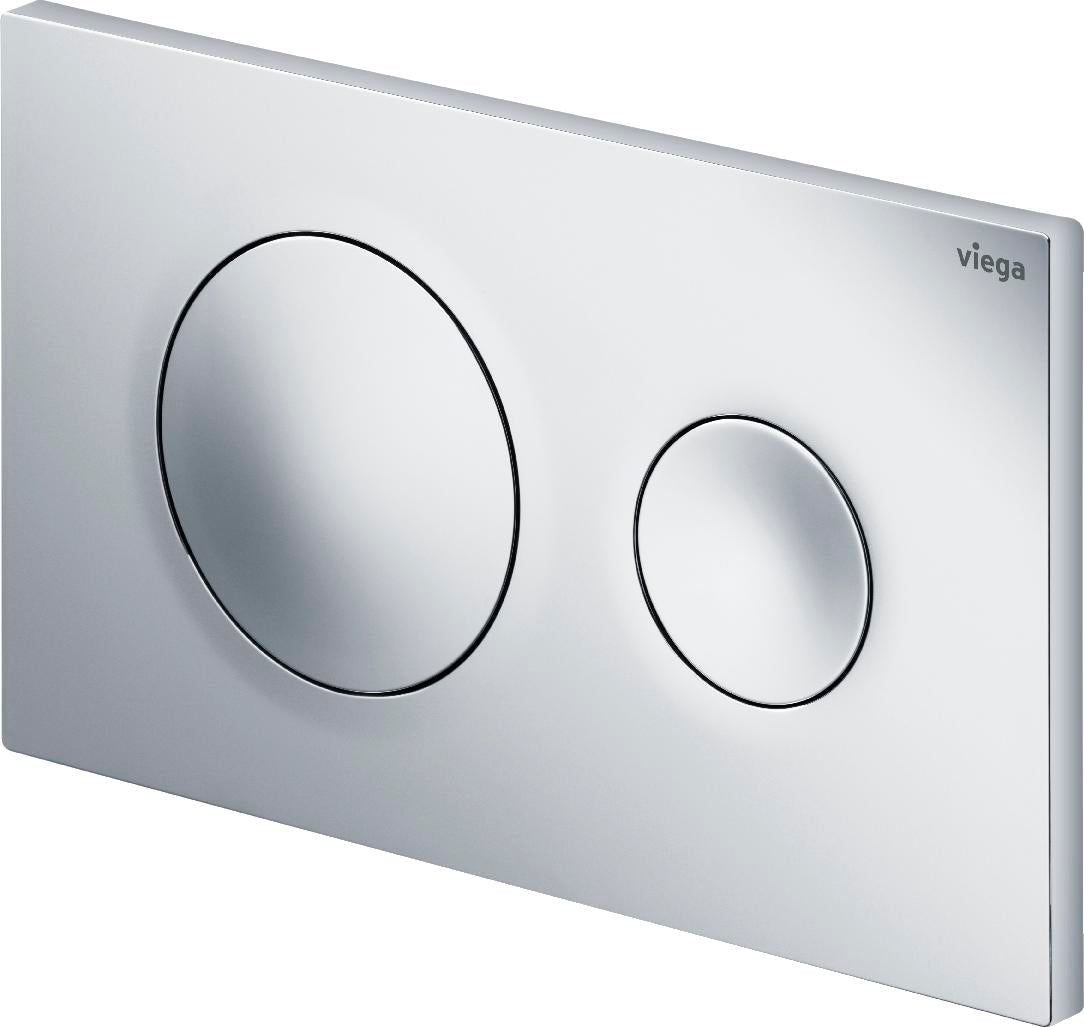

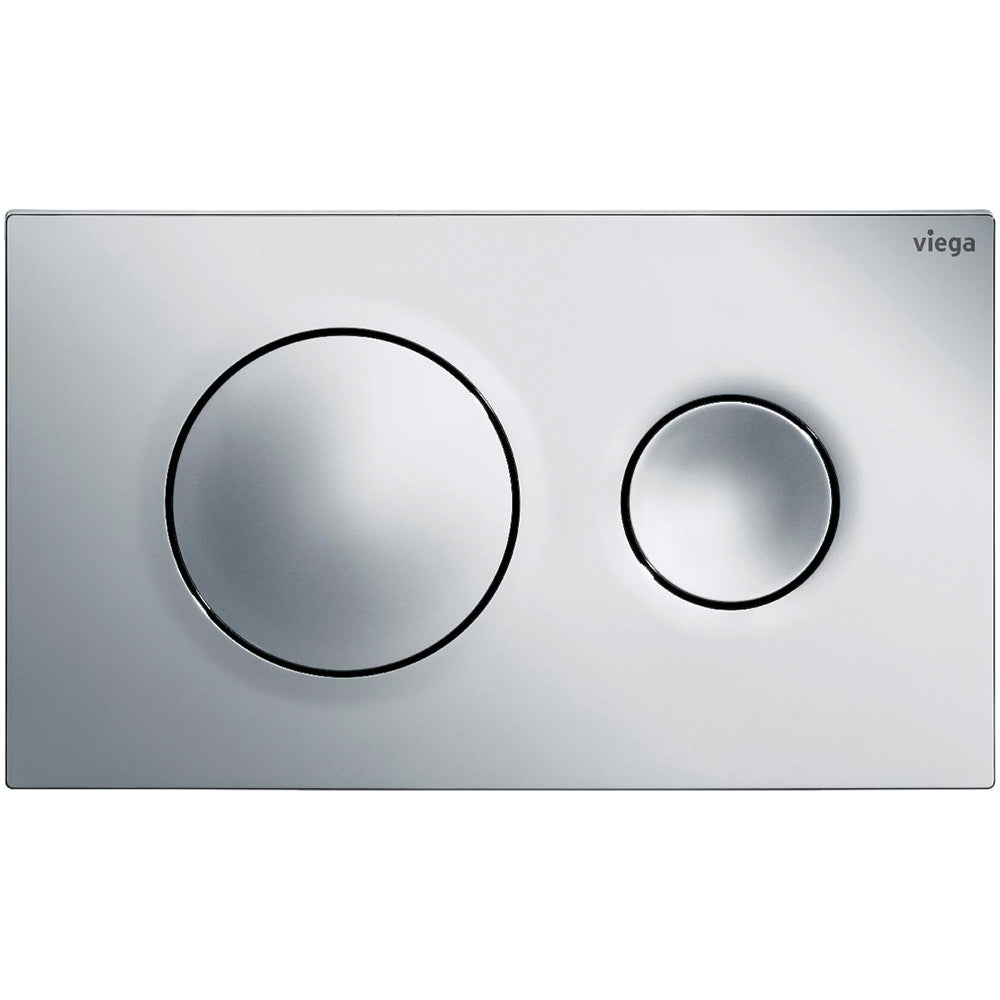

The WC Chrome Flush Plate

The button for the main flush is slightly convex, while the button for the small volume is concave, sharper contours, a better haptic experience and modified technology. The very slim plate has a construction depth of only 8 mm, so it can be integrated into any wall design at tile level by means of an installation frame if desired.

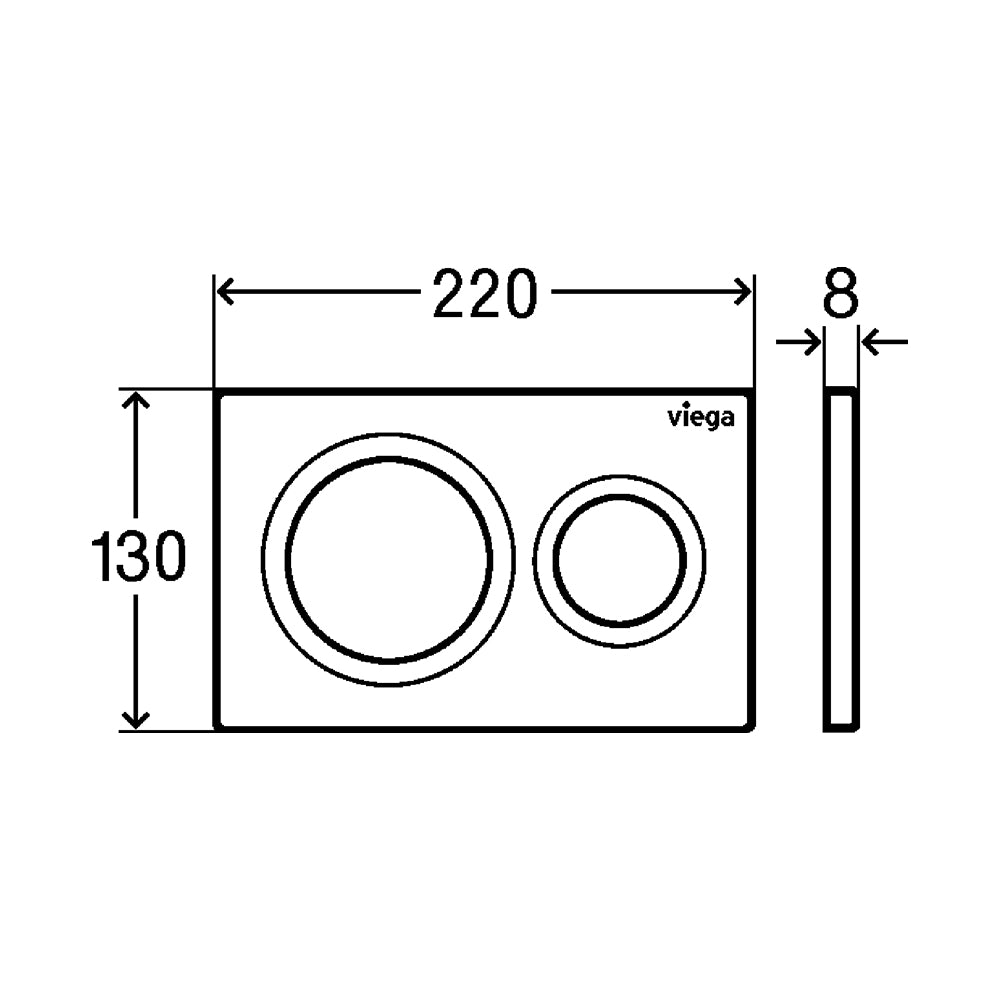

Flush Plate dimensions: Height: 13cm Width: 22cm Width: 8cm
Flush Plate colour: Chrome

The Flush Panel is equipped as follows:

Viega Prevista WC Flush Panels 773786

1. Installation frame
2. Flush plate
3. Actuating rods
4. Retaining bolt

Technical Information:

The flush volumes for the flush actuation are: Small flush volume: approx. 2–4 litres, large flush volume: approx. 3.5–7.5 litres.

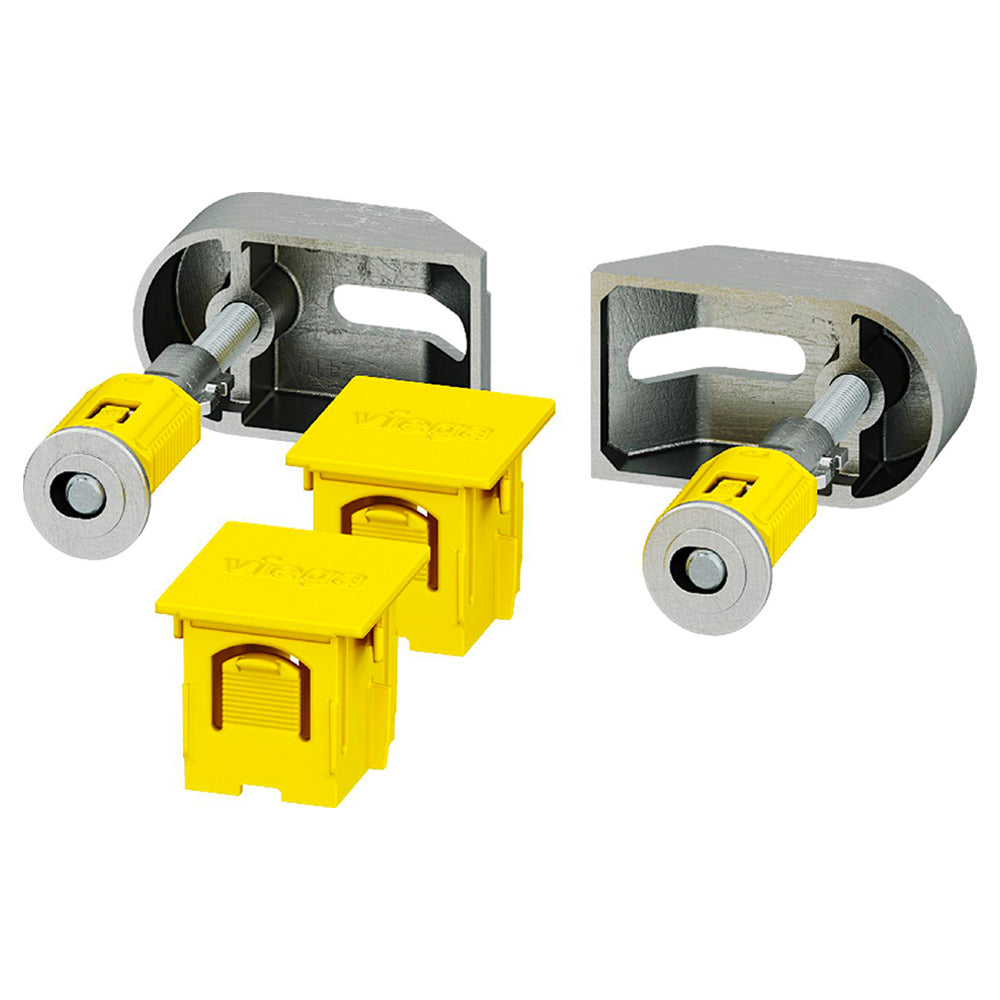

Prevista Dry fixing set

For fixing the Viega Prevista Dry elements in single / line mounting, single mounting directly onto the installation body or corner mounting on masonry or metal support profile. Depth-​adjustable 120–200 mm, fixing possibilities for cladding.

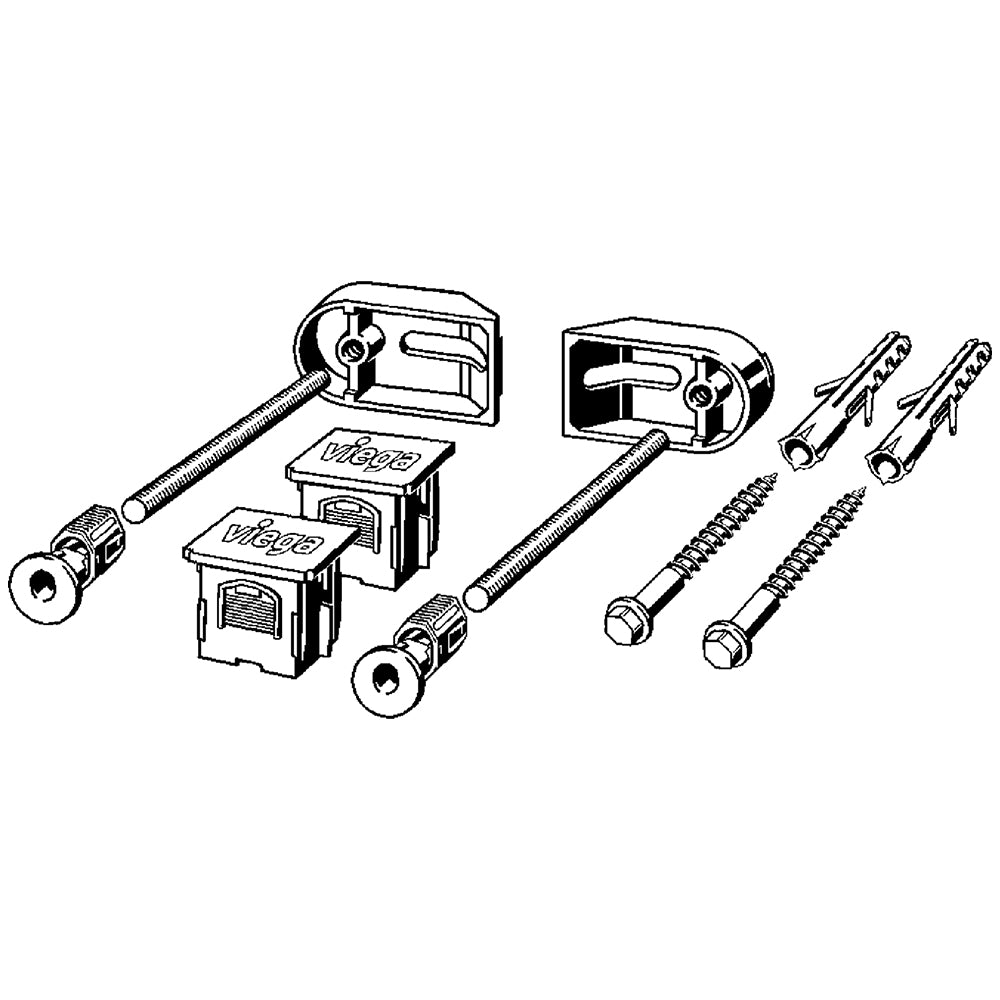

The Fixing Set is equipped as follows:

Viega Prevista WC Fixing Set 776619

1. Wall bracket
2. Cap
3. Slide
4. Mounting bracket
5. Dowels and screws for wall mounting
