Wedi Fundo Riofino Linear Channel Shower Tray Former - 1200 x 1200 x 50mm

£623.05

SKU : 073737313-01

Selection Subtotal:

£623.05

Call our EXPERTS on FREEPHONE 0800 280 8008

100% money back guarantee if not fully satisfied*

Rated EXCELLENT by our customers

FREE delivery on orders
over £100

Description

SPECIFICATION

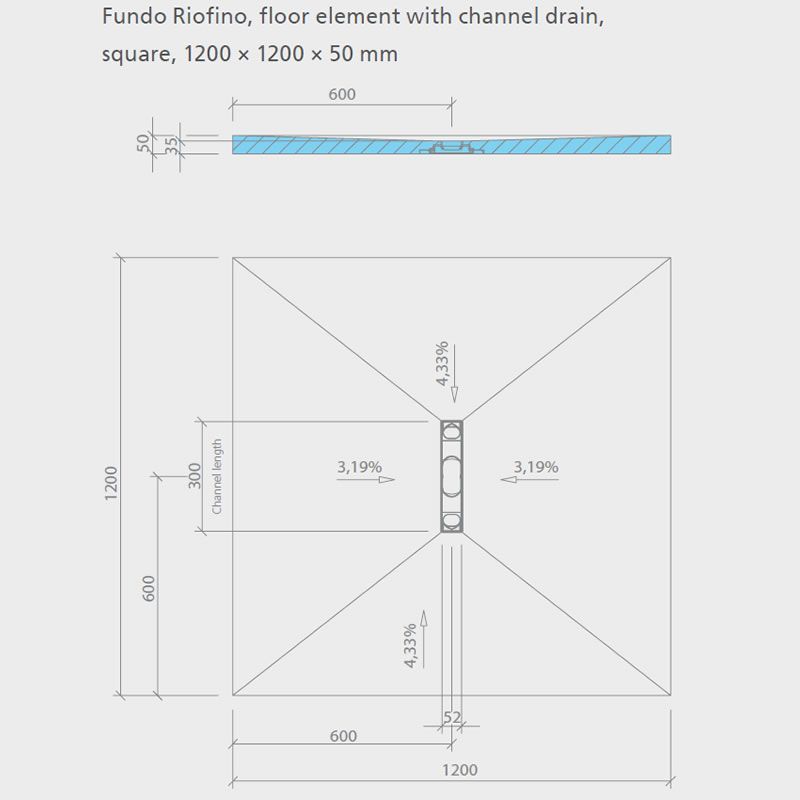

  • 1200 x 1200 x 50mm
  • LINEAR CENTRE DRAIN
  • 300mm DRAIN LENGTH
  • UNDER-SUPPORT REQUIRED
  • TRIMABLE BY 50MM OFF EACH EDGE
  • 10 YEAR GUARANTEE
  • BBA APPROVAL

SUITABLE FOR

  • CONCRETE SUBFLOOR
  • TILED FLOOR FINISH
  • WET ROOMS
  • LEVEL ACCESS
  • RAISED ON PLATFORM
  • UNDERFLOOR HEATING
  • USE WITH WHEELCHAIRS
    (min tile size 50 x 50mm)

NOT SUITABLE FOR

  • VINYL FLOOR FINISH
  • MICRO-CEMENT
  • FITTING DIRECT ON JOISTS

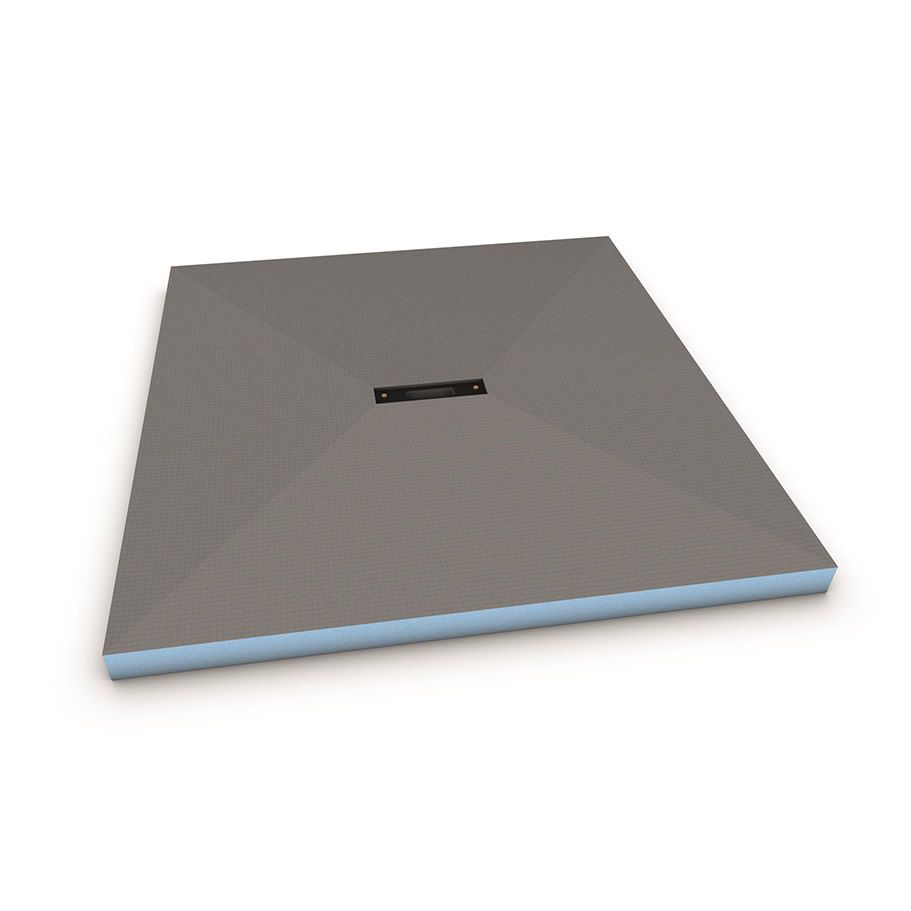

Fundo floor elements from wedi offer a reliable and efficient solution for the construction of waterproof, floor level showers. Featuring a fitted and sealed floor drain (available separately), a supplementary factory applied waterproof coating and a predefined slope, they require far less work on any project and therefore save the installer a lot of time.

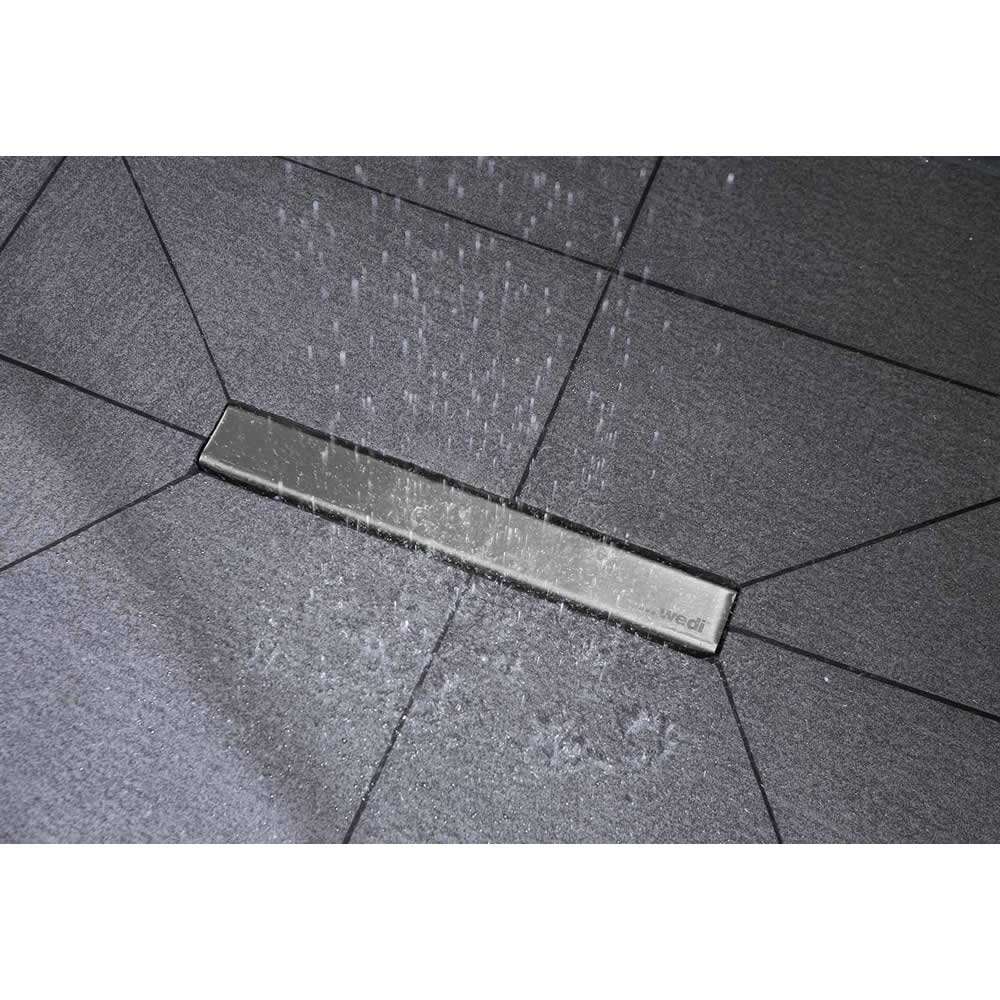

A different kind of linear drainage – streamlined and centred. Although it does NOT offer various channel lengths (300 mm as standard), the Fundo Riofino linear shower element impresses with its extraordinary design and sophisticated finish. It now shares the range of height-adjustable channel covers and new 360 degree channel drains with the rest of the wedi Fundo linear shower range providing great flexibility on site. Furthermore, it can easily be extended with the use of the corresponding Fundo sloping board or made into a complete shower area with the aid of wedi building boards.

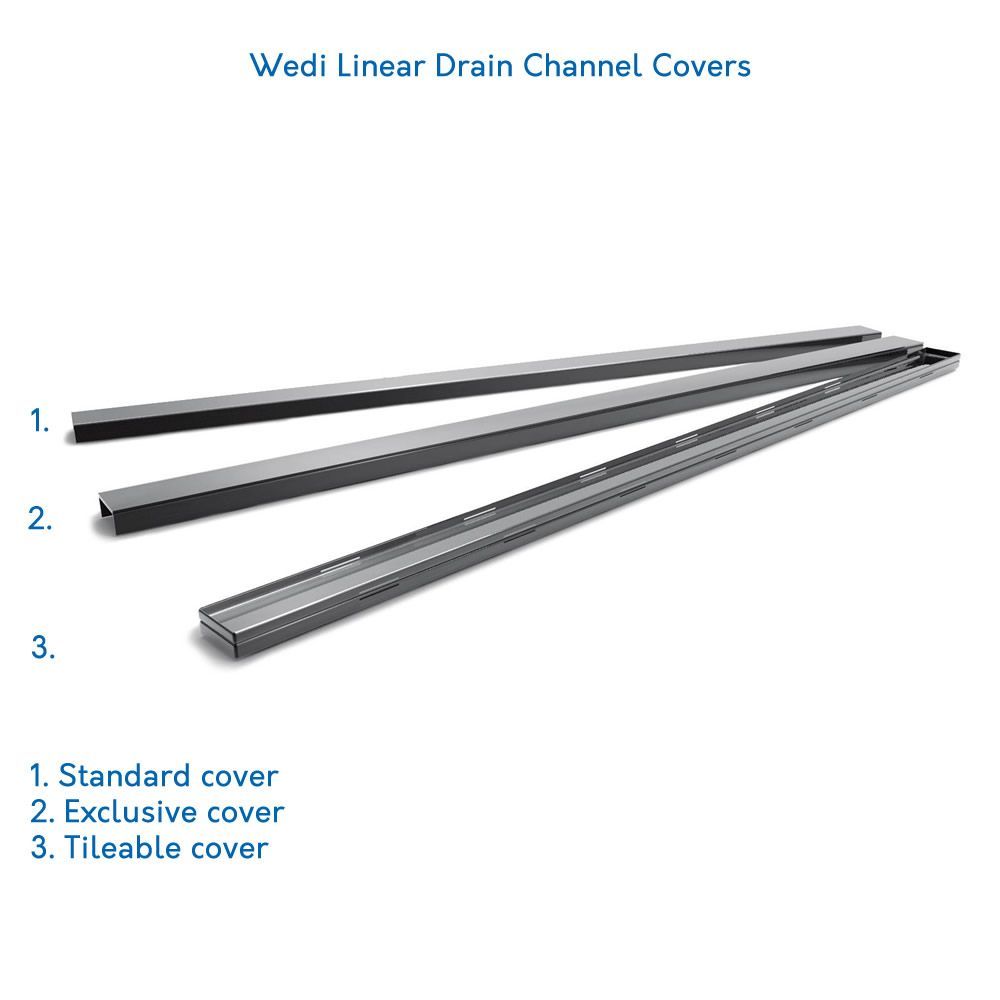

Three optional channel drain covers are available:

Standard – stainless steel, brushed finish – 300 x 40 x 18mm - installation heights of 5 to 23mm
Exclusive – Solid stainless steel, brushed finish – 300 x 40 x 21mm - installation heights of 5 to 25mm
Tileable – Stainless steel – 300 x 40 18mm – Trough depth is 11mm - installation heights of 5 to 25mm

Drain:

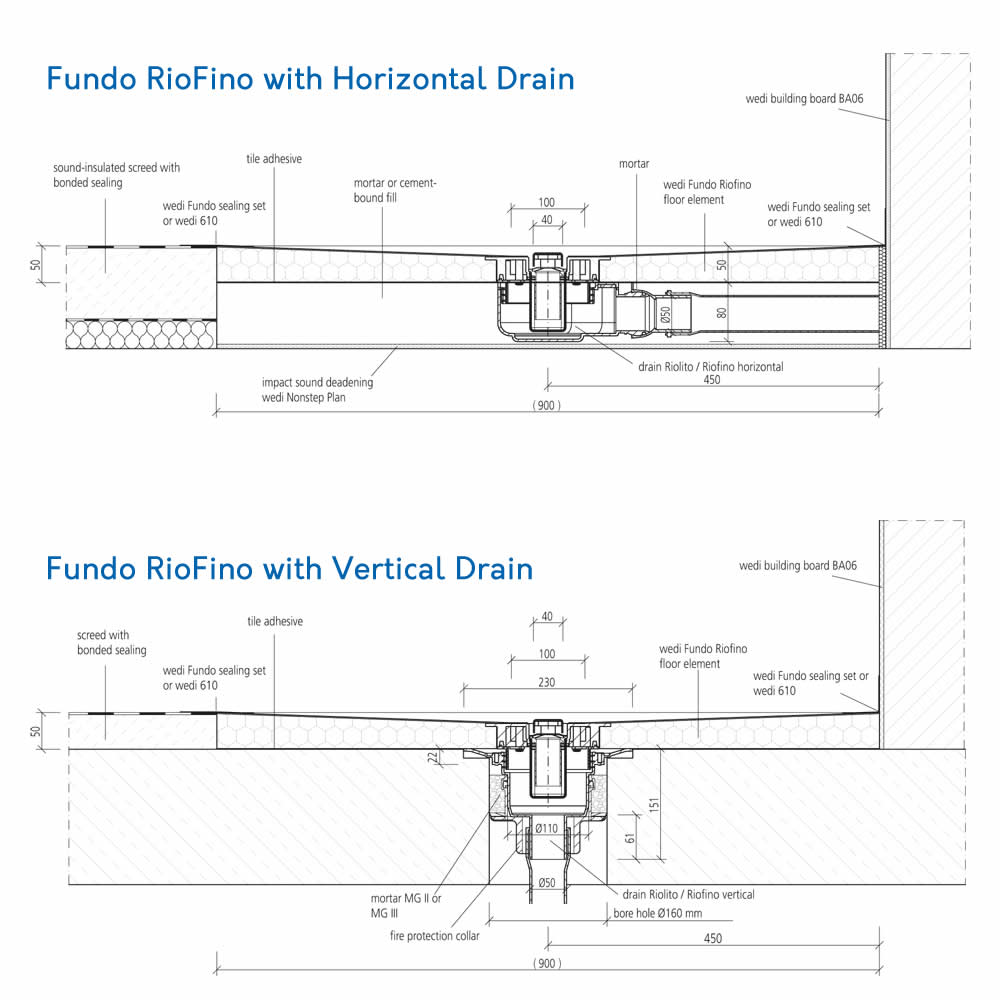

A drain is not included as standard with the Wedi Fundo Riofino, therefore it will need to be purchased if required. A number of options are available, all drain options can be positioned freely (360°) as follows:

DN50 Horizontal: Depth below tray 90mm - Flow rate 0.80 l/s / 48.0 l/m
DN50 Verticle: Depth below tray 151mm - Flow rate 1.1 l/s / 66.0 l/m
DN40 Mini Max Low profile: Depth below tray 57mm - Flow rate 0.50 l/s / 30.0 l/m

Waterproofing/Sealing:

The Wedi Fundo Primo wet room tray former is itself 100% waterproof, including the core. This means that should it become damaged the tray former is still waterproof. If a Wedi Fundo Primo tray is joined to Wedi Building Board using the Wedi 610 Hybrid Adhesive and Sealant, as per the manufacturer’s instructions, then that joint will be 100% waterproof. However, we strongly advise the taping of all joints with waterproof tape, and then sealing the whole area with the Wedi Sealing Kit to provide extra assurances on the waterproofing and peace of mind for years to come.

Key points:

100% waterproof core (even when damaged)
Manufactured from extruded polystyrene rigid foam,reinforced with glass fibre on both sides and finished with a polymer-modified cement coating
In-built fall to drain
Mold and mildew proof
Thermally insulating
Light weight
50mm deep
300mm Linear drain channel - centre position

Wedi Fundo Primo - BBA CertifiedDownloads:

Wedi Fundo Riofino Technical Data Sheet
Wedi Shower Elements BBA Certificate No:14/5126

Wedi Fundo Primo Benefits


Why purchase wedi products from Wetrooms Online?

When you purchase any wedi product from Wetrooms Online, you are not only purchasing from an authorised wedi retailer, you are also purchasing from a wedi expert, recognised as such by wedi themselves.

We work closely with wedi to ensure that we offer the best possible wedi buying experience. Our staff regularly attend wedi UK head office to undertake training on the wedi range of products. As such we are able to offer help on the most suitable products and their application’s.

Wetrooms Online are proud to be wedi authorised retailers and wedi experts.
