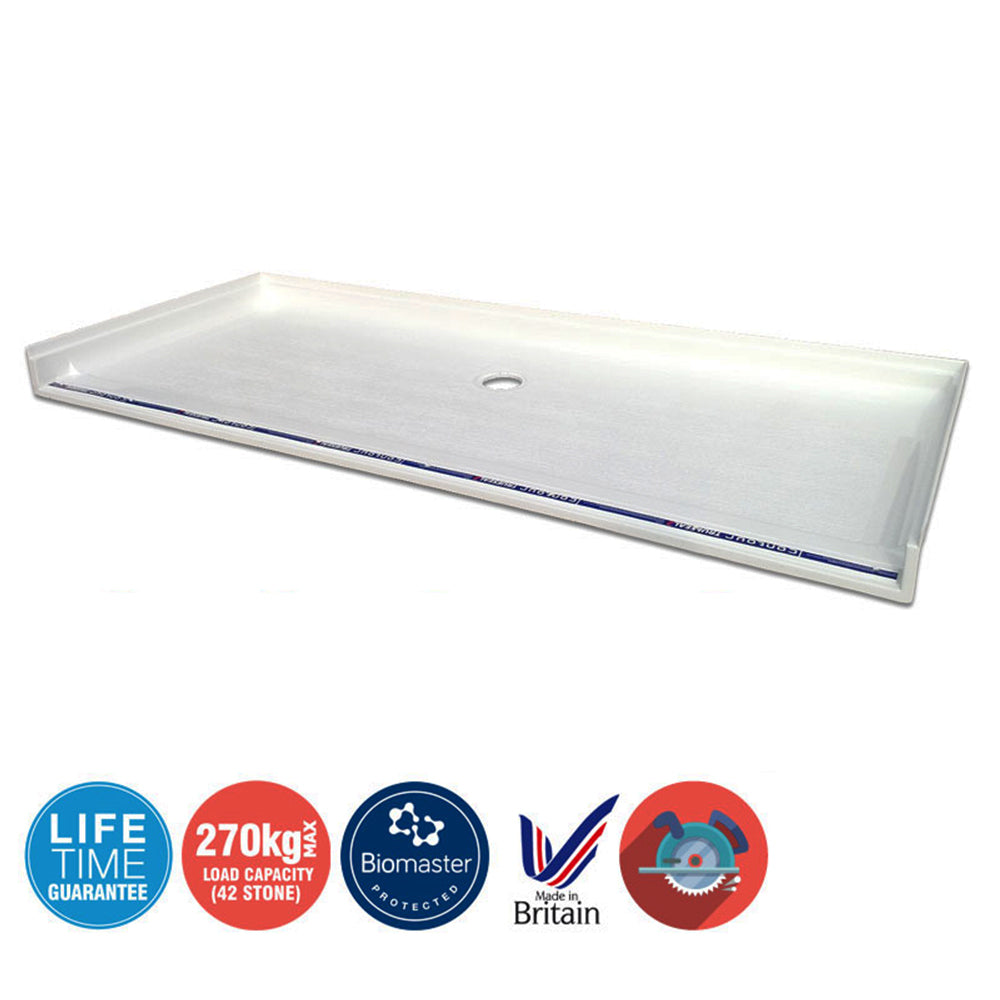

The Contour Eagle Two Level Access Shower Tray is designed as a bath replacment tray that can be cut to length (minimum 1500mm). Ideal for the easy replacement of baths.
The TRUESEAL2 floor edge profile, allows vinyl flooring to be hot seam welded directly onto the tray, creating a perfect watertight join. The Eagle tray can also be used with a tiled floor, simply specify the tiled floor option and the tray will be provided without the TRUESEAL2 floor edge profile (cannot be removed onsite).
Specification

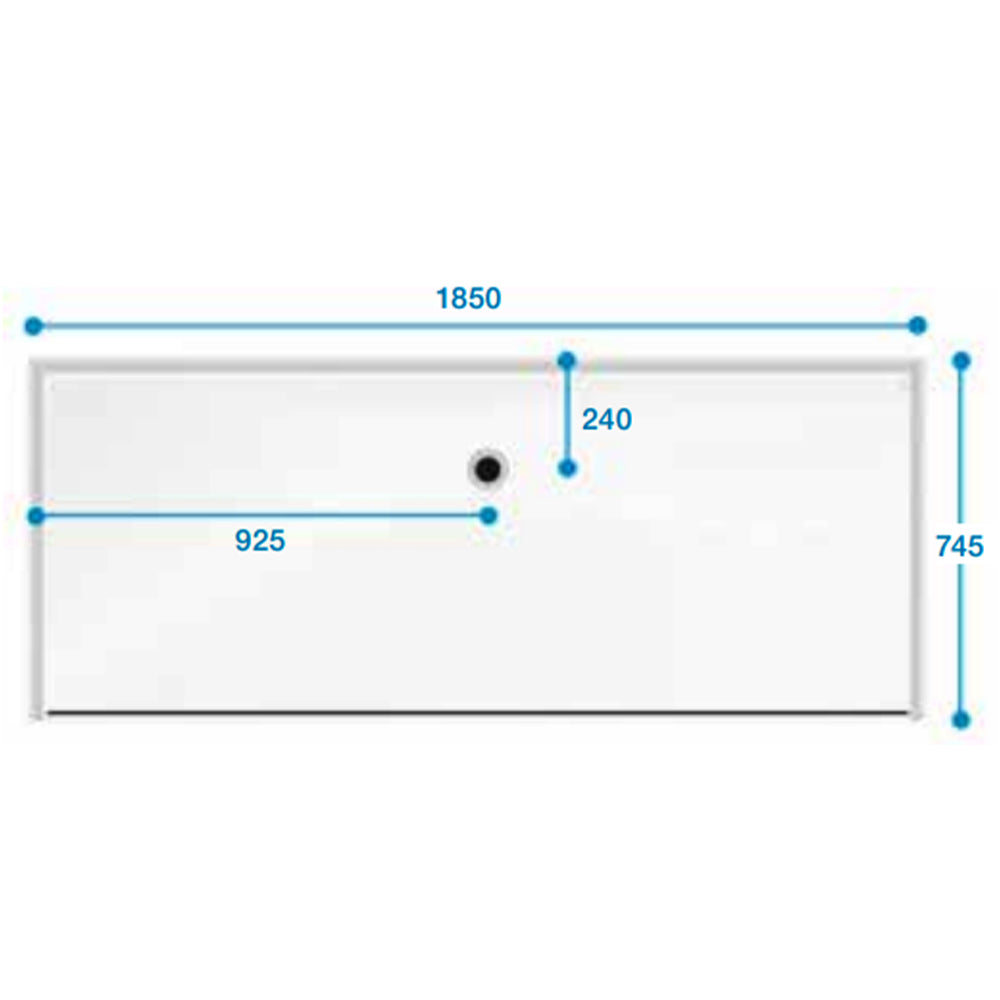

Size 1850 x 745mm
Depth 14mm
270kg/42 stone load capacity
Key Points
-
An Eagle TWO level access shower tray is the perfect showering solution where a bathtub is no longer practical for users with mobility difficulties or requiring wheelchair access.
-
The Eagle TWO level access shower tray has an Anti-slip surface for an assured underfoot grip.
-

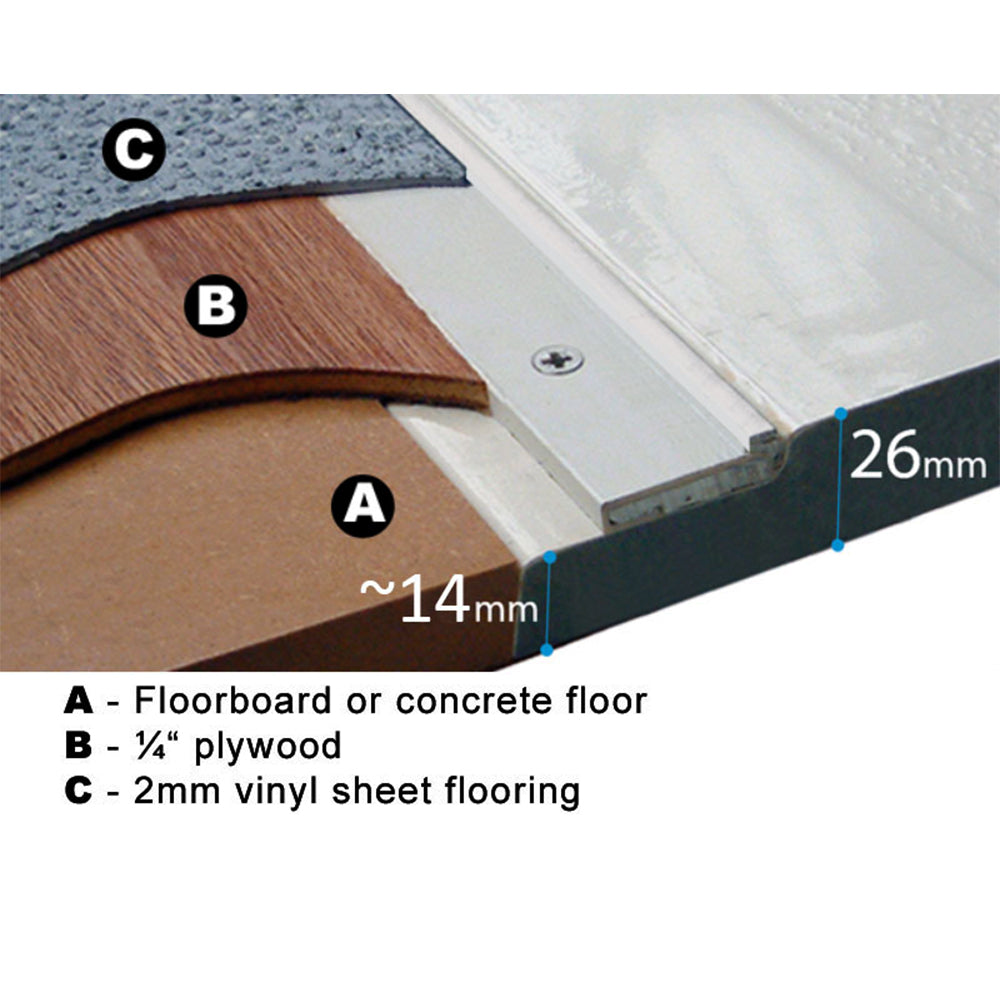

Requires the removal of ~14mm of flooring, the equivalent of a floorboard, (apart from the trap area where additional space is required).
-
An Eagle TWO level access shower tray, shower enclosure and any ancillary equipment can be installed during one site visit, leaving the flooring to be fitted afterwards.
-

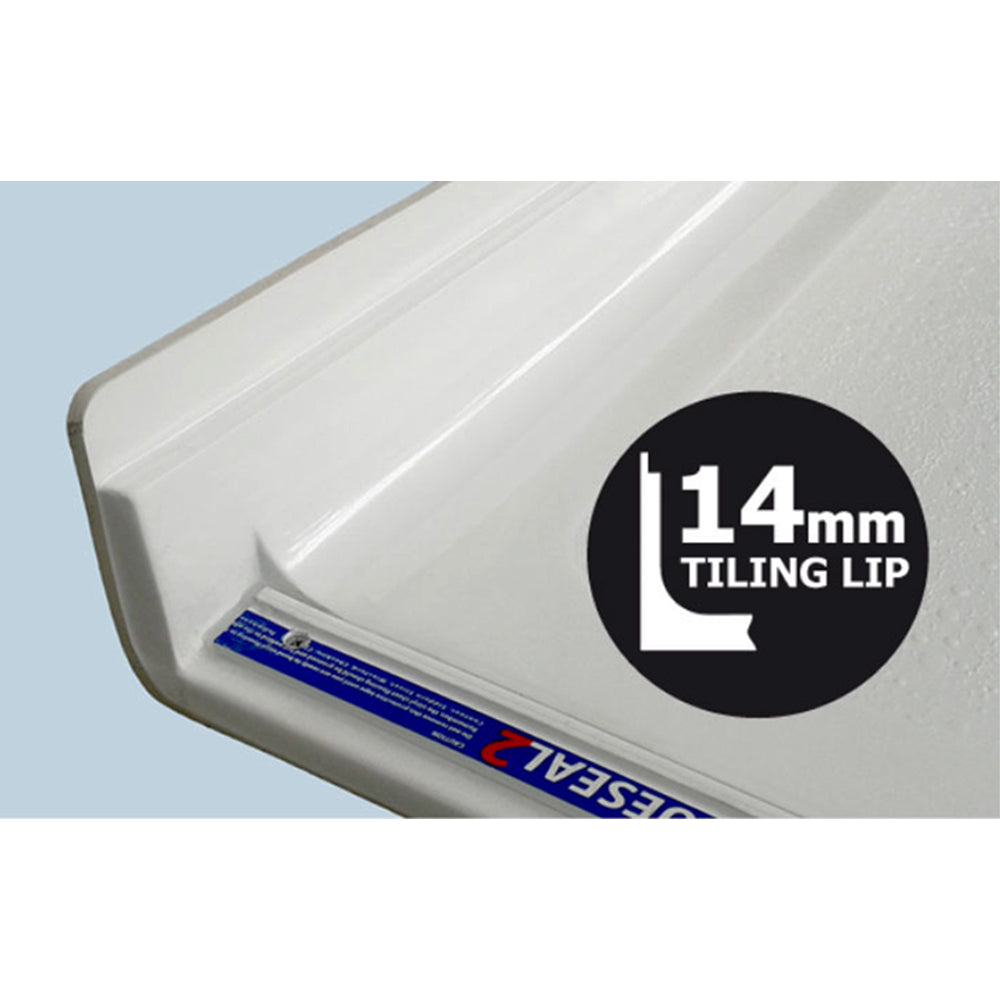

14mm tiling lip is watertight and will accommodate wallboards or wall tiles.
-
With three tiling lips and a central waste position. Either end of the Eagle TWO level access shower tray can be cut to determine the trays hand for easier installation.
-

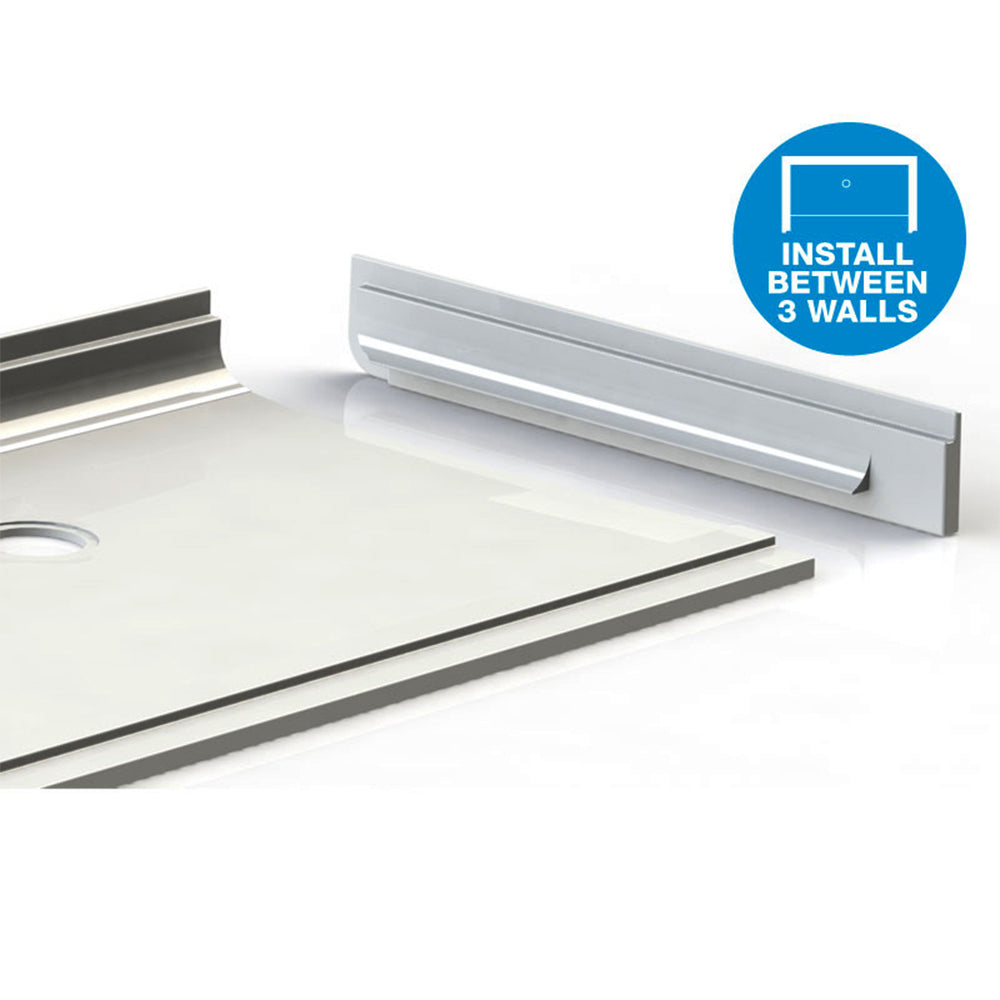

Cut to length from original length of 1850mm to fit exactly into the space left by a bath. End plate supplied to conceal the cut end when installed between three walls.
-
Can be used with floor tiles by omitting TRUESEAL2, please state when ordering.
-
Lifetime guarantee.
-
Trays not handed.
Technical Summary
- Eagle TWO level access shower trays are manufactured using reinforced glass fibre GRP construction to form a strong and consistent shower tray.
- Tested to withstand 42 Stone / 270Kg across the entire surface area to simulate a standing person.
- Hot seam weld the vinyl sheet flooring directly onto the Eagle TWO easy access shower tray’s unique TRUESEAL2 floor edge profile, creating a perfect watertight join.
- Complies with DIN51097 Barefoot Slip Test.

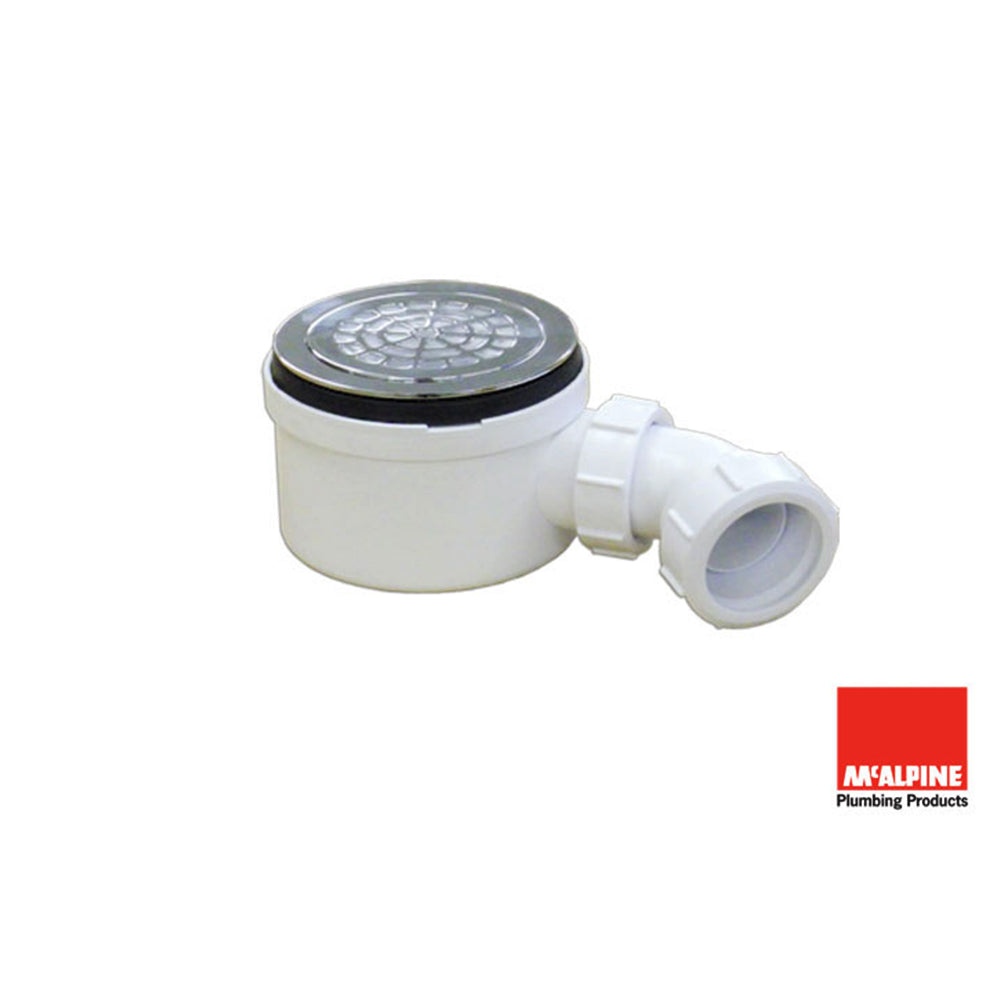

- Supplied with McAlpine ST90-CPB-P-70 gravity waste, flow rate up to 35 l/m.
- Exclusively incorporating Biomaster antibacterial product protection.
Downloads:
Contour Eagle Two Fitting Instructions
