Jackoboard Aqua Flat Wet Room Walk In Shower Tray & Drain - SIDE OFFSET DRAIN - 1200 x 900 x 20mm

£265.00

SKU : 4512357

Delivery Approx 2 - 3 Working Days

Selection Subtotal:

£265.00

Call our EXPERTS on FREEPHONE 0800 280 8008

100% money back guarantee if not fully satisfied*

Rated EXCELLENT by our customers

FREE delivery on orders
over £100

Description
Specification, Feature & Benefits
Product Downloads
YOU MAY ALSO NEED - OPTIONAL EXTRAS

Copy from Here (this label will be hidden)

Add your 3 titles here (this label will be hidden)

Specification
Suitable For
Not Suitable For

Add your 3 lists here (this label will be hidden)

  • 1200 x 900 x 20mm
  • OFFSET SIDE Drain Position
  • Complete with Drain & Cover

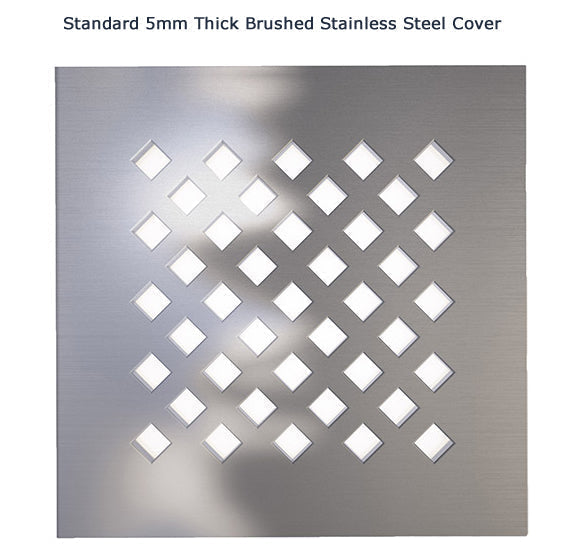

  • Brushed Stainless Steel Cover
  • Under Support Required
  • Can be trimmed by 50mm off each edge
  • 20 Year Guarantee
  • Wood or Concrete Subfloor
  • Tiled Floor Finish
  • Wet Rooms
  • Level Access
  • Raised on Platform
  • Underfloor Heating
  • Vinyl Floor Finish
  • Micro Cement
  • Use with Wheelchairs

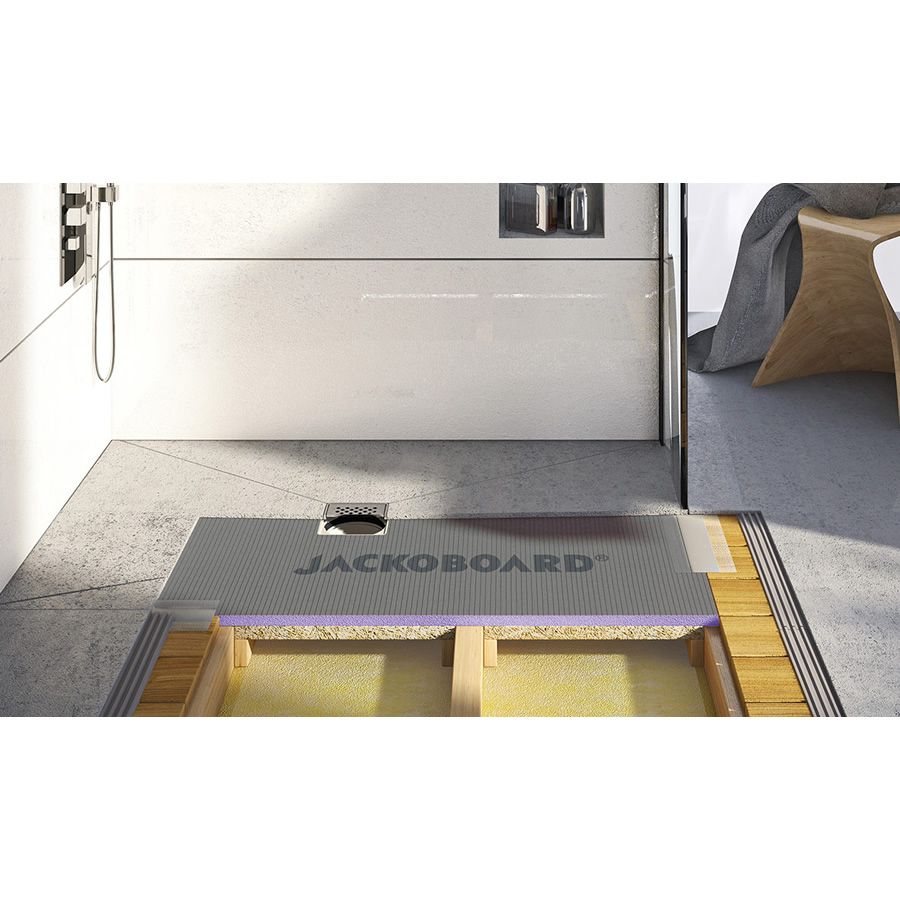

  • Fitting Direct on Joists

To Here (this label will be hidden)

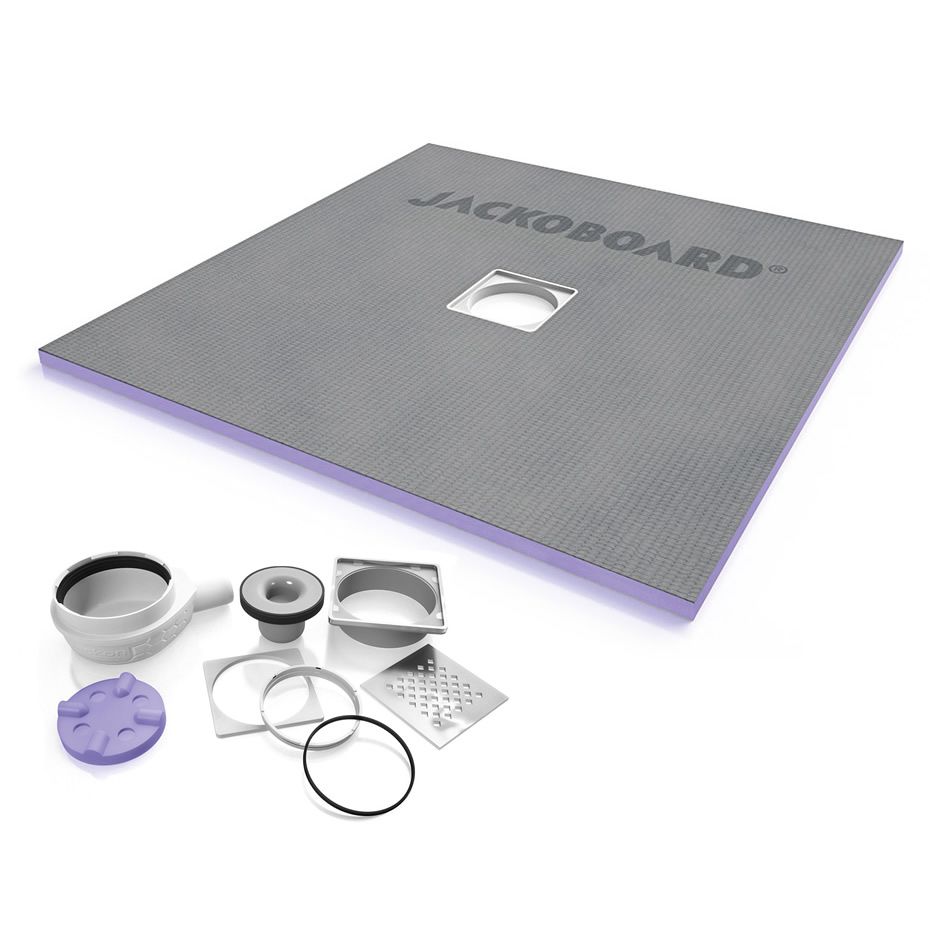

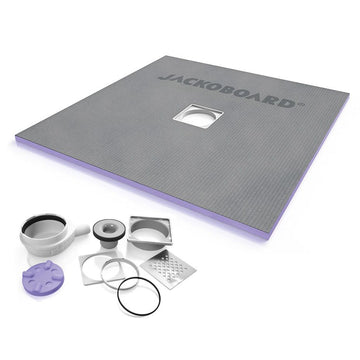

JACKOBOARD® Aqua Flat is a wet room / walk-in shower element which is particularly well suited for use on wooden beam ceilings. Thanks to the extremely low thickness of only 20 mm, Aqua Flat can easily be integrated in the timber framework so that it is installed flush with the wooden floor. Whilst the tray has been specifically designed to create wet rooms and walk in showers in properties with suspended floors, you can also install the system in a solid concrete / screed floor.

The shower base is made from extruded polystyrene foam (XPS) which has been machined to create a fall from the perimeter edges to the drain position. The base has then been covered on both sides with a polymer modified cement coating into which has been bonded a reinforcing fibre glass mesh. This coating provides both excellent point loading resistance and a superb bond for cement based tiled adhesives. Crucially, the whole base is completely waterproof and dimensionally stable - it is not affected by moisture, humidity or movement in the substrate.

It’s important to understand that Jackoboard Aqua Flat wet room bases, in common with other extruded polystyrene bases, are not self-supporting. In order to support the base firmly when creating a level-entry design on a suspended timber floor, a sub-floor must be constructed between the joists.

Due to its excellent thermal insulation properties the Jackoboard Aqua Flat is the perfect substrate for the laying of underfloor heating mats, helping to keep the warmth in the room intended.

The Aqua Flat walk in shower tray comes complete with a horizontal drain (flow rate > 0.9 l/s), a vertical option is available upon request. Optional brushed solid stainless steel (5mm thick) drain covers are available. A tileable drain cover is also available to replace the grate, edged with stainless steel upstand, suitable for tiles with a thickness from 8mm.

Important Tiling Information:

  • Jackoboard Aqua Flat shower bases are in principle suitable for all types and sizes of ceramic and stone tiles. However, for mosaic tiles less than 25mm square we strongly recommend the application of an epoxy resin grout for the tile joints.
  • Tiles must be fixed using cement based single part flexible tile adhesive. Pre-mixed ‘tub’ adhesives must not be used.
  • The grout line around the drain grate frame should be sealed with a flexible sanitary sealant (silicone) and not a cement-based grout.
  • If showers are to be wheelchair accessible tiles must be a minimum of 50mm square.
  • Tiles larger than 150mm square must be cut to follow the valleys of the falls, which always run from the drain position to the corners.

If in doubt about any of the above points, or tiling in general please consult a professional tiler.

bba certification
BBA Approved

The Jackoboard Aqua Flat wet room former is BBA approved. The products have been assessed by the BBA as being fit for their intended use provided they are installed, used and maintained as set out in the Certificate: Agrément Certificate 16/5312
Key factors assessed:
Water-tightness — the products will provide a waterproof shower area (see section 6).Bond strength — when used with a suitable adhesive, the adhesion of the products to the substrate, and of the tiles to the products is satisfactory (see section 7).
Resistance to mechanical damage — the products have satisfactory resistance to mechanical damage (see section 8).
Durability — the products will have a service life of at least 10 years
Agrément Certificate 16/5312

Product characteristics Jackoboard Aqua Flat:

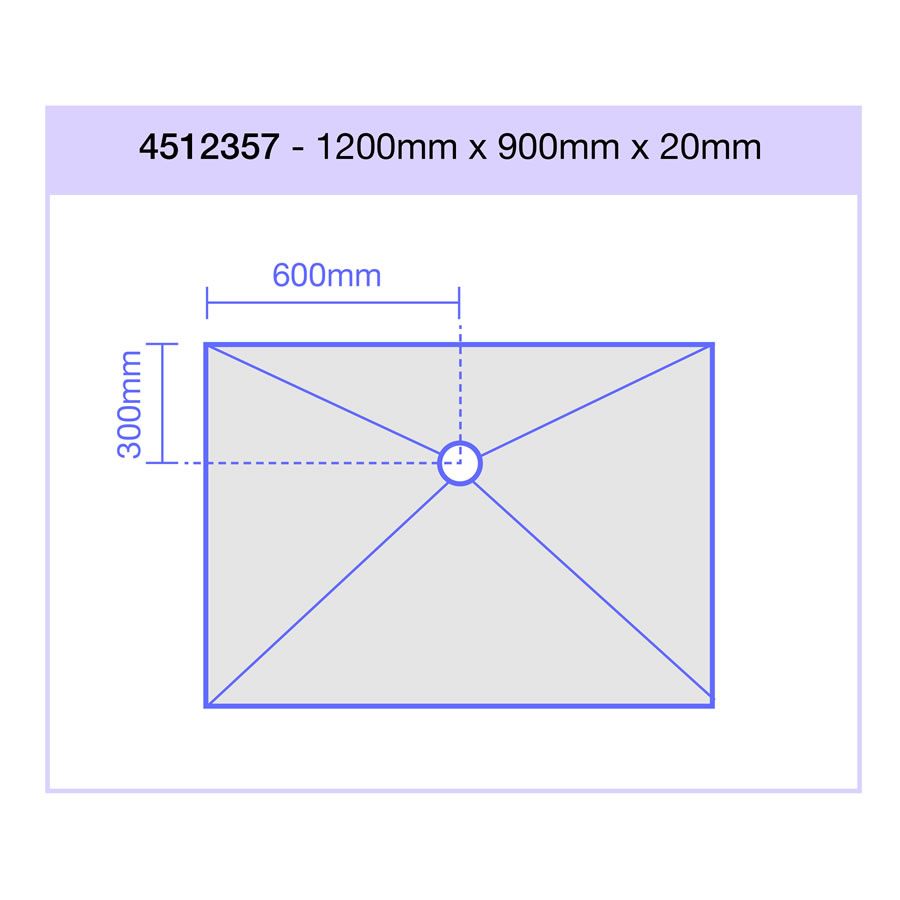

  • Size: 1200 x 900 x 20mm
  • Drain position: Offset SIDE
  • Horizontal Drain Included (Vertical available upon request)

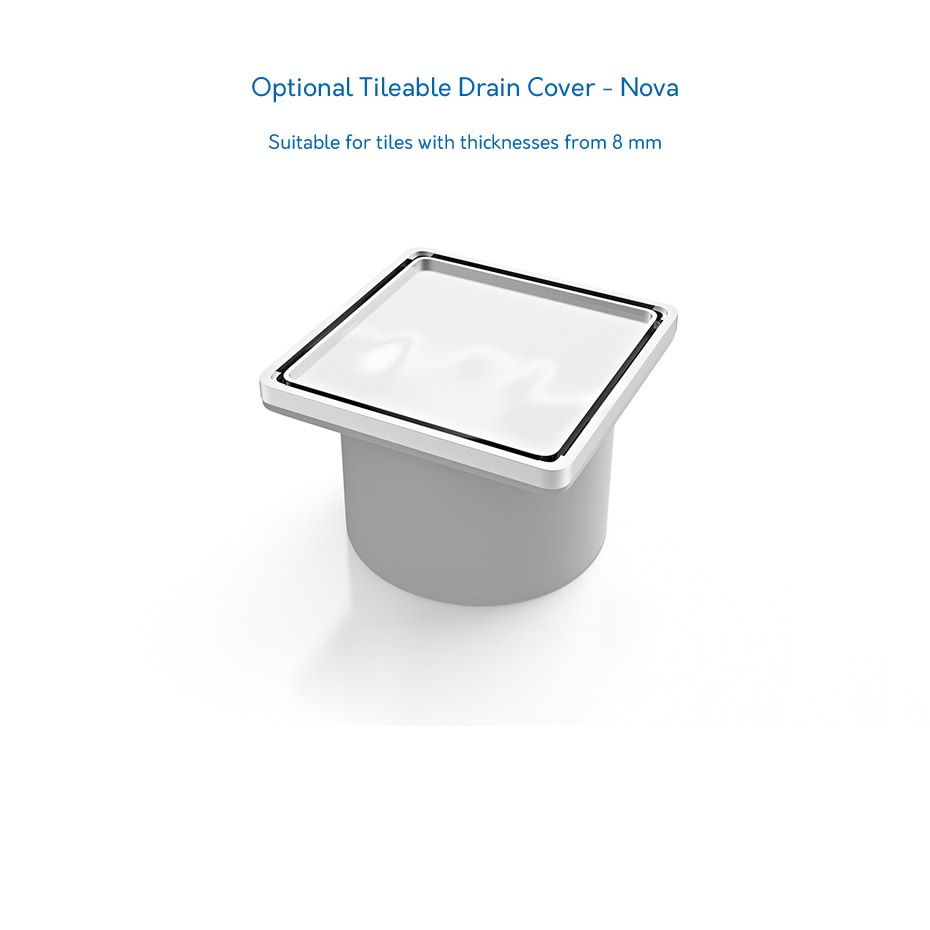

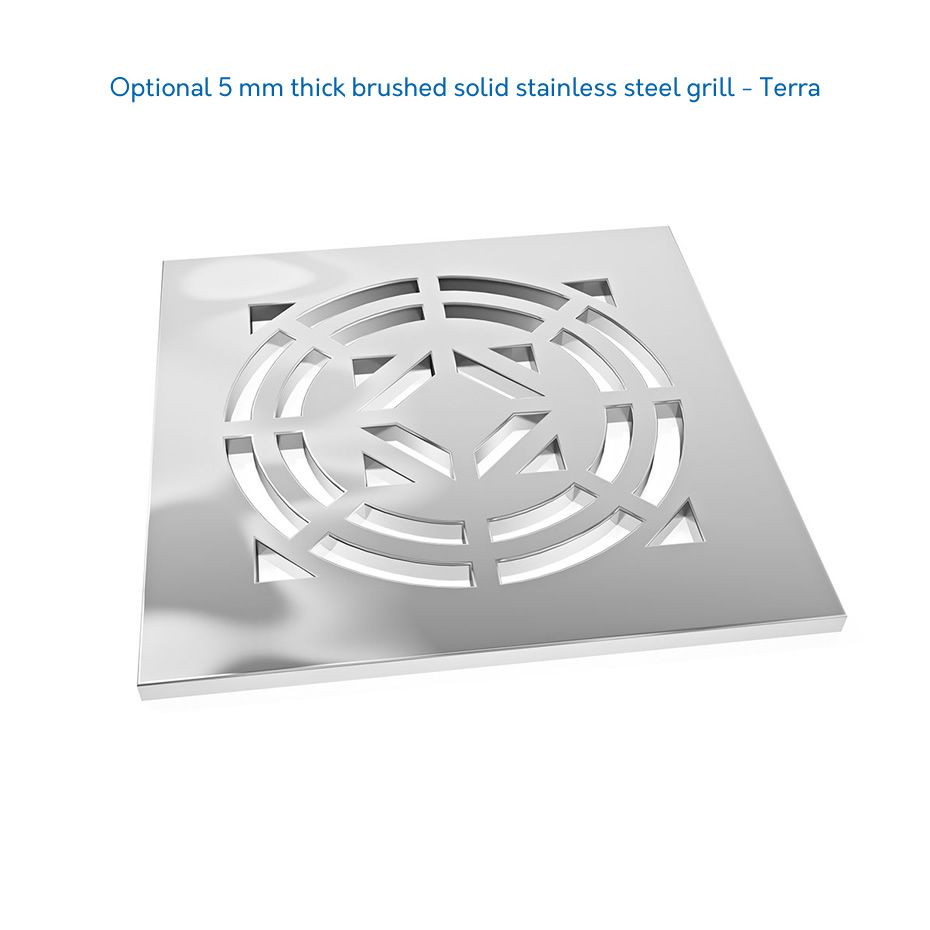

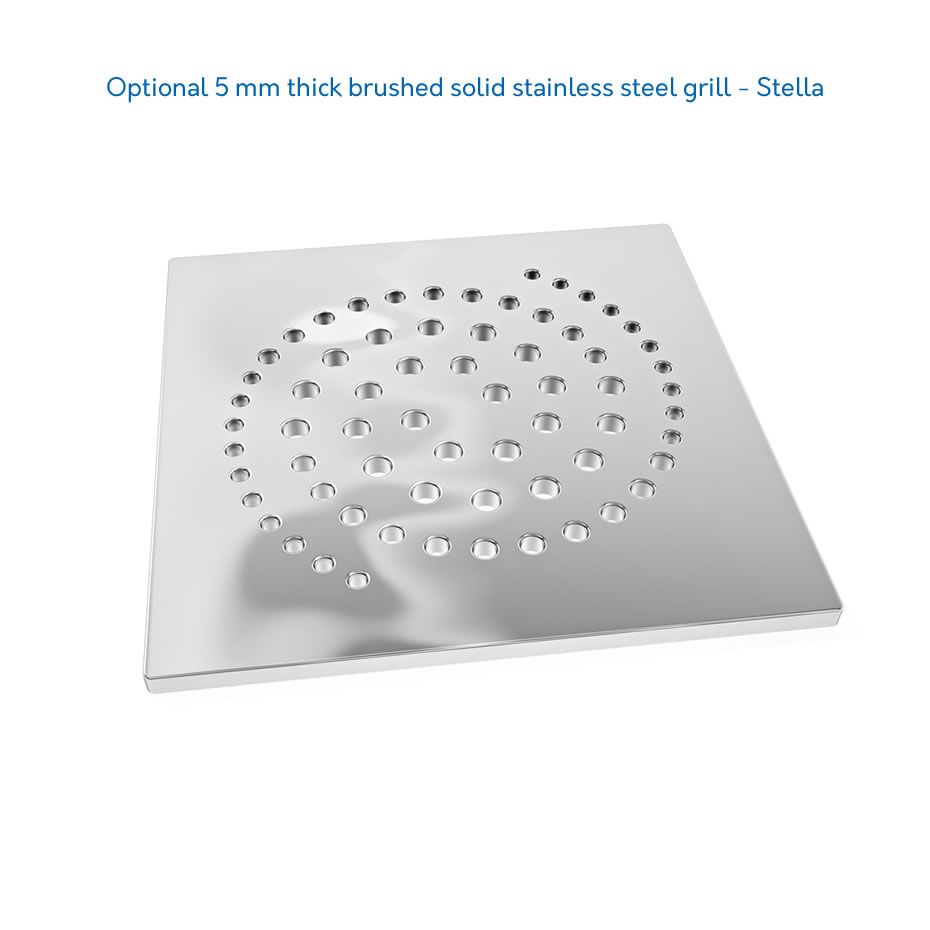

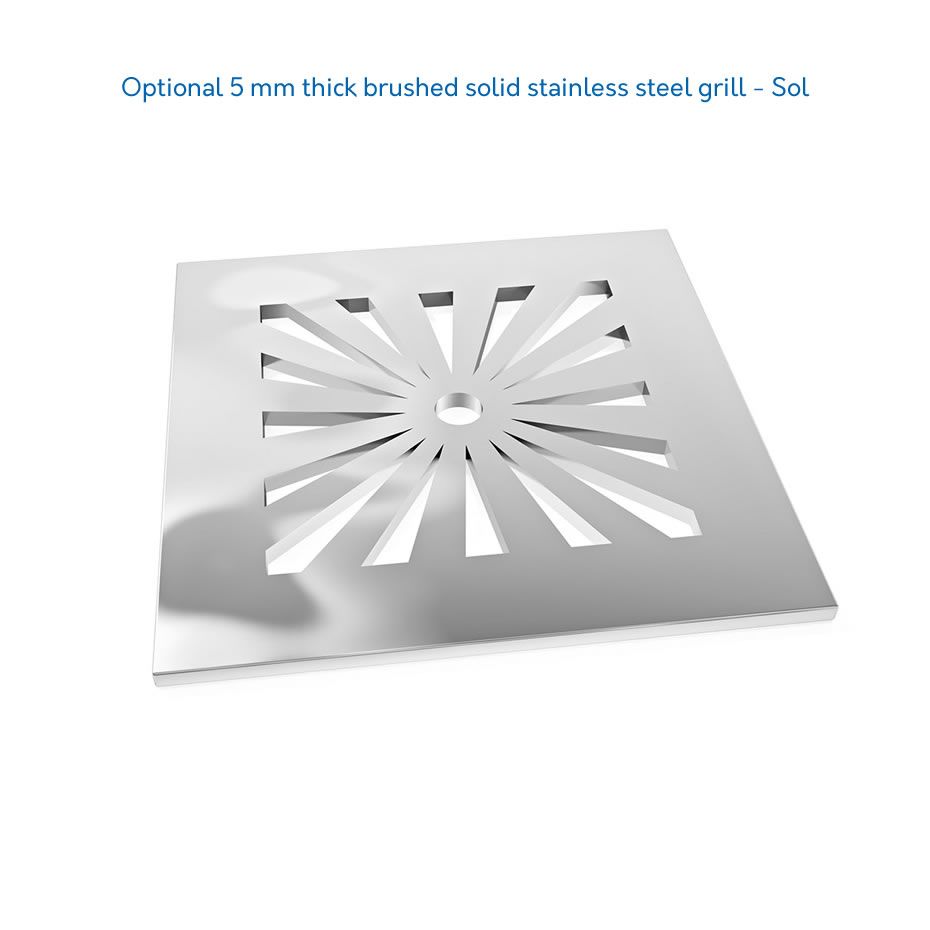

  • Optional drain covers available, including tileable drain
  • Made of extruded polystyrene foam (XPS)
  • Water-repellent
  • With special coating on both sides
  • Tiles can be applied directly
  • Integral CNC machines drainage fall
  • Excellent thermal insulation properties ?D = 0.035 W/(m·K)
  • Drainage flow rate > 0.9 l/s
  • Wheelchair-accessible
  • Compressive strength plus 300 kPa
Benefits Jackoboard Aqua Flat:
  • Extremely low installation height
  • Available in many shapes and sizes (e.g. square, rectangular)
  • Different drain systems with a selection of individual positions, including solid stainless-steel grate
  • Sealed drain flange
Drain System:
  • High quality designer grate in solid brushed stainless steel
  • Grate frame height adjustable from 3 to 18mm
  • Grate frame size 130 x 130 x 9mm
  • Super flat drain with a minimum installation height including shower element of only 97mm
  • High drainage rate of 0.9 l/s
  • Water trap height of 50mm
  • Installation height 77mm
  • DN50 Pipe connection
  • Drain nozzle made of glue-able ABS plastic

Jackoboard Plano Insulated Tile Backer Board

Jackoboard Plano Insulated Tile Backer Board

Jackoboard Plano Insulated Tile Backer Board is the ideal board for boarding out wet room floors and walls prior to tiling. Thanks to their extruded polystyrene foam core and the special coating on both sides, the JACKOBOARD® construction boards are the ideal base for plaster and tile. The surfaces of the JACKOBOARD® system provide a strong primer and can be used on virtually any substrate. At the same time, they are water repellent, thermally insulating, light and sturdy.

Suitable for all flat or vertical surfaces made of any material. Simple to use for novices and experts alike. Compatible with almost every type of under floor heating and ready for tiling with no further preparation (please check with under floor heating manufacturer).

JACKOBOARD® Plano. The construction boards can be cut to any desired shape and to any dimension. Thanks to the different thicknesses, there is no limit to the design flexibility of the construction boards for wall, floor and construction applications. They can be used on virtually any substrate and master every challenge thanks to their easy use.

    Suitable for:
  • Use on Walls & Floors
  • Tiling
  • Under Floor Heating
  • Wet Rooms, Walk in Showers, Spas

Each board measures 600 x 1200mm. Available in 6mm, 10mm, 12mm, 20mm & 30mm thickness

Full product details: Jackoboard Plano Insulated Tile Backer Board

Jackoboard Paint-On Tanking Kit:

Jackoboard Paint-On tanking kit

The Jackoboard tanking kit contains a rapid drying, brush/roller applied, single part flexible liquid membrane for use on rigid surfaces in bathrooms, wetrooms and showers. It can also be used to waterproof existing surfaces such as plaster, plasterboard or timber.

Suitable for all flat or vertical surfaces made of any material. Simple to use for novices and experts alike. Compatible with almost every type of under floor heating and ready for tiling with no further preparation (please check with under floor heating manufacturer).

For use under ceramic coverings in wet rooms, showers and bathrooms. Coverage 5 - 6sqm under normal conditions with recommended two coats.

    Jackoboard Tanking Kit:
  • 1 x 4KG Tanking liquid
  • 1 x 1 Litre Primer Liquid
  • 1 x 10 metre tape for wall and floor joints
  • 2 x Internal sealing corners

Full product details: Jackoboard Wet Room Tanking Kit

Sommer Evolve Wet Room Shower Screen

Sommer Evolve Wet Room Screen

Add an optional quality Sommer Evolve 8mm thick by 2000mm high toughened safety glass shower screen in a choice of widths, finished with an easy clean coating as standard, comes complete with wall bracket and support arm (700mm screen & above).

Available in of 400mm, 500mm, 600mm, 700mm, 760mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm or 1400mm length shower screens#

A life time guarantee and toughened 8mm glass gives you substance and style, in addition all Sommer wet room shower screens offer many premium features:

  • Bclean coating: Easy clean glass finish
  • Life time guarantee
  • Toughened 8mm thick glass
  • 2000mm high
  • Wall fixing profile supplied
  • Adjustable bracing bar supplied (1m)
  • Fittings available in Chrome or Black
  • Adjustment for secure and easy fixing (see below for further details)
  • Optional floor to ceiling post available (Max height 2.6m) - Cannot be used in conjunction with optional 300mm return panel.
  • Optional Angled Stabilising bar available (300mm)
  • CE Approved - Toughened 8mm thick glass
  • European safety glass approved - EN12150-1

#Screen sizes are nominal. All panels are undersized to allow for tiling when fitting to shower trays.

Sommer wet room shower screens are highly versatile and can be installed in many configurations including, One panel in a corner, One panel in an alcove, Walk through (with the use of two optional floor to ceiling posts), and with two panels in a corner to create a walk in enclosure.

Full product details: Sommer Evolve Wet Room Shower Screen
