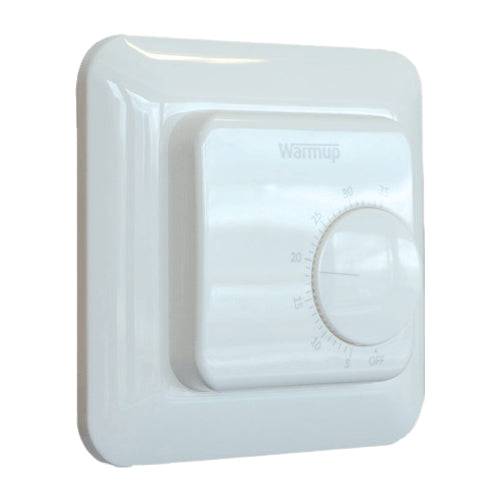

The upgraded Warmup MSTAT is a manual thermostat that can be used with either underfloor or central heating. Setting the comfort temperature is easy with MSTAT, simply turn the dial and let the thermostat do the rest.
Designed with an integrated dual air and floor sensor, MSTAT gives you the choice to set an air comfort temperature or a floor comfort temperature.
MSTAT is perfect for rooms which do no not benefit or require a set heating program, where you want fast and simple control of your heating system. Offering an quick and easy installation, the MSTAT depth allows flush mounting in a standard socket.
Benefits & Features:
- Concealed heating indicator
- Adjustable floor temperature limit
- Floor and air sensors ensure precise control
- Sensors can be set as; Air, floor or Air with a floor limit
- Automatically enters ‘safe mode’ if sensor failure detected
- Temperature regulation - From 5 to 35 degrees
- 16A switching capability - MSTAT manual thermostat’s 16A switching capability, 3,600W at 230V, is suitable for central heating, hydronic and electric underfloor heating demands.
- 3 year manufacturers warranty
- CE marked for ultimate peace of mind
DCM Pro Underfloor Heating Cable
Warmup® DCM-PRO System is the fastest way to install a heated decoupling system in all areas of the home; in fact, 40% faster than standard underfloor heating membranes. The patent pending self-adhesive underside of the mat acts as a self-healing decoupling layer and eliminates the need for an adhesive layer, reducing both time and costs.
The DCM-PRO System suits all floor types and protects the floor finish from seasonal changes that may cause cracks in the floor finish. The layer contracts and expands to deal with seasonal changes, preventing damage from occurring to the floor coverings due to the gaps and cracks in the subfloor.
It is recommended that the DCM-PRO system is installed on top of thermally insulated tile backer board. This provides a flat surface that is insulated against heat loss.
The DCM-PRO mat sticks directly on the insulation board, with no extra adhesive required. Based on the heat output required, the cable is laid and spaced out in the castellation’s accordingly. The clear sizing based on the castellation’s of the mat provides quick and easy planning for installation, 2m2 of cable fits exactly 2m2 of mat etc. Sizing can be adjusted to increase or decrease coverage and power (see Spacing Guide tab) . The DCM-PRO cable clips into the castellation’s of the DCM-PRO mat, no tools are required when installing the cable into the mat.>
As soon as the mat is fitted, the cable is installed and cable resistance checked, tiling or self-levelling can be started. The DCM-PRO mat can be covered with flexible adhesive (for use with tiles) or self-levelling compound, allowing it to heat and protect any floor covering material that is certified for use with underfloor heating. This includes tiles, engineered wood, vinyl and carpet providing a constant output of 150wm2.
Please note: The DCM-Pro Cable MUST be installed on the DCM-Pro membrane Mat - available separately.
Full Product Details - Warmup DCM-Pro Heating Cable
DCM Pro Membrane Mat
The DCM-PRO mat sticks directly on the insulation board, with no extra adhesive required. Based on the heat output required, the cable is laid and spaced out in the castellation’s accordingly. The clear sizing based on the castellation’s of the mat provides quick and easy planning for installation, 2m2 of cable fits exactly 2m2 of mat etc. Sizing can be adjusted to increase or decrease coverage and power (see Spacing Guide tab) . The DCM-PRO cable clips into the castellation’s of the DCM-PRO mat, no tools are required when installing the cable into the mat.
As soon as the mat is fitted, the cable is installed and cable resistance checked, tiling or self-levelling can be started. The DCM-PRO mat can be covered with flexible adhesive (for use with tiles) or self-levelling compound, allowing it to heat and protect any floor covering material that is certified for use with underfloor heating. This includes tiles, engineered wood, vinyl and carpet providing a constant output of 150wm2.
Please note: The DCM-Pro Mat is only suitable for the installation of DCM-Pro Heating Cable - available separately.
Full Product Details: DCM-Pro Membrane Mat
Warmup StickyMat Underfloor Heating Mat
Warmup StickyMat system is suitable for all projects: new-build, retrofits and refurbishments. The StickyMat System consists of a thin loose wire evenly spaced and taped to a glass fibre mesh with pressure sensitive adhesive, which allows for the fastest and most secure installation method of electric underfloor heating. The system is available in a choice of 150 W/m² and 200 W/m² heat outputs.
The heating cable is ultra thin, only 1.8mm. It has multi-strand dual- core, double-insulated using advanced fluoropolymer coatings. This means you can tile directly above it with a thin layer of flexible tile adhesive.
This system is suitable for all applications, providing primary or secondary heating in all rooms or projects that adheres to Building Regulations.
Full Product Details - Warmup StickyMat Underfloor Heating
Warmup Thermal Insulation Board
Suitable for all electric systems, Warmup’s Insulation Boards are a high-quality insulation solution with low thermal conductivity, reducing heat up times by up to 90%.
Composed of extruded polystyrene and covered on both side with a slim, flexible fiberglass mesh within a cement coating, the Insulation Boards can withstand a load of 30 tons per square metre and are also waterproof, making them the perfect choice for use with underfloor heaters in bathrooms and wet-rooms.
Warmup cement coated tough insulation boards are an important element when installing underfloor heating. They provide a foundation to the underfloor heating system. The insulation improves the response time and heat retention within the room reducing energy consumption.
Manufactured from water resistant extruded polystyrene, finished on both faces with a thin layer of fiberglass reinforced cement. They are ideal for backing applications on both walls and floors, with the internal layer of insulation capable of supporting 30 tonnes per square metre. The 0.5mm thick cement coating provides an excellent surface for tile adhesive, plaster and smoothing/levelling compounds with no priming required.
Full product details: Warmup Thermal Insulation Board
The upgraded Warmup MSTAT is a manual thermostat that can be used with either underfloor or central heating. Setting the comfort temperature is easy with MSTAT, simply turn the dial and let the thermostat do the rest.
Designed with an integrated dual air and floor sensor, MSTAT gives you the choice to set an air comfort temperature or a floor comfort temperature.
MSTAT is perfect for rooms which do no not benefit or require a set heating program, where you want fast and simple control of your heating system. Offering an quick and easy installation, the MSTAT depth allows flush mounting in a standard socket.
Benefits & Features:
- Concealed heating indicator
- Adjustable floor temperature limit
- Floor and air sensors ensure precise control
- Sensors can be set as; Air, floor or Air with a floor limit
- Automatically enters ‘safe mode’ if sensor failure detected
- Temperature regulation - From 5 to 35 degrees
- 16A switching capability - MSTAT manual thermostat’s 16A switching capability, 3,600W at 230V, is suitable for central heating, hydronic and electric underfloor heating demands.
- 3 year manufacturers warranty
- CE marked for ultimate peace of mind
DCM Pro Underfloor Heating Cable
Warmup® DCM-PRO System is the fastest way to install a heated decoupling system in all areas of the home; in fact, 40% faster than standard underfloor heating membranes. The patent pending self-adhesive underside of the mat acts as a self-healing decoupling layer and eliminates the need for an adhesive layer, reducing both time and costs.
The DCM-PRO System suits all floor types and protects the floor finish from seasonal changes that may cause cracks in the floor finish. The layer contracts and expands to deal with seasonal changes, preventing damage from occurring to the floor coverings due to the gaps and cracks in the subfloor.
It is recommended that the DCM-PRO system is installed on top of thermally insulated tile backer board. This provides a flat surface that is insulated against heat loss.
The DCM-PRO mat sticks directly on the insulation board, with no extra adhesive required. Based on the heat output required, the cable is laid and spaced out in the castellation’s accordingly. The clear sizing based on the castellation’s of the mat provides quick and easy planning for installation, 2m2 of cable fits exactly 2m2 of mat etc. Sizing can be adjusted to increase or decrease coverage and power (see Spacing Guide tab) . The DCM-PRO cable clips into the castellation’s of the DCM-PRO mat, no tools are required when installing the cable into the mat.>
As soon as the mat is fitted, the cable is installed and cable resistance checked, tiling or self-levelling can be started. The DCM-PRO mat can be covered with flexible adhesive (for use with tiles) or self-levelling compound, allowing it to heat and protect any floor covering material that is certified for use with underfloor heating. This includes tiles, engineered wood, vinyl and carpet providing a constant output of 150wm2.
Please note: The DCM-Pro Cable MUST be installed on the DCM-Pro membrane Mat - available separately.
Full Product Details - Warmup DCM-Pro Heating Cable
DCM Pro Membrane Mat
The DCM-PRO mat sticks directly on the insulation board, with no extra adhesive required. Based on the heat output required, the cable is laid and spaced out in the castellation’s accordingly. The clear sizing based on the castellation’s of the mat provides quick and easy planning for installation, 2m2 of cable fits exactly 2m2 of mat etc. Sizing can be adjusted to increase or decrease coverage and power (see Spacing Guide tab) . The DCM-PRO cable clips into the castellation’s of the DCM-PRO mat, no tools are required when installing the cable into the mat.
As soon as the mat is fitted, the cable is installed and cable resistance checked, tiling or self-levelling can be started. The DCM-PRO mat can be covered with flexible adhesive (for use with tiles) or self-levelling compound, allowing it to heat and protect any floor covering material that is certified for use with underfloor heating. This includes tiles, engineered wood, vinyl and carpet providing a constant output of 150wm2.
Please note: The DCM-Pro Mat is only suitable for the installation of DCM-Pro Heating Cable - available separately.
Full Product Details: DCM-Pro Membrane Mat
Warmup StickyMat Underfloor Heating Mat
Warmup StickyMat system is suitable for all projects: new-build, retrofits and refurbishments. The StickyMat System consists of a thin loose wire evenly spaced and taped to a glass fibre mesh with pressure sensitive adhesive, which allows for the fastest and most secure installation method of electric underfloor heating. The system is available in a choice of 150 W/m² and 200 W/m² heat outputs.
The heating cable is ultra thin, only 1.8mm. It has multi-strand dual- core, double-insulated using advanced fluoropolymer coatings. This means you can tile directly above it with a thin layer of flexible tile adhesive.
This system is suitable for all applications, providing primary or secondary heating in all rooms or projects that adheres to Building Regulations.
Full Product Details - Warmup StickyMat Underfloor Heating
Warmup Thermal Insulation Board
Suitable for all electric systems, Warmup’s Insulation Boards are a high-quality insulation solution with low thermal conductivity, reducing heat up times by up to 90%.
Composed of extruded polystyrene and covered on both side with a slim, flexible fiberglass mesh within a cement coating, the Insulation Boards can withstand a load of 30 tons per square metre and are also waterproof, making them the perfect choice for use with underfloor heaters in bathrooms and wet-rooms.
Warmup cement coated tough insulation boards are an important element when installing underfloor heating. They provide a foundation to the underfloor heating system. The insulation improves the response time and heat retention within the room reducing energy consumption.
Manufactured from water resistant extruded polystyrene, finished on both faces with a thin layer of fiberglass reinforced cement. They are ideal for backing applications on both walls and floors, with the internal layer of insulation capable of supporting 30 tonnes per square metre. The 0.5mm thick cement coating provides an excellent surface for tile adhesive, plaster and smoothing/levelling compounds with no priming required.
Full product details: Warmup Thermal Insulation Board
Warmup
Warmup are the market leaders in underfloor heating systems. Accredited to ISO 9001:2008 and based in the UK, Warmup have been in operation for over 23 years, selling over 2.1million under floor heating systems in over 70 countries worldwide.
Warmup has been built on a tradition of quality and innovation, which continues to this day with the release of new products such as the Sticky Mat and 6iE Smart WiFi thermostat.
All Warmup loose wire, matting and sticky mat systems come with a lifetime warranty when installed in accordance with the instructions and specified materials.
