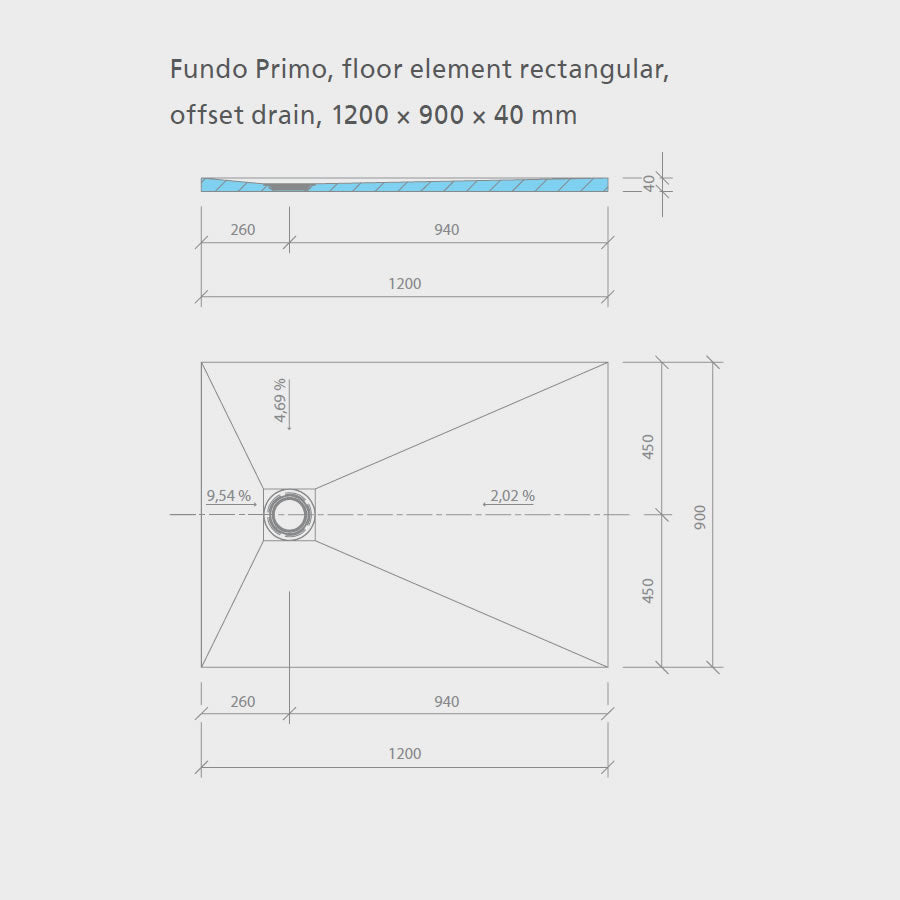

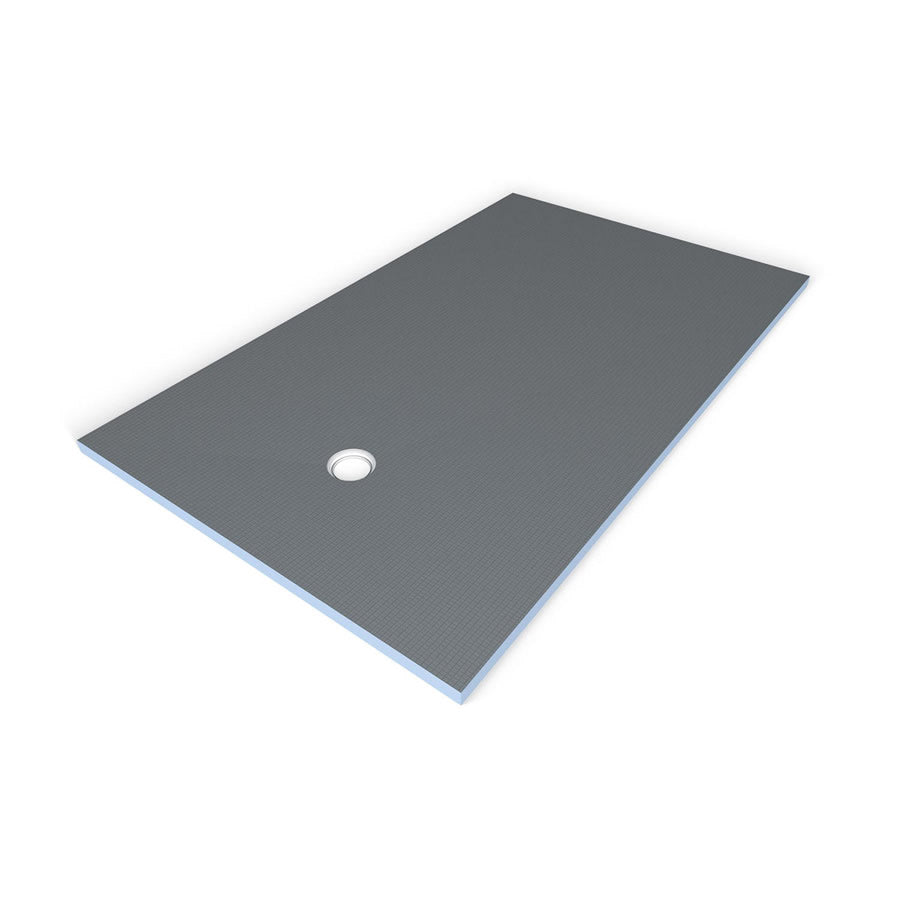

- 1200 x 900 x 40mm
- OFFSET Drain Position
- Under Support Required
- Can be trimmed by 50mm off each edge
- 10 Year Guarantee
- BBA Approved
- Concrete Subfloor
- Tiled Floor Finish
- Wet Rooms
- Level Access
- Raised on Platform
- Underfloor Heating
- Use with Wheelchairs
(min tile size 50 x 50mm)
- Vinyl Floor Finish
- Micro Cement
- Fitting Direct on Joists
To Here (this label will be hidden)

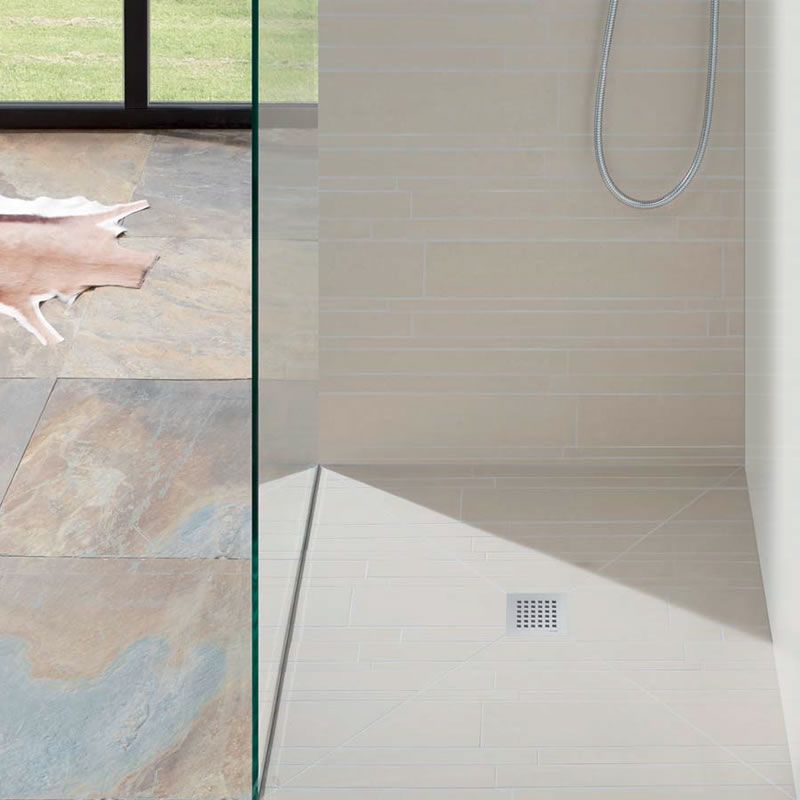

Fundo floor elements from wedi offer a reliable and efficient solution for the construction of waterproof, floor level showers. Featuring a fitted and sealed floor drain (available separately), a supplementary factory applied waterproof coating and a predefined slope, they require far less work on any project and therefore save the installer a lot of time.
For classic point drainage in the shower, wedi offers the wedi Fundo Primo floor elements in a wide variety of sizes.
Whether square or rectangular, placed in the middle of the room or in the corner, they offer the ideal solution for every space and can easily be rounded out to form a complete shower area with the help of wedi building boards and other wedi system components.

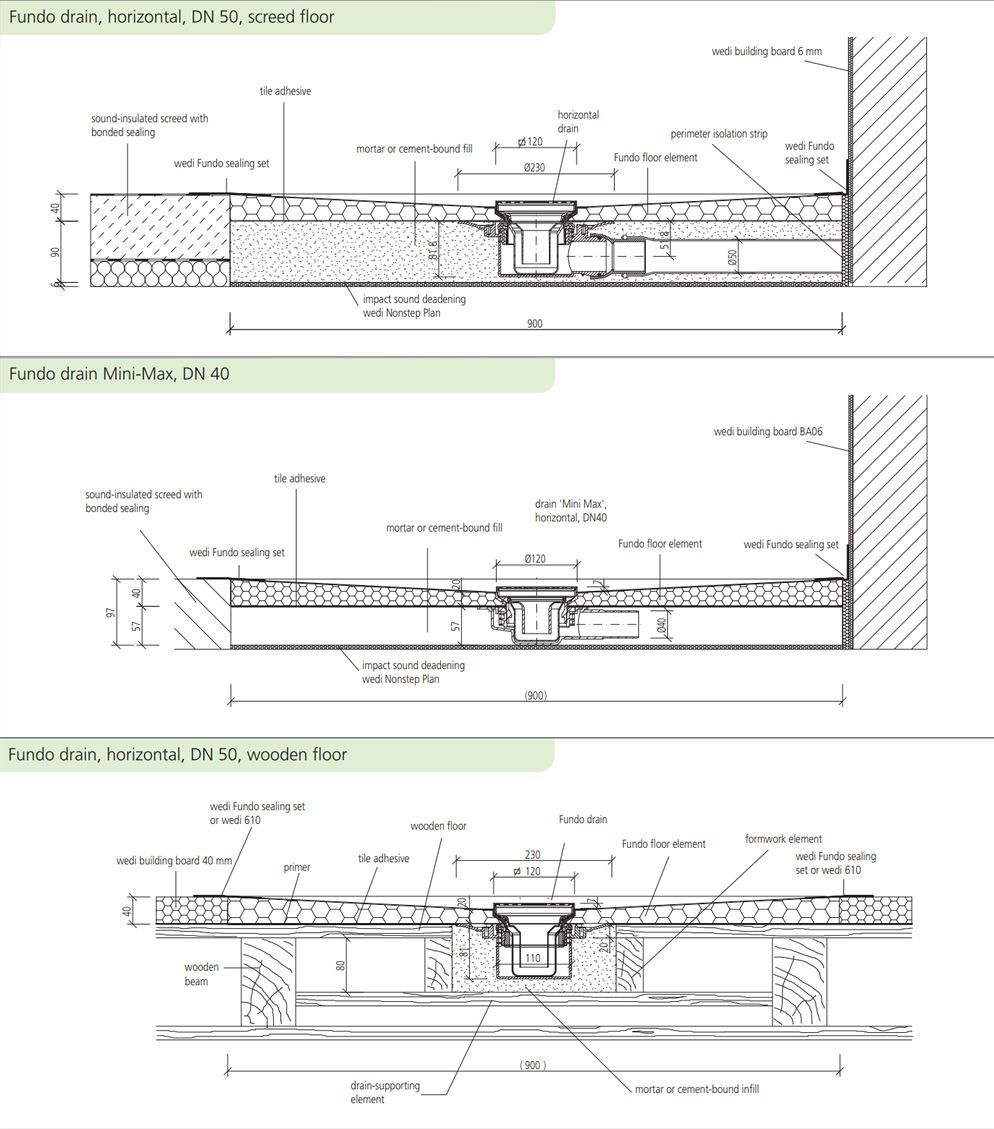

Whilst the Wedi Fundo Primo is primarily designed for use in a concrete screed floor it can be laid on top of a wooden floor (excluding traditional floor boards). The drain is laid inside the floor structure and will need supporting with a concrete screed infill or the Wedi Fundo drain substrate. Please see instructions. Alternatively for suspended wooden floors (traditional floorboards) please see the Wedi Fundo Ligno wet room former

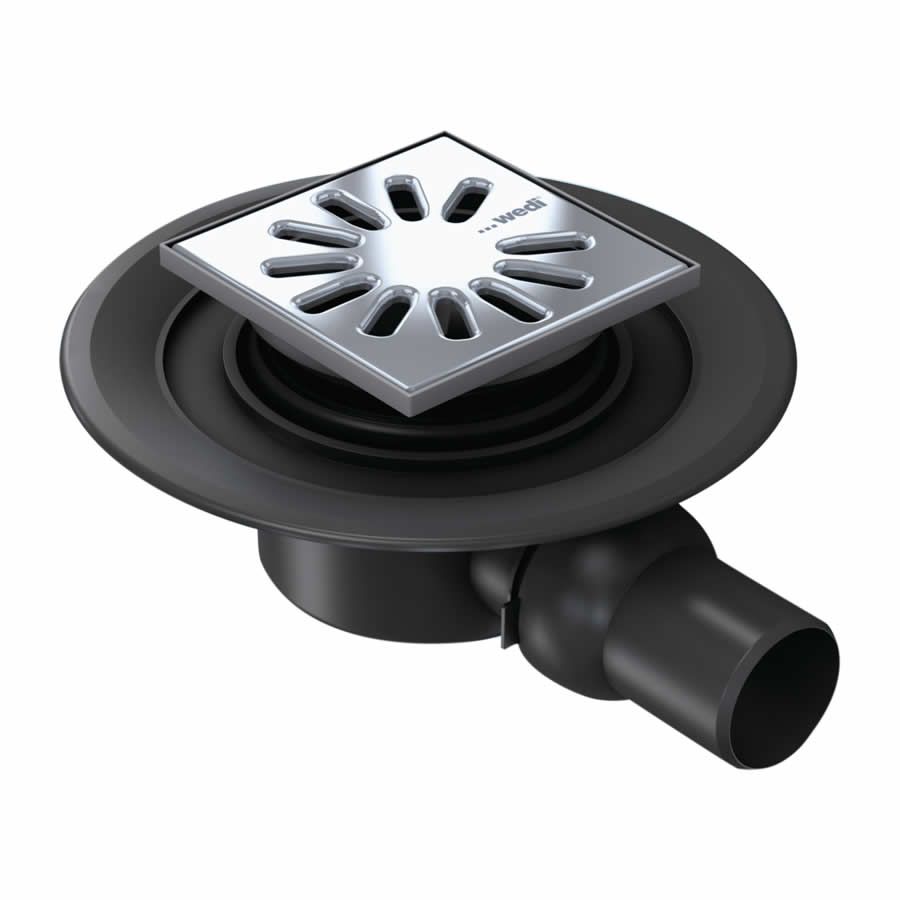

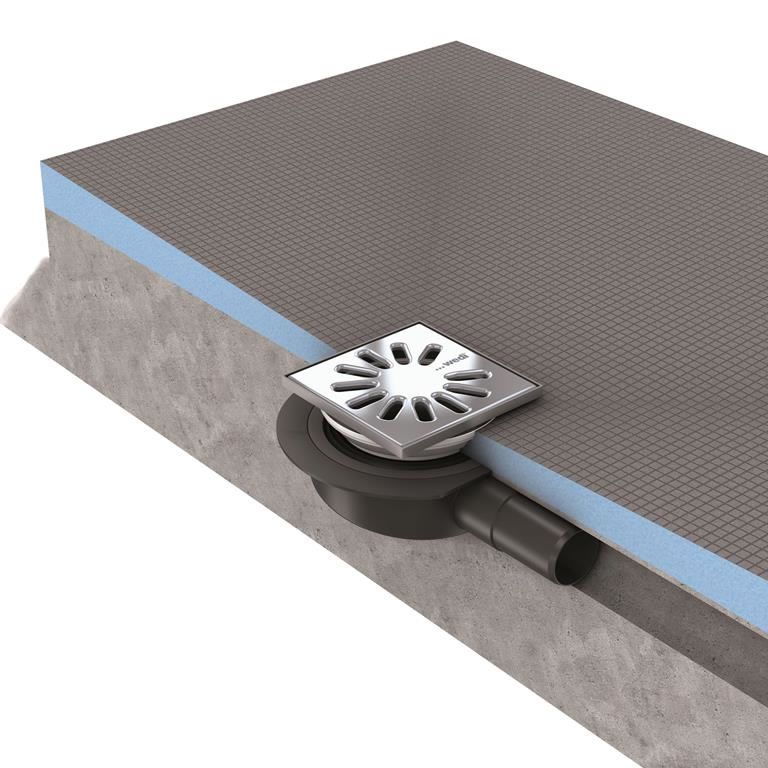

Drain Options:
A drain is not included as standard with the Wedi Fundo Primo, therefore it will need to be purchased if required. A number of options are available as follows:
DN50 Square: Depth below tray 90mm - Flow rate 0.80 l/s / 48.0 l/m
DN50 Round: Depth below tray 90mm - Flow rate 0.80 l/s / 48.0 l/m
DN40 Mini Max Low profile: Depth below tray 57mm - Flow rate 0.50 l/s / 30.0 l/m
To make installation of the drain easier a drain sub-structure is optionally available. The substructure supports the drain body, eliminating the need to cement the drain body in.
Please note: The drain sub-structure IS NOT SUITABLE for use with LOW PROFILE wastes.
Waterproofing/Sealing:
The Wedi Fundo Primo wet room tray former is itself 100% waterproof, including the core. This means that should it become damaged the tray former is still waterproof. If a Wedi Fundo Primo tray is joined to Wedi Building Board using the Wedi 610 Hybrid Adhesive and Sealant, as per the manufacturer’s instructions, then that joint will be 100% waterproof. However, we strongly advise the taping of all joints with waterproof tape, and then sealing the whole area with the Wedi Sealing Kit to provide extra assurances on the waterproofing and peace of mind for years to come.
- 100% waterproof core (even when damaged)
- Manufactured from extruded polystyrene rigid foam, reinforced with glass fibre on both sides and finished with a polymer-modified cement coating
- In-built fall to drain
- Mould and mildew proof
- Thermally insulating
- Light weight
- 40mm deep
Wedi Fundo Primo Technical Data Sheet
Wedi Fundo Primo Screed Floor Fitting Instructions
Wedi Fundo Primo Wooden Floor Fitting Instructions
Wedi Shower Elements BBA Certificate No:14/5126
wedi 610 Adhesive Sealant
wedi 610 adhesive sealant is a versatile single-component adhesive and sealant. It is used as a system component for the wedi sealing system.
Better to be safe than sorry. As a versatile single-component adhesive sealant, wedi 610 adhesive sealant is especially suited to waterproof butt joints of building boards. Furthermore, wedi 610 adhesive sealant has outstanding resistance to the elements; and to chemicals; and is also free of solvents, silicon and PCP.
For adhesion and sealing of wedi building boards and wedi Fundo elements. For attachment of various materials including wood, metals (aluminium, galvanised steel, high-grade steel, brass, copper), hard PVC, soft PVC and tiles to the wedi building board/Fundo system.
Full product details: wedi 610 Adhesive SealantWedi Fundo Sealing Set - Tanking / Waterproofing Kit
For sealing of joints in wet areas - but especially for sealing the whole perimeter of wedi Fundo shower elements and for waterpoof sealing of wedi to non-wedi
joints.The wedi Fundo sealing set consists of a 2-component slurry sealants and wedi Tool sealing tape/sealing corners for flexible joint sealing.
- Entire system is 100% waterproof
- Simple and safe to work with - tested by those in the trade
- The wedi Fundo Sealing set is sufficient for installing a Fundo base plus a Fundo shower partition
- Especially developed for the waterproof connection of Fundo shower elements to other non-wedi materials such as floor screed and plasterboard.
Wedi Fundo Standard Drain Substructure
The wedi Fundo drain substructure removes the need to set the drain body in a cement / screed base, whilst at the same time it is designed to reinforce and support.
Allowing for future easy access to the underfloor drain body, and a faster, easier installation, the Wedi Fundo drain substructure is suitable for use with the following Wedi Fundo wetroom elements:
Primo
Ligno
Borgo
100% waterproof
Manufactured from Wedi XPS
Please note: This sub-structure is NOT suitable for use with the Wedi Mini Max low profile drain.
