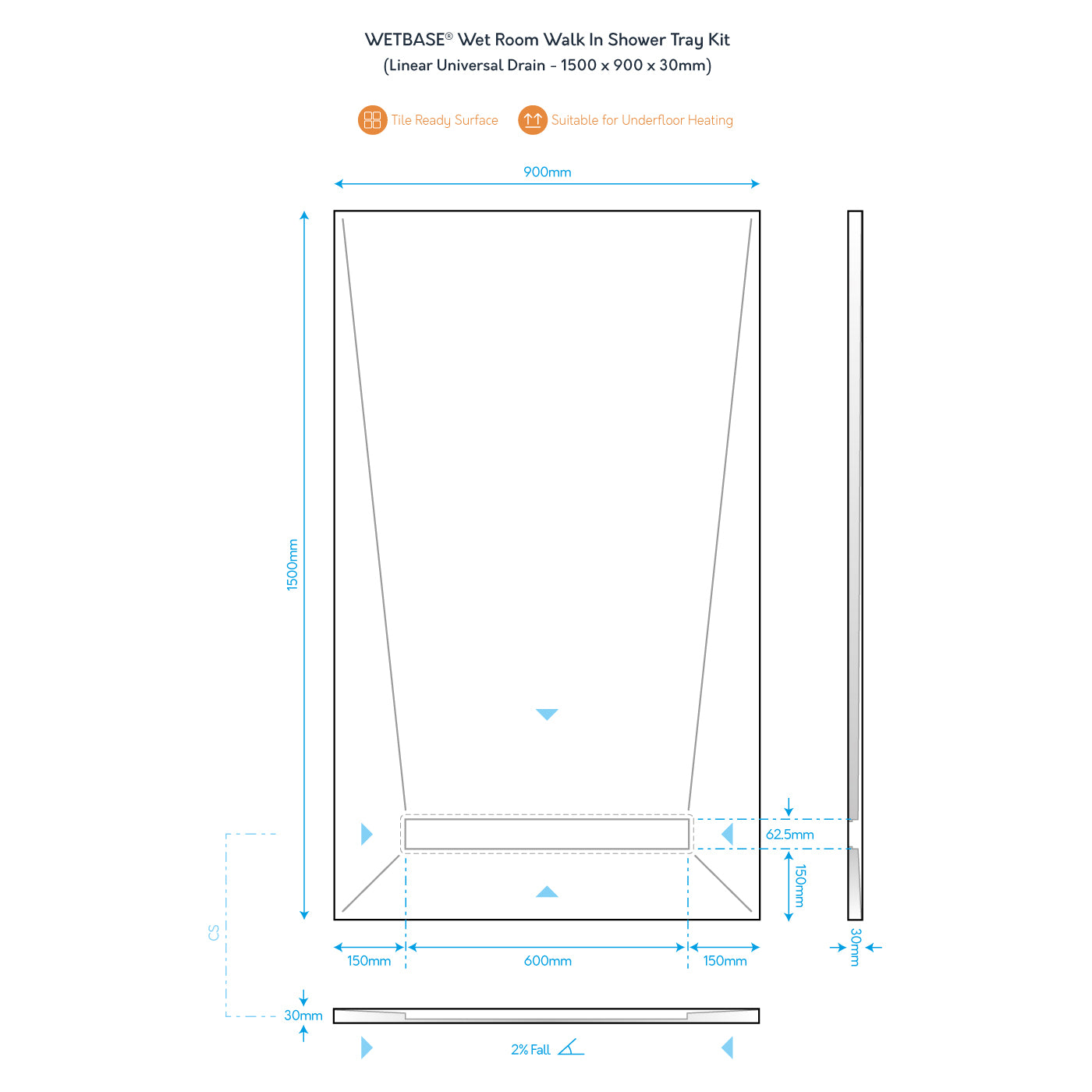

WetBase® Linear Universal Wet Room Walk In Shower Tray with Reversible Cover - 1500 x 900 x 30mm

£395.00

Price inclusive of VAT

SKU : WBLU1590E

Order in the next: 00 hours, 00 minutes, 00 seconds for Same Day Shipping*

Delivery Approx 2 - 3 Working Days

Selection Subtotal:

£395.00

Call our EXPERTS on FREEPHONE 0800 280 8008

100% money back guarantee if not fully satisfied*

Rated EXCELLENT by our customers

FREE delivery on orders
over £300

Description
Technical Details
You May Also Need - Optional Extras

Copy from Here (this label will be hidden)

Add your 3 titles here (this label will be hidden)

Specification
Suitable For
Not Suitable For

Add your 3 lists here (this label will be hidden)

  • 1500 x 900 x 30mm
  • LINEAR END Drain
  • Stainless Steel, Matte Black or Satin Gold Channel
  • Under Support Required
  • Complete with fast flow drain
  • Optional Tanking Kit
  • Can be trimmed by 50mm off each edge
  • 20 Year Guarantee
  • Wood or Concrete Subfloor
  • Tiled Floor Finish
  • Wet Rooms
  • Level Access
  • Raised on Platform
  • Underfloor Heating
  • Vinyl Floor Finish
  • Micro Cement
  • Use with Wheelchairs
  • Fitting Direct on Joists

To Here (this label will be hidden)

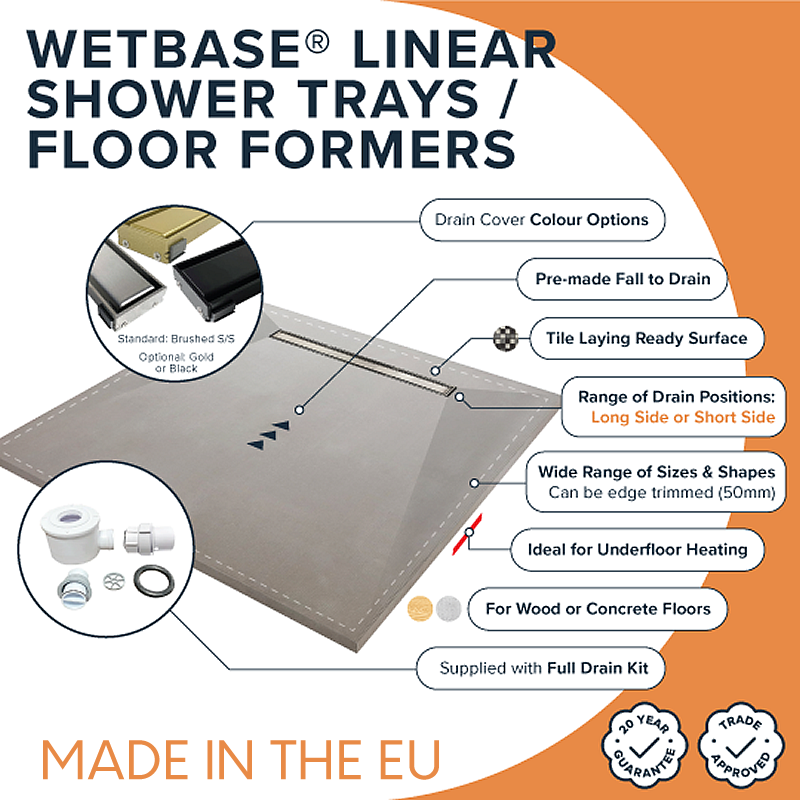

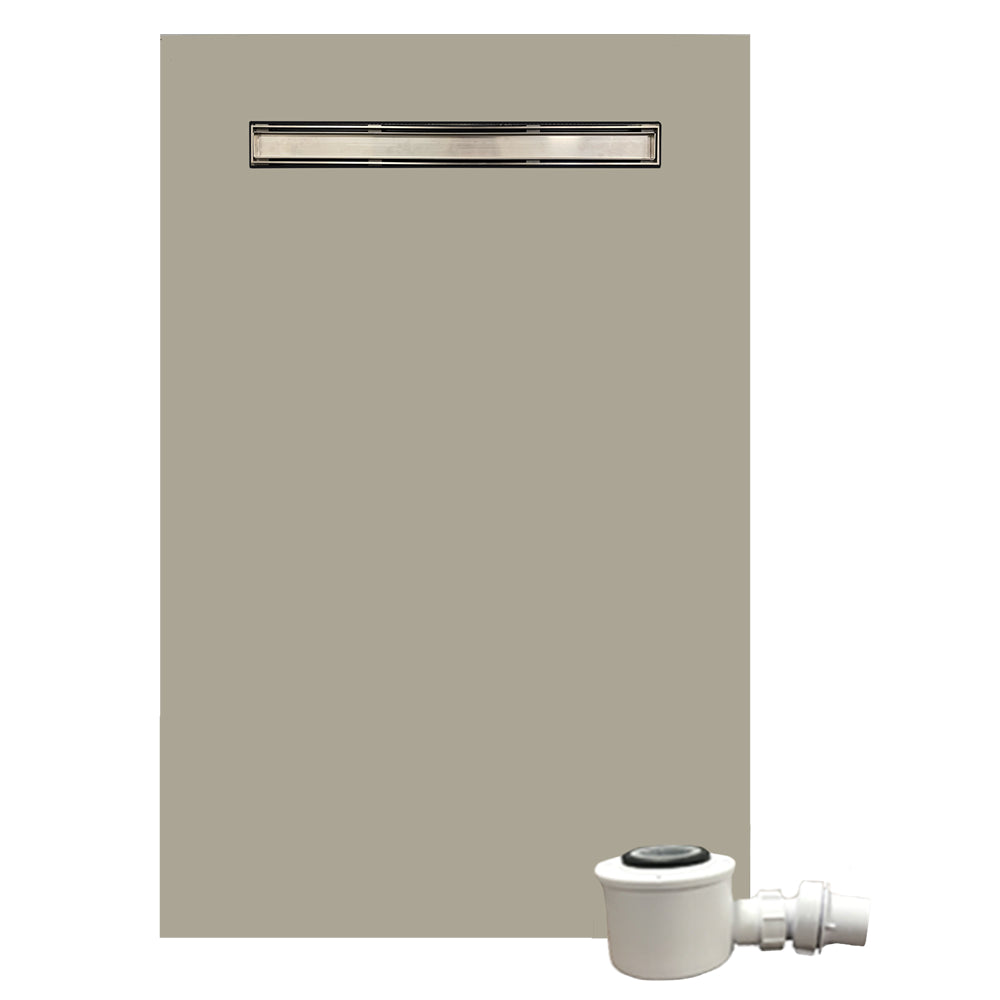

The Wetrooms Online WetBase® Linear Universal wet room floor / shower base is an easy to install, linear level access ‘walk in shower’ floor tray.

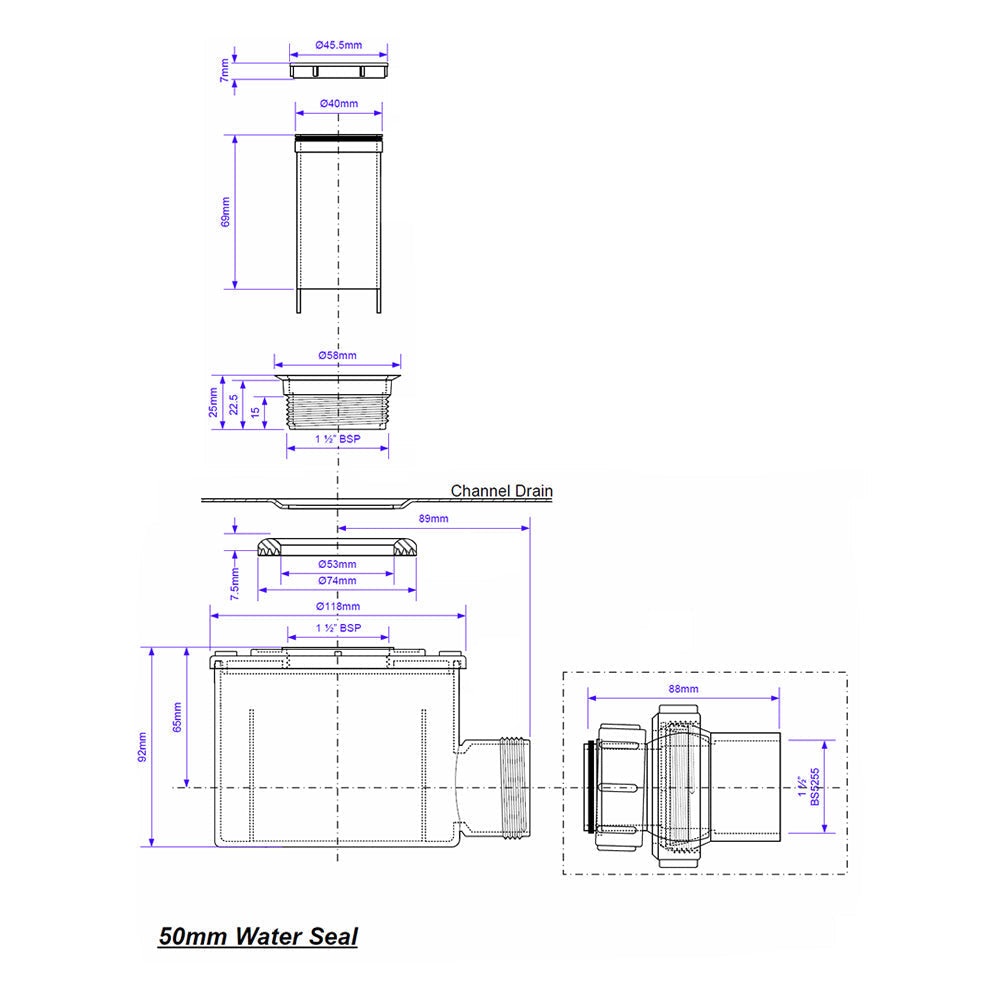

This tray comes complete with a McAlpine fast flow drain, stainless steel grill, which when reversed is fully tileable to match the surrounding floor.

Optional Mapei 4m/5kg liquid based (no mixing required) tanking kit for waterproofing the tray area  or a complete Tanking, Fixing & Sealing Kit for fixing the WetBase®, waterproofing the floor and walls in addition to sealing the perimeter of the tray where it meets the wall / surrounding floor. The perfect solution for installing a wet room or walk in shower. Available at a discounted price when purchased with a wet room tray.

The WetBase® Linear Universal tray kit is the UK's first true linear drain system with the drain trough bonded in to the tray in the factory which eliminates installer error and maintains 100% waterproofing capability when installed correctly. The position of the drain exit is determined by the installer on site as the drain is cut into the trough by the user (circular bit supplied) and thus can avoid joists or support beams. It can be used in wooden floors and concrete sub-floors.

The base of the tray is totally flat and is installed onto the wooden joists in the normal manner with support between the joists. It has an adjustable drain and channel cover to accommodate various tile heights. We recommend a tile thickness of NO less than 10mm, the tray can be tiled with large format tiles or mosaics, the latter being easier to follow the contours of the tray.

Installation can be conducted by any competent DIY person or professional fitter, and as the drain trough is already installed into the tray, it cuts down on install time and the possibility of installer error.

If you have a concrete floor or if there is no access under the flooring to locate the shower drain, then the tray can still be used by using a separate raised substrate.

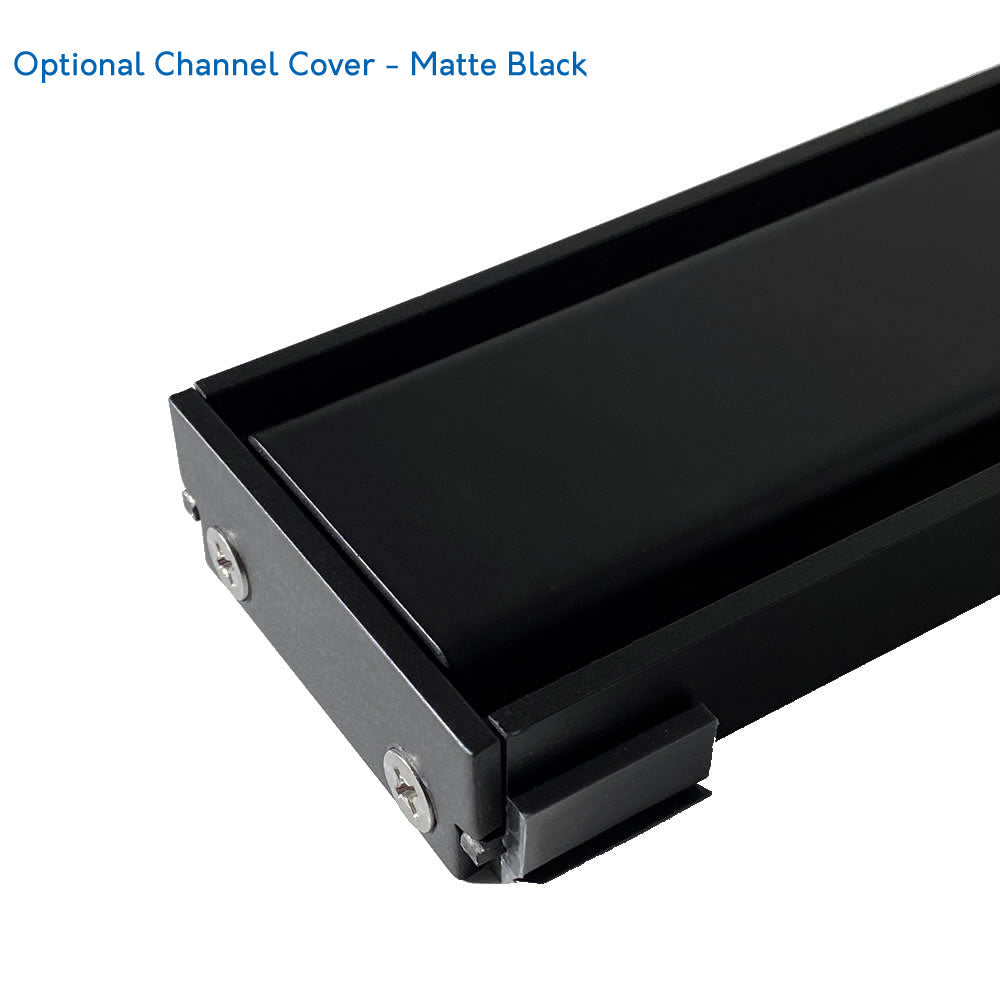

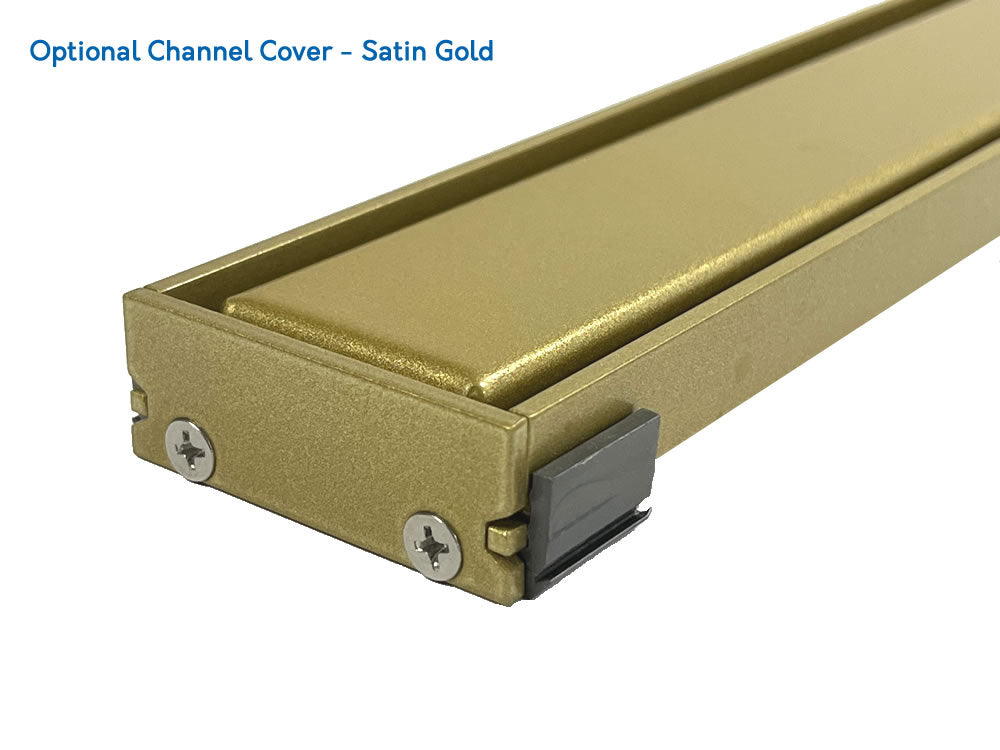

Drain Channel Cover - Options


WetBase linear drain channel covers

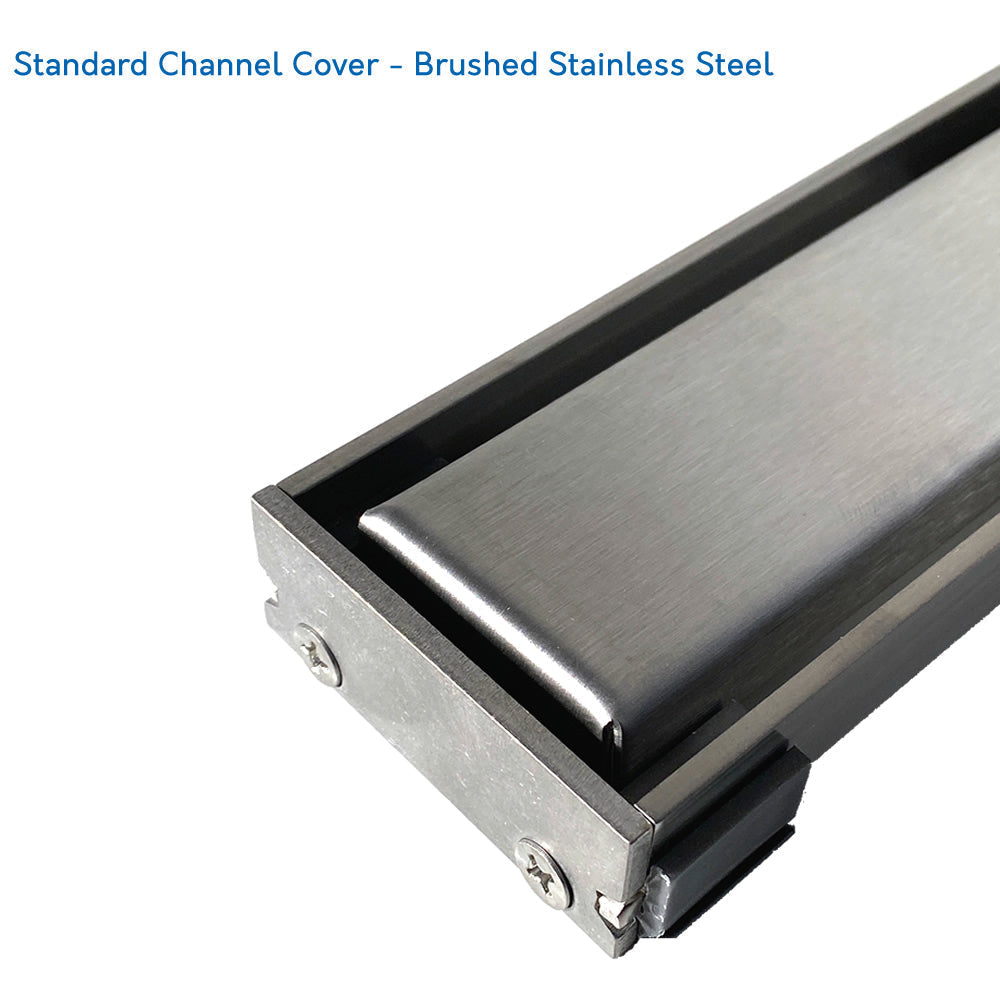

Fully Reversible & Tileable Drain Cover: The upside of the stainless steel drain cover is a brushed stainless-steel finish, if you prefer to tile the drain cover to match the surrounding floor, simply turn it over and tile to match. The drain channel is a fixed height of approx. 15mm, suitable for use with 10mm thick tiles. The height of the drain cover can be raised using the simple 'lug' set provided with the drain cover.



Important:

This tray is 30mm thick, this means that in most circumstances it will sit 10mm above the floor boards when fitted. Therefore, 10mm tile backer board* should be used to bring the remainder of the floor up to level prior to tanking and tiling.

*The thickness required may differ installation to installation, please check thickness required prior to ordering.

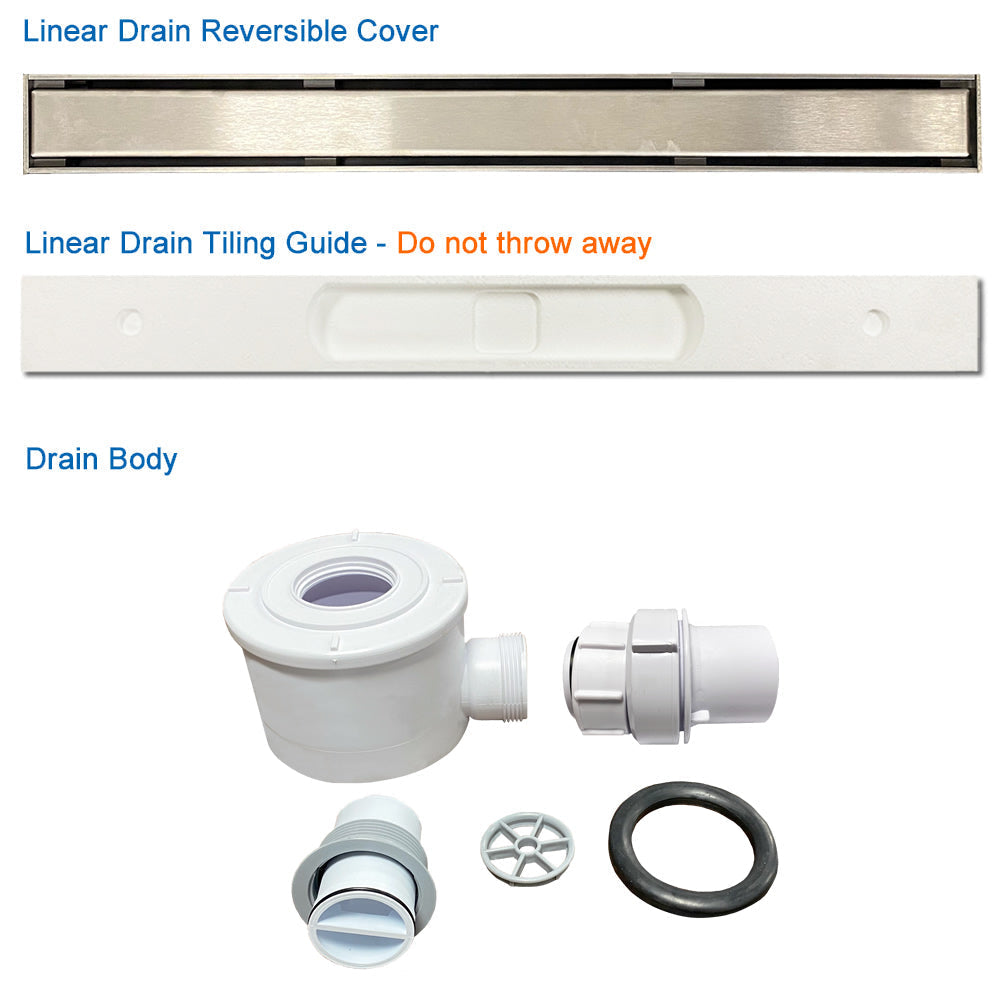

WetBase® Wet Room Kit Contents:

  • 1 x 1500 x 900 WetBase® Linear Universal tray 30mm deep, 2% fall.
  • 1 x Fast flow drain (horizontal outlet)
  • Brushed Stainless Steel Channel Cover
  • Fitting Instructions
  • Optional 5KG Tanking Kit: Mapei 4m Tanking Kit OR Tanking, Fixing & Sealing Kit:

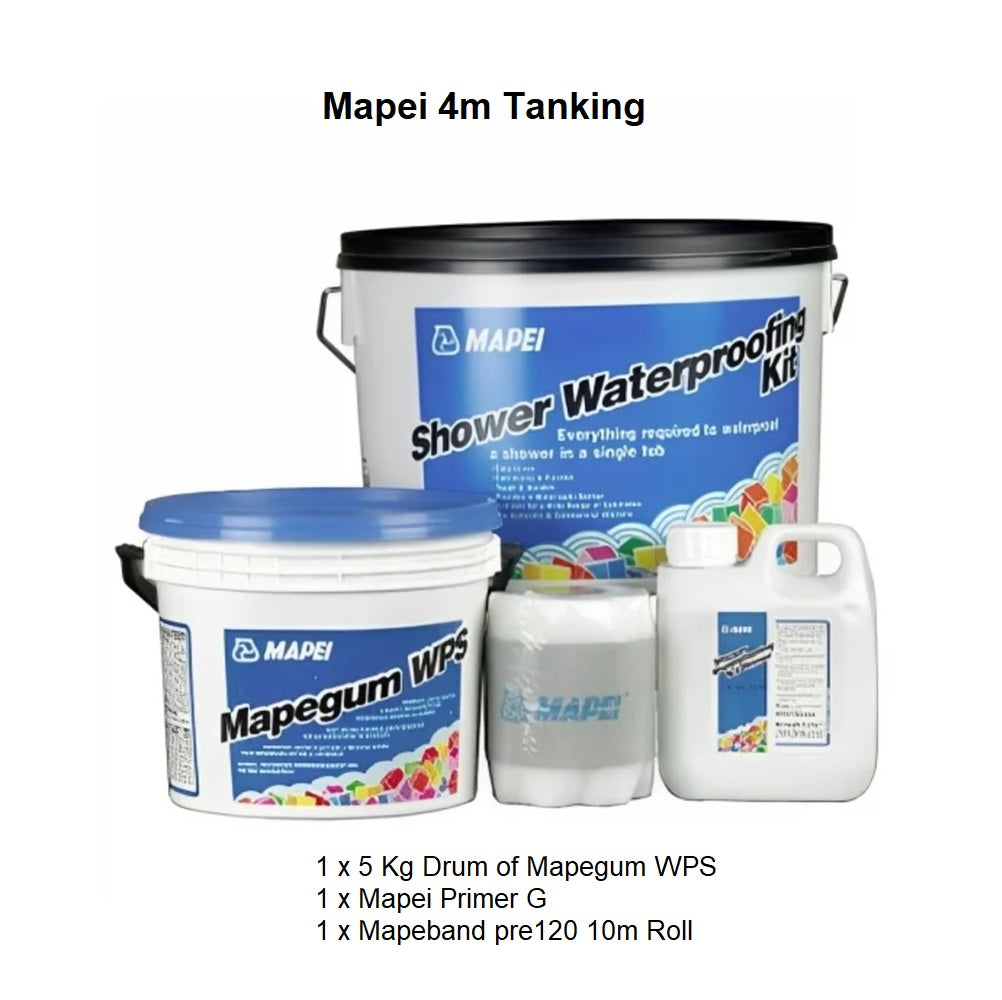

Mapei 4m Tanking Kit:
  • 1 x 4KG Tanking liquid
  • 1 x 1 Litre Primer Liquid
  • 1 x 10 metre tape for floor/tray joints

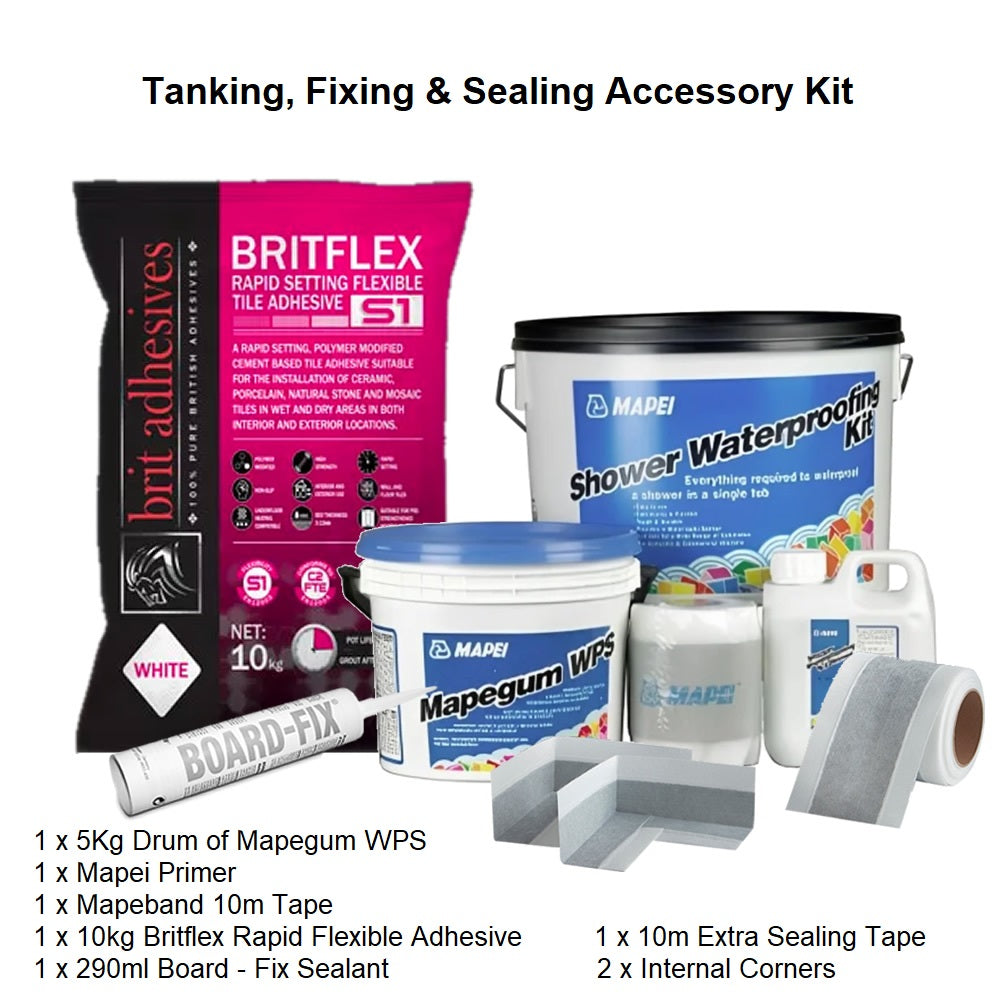

Tanking, Fixing & Sealing Kit:
  • 1 x Mapei 4m Tanking Kit
  • 1 x 10 kg Britflex S1 Rapidset flexible adhesive
  • 1 x 290ml Jackoboard Board Fix Sealant
  • 1 x 10m Extra Sealing Tape for Walls and Floor
  • 2 x Internal Corners

Have a question about the WetBase® or fitting it?

If you have a question about the WetBase® or the fitting of it please see the following help articles:

Choosing the Correct Wet Room Tray
WetBase® Shower Tray FAQ's

WetBase® Linear Shower Tray Fitting Instructions
Wet Room FAQ's

Mapei Tanking Instructions



If you cant find an answer to your question in the above documents, or need further help or advice, please give our experts a call on 0800 280 8008, use the live chat function (in the bottom right corner) or send an email to info@wetrooms-online.com

  • 1500 x 900 x 30mm
  • LINEAR Drain Channel
  • END drain location
  • Choose drain outlet position from Left, Centre or Right, to avoid joists
  • Pre-made 2% fall to drain
  • Lightweight & Strong
  • Under-boarding of WetBase® required to provide support
  • Complete with horizontal Dallmer fast flow drain
  • Horizontal drain sits approx. 92mm beneath tray
  • Fully trimmable by up to 50mm off each edge (equal amounts must be trimmed from each side)
  • Ideal for creating flush 'walk in' showering areas (rest of floor will require boarding by approx. 10mm)
  • Designed and manufactured in Germany
  • 20 years guarantee if fitted in accordance with manufacturer’s instructions

Roman Haven Wet Room Shower Screen

Roman Haven Wet Room Screen

Complete your wet room shower with an optional Roman Haven Shower Screen, available in 8mm or 10mm thick by 2000mm high toughened safety glass shower screen in a choice of widths, finished with an easy clean coating as standard, comes complete with wall bracket in a choice of finishes (Polished Chrome, Matt Black, Brushed Nickel or Brushed Brass) at NO extra cost. Wide choice of optional bracing bars available..

Available in of 400mm, 500mm, 600mm, 700mm, 760mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm or 1400mm length shower screens#

A life time guarantee and toughened 8mm glass gives you substance and style, in addition all Roman wet room shower screens offer many premium features:

  • Easy clean glass finish
  • Toughened 8mm or 10mm thick glass
  • 2000mm high
  • Wall fixing profile supplied
  • Fittings available in Polished Chrome, Matt Black, Brushed Nickel or Brushed Brass
  • Adjustment for secure and easy fixing
  • Designed & manufactured in Britain
  • Truelife - Lifetime guarantee
  • CE Approved - Toughened 8mm thick glass
  • European safety glass approved - EN12150-1

#Screen sizes are nominal. All panels are undersized to allow for tiling when fitting to shower trays.

Full product details: Roman Haven Wet Room Shower Screen

Description

Copy from Here (this label will be hidden)

Add your 3 titles here (this label will be hidden)

Specification
Suitable For
Not Suitable For

Add your 3 lists here (this label will be hidden)

  • 1500 x 900 x 30mm
  • LINEAR END Drain
  • Stainless Steel, Matte Black or Satin Gold Channel
  • Under Support Required
  • Complete with fast flow drain
  • Optional Tanking Kit
  • Can be trimmed by 50mm off each edge
  • 20 Year Guarantee
  • Wood or Concrete Subfloor
  • Tiled Floor Finish
  • Wet Rooms
  • Level Access
  • Raised on Platform
  • Underfloor Heating
  • Vinyl Floor Finish
  • Micro Cement
  • Use with Wheelchairs
  • Fitting Direct on Joists

To Here (this label will be hidden)

The Wetrooms Online WetBase® Linear Universal wet room floor / shower base is an easy to install, linear level access ‘walk in shower’ floor tray.

This tray comes complete with a McAlpine fast flow drain, stainless steel grill, which when reversed is fully tileable to match the surrounding floor.

Optional Mapei 4m/5kg liquid based (no mixing required) tanking kit for waterproofing the tray area  or a complete Tanking, Fixing & Sealing Kit for fixing the WetBase®, waterproofing the floor and walls in addition to sealing the perimeter of the tray where it meets the wall / surrounding floor. The perfect solution for installing a wet room or walk in shower. Available at a discounted price when purchased with a wet room tray.

The WetBase® Linear Universal tray kit is the UK's first true linear drain system with the drain trough bonded in to the tray in the factory which eliminates installer error and maintains 100% waterproofing capability when installed correctly. The position of the drain exit is determined by the installer on site as the drain is cut into the trough by the user (circular bit supplied) and thus can avoid joists or support beams. It can be used in wooden floors and concrete sub-floors.

The base of the tray is totally flat and is installed onto the wooden joists in the normal manner with support between the joists. It has an adjustable drain and channel cover to accommodate various tile heights. We recommend a tile thickness of NO less than 10mm, the tray can be tiled with large format tiles or mosaics, the latter being easier to follow the contours of the tray.

Installation can be conducted by any competent DIY person or professional fitter, and as the drain trough is already installed into the tray, it cuts down on install time and the possibility of installer error.

If you have a concrete floor or if there is no access under the flooring to locate the shower drain, then the tray can still be used by using a separate raised substrate.

Drain Channel Cover - Options


WetBase linear drain channel covers

Fully Reversible & Tileable Drain Cover: The upside of the stainless steel drain cover is a brushed stainless-steel finish, if you prefer to tile the drain cover to match the surrounding floor, simply turn it over and tile to match. The drain channel is a fixed height of approx. 15mm, suitable for use with 10mm thick tiles. The height of the drain cover can be raised using the simple 'lug' set provided with the drain cover.



Important:

This tray is 30mm thick, this means that in most circumstances it will sit 10mm above the floor boards when fitted. Therefore, 10mm tile backer board* should be used to bring the remainder of the floor up to level prior to tanking and tiling.

*The thickness required may differ installation to installation, please check thickness required prior to ordering.





WetBase® Wet Room Kit Contents:

  • 1 x 1500 x 900 WetBase® Linear Universal tray 30mm deep, 2% fall.
  • 1 x Fast flow drain (horizontal outlet)
  • Brushed Stainless Steel Channel Cover
  • Fitting Instructions
  • Optional 5KG Tanking Kit: Mapei 4m Tanking Kit OR Tanking, Fixing & Sealing Kit:
Mapei 4m Tanking Kit:
  • 1 x 4KG Tanking liquid
  • 1 x 1 Litre Primer Liquid
  • 1 x 10 metre tape for floor/tray joints
Tanking, Fixing & Sealing Kit:
  • 1 x Mapei 4m Tanking Kit
  • 1 x 10 kg Britflex S1 Rapidset flexible adhesive
  • 1 x 290ml Jackoboard Board Fix Sealant
  • 1 x 10m Extra Sealing Tape for Walls and Floor
  • 2 x Internal Corners

Have a question about the WetBase® or fitting it?

If you have a question about the WetBase® or the fitting of it please see the following help articles:

Choosing the Correct Wet Room Tray
WetBase® Shower Tray FAQ's

WetBase® Linear Shower Tray Fitting Instructions
Wet Room FAQ's

Mapei Tanking Instructions



If you cant find an answer to your question in the above documents, or need further help or advice, please give our experts a call on 0800 280 8008, use the live chat function (in the bottom right corner) or send an email to info@wetrooms-online.com

Technical Details

  • 1500 x 900 x 30mm
  • LINEAR Drain Channel
  • END drain location
  • Choose drain outlet position from Left, Centre or Right, to avoid joists
  • Pre-made 2% fall to drain
  • Lightweight & Strong
  • Under-boarding of WetBase® required to provide support
  • Complete with horizontal Dallmer fast flow drain
  • Horizontal drain sits approx. 92mm beneath tray
  • Fully trimmable by up to 50mm off each edge (equal amounts must be trimmed from each side)
  • Ideal for creating flush 'walk in' showering areas (rest of floor will require boarding by approx. 10mm)
  • Designed and manufactured in Germany
  • 20 years guarantee if fitted in accordance with manufacturer’s instructions

You May Also Need - Optional Extras

Roman Haven Wet Room Shower Screen

Roman Haven Wet Room Screen

Complete your wet room shower with an optional Roman Haven Shower Screen, available in 8mm or 10mm thick by 2000mm high toughened safety glass shower screen in a choice of widths, finished with an easy clean coating as standard, comes complete with wall bracket in a choice of finishes (Polished Chrome, Matt Black, Brushed Nickel or Brushed Brass) at NO extra cost. Wide choice of optional bracing bars available..

Available in of 400mm, 500mm, 600mm, 700mm, 760mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm or 1400mm length shower screens#

A life time guarantee and toughened 8mm glass gives you substance and style, in addition all Roman wet room shower screens offer many premium features:

  • Easy clean glass finish
  • Toughened 8mm or 10mm thick glass
  • 2000mm high
  • Wall fixing profile supplied
  • Fittings available in Polished Chrome, Matt Black, Brushed Nickel or Brushed Brass
  • Adjustment for secure and easy fixing
  • Designed & manufactured in Britain
  • Truelife - Lifetime guarantee
  • CE Approved - Toughened 8mm thick glass
  • European safety glass approved - EN12150-1

#Screen sizes are nominal. All panels are undersized to allow for tiling when fitting to shower trays.

Full product details: Roman Haven Wet Room Shower Screen
