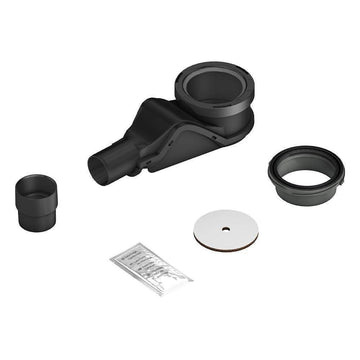

wedi Fundo Wave Horizontal Drain for Fundo Flex
SKU : 077500014
The horizontal Fundo Wave drains from wedi are designed for the Fundo Flex channel element. They offer a space-saving solution, ideal for new buildings and renovations, and are available in DN 50 and extra-flat Mini Max (DN 40) versions.
Design variations:
- wedi Fundo Wave drain horizontal DN 50 Depth: 80 mm
- wedi Fundo Wave drain Mini Max horizontal DN 40 Depth: 60 mm
Product Downloads:
wedi Fundo Flex Brochure
wedi Fundo Flex Technical Details
Technical Details:
Material: ABS
Drain capacity:*
Mini Max horizontal DN40 according to DIN EN 1253-6 0,5 l/s; 30 l/min
Horizontal DN50 according to DIN EN 1253-1 0,5 l/s; 30 l/min
Product height:
Mini Max horizontal DN40 60 mm
Horizontal DN50 80 mm
*Determined by the shower channel 1.0
Why purchase wedi products from Wetrooms Online?
When you purchase any wedi product from Wetrooms Online, you are not only purchasing from an authorised wedi retailer, you are also purchasing from a wedi expert, recognised as such by wedi themselves.
We work closely with wedi to ensure that we offer the best possible wedi buying experience. Our staff regularly attend wedi UK head office to undertake training on the wedi range of products. As such we are able to offer help on the most suitable products and their application’s.
Wetrooms Online are proud to be wedi authorised retailers and wedi experts.
wedi 610 Adhesive Sealant
wedi 610 adhesive sealant is a versatile single-component adhesive and sealant. It is used as a system component for the wedi sealing system.
Better to be safe than sorry. As a versatile single-component adhesive sealant, wedi 610 adhesive sealant is especially suited to waterproof butt joints of building boards. Furthermore, wedi 610 adhesive sealant has outstanding resistance to the elements; and to chemicals; and is also free of solvents, silicon and PCP.
For adhesion and sealing of wedi building boards and wedi Fundo elements. For attachment of various materials including wood, metals (aluminium, galvanised steel, high-grade steel, brass, copper), hard PVC, soft PVC and tiles to the wedi building board/Fundo system.
Full product details: wedi 610 Adhesive SealantWedi Fundo Sealing Set - Tanking / Waterproofing Kit
For sealing of joints in wet areas - but especially for sealing the whole perimeter of wedi Fundo shower elements and for waterpoof sealing of wedi to non-wedi
joints.The wedi Fundo sealing set consists of a 2-component slurry sealants and wedi Tool sealing tape/sealing corners for flexible joint sealing.
- Entire system is 100% waterproof
- Simple and safe to work with - tested by those in the trade
- The wedi Fundo Sealing set is sufficient for installing a Fundo base plus a Fundo shower partition
- Especially developed for the waterproof connection of Fundo shower elements to other non-wedi materials such as floor screed and plasterboard.
The horizontal Fundo Wave drains from wedi are designed for the Fundo Flex channel element. They offer a space-saving solution, ideal for new buildings and renovations, and are available in DN 50 and extra-flat Mini Max (DN 40) versions.
Design variations:
- wedi Fundo Wave drain horizontal DN 50 Depth: 80 mm
- wedi Fundo Wave drain Mini Max horizontal DN 40 Depth: 60 mm
Product Downloads:
wedi Fundo Flex Brochure
wedi Fundo Flex Technical Details
Technical Details:
Material: ABS
Drain capacity:*
Mini Max horizontal DN40 according to DIN EN 1253-6 0,5 l/s; 30 l/min
Horizontal DN50 according to DIN EN 1253-1 0,5 l/s; 30 l/min
Product height:
Mini Max horizontal DN40 60 mm
Horizontal DN50 80 mm
*Determined by the shower channel 1.0
Why purchase wedi products from Wetrooms Online?
When you purchase any wedi product from Wetrooms Online, you are not only purchasing from an authorised wedi retailer, you are also purchasing from a wedi expert, recognised as such by wedi themselves.
We work closely with wedi to ensure that we offer the best possible wedi buying experience. Our staff regularly attend wedi UK head office to undertake training on the wedi range of products. As such we are able to offer help on the most suitable products and their application’s.
Wetrooms Online are proud to be wedi authorised retailers and wedi experts.
wedi 610 Adhesive Sealant
wedi 610 adhesive sealant is a versatile single-component adhesive and sealant. It is used as a system component for the wedi sealing system.
Better to be safe than sorry. As a versatile single-component adhesive sealant, wedi 610 adhesive sealant is especially suited to waterproof butt joints of building boards. Furthermore, wedi 610 adhesive sealant has outstanding resistance to the elements; and to chemicals; and is also free of solvents, silicon and PCP.
For adhesion and sealing of wedi building boards and wedi Fundo elements. For attachment of various materials including wood, metals (aluminium, galvanised steel, high-grade steel, brass, copper), hard PVC, soft PVC and tiles to the wedi building board/Fundo system.
Full product details: wedi 610 Adhesive SealantWedi Fundo Sealing Set - Tanking / Waterproofing Kit
For sealing of joints in wet areas - but especially for sealing the whole perimeter of wedi Fundo shower elements and for waterpoof sealing of wedi to non-wedi
joints.The wedi Fundo sealing set consists of a 2-component slurry sealants and wedi Tool sealing tape/sealing corners for flexible joint sealing.
- Entire system is 100% waterproof
- Simple and safe to work with - tested by those in the trade
- The wedi Fundo Sealing set is sufficient for installing a Fundo base plus a Fundo shower partition
- Especially developed for the waterproof connection of Fundo shower elements to other non-wedi materials such as floor screed and plasterboard.
wedi
Founded in 1983, wedi is synonymous with complete building systems, unusual design elements and an extensive customised building service. wedi developed a 100% waterproof building board. It could be tiled directly and also precisely and quickly shaped as desired. In addition to its lightness, when tiled it is so stable that it can even be used to build free-standing elements.
