AKW Tri Form Linear Wet Room Tray Floor Former - 1200 x 900 x 22mm

£420.00

Price inclusive of VAT

SKU : 21209

Delivery Approx 2 - 3 Working Days

Selection Subtotal:

£420.00

Call our EXPERTS on FREEPHONE 0800 280 8008

100% money back guarantee if not fully satisfied*

Rated EXCELLENT by our customers

FREE delivery on orders
over £300

Description
Installation Video

Copy from Here (this label will be hidden)

Add your 3 titles here (this label will be hidden)

Specification
Suitable For
Not Suitable For

Add your 3 lists here (this label will be hidden)

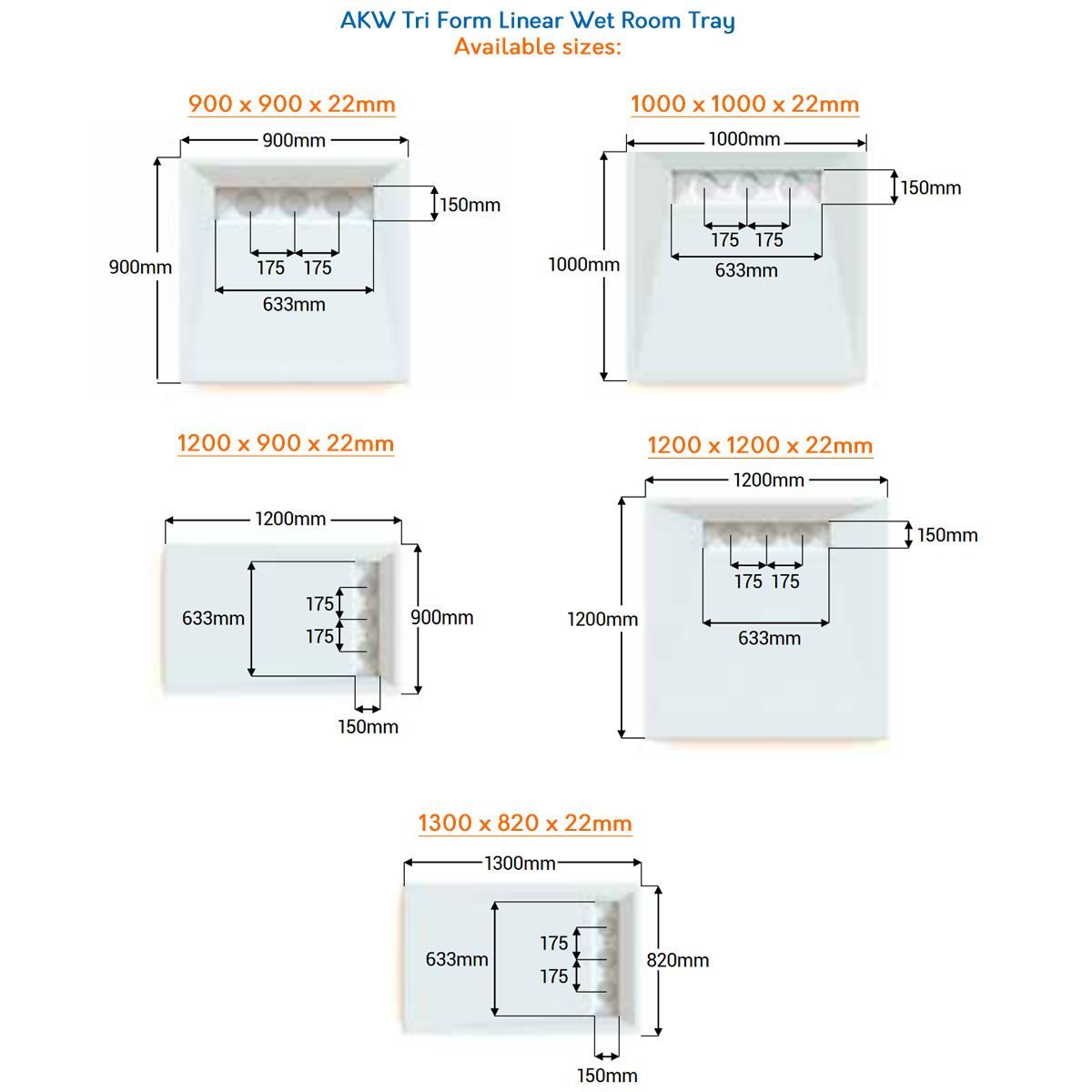

  • 1200 x 900 x 22mm
  • UNDER-SUPPORT NOT REQUIRED
  • SUPPORTS UP TO 254KG
  • ACCEPTS UPTO 3 DRAIN OUTLETS TO INCREASE FLOW
  • CAN BE TRIMMED
  • SELECT DRAIN OUTLET POSITION TO AVOID JOISTS ETC
  • LIFETIME GUARANTEE*
  • WOOD OR CONCRETE SUBFLOOR
  • TILED FLOOR FINISH
  • WET ROOMS
  • LEVEL ACCESS
  • RAISED ON PLATFORM
  • FITTING DIRECT ON JOISTS
  • UNDERFLOOR HEATING
  • VINYL FLOORING
  • USE WITH WHEELCHAIR
  • MICRO-CEMENT

To Here (this label will be hidden)

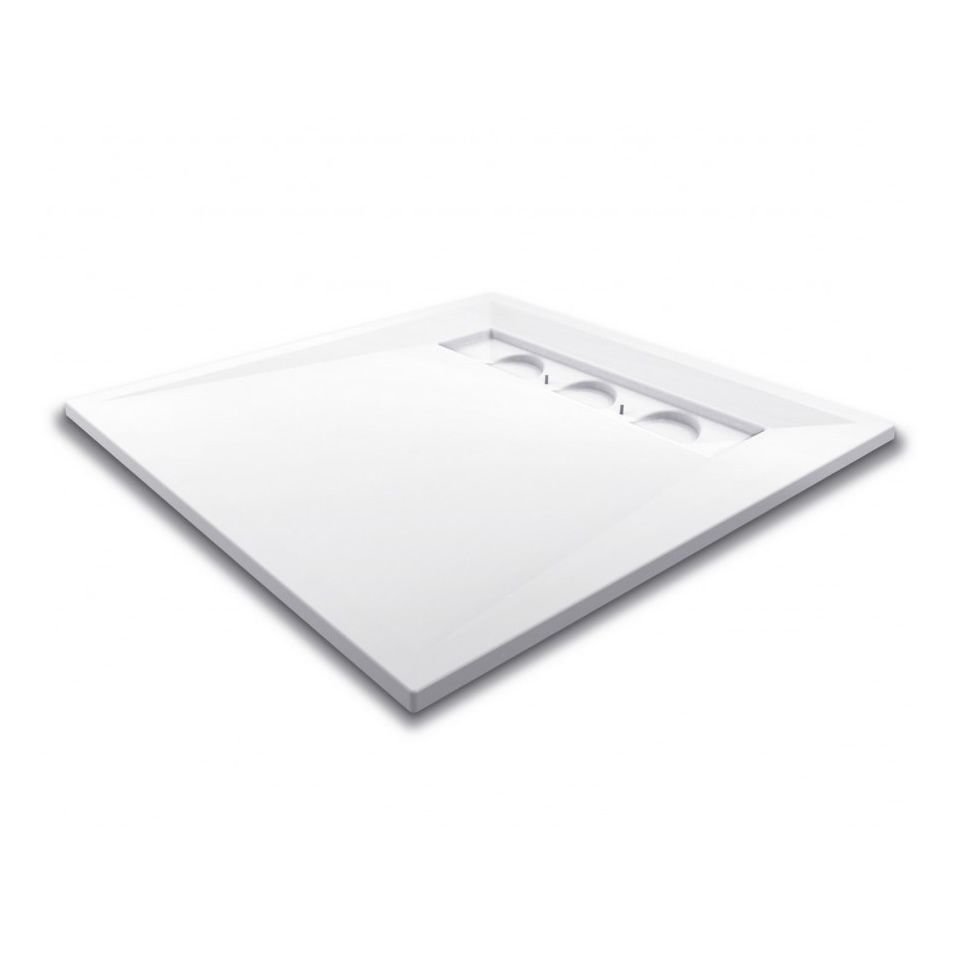

It is now possible to achieve everyday luxury in the bathroom with the help of AKW’s TriForm Linear former. The foundation of a beautiful bathroom, TriForm can drain even the most powerful showers quickly and efficiently, as well as accommodate a wide range of tiles. Easy to fit TriForm offers enhanced strength through its material composition, guaranteeing longevity and maintenance free installation. TriForm performs superbly and looks even better to create a truly aspirational bathroom experience.

The user chooses the drain outlet position, on site, from right, centre or left, thus making the avoidance of joists or other obstacles a great deal easier, and the installation faster.
Alternatively up to 3 drain outlets can be utilised increasing the drain flow rate, ideal for higher flow rate drench showers.

Drain Channel Cover:

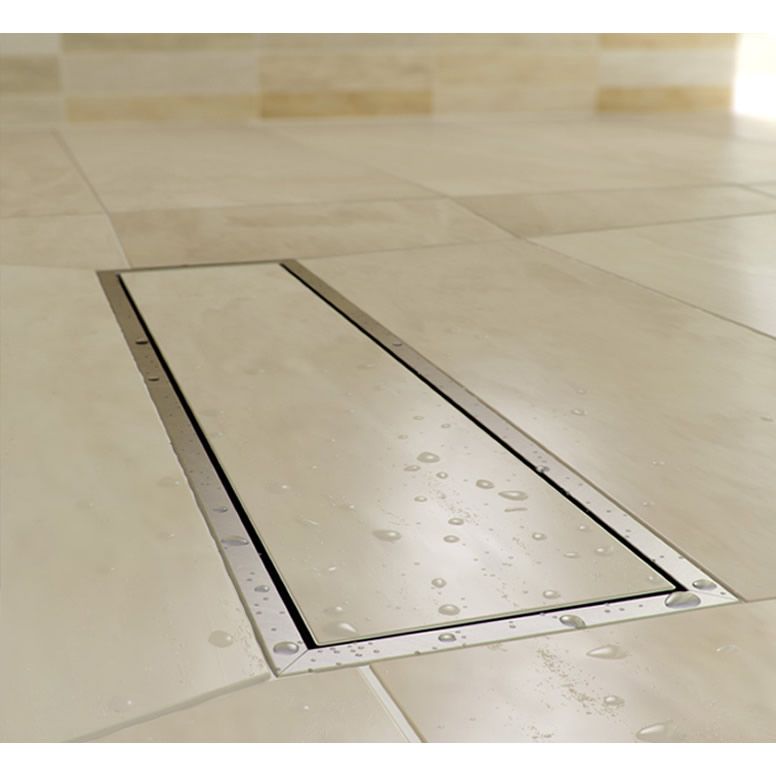

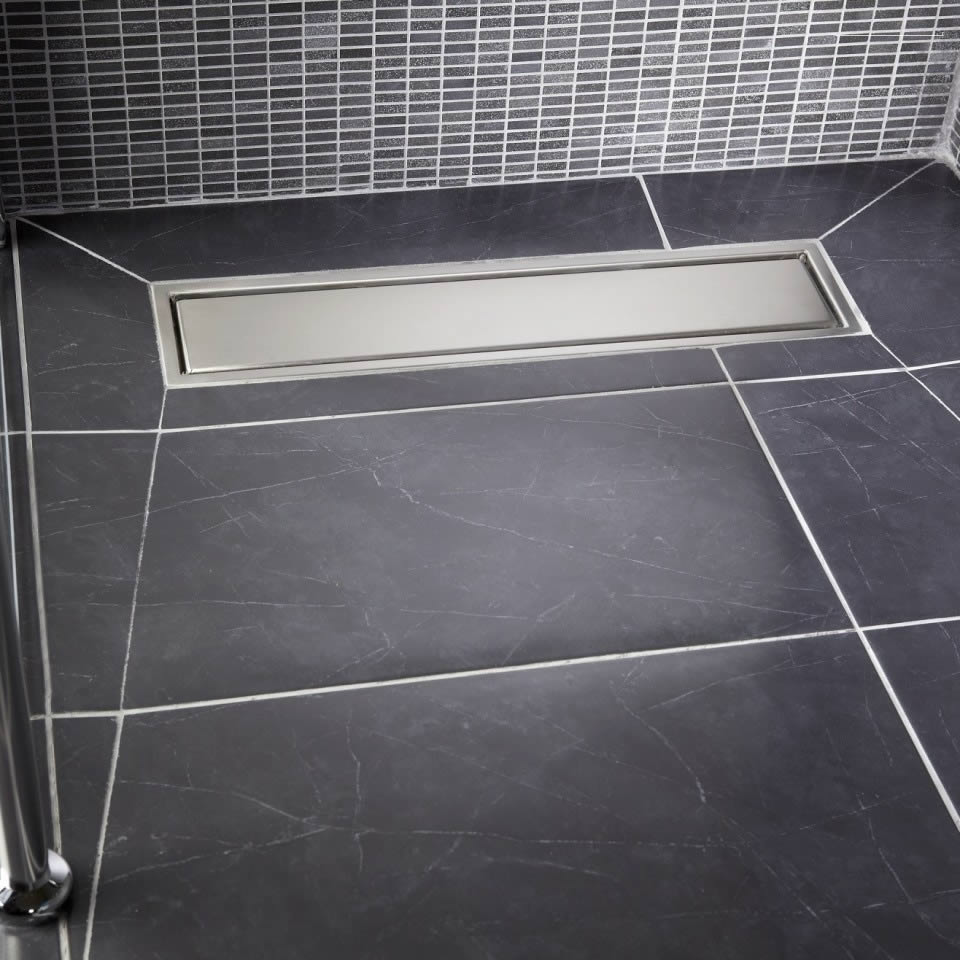

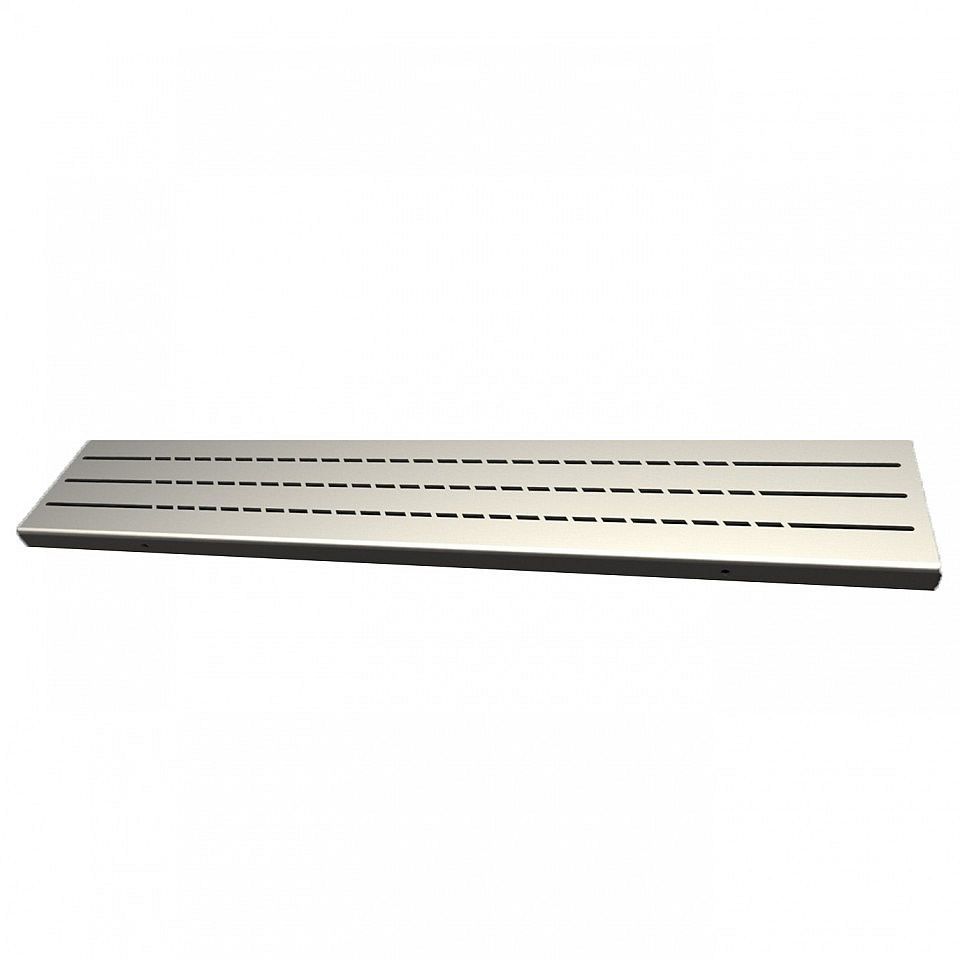

Design versatility comes with a two-in-one reversible waste cover which offers two stylish and contemporary options when fitting a tiled waste or stainless steel cover, a decorative stainless steel grating option is available for an individual look. The drain channel covers can accommodate tiles in thickness from 6mm to 16mm as standard, and Wetrooms Online ship them with a single gravity waste outlet as standard.

Channel covers to accommodate tiles of 16mm to 25mm thickness, and additional gravity waste outlets are also available. Please contact us for pricing, prior to purchase.

Drain depth below tray = 124mm
(Alternative low level drain available at 93mm below tray - please call.)

Drain flow rate(s):
1 outlet - 43 lpm
2 outlets -  70 lpm
3 outlets -  78 lpm

Product Downloads:

Description

Copy from Here (this label will be hidden)

Add your 3 titles here (this label will be hidden)

Specification
Suitable For
Not Suitable For

Add your 3 lists here (this label will be hidden)

  • 1200 x 900 x 22mm
  • UNDER-SUPPORT NOT REQUIRED
  • SUPPORTS UP TO 254KG
  • ACCEPTS UPTO 3 DRAIN OUTLETS TO INCREASE FLOW
  • CAN BE TRIMMED
  • SELECT DRAIN OUTLET POSITION TO AVOID JOISTS ETC
  • LIFETIME GUARANTEE*
  • WOOD OR CONCRETE SUBFLOOR
  • TILED FLOOR FINISH
  • WET ROOMS
  • LEVEL ACCESS
  • RAISED ON PLATFORM
  • FITTING DIRECT ON JOISTS
  • UNDERFLOOR HEATING
  • VINYL FLOORING
  • USE WITH WHEELCHAIR
  • MICRO-CEMENT

To Here (this label will be hidden)

It is now possible to achieve everyday luxury in the bathroom with the help of AKW’s TriForm Linear former. The foundation of a beautiful bathroom, TriForm can drain even the most powerful showers quickly and efficiently, as well as accommodate a wide range of tiles. Easy to fit TriForm offers enhanced strength through its material composition, guaranteeing longevity and maintenance free installation. TriForm performs superbly and looks even better to create a truly aspirational bathroom experience.

The user chooses the drain outlet position, on site, from right, centre or left, thus making the avoidance of joists or other obstacles a great deal easier, and the installation faster.
Alternatively up to 3 drain outlets can be utilised increasing the drain flow rate, ideal for higher flow rate drench showers.

Drain Channel Cover:

Design versatility comes with a two-in-one reversible waste cover which offers two stylish and contemporary options when fitting a tiled waste or stainless steel cover, a decorative stainless steel grating option is available for an individual look. The drain channel covers can accommodate tiles in thickness from 6mm to 16mm as standard, and Wetrooms Online ship them with a single gravity waste outlet as standard.

Channel covers to accommodate tiles of 16mm to 25mm thickness, and additional gravity waste outlets are also available. Please contact us for pricing, prior to purchase.

Drain depth below tray = 124mm
(Alternative low level drain available at 93mm below tray - please call.)

Drain flow rate(s):
1 outlet - 43 lpm
2 outlets -  70 lpm
3 outlets -  78 lpm

Product Downloads:
