AKW Tri Form Linear Wet Room Tray Floor Former - 1300 x 820 x 22mm
SKU : 21207
You May Also Need
Selection Subtotal:
£420.00
Copy from Here (this label will be hidden)
Add your 3 titles here (this label will be hidden)
Add your 3 lists here (this label will be hidden)

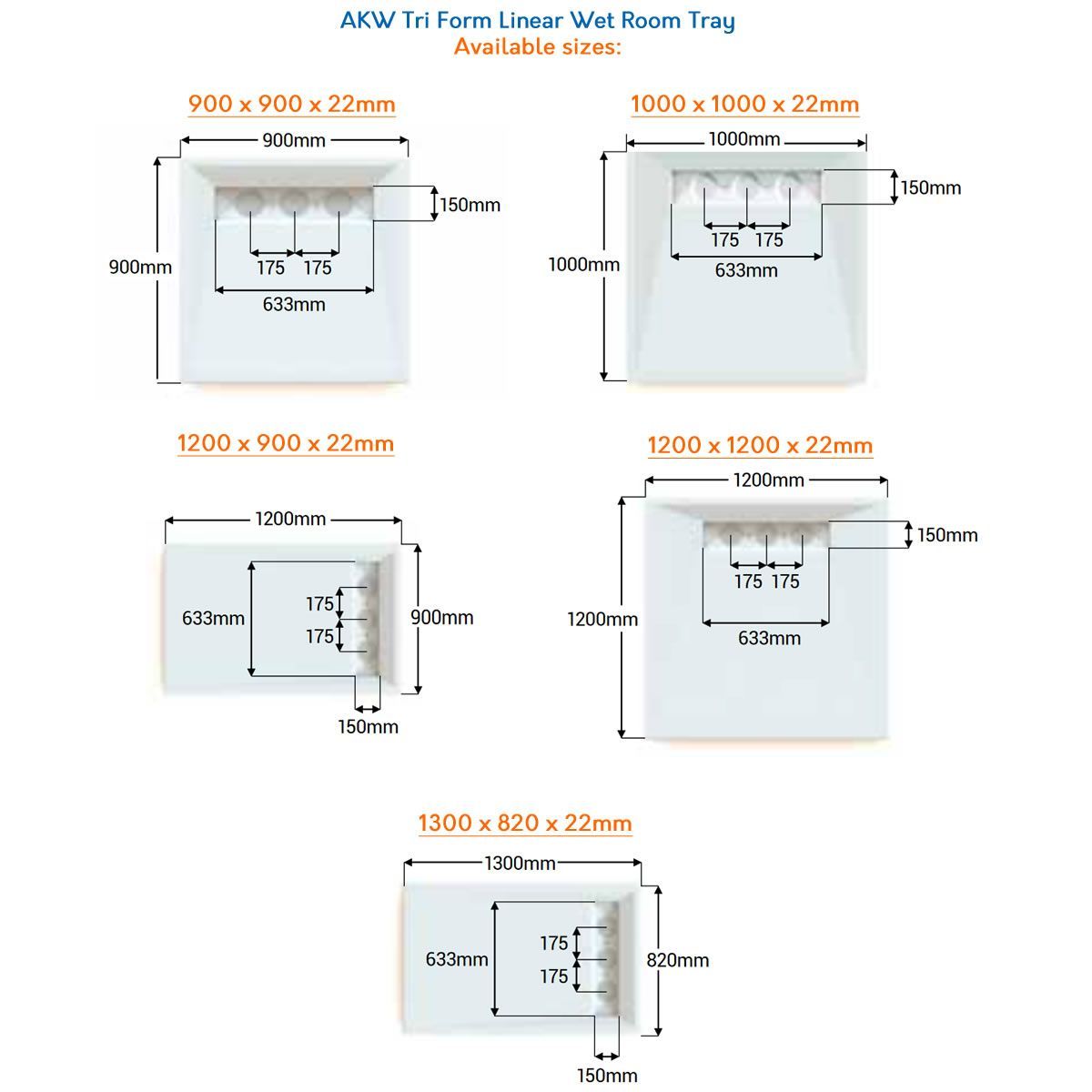

- 1300 x 820 x 22mm
- UNDER-SUPPORT NOT REQUIRED
- SUPPORTS UP TO 254KG
- ACCEPTS UPTO 3 DRAIN OUTLETS TO INCREASE FLOW
- CAN BE TRIMMED
- SELECT DRAIN OUTLET POSITION TO AVOID JOISTS ETC
- LIFETIME GUARANTEE*
- WOOD OR CONCRETE SUBFLOOR
- TILED FLOOR FINISH
- WET ROOMS
- LEVEL ACCESS
- RAISED ON PLATFORM
- FITTING DIRECT ON JOISTS
- UNDERFLOOR HEATING
- VINYL FLOORING
- USE WITH WHEELCHAIR
- MICRO-CEMENT
To Here (this label will be hidden)

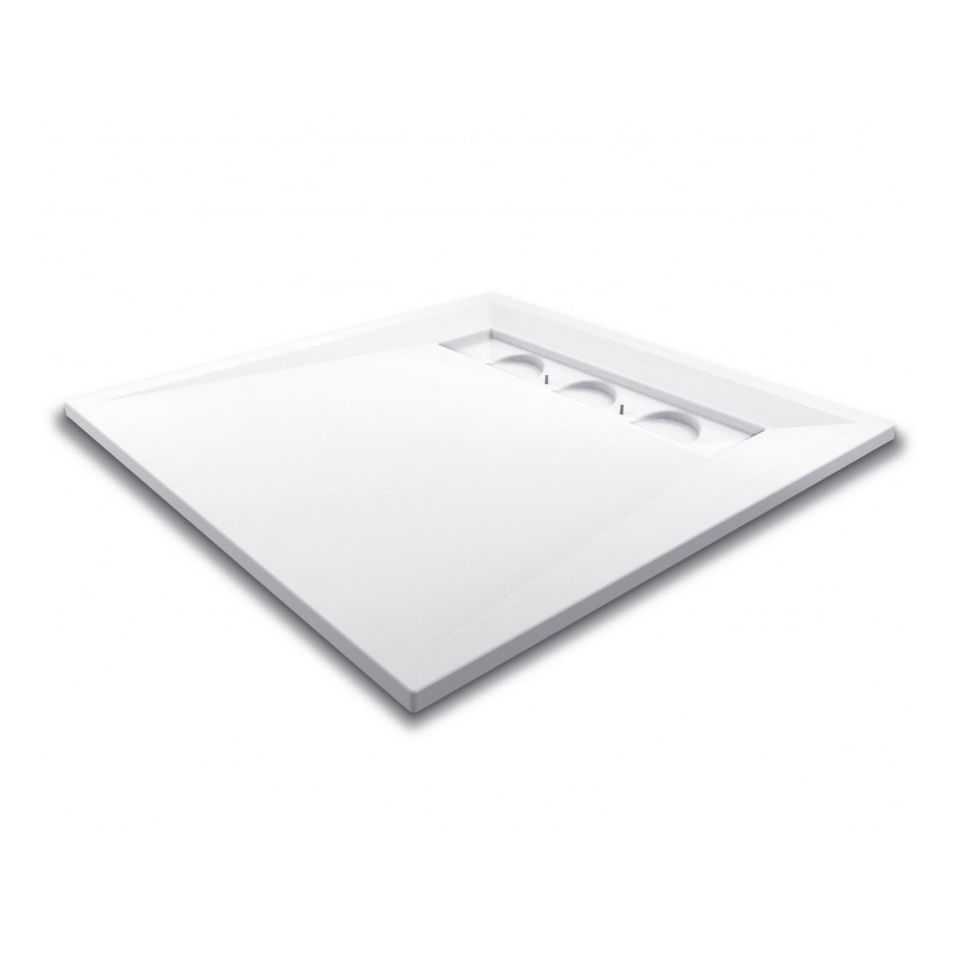

It is now possible to achieve everyday luxury in the bathroom with the help of AKW’s TriForm Linear former. The foundation of a beautiful bathroom, TriForm can drain even the most powerful showers quickly and efficiently, as well as accommodate a wide range of tiles. Easy to fit TriForm offers enhanced strength through its material composition, guaranteeing longevity and maintenance free installation. TriForm performs superbly and looks even better to create a truly aspirational bathroom experience.
The user chooses the drain outlet position, on site, from right, centre or left, thus making the avoidance of joists or other obstacles a great deal easier, and the installation faster.
Alternatively up to 3 drain outlets can be utilised increasing the drain flow rate, ideal for higher flow rate drench showers.
Drain Channel Cover:

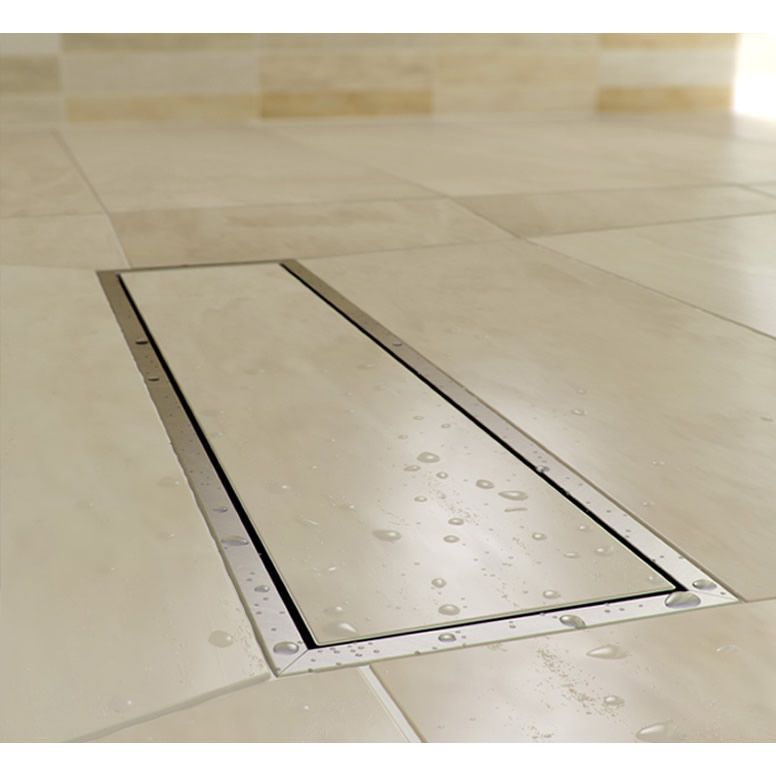

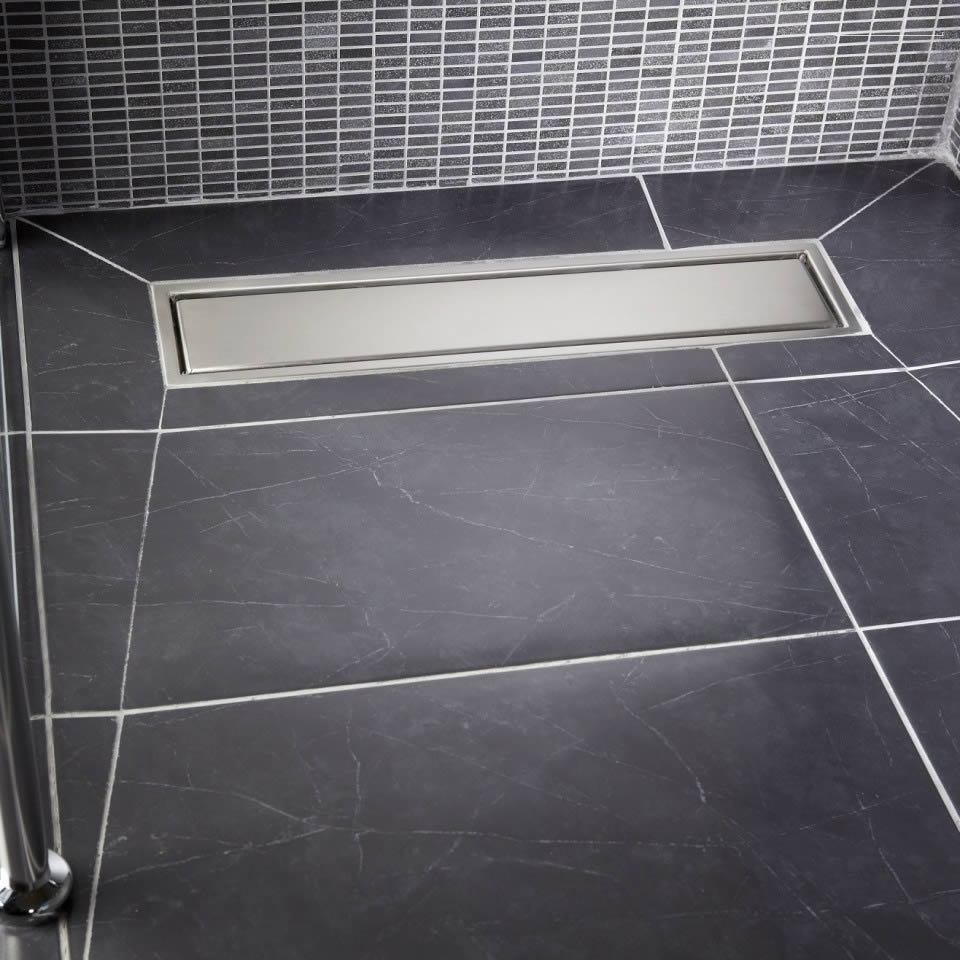

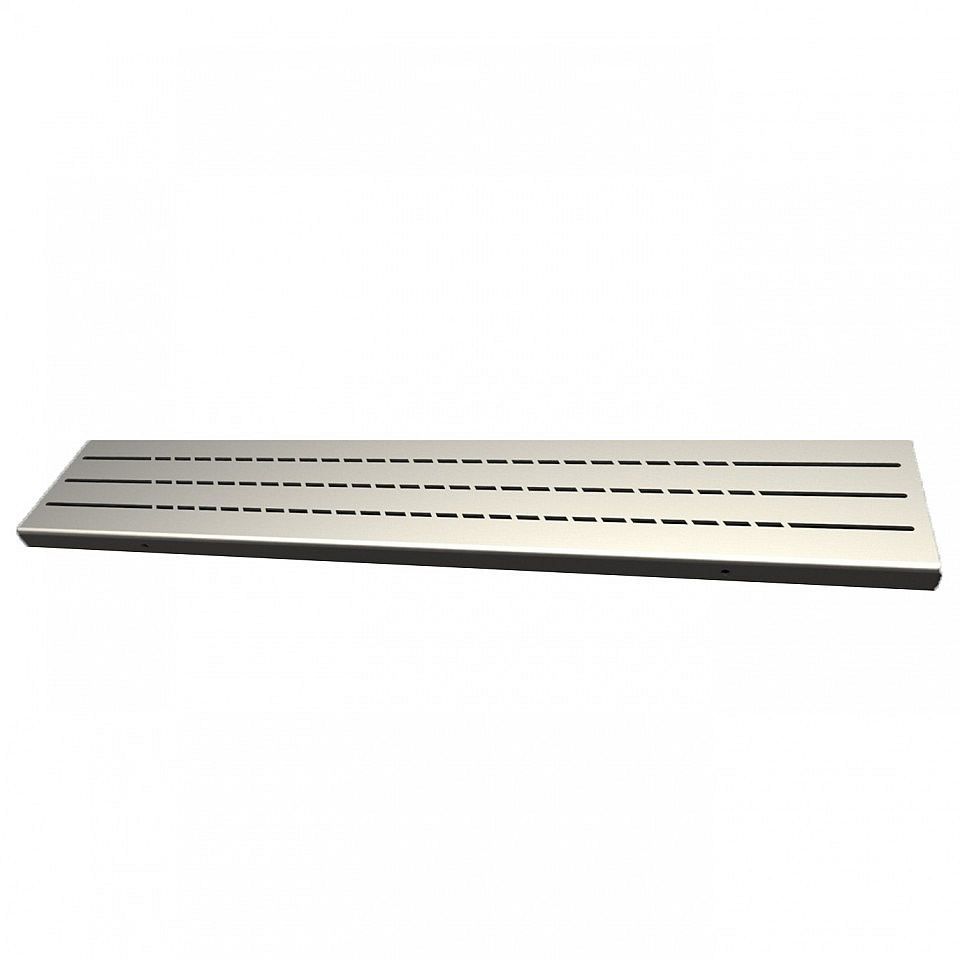

Design versatility comes with a two-in-one reversible waste cover which offers two stylish and contemporary options when fitting a tiled waste or stainless steel cover, a decorative stainless steel grating option is available for an individual look. The drain channel covers can accommodate tiles in thickness from 6mm to 16mm as standard, and Wetrooms Online ship them with a single gravity waste outlet as standard.
Channel covers to accommodate tiles of 16mm to 25mm thickness, and additional gravity waste outlets are also available. Please contact us for pricing, prior to purchase.
Drain depth below tray = 124mm
(Alternative low level drain available at 93mm below tray - please call.)
Drain flow rate(s):
1 outlet - 43 lpm
2 outlets - 70 lpm
3 outlets - 78 lpm
Product Downloads:
Mapei Wetroom Liquid Tanking Kit:
Product Contents
- 1 x 5 Kg Drum of Mapegum WPS
- 1 x Mapei Primer G
- 1 x Mapeband pe120 5m Roll
Ideal for Use On:
- Moisture-resistant plasterboard
- Gypsum plaster
- Cementitious render
- Tile backer boards
- Existing ceramic finishes (with Eco Prim T Plus primer application)
AKW FormSafe Tanking Membrane Kit:
FormSafe is probably one of the best tanking membranes available for use in wetroom applications as it provides a thick industrial strength impermeable barrier to any water that may escape beneath the tiles. The membrane is self-adhesive and comes on a roll. Once installed tiles can be applied immediately - there is no curing time.
Although particularly suited to floor applications FormSafe can also be applied to walls as an additional precaution. However, there is a maximum weight limit for wall mounted tiles when using FormSafe and this should not exceed 20kg/m2.
FormSafe can be used with under floor heating. Note: Maximum effective temperature for FormSafe is 32oC and should not be exceeded. Electrical heating max 150w.
AKW offer 2 different kit sizes for FormSafe, 5m2 and 10m2.
At A Glance:
- It is ideal for use on substrates, such as timber, masonry, concrete, plasterboards, gypsum & tile backer boards
- Once Applied FormSafe is ready to tile immediately, no drying time
- Quick & easy to apply
- Factory controlled thickness
- Self-adhesive mat
- 100% waterproof
- No heating equipment required
- Can be installed over a thermal board. Heating restricted at 32°. Electrical heating max 150w.
- Lifetime of tile Guarantee
Contains:
- 5m² or 10m² of FormSafe membrane (m x 1m)
- 500ml FormSafe primer
- 10m Reinforcing tape
- 310ml Jointing compound
FormSafe Fitting Instructions (PDF)
Please note: AKW FormSafe is NOT compatible with the Wetrooms Online WetBase trays.
Roman Haven Wet Room Shower Screen
Complete your wet room shower with an optional Roman Haven Shower Screen, available in 8mm or 10mm thick by 2000mm high toughened safety glass shower screen in a choice of widths, finished with an easy clean coating as standard, comes complete with wall bracket in a choice of finishes (Polished Chrome, Matt Black, Brushed Nickel or Brushed Brass) at NO extra cost. Wide choice of optional bracing bars available..
Available in of 400mm, 500mm, 600mm, 700mm, 760mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm or 1400mm length shower screens#
A life time guarantee and toughened 8mm glass gives you substance and style, in addition all Roman wet room shower screens offer many premium features:
- Easy clean glass finish
- Toughened 8mm or 10mm thick glass
- 2000mm high
- Wall fixing profile supplied
- Fittings available in Polished Chrome, Matt Black, Brushed Nickel or Brushed Brass
- Adjustment for secure and easy fixing
- Designed & manufactured in Britain
- Truelife - Lifetime guarantee
- CE Approved - Toughened 8mm thick glass
- European safety glass approved - EN12150-1
#Screen sizes are nominal. All panels are undersized to allow for tiling when fitting to shower trays.
Full product details: Roman Haven Wet Room Shower Screen
