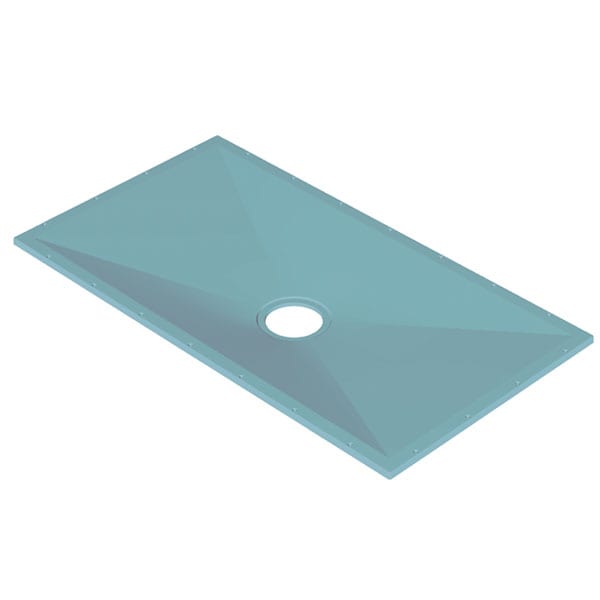

AKW Tuff Form Wet Room Walk In Shower Tray 1500 x 820 x 22mm

£410.00

Price inclusive of VAT

SKU : 21036/25106

Delivery Approx 2 - 3 Working Days

Selection Subtotal:

£410.00

Call our EXPERTS on FREEPHONE 0800 280 8008

100% money back guarantee if not fully satisfied*

Rated EXCELLENT by our customers

FREE delivery on orders
over £300

Description
Drain Options
Product Downloads
YOU MAY ALSO NEED - OPTIONAL EXTRAS
Installation Video

Copy from Here (this label will be hidden)

Add your 3 titles here (this label will be hidden)

Specification
Suitable For
Not Suitable For

Add your 3 lists here (this label will be hidden)

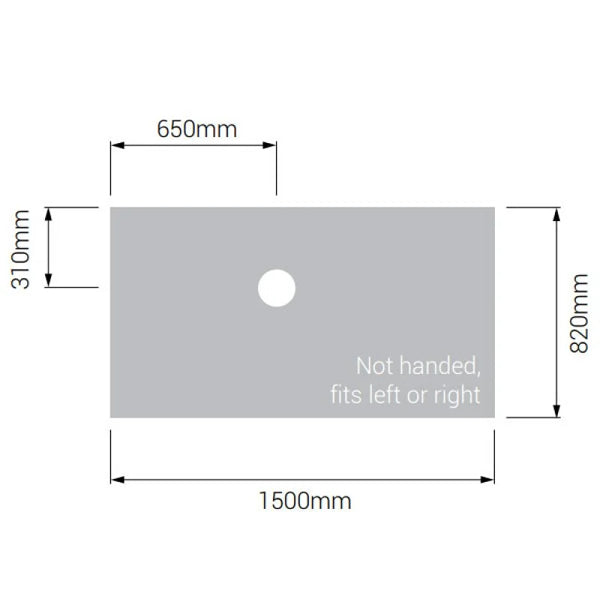

  • 1500 x 820 x 20mm
  • OFFSET Drain Position
  • Under Support NOT Required
  • Tiled or Vinyl Drains Available inc Low Profile
  • Can be Trimmed to Within 150mm of the Waste
  • Supports up to 254Kg
  • Lifetime Guarantee*
  • Wood or Concrete Subfloor
  • Tiled Floor Finish
  • Vinyl Floor Finish
  • Wet Rooms & Level Access
  • Fitting Direct on Joists
  • Use with Wheelchairs
  • Raised on Platform
  • Underfloor Heating
  • Micro Cement

To Here (this label will be hidden)

The AKW Tuff Form wet room / walk in shower tray is a lightweight yet strong floor former that is suitable for use with wheelchair showering and can accept VINYL or TILED flooring making it the ideal choice for both disabled showers and family wet rooms, or where combined usage is required.

Tens of thousands of installations worldwide, so it’s popular – and proven!

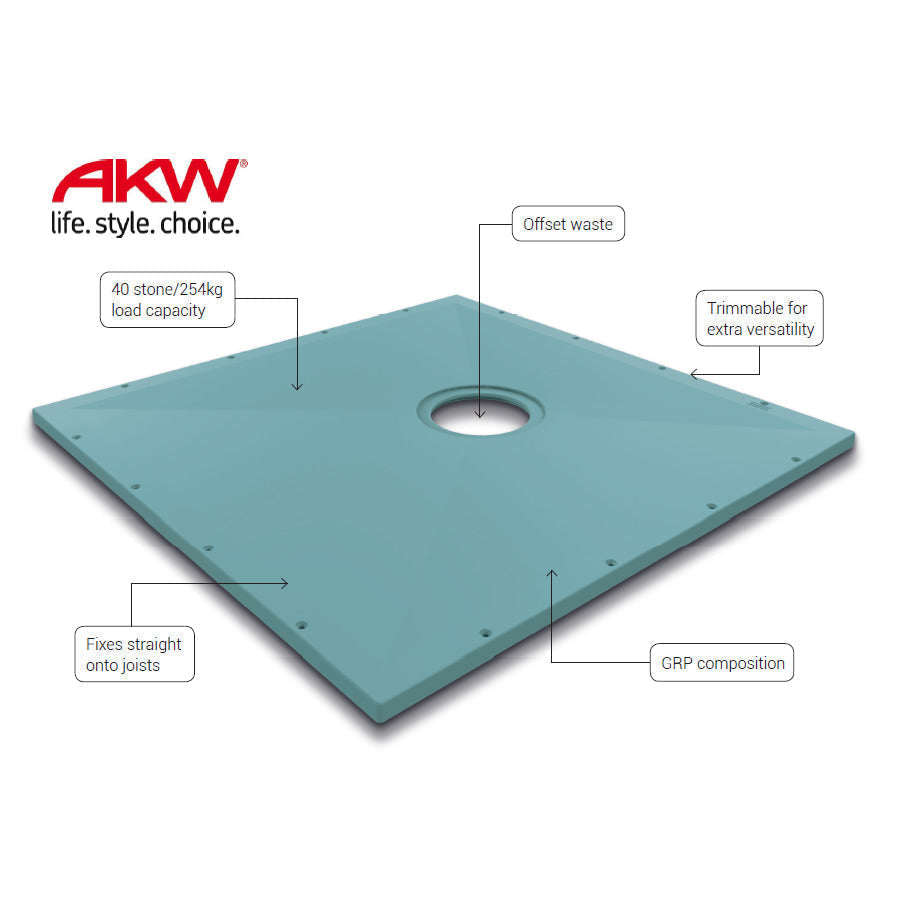

Key Features:

  • Creates a full level access showering solution
  • Exceptionally strong to accommodate a user with wheelchair and a carer
  • Superior strength and rigidity providing excellent water integrity with comfort and safety underfoot
  • Maximum weight capacity 40 stone / 254kg
  • Suitable for both wooden and solid floors
  • Formed from compressed GRP
  • Can be cut to length or trimmed to within 150mm of the waste without losing any strength integrity
  • The ribbed design of the underside eliminates slippage or float during installation
  • Offset waste position to avoid joists pipework
  • Tuff Form® depth is 22mm
  • Easily trimmed on site to enable fast and simple installation
  • Pre-formed fixing holes
  • available wastes - VINYL or TILED including low profile versions
  • Lifetime guarantee if fitted in accordance with manufacturers instructions

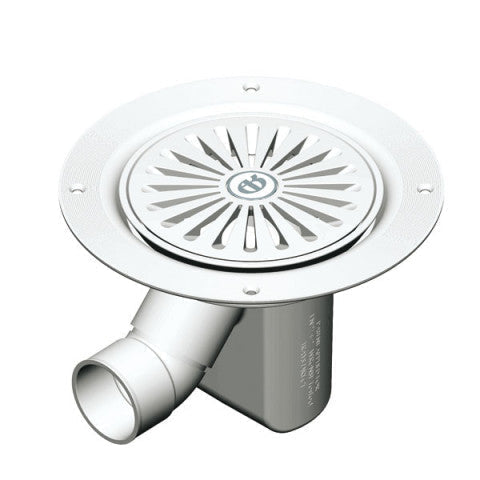

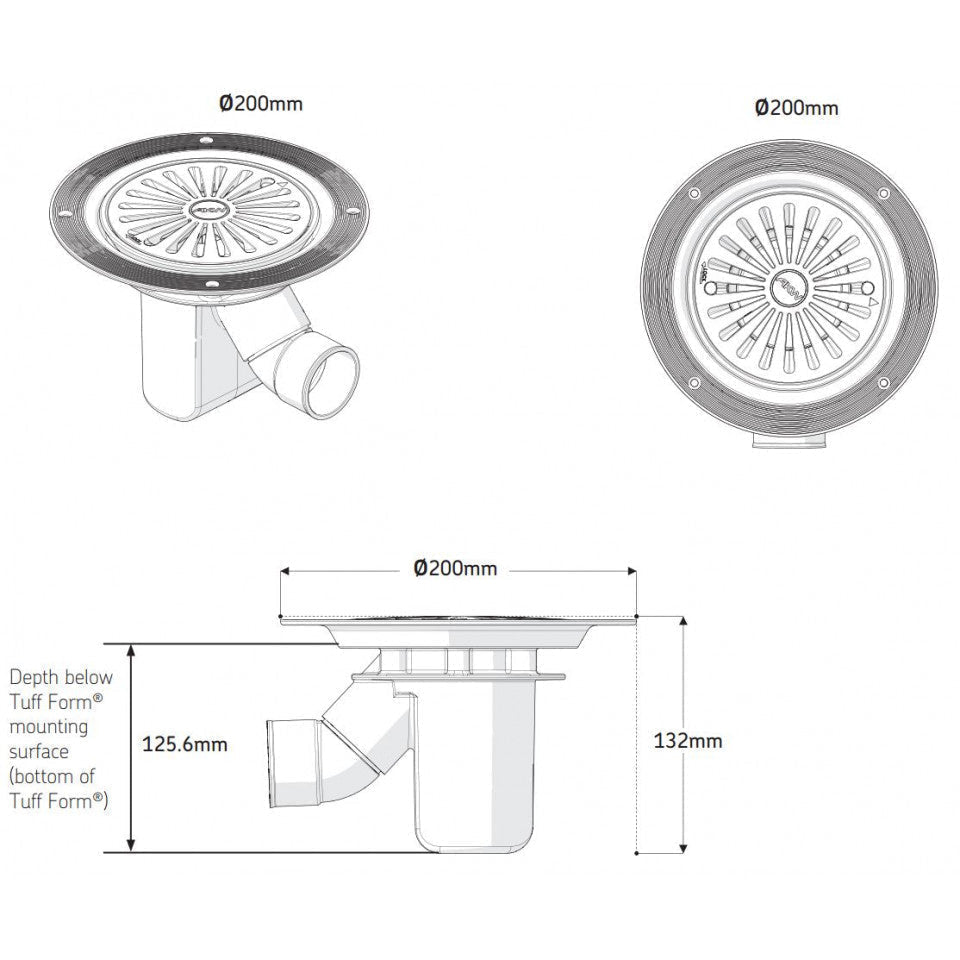

TF75 Gravity Waste for VINYL:

AKW TF75 Waste - Vinyl Floor

  • Opens for easy cleaning and rodding
  • 125mm deep below mounting surface
  • 75mm water trap depth (seal)
  • Adjustable elbow for waste pipe exit
  • Patented design: GB2402946
  • Guaranteed for life*
  • H132 x W200

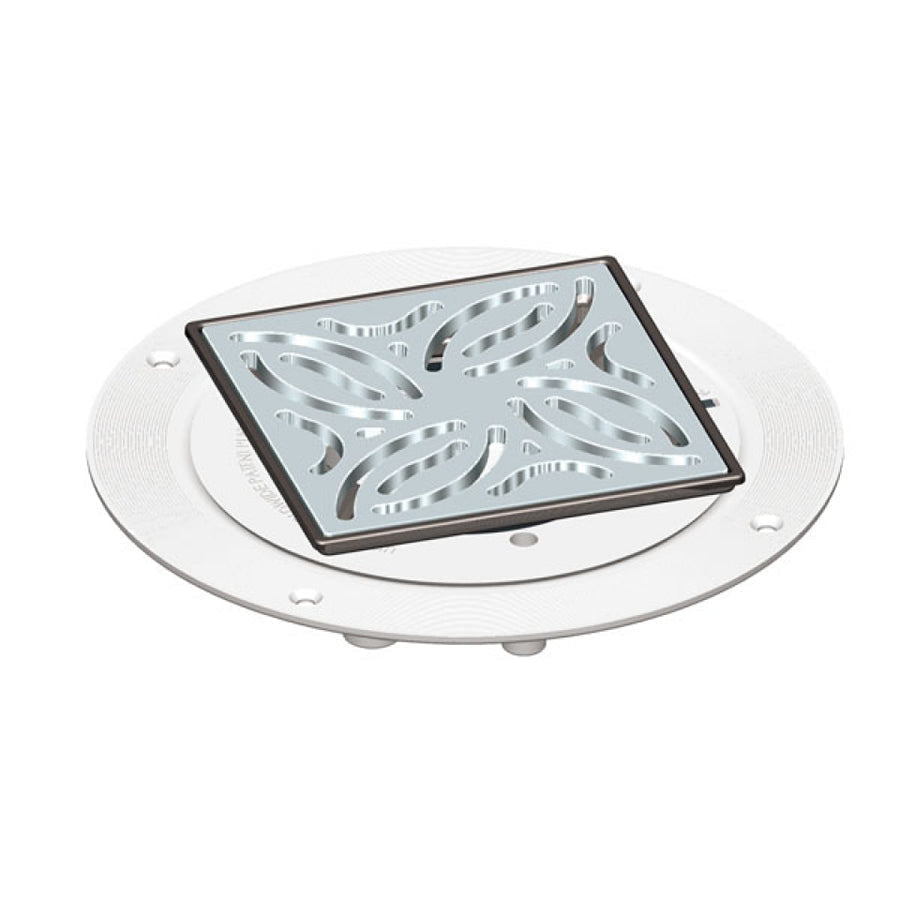

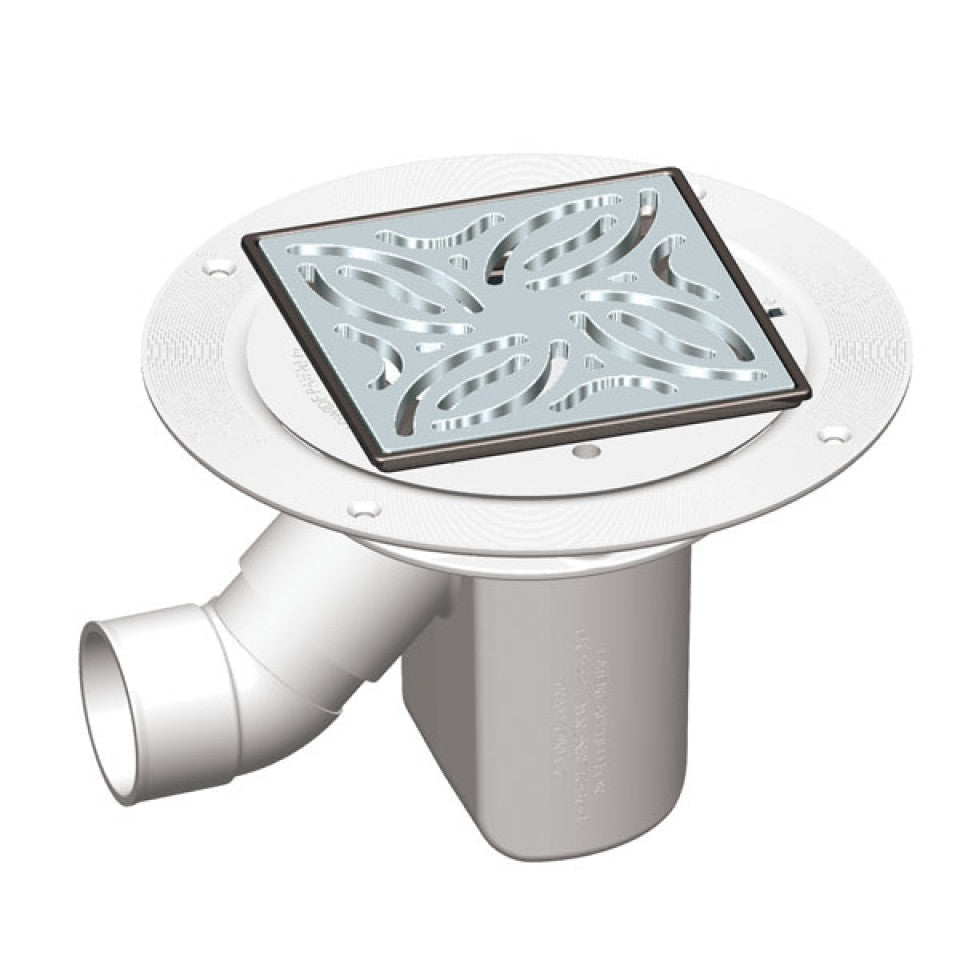

TF75 Gravity Waste for TILES:

AKW TF75 Waste - Tiled Floor (Stainless Steel)

  • For use with Tuff Form former when tiling
  • Opens for easy cleaning and rodding
  • 125mm deep below mounting surface
  • Overall depth 132mm
  • 75mm water trap depth
  • Adjustable elbow for waste pipe exit
  • Stainless steel plate dimensions - 120 x 120mm
  • Stainless steel plate height is adjustable to max of 18mm with adhesive
  • Guaranteed for Life*

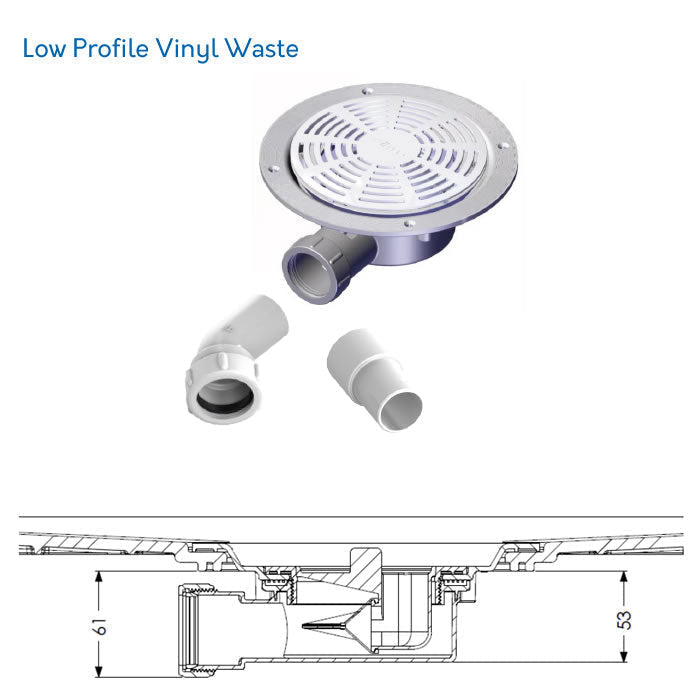

DW90 Low Height Dry Waste for VINYL:

AKW DW90 Low Profile Waste - VINYL

  • Shallow 53mm depth. Useful for solid floors or shallow joists.
  • Trap will not dry out with sporadic use
  • Very compact
  • Good seals and location
  • Non return valve preventing bad odour backflow
  • Suitable for push fit pipe (with included adaptor)
  • Suitable for solvent weld pipe (with included adaptor)
  • Top access for easy cleaning
  • High flow rate (27 l/min with 15mm head and 1m of pipe)
  • Meets the performance requirements of British standards

DW90 Low Height Dry Waste for TILES:

AKW DW90 Low Profile Waste - TILED Stainless Steel

  • Replaces 15mm & 22mm PGTF
  • If you need to reduce the pipework to 15mm please order reducer separately- SKU:25195
  • Quiet performance at all flow rates
  • Integrated 22mm JG fitting
  • Bayonet or screw fit cover
  • Improved aesthetics over existing PGTF
  • Dual chambers balance flow and reduce gulping effect
  • Baffles reduce noise escaping chambers
  • Flow guides encourage linear flow
  • Bayonet cover fits existing TF75
  • Compatible with all AKW shower waste pumps
  • Depth below tray 48mm/overall depth 55mm
  • Pump NOT Included
  • Guaranteed for Life*

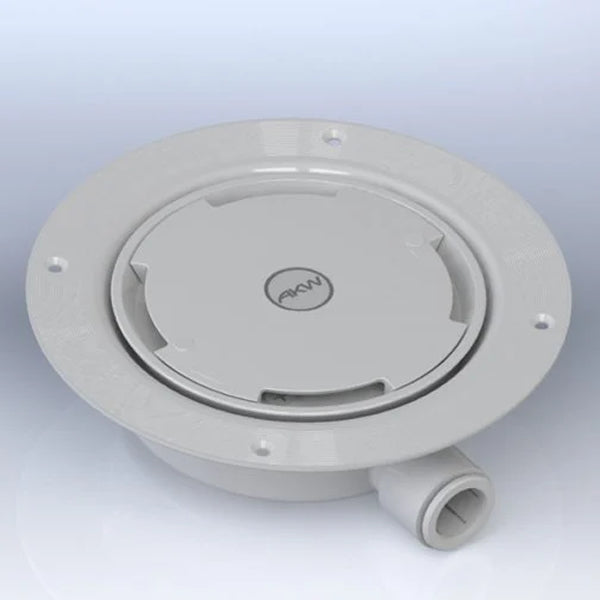

Pumped Silentflow+ PGTF Waste Outlet for VINYL:

AKW SilentFlow Pumped Waste Outlet - VINYL

  • Replaces 15mm & 22mm PGTF
  • If you need to reduce the pipework to 15mm please order reducer separately- SKU:25195
  • Quiet performance at all flow rates
  • Integrated 22mm JG fitting
  • Bayonet or screw fit cover
  • Improved aesthetics over existing PGTF
  • Dual chambers balance flow and reduce gulping effect
  • Baffles reduce noise escaping chambers
  • Flow guides encourage linear flow
  • Bayonet cover fits existing TF75
  • Compatible with all AKW shower waste pumps
  • Depth below tray 48mm/overall depth 55mm
  • Guaranteed for Life*

PGTF Pumped Gulley Waste Outlet for TILES:

AKW Pumped Waste Outlet - TILED Stainless Steel

  • For use with Tuff Form former when tiling
  • 22mm outlet pipe versions only
  • Opens for easy cleaning and rodding
  • Pump NOT Included
  • 22mm depth below tray = 44mm
  • 22mm JG Speedfit outlet
  • Stainless steel plate dimensions = 120 x 120mm
  • Stainless steel plate height is adjustable to max of 18mm
  • Guaranteed for Life*

Optional Tanking for Tiled Floor Finish:

If installing the ShowerDec with a tiled floor the tray and joints to the surround of the tray will need to be tanked (waterproofed) prior to the laying of tiles. Two tanking options exist for this:

Jackoboard Paint-On Tanking Kit:

Jackon tanking waterproofing sealing kit

The Jackoboard tanking kit contains a rapid drying, brush/roller applied, single part flexible liquid membrane for use on rigid surfaces in bathrooms, wet rooms and showers. It can also be used to waterproof existing surfaces such as plaster, plasterboard or timber.

Suitable for all flat or vertical surfaces made of any material. Simple to use for novices and experts alike.
Compatible with almost every type of under floor heating and ready for tiling with no further preparation (please check with under floor heating manufacturer).

For use under ceramic coverings in wet rooms, showers and bathrooms. Coverage 5 - 6sqm under normal conditions with recommended two coats.

Jackoboard Paint-On tanking kit contents:
4kg (2.5 litre) Tanking solution
1 litre primer for timber/plasterboard
10m sealing tape
2 x internal corners seals



AKW FormSafe Tanking Membrane Kit:

AKW FormSafe Tanking Membrane

FormSafe is probably one of the best tanking membranes available for use in wetroom applications as it provides a thick industrial strength impermeable barrier to any water that may escape beneath the tiles. The membrane is self-adhesive and comes on a roll. Once installed tiles can be applied immediately - there is no curing time.

Although particularly suited to floor applications FormSafe can also be applied to walls as an additional precaution. However, there is a maximum weight limit for wall mounted tiles when using FormSafe and this should not exceed 20kg/m2.

FormSafe can be used with under floor heating. Note: Maximum effective temperature for FormSafe is 32oC and should not be exceeded. Electrical heating max 150w.

AKW offer 2 different kit sizes for FormSafe, 5m2 and 10m2.

At A Glance:

  • It is ideal for use on substrates, such as timber, masonry, concrete, plasterboards, gypsum & tile backer boards
  • Once Applied FormSafe is ready to tile immediately, no drying time
  • Quick & easy to apply
  • Factory controlled thickness
  • Self-adhesive mat
  • 100% waterproof
  • No heating equipment required
  • Can be installed over a thermal board. Heating restricted at 32°. Electrical heating max 150w.
  • Lifetime of tile Guarantee

Contains:

  • 5m² or 10m² of FormSafe membrane (m x 1m)
  • 500ml FormSafe primer
  • 10m Reinforcing tape
  • 310ml Jointing compound

FormSafe Fitting Instructions (PDF)

Please note: AKW FormSafe is NOT compatible with the Wetrooms Online WetBase trays.

Sommer Evolve Wet Room Shower Screen

Sommer Evolve Wet Room Screen

Add an optional quality Sommer Evolve 8mm thick by 2000mm high toughened safety glass shower screen in a choice of widths, finished with an easy clean coating as standard, comes complete with wall bracket and support arm (700mm screen & above).

Available in of 400mm, 500mm, 600mm, 700mm, 760mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm or 1400mm length shower screens#

A life time guarantee and toughened 8mm glass gives you substance and style, in addition all Sommer wet room shower screens offer many premium features:

  • Bclean coating: Easy clean glass finish
  • Life time guarantee
  • Toughened 8mm thick glass
  • 2000mm high
  • Wall fixing profile supplied
  • Adjustable bracing bar supplied (1m)
  • Fittings available in Chrome or Black
  • Adjustment for secure and easy fixing (see below for further details)
  • Optional floor to ceiling post available (Max height 2.6m) - Cannot be used in conjunction with optional 300mm return panel.
  • Optional Angled Stabilising bar available (300mm)
  • CE Approved - Toughened 8mm thick glass
  • European safety glass approved - EN12150-1

#Screen sizes are nominal. All panels are undersized to allow for tiling when fitting to shower trays.

Sommer wet room shower screens are highly versatile and can be installed in many configurations including, One panel in a corner, One panel in an alcove, Walk through (with the use of two optional floor to ceiling posts), and with two panels in a corner to create a walk in enclosure.

Full product details: Sommer Evolve Wet Room Shower Screen

WarmUp Underfloor Heating - Sticky Mat 150w

WarmUp Underfloor Heating - Sticky Mat

Warmup® electric underfloor heating, the world’s best-selling floor heating brand™, provides warmth throughout the whole room, giving a whole new meaning to heating and comfort. Warmup underfloor heating offers heat-up time in minutes rather than hours, avoiding overheating and wasting energy. Warmup electric underfloor heating mats are low build (3mm) and perfect for heating up a large or regular-shaped room.

The StickyMat System consists of a thin (1.8mm) loose wire evenly spaced and taped to a glass fibre mesh with pressure sensitive adhesive, which allows for the fastest and most secure installation method of electric underfloor heating.

150W/ m2 – power variant can provide primary heating in well-insulated areas. Insulation boards retain heat in the room for longer. More importantly, they prevent downward heat-loss. The 150W/ m2 StickyMat can be laid on both timber and concrete subfloors.

Full product details: WarmUp Underfloor Heating - Sticky Mat

WarmUp Underfloor Heating 6iE Smart Thermostat

WarmUp 6iE Smart Thermostat

The 6iE underfloor heating thermostat from Warmup is the Smartest way to control heating systems from the world’s best-selling floor heating brand.

The 6iE offers a quick, hassle-free installation and true ease of use for the user. The 6iE Smart Wi-Fi Thermostat combines advanced technology with premium design and materials to create the ultimate underfloor heating controller. It is quick to install and can be up and running within a matter of minutes.

Featuring the world’s first Smartphone touchscreen on a floor heating controller, the 6iE Wi-Fi thermostat offers true ease of use – simply scroll and swipe to set your ideal heat schedule. The 6iE can be personalised with custom photo backgrounds and its clean, with an ultra-thin (16 mm from the wall) design, it will look great in classic contemporary or simple modern homes. Personalise the 6iE with photo backgrounds, the only underfloor heating thermostat with this ability.

    6iE Features & Benefits
  • Automatic heat control with SmartGeo technology
  • Can help save over £400 on your energy bills
  • World’s first UFH controller with Smartphone touchscreen
  • Compatible with all Warmup Underfloor Heating Systems
  • High-quality, ultra-slim design, just 16mm from wall
  • Weather-based Early Start - no wasted energy
  • Helps find the most efficient heat settings for your home
  • Customisable photo backgrounds
  • Quick to install, set up in minutes using the QR code
  • Market leading 12-year warranty when installed with Warmup heating systems

Full product details: WarmUp 6iE Smart Programmable Underfloor Heating Thermostat
