AKW Tuff Form8 Wet Room Walk In Shower Tray 1000 x 1000 x 22mm
SKU : 21131-25106
You May Also Need
Selection Subtotal:
£386.00
Copy from Here (this label will be hidden)
Add your 3 titles here (this label will be hidden)
Add your 3 lists here (this label will be hidden)
- 1000 x 1000 x 22mm
- UNDER-SUPPORT NOT REQUIRED
- CHOOSE DRAIN (TILED, VINYL & PUMPED OPTIONS)
- ROTATE DRAIN PLATE TO CHANGE DRAIN POSITION
- SUPPORTS UP TO 381KG
- CAN BE TRIMMED TO 150MM OF DRAIN PLATE
- RIBBED UNDERSIDE
- LIFETIME GUARANTEE*
- WOOD OR CONCRETE SUBFLOOR
- TILED FLOOR FINISH
- VINYL FLOOR FINISH
- WET ROOMS
- LEVEL ACCESS
- RAISED ON PLATFORM
- USE WITH WHEELCHAIRS
- FITTING DIRECT ON JOISTS
- UNDERFLOOR HEATING
- MICRO CEMENT
To Here (this label will be hidden)

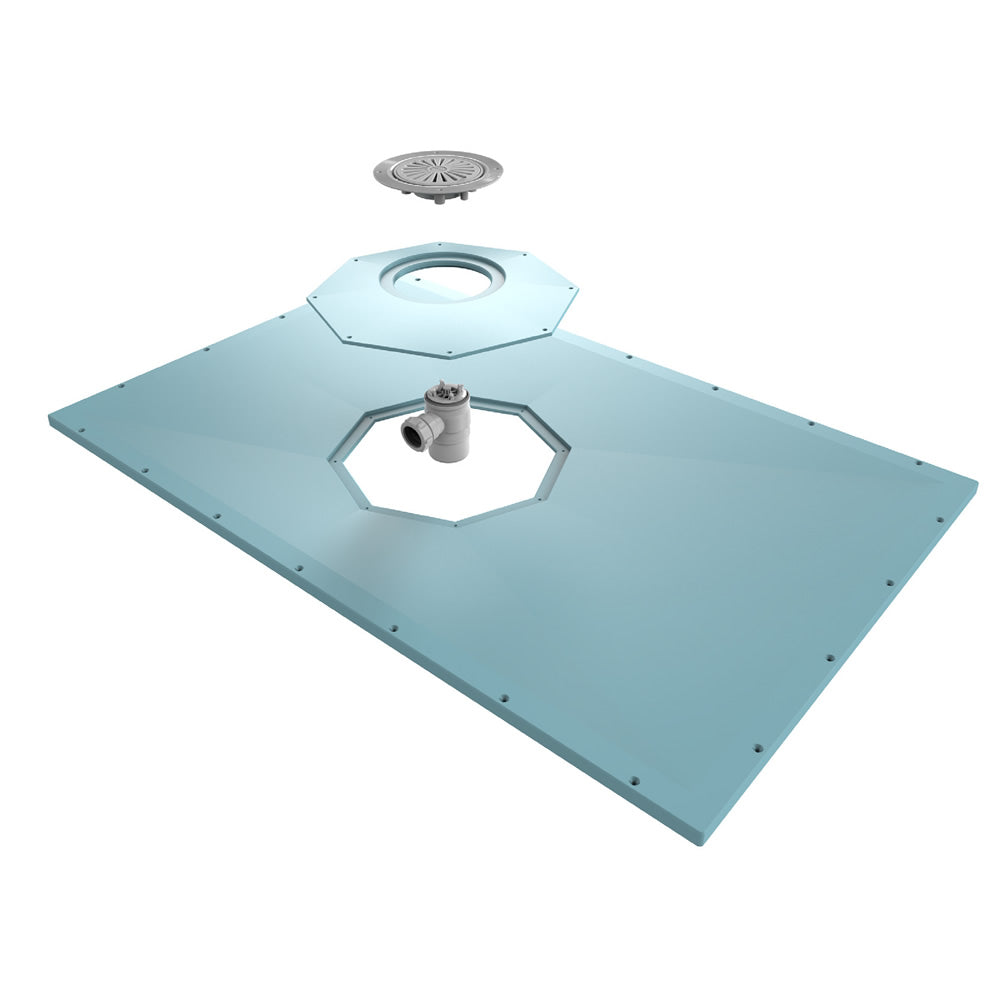

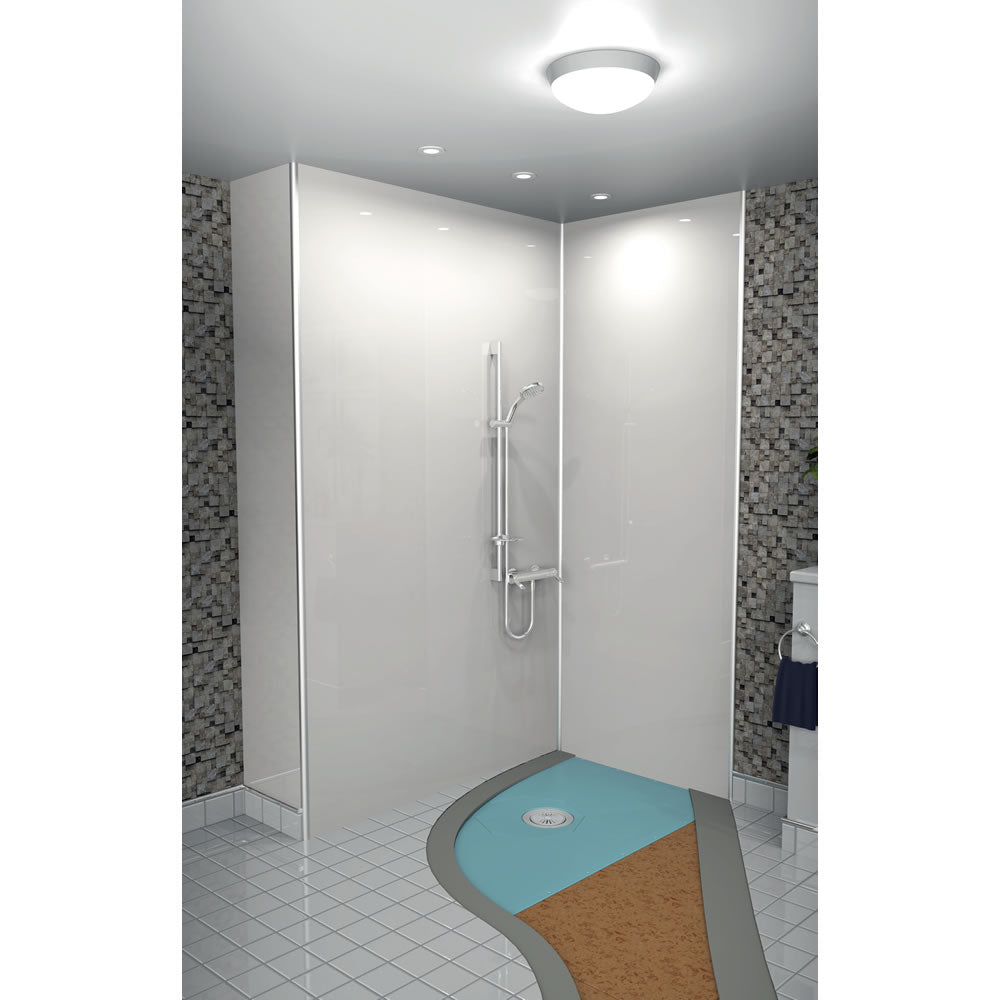

Tuff Form8 is a level-access wet room former from AKW, it combines all of the original Tuff Form’s benefits with a brand new fitting innovation to create AKW's best, most uncompromising wetroom former to date. Designed for incredibly easy installation, Tuff Form8’s innovative rotating octagonal plate provides 15 different waste positions to avoid all obstructing joists during installation. It also provides the increasingly popular option of placing the waste in the centre of the tray.
Designed for incredibly easy installation, the AKW Tuff Form8’s innovative rotating octagonal plate provides 15 different waste positions to avoid all obstructing joists during installation. It also
provides the increasingly popular option of placing the waste in the centre of the tray. The design of the octagonal plate maintains the fall to maximise drainage and eliminate pooling water.
Made from high strength Sheet Moulding Compound (SMC), the quality build and versatility of Tuff Form8 wet room former gives the option of tiling or installing vinyl safety flooring.
Installation is quick and easy as Tuff Form8 has pre-formed fixing points, therefore no measuring is required. An improved weight limit of 381kg / 60 Stone and a lifetime guarantee, the AKW Tuff Form8 has all you need to make the perfect wet room / walk in shower.
Specification:

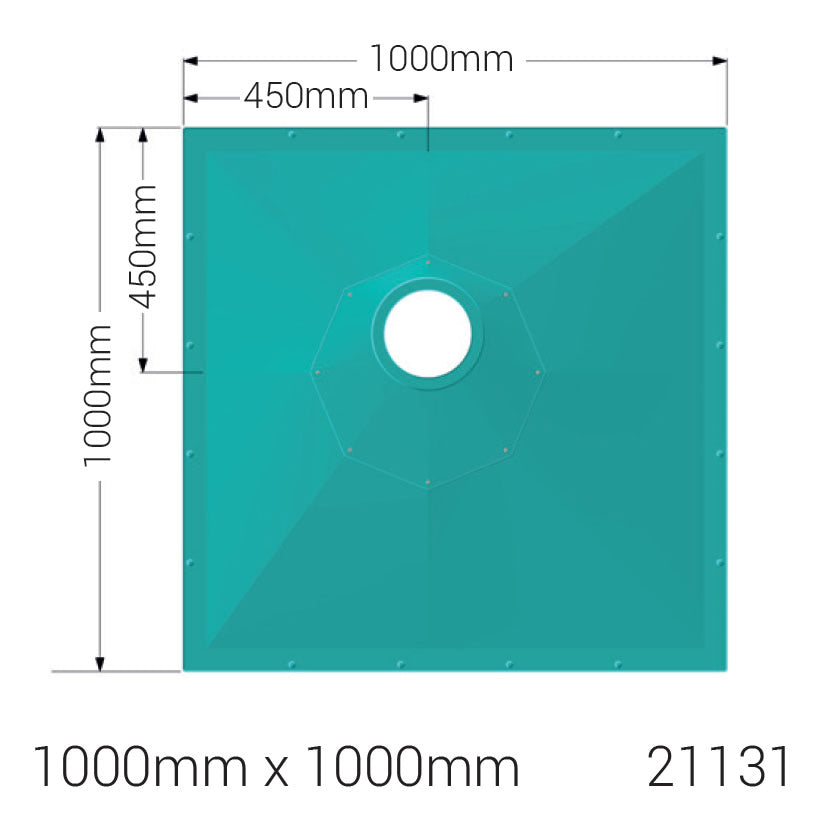

Size 1000 x 1000 x 22mm
Thickness: 22mm to suit the 18mm UK timber floor board + 4mm plywood, no extra adjustment needed for installation
Strength: 60 stone (381kg) on joists/ Unlimited on concrete
Manufacturing technique: Compression moulding
Recyclability: Recyclable
Features:
Rotatable waste position
Wide selection of waste options
Suitable for both wooden and concrete floor
Easily trimmable within 150mm from the octagonal plate
No need for under boarding
Pre-formed fixing holes
User friendly step-by-step installation guide
Suitable for use with underfloor heating
Ribbed underside structure
Durably supported for up to 60 stones on timber joists
Level-access with large size options
High strength GRP
Well-engineered 1:16 gradient
Benefits:
Suitable for all UK joist patterns, the adjustable waste positions avoid all obstructing joists
No water pooling in the shower area thanks to the octagonal plate design that provides a continual fall all the way to the waste
Ability to remove octagonal plate makes for quick and easy installation of pipework
Waste installation requires no tedious screw hole drilling
Quick and easy installation
Ribbed underside eliminates slippage or float during installation
Versatile applications
Peace of mind for long term use
Designed with a variety of end-users in mind, able to support chair users and carers
A solid support by the cutting-edge SMC-GRP (Sheet moulding Compound -Glass Reinforced Plastic) composite technology, enabling easy transportation and installation.

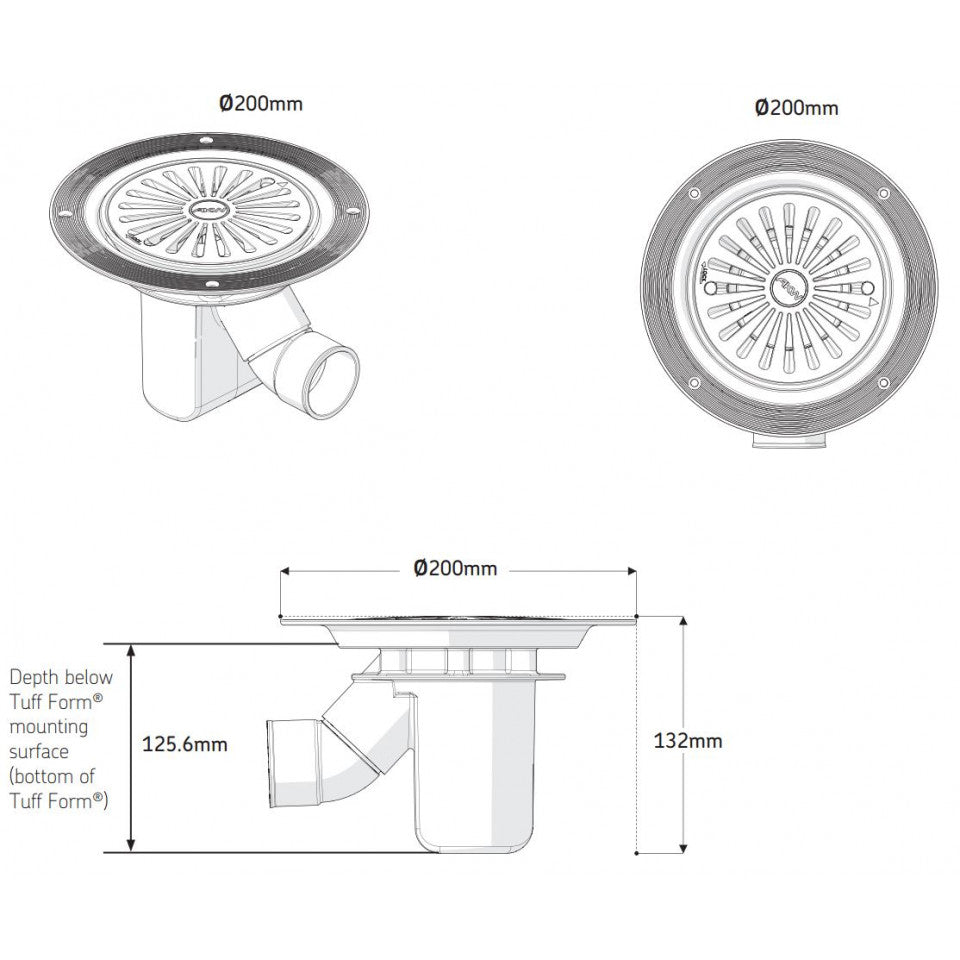

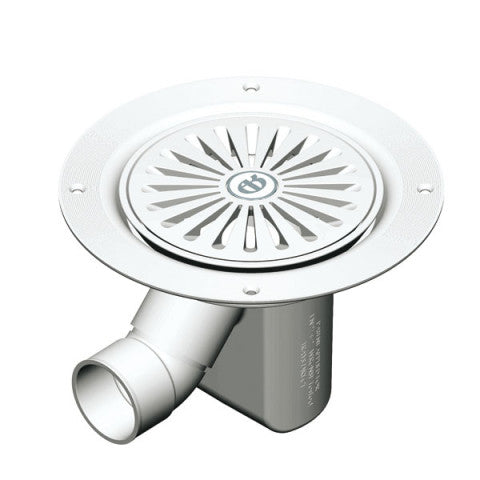

TF75 Gravity Waste for VINYL:
- Opens for easy cleaning and rodding
- 125mm deep below mounting surface
- 75mm water trap depth (seal)
- Adjustable elbow for waste pipe exit
- Patented design: GB2402946
- Guaranteed for life*
- H132 x W200

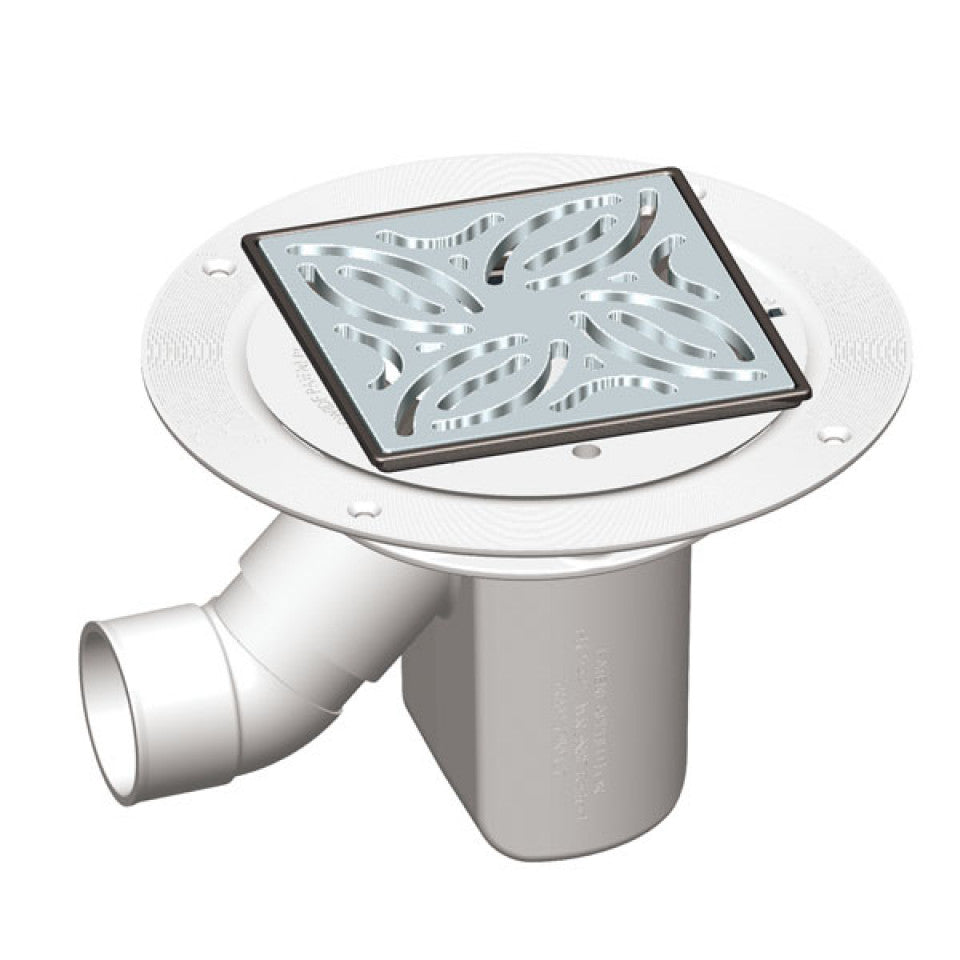

- For use with Tuff Form former when tiling
- Opens for easy cleaning and rodding
- 125mm deep below mounting surface
- Overall depth 132mm
- 75mm water trap depth
- Adjustable elbow for waste pipe exit

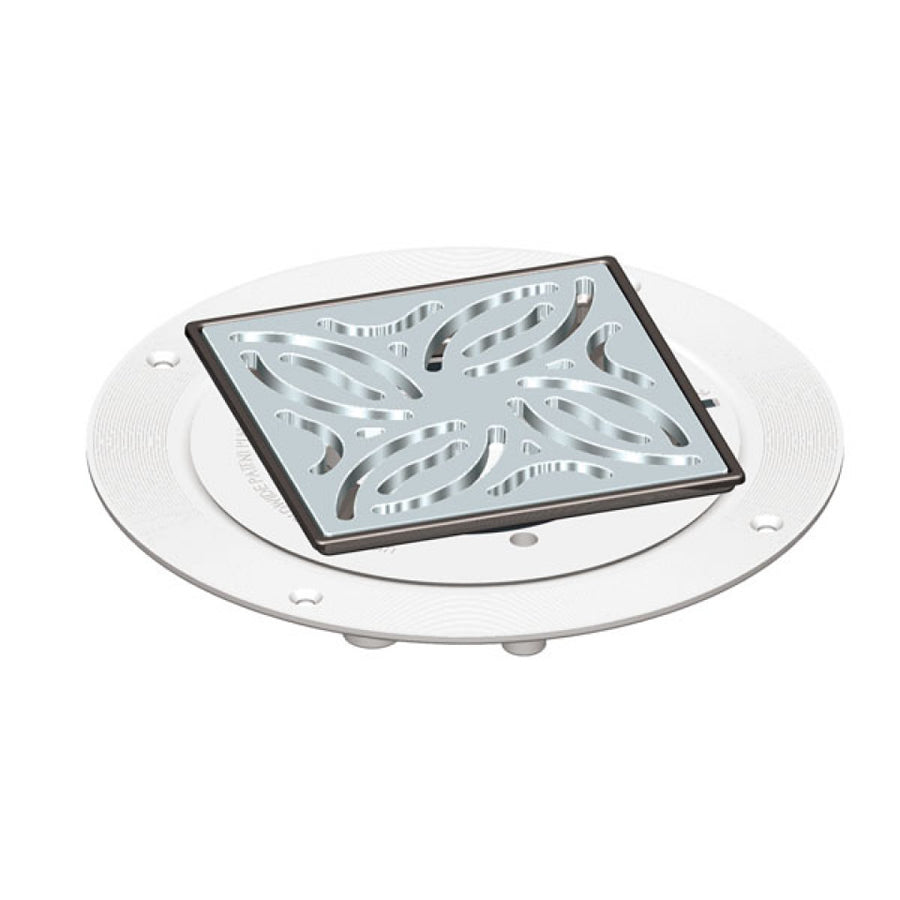

- Stainless steel plate dimensions - 120 x 120mm
- Stainless steel plate height is adjustable to max of 18mm with adhesive
- Guaranteed for Life*

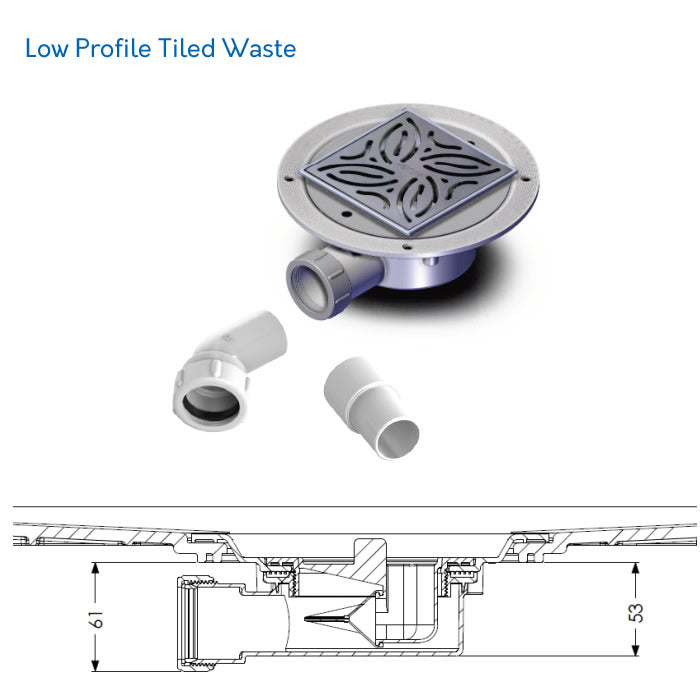

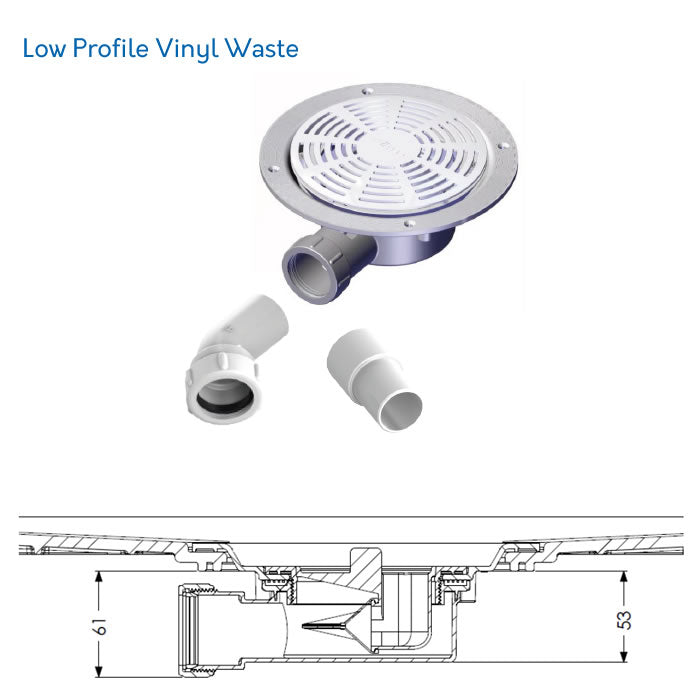

- Shallow 53mm depth. Useful for solid floors or shallow joists.
- Trap will not dry out with sporadic use
- Very compact
- Good seals and location
- Non return valve preventing bad odour backflow
- Suitable for push fit pipe (with included adaptor)
- Suitable for solvent weld pipe (with included adaptor)
- Top access for easy cleaning
- High flow rate (27 l/min with 15mm head and 1m of pipe)
- Meets the performance requirements of British standards
- Replaces 15mm & 22mm PGTF
- If you need to reduce the pipework to 15mm please order reducer separately- SKU:25195
- Quiet performance at all flow rates

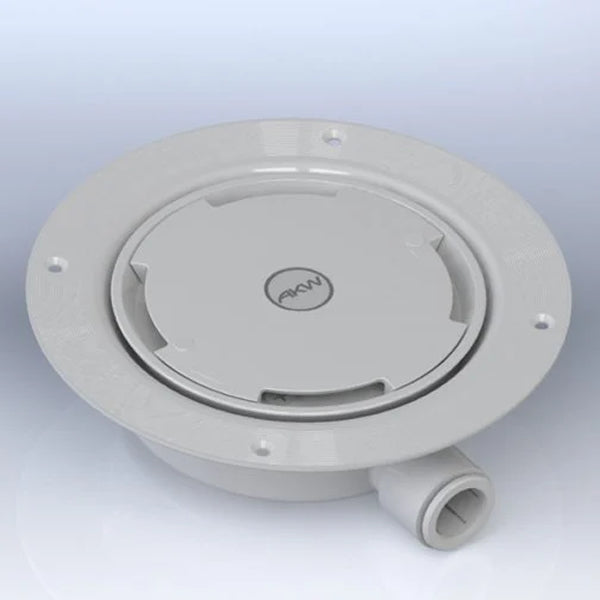

- Integrated 22mm JG fitting
- Bayonet or screw fit cover
- Improved aesthetics over existing PGTF
- Dual chambers balance flow and reduce gulping effect
- Baffles reduce noise escaping chambers
- Flow guides encourage linear flow
- Bayonet cover fits existing TF75
- Compatible with all AKW shower waste pumps
- Depth below tray 48mm/overall depth 55mm
- Pump NOT Included
- Guaranteed for Life*
- Replaces 15mm & 22mm PGTF
- If you need to reduce the pipework to 15mm please order reducer separately- SKU:25195
- Quiet performance at all flow rates
- Integrated 22mm JG fitting
- Bayonet or screw fit cover
- Improved aesthetics over existing PGTF
- Dual chambers balance flow and reduce gulping effect
- Baffles reduce noise escaping chambers
- Flow guides encourage linear flow
- Bayonet cover fits existing TF75
- Compatible with all AKW shower waste pumps
- Depth below tray 48mm/overall depth 55mm
- Guaranteed for Life*
- For use with Tuff Form former when tiling
- 22mm outlet pipe versions only
- Opens for easy cleaning and rodding
- Pump NOT Included
- 22mm depth below tray = 44mm
- 22mm JG Speedfit outlet
- Stainless steel plate dimensions = 120 x 120mm
- Stainless steel plate height is adjustable to max of 18mm
- Guaranteed for Life*
Mapei Wetroom Liquid Tanking Kit:
Product Contents
- 1 x 5 Kg Drum of Mapegum WPS
- 1 x Mapei Primer G
- 1 x Mapeband pe120 5m Roll
Ideal for Use On:
- Moisture-resistant plasterboard
- Gypsum plaster
- Cementitious render
- Tile backer boards
- Existing ceramic finishes (with Eco Prim T Plus primer application)
AKW FormSafe Tanking Membrane Kit:
FormSafe is probably one of the best tanking membranes available for use in wetroom applications as it provides a thick industrial strength impermeable barrier to any water that may escape beneath the tiles. The membrane is self-adhesive and comes on a roll. Once installed tiles can be applied immediately - there is no curing time.
Although particularly suited to floor applications FormSafe can also be applied to walls as an additional precaution. However, there is a maximum weight limit for wall mounted tiles when using FormSafe and this should not exceed 20kg/m2.
FormSafe can be used with under floor heating. Note: Maximum effective temperature for FormSafe is 32oC and should not be exceeded. Electrical heating max 150w.
AKW offer 2 different kit sizes for FormSafe, 5m2 and 10m2.
At A Glance:
- It is ideal for use on substrates, such as timber, masonry, concrete, plasterboards, gypsum & tile backer boards
- Once Applied FormSafe is ready to tile immediately, no drying time
- Quick & easy to apply
- Factory controlled thickness
- Self-adhesive mat
- 100% waterproof
- No heating equipment required
- Can be installed over a thermal board. Heating restricted at 32°. Electrical heating max 150w.
- Lifetime of tile Guarantee
Contains:
- 5m² or 10m² of FormSafe membrane (m x 1m)
- 500ml FormSafe primer
- 10m Reinforcing tape
- 310ml Jointing compound
FormSafe Fitting Instructions (PDF)
Please note: AKW FormSafe is NOT compatible with the Wetrooms Online WetBase trays.
Roman Haven Wet Room Shower Screen
Complete your wet room shower with an optional Roman Haven Shower Screen, available in 8mm or 10mm thick by 2000mm high toughened safety glass shower screen in a choice of widths, finished with an easy clean coating as standard, comes complete with wall bracket in a choice of finishes (Polished Chrome, Matt Black, Brushed Nickel or Brushed Brass) at NO extra cost. Wide choice of optional bracing bars available..
Available in of 400mm, 500mm, 600mm, 700mm, 760mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm or 1400mm length shower screens#
A life time guarantee and toughened 8mm glass gives you substance and style, in addition all Roman wet room shower screens offer many premium features:
- Easy clean glass finish
- Toughened 8mm or 10mm thick glass
- 2000mm high
- Wall fixing profile supplied
- Fittings available in Polished Chrome, Matt Black, Brushed Nickel or Brushed Brass
- Adjustment for secure and easy fixing
- Designed & manufactured in Britain
- Truelife - Lifetime guarantee
- CE Approved - Toughened 8mm thick glass
- European safety glass approved - EN12150-1
#Screen sizes are nominal. All panels are undersized to allow for tiling when fitting to shower trays.
Full product details: Roman Haven Wet Room Shower Screen
Contour P12 Shower Waste Pump:
The Contour P12 Shower Waste Pump is the only quiet, un-blockable, maintenance FREE and variable speed shower waste pump for when gravity drainage is unavailable.
Features:
Silent operation.
Reliable peristaltic pump design. Water travels through a sealed tube reducing the risk of blockage.
Variable speed transformer allows precise control of the pump speed to match the shower flow rate.
Benefits:
- Maintenance free with a 5 YEAR WARRANTY.
- Low running costs due to the 24v DC efficient energy motor.
- Wallplate with quick release pump bracket.
- Suitable for electric and mixer showers. (Additional flow switch required for mixer shower installations).
- Complete with a 2-metre length of 22mm flexible pipe for improved performance.
- Link directly to a Redring Selectronic Premier WP, Mira Advance ATL Flex Extra or Triton Omnicare eliminating the flow switch.
- Not handed for easy and quick installation.
Box Contents:
- Contour P12 Shower Pump
- 1 x Flowswitch
- Fitting / User Instructions
Full product description:Contour P12 Shower Waste Pump
