AKW Tuff Form8 Wet Room Walk In Shower Tray 900 x 900 x 22mm

£368.00

Price inclusive of VAT

SKU : 21130-25106

Order in the next: 00 hours, 00 minutes, 00 seconds for Same Day Shipping*

Delivery Approx 1 - 2 Working Days

Selection Subtotal:

£368.00

Call our EXPERTS on FREEPHONE 0800 280 8008

100% money back guarantee if not fully satisfied*

Rated EXCELLENT by our customers

FREE delivery on orders
over £300

Description
Drain Options
Product Downloads
YOU MAY ALSO NEED - OPTIONAL EXTRAS
Installation Video


Copy from Here (this label will be hidden)

Add your 3 titles here (this label will be hidden)

Specification
Suitable For
Not Suitable For

Add your 3 lists here (this label will be hidden)

  • 900 x 900 x 22mm
  • UNDER-SUPPORT NOT REQUIRED
  • CHOOSE DRAIN (TILED, VINYL & PUMPED OPTIONS)
  • ROTATE DRAIN PLATE TO CHANGE DRAIN POSITION
  • SUPPORTS UP TO 381KG
  • CAN BE TRIMMED TO 150MM OF DRAIN PLATE
  • RIBBED UNDERSIDE
  • LIFETIME GUARANTEE*
  • WOOD OR CONCRETE SUBFLOOR
  • TILED FLOOR FINISH
  • VINYL FLOOR FINISH
  • WET ROOMS
  • LEVEL ACCESS
  • RAISED ON PLATFORM
  • USE WITH WHEELCHAIRS
  • FITTING DIRECT ON JOISTS
  • UNDERFLOOR HEATING
  • MICRO CEMENT

To Here (this label will be hidden)

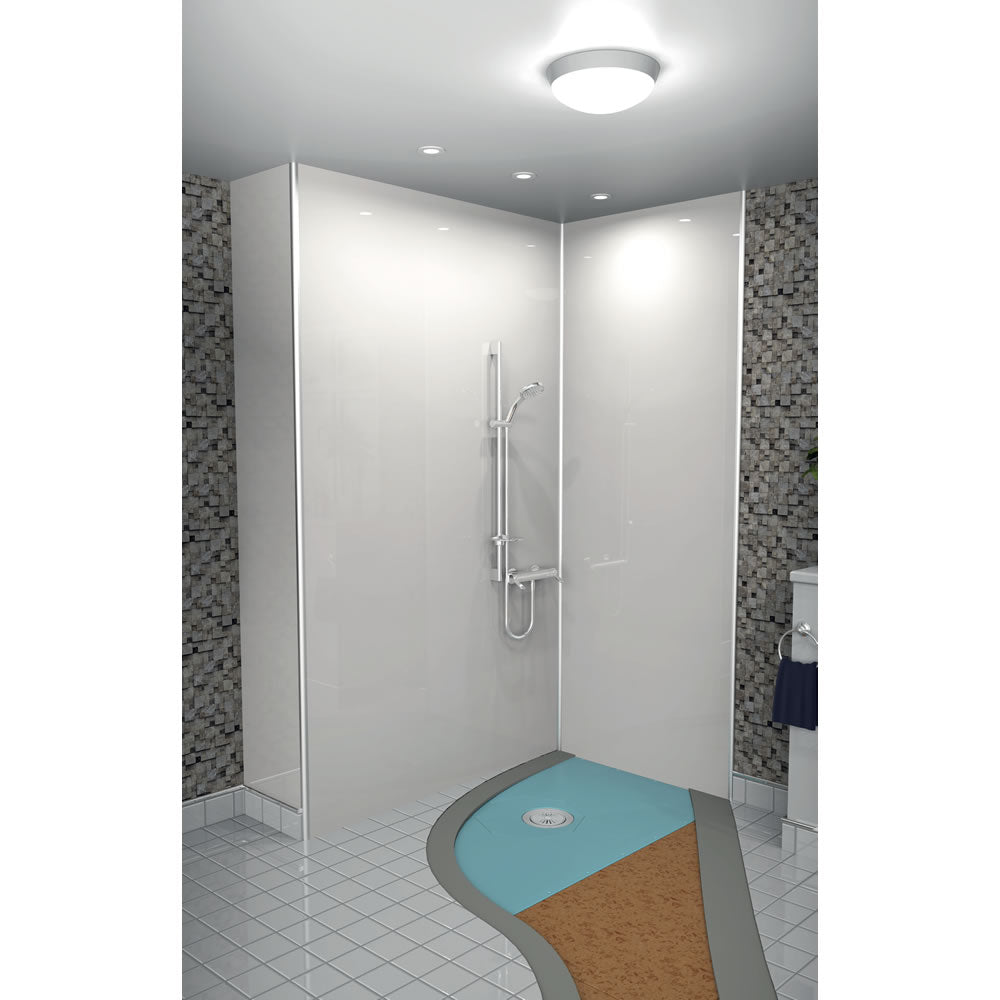

Tuff Form8 is a level-access wet room former from AKW, it combines all of the original Tuff Form’s benefits with a brand new fitting innovation to create AKW's best, most uncompromising wetroom former to date. Designed for incredibly easy installation, Tuff Form8’s innovative rotating octagonal plate provides 15 different waste positions to avoid all obstructing joists during installation. It also provides the increasingly popular option of placing the waste in the centre of the tray.

Designed for incredibly easy installation, the AKW Tuff Form8’s innovative rotating octagonal plate provides 15 different waste positions to avoid all obstructing joists during installation. It also
provides the increasingly popular option of placing the waste in the centre of the tray. The design of the octagonal plate maintains the fall to maximise drainage and eliminate pooling water.

Made from high strength Sheet Moulding Compound (SMC), the quality build and versatility of Tuff Form8 wet room former gives the option of tiling or installing vinyl safety flooring.
Installation is quick and easy as Tuff Form8 has pre-formed fixing points, therefore no measuring is required. An improved weight limit of 381kg / 60 Stone and a lifetime guarantee, the AKW Tuff Form8 has all you need to make the perfect wet room / walk in shower.

Specification:

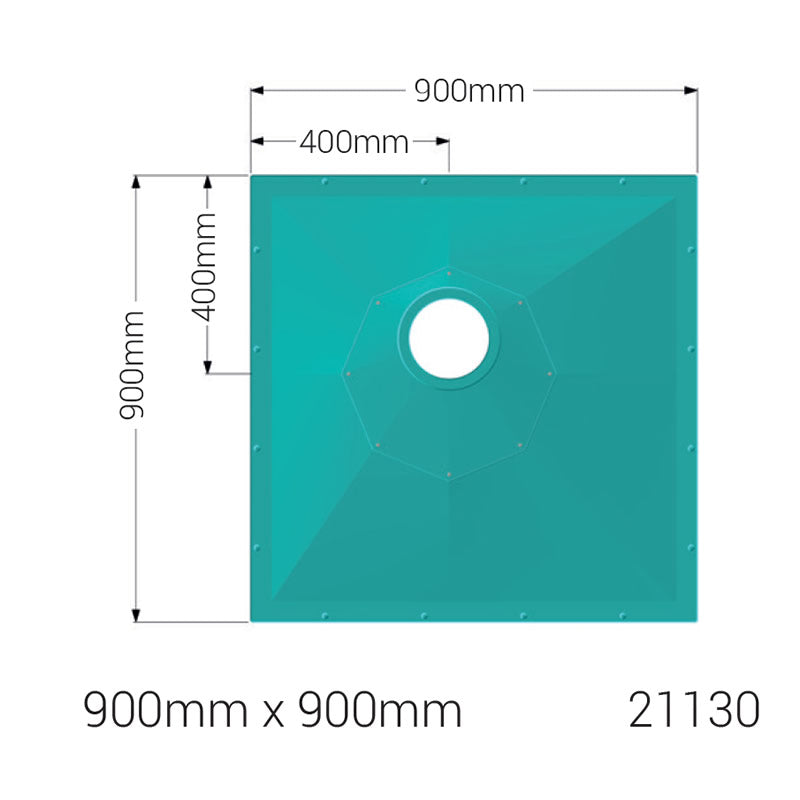

Size 900 x 900 x 22mm
Thickness: 22mm to suit the 18mm UK timber floor board + 4mm plywood, no extra adjustment needed for installation
Strength: 60 stone (381kg) on joists/ Unlimited on concrete
Manufacturing technique: Compression moulding
Recyclability: Recyclable

Features:

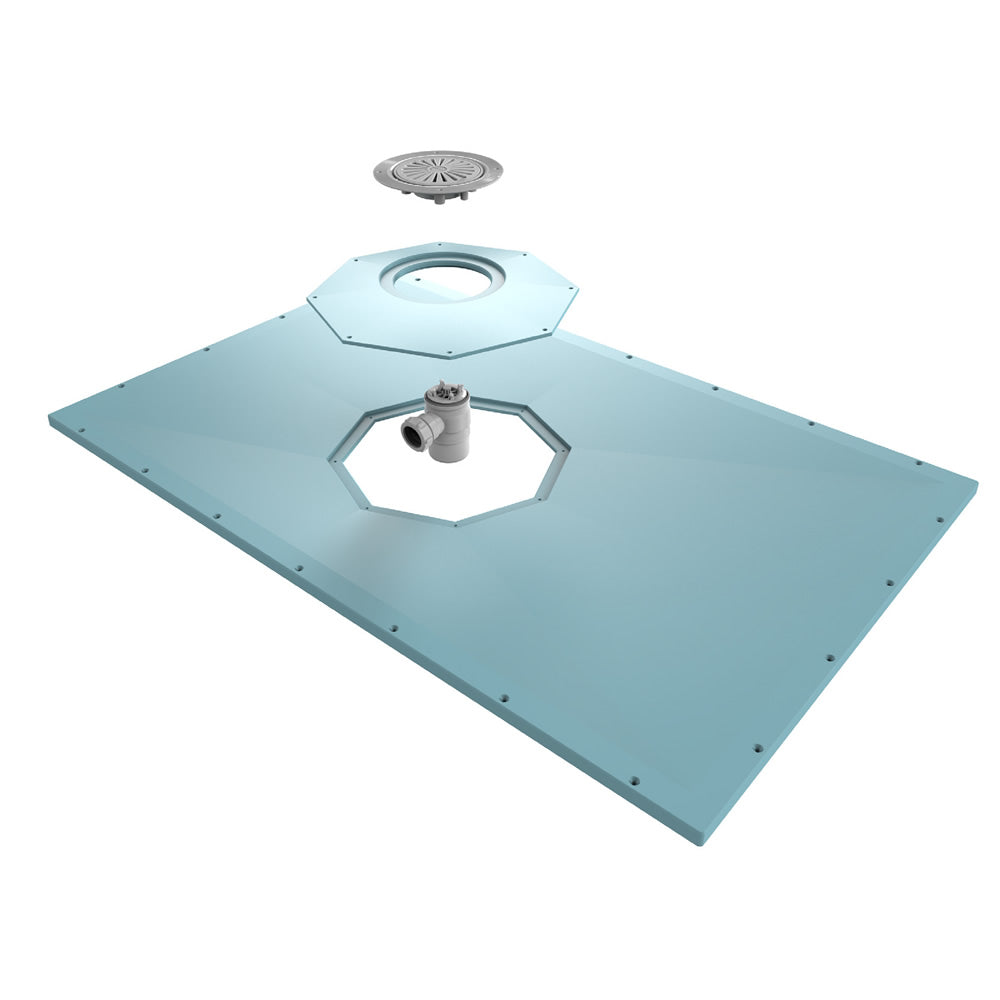

Rotatable waste position
Wide selection of waste options
Suitable for both wooden and concrete floor
Easily trimmable within 150mm from the octagonal plate
No need for under boarding
Pre-formed fixing holes
User friendly step-by-step installation guide
Suitable for use with underfloor heating
Ribbed underside structure
Durably supported for up to 60 stones on timber joists
Level-access with large size options
High strength GRP
Well-engineered 1:16 gradient

Benefits:

Suitable for all UK joist patterns, the adjustable waste positions avoid all obstructing joists
No water pooling in the shower area thanks to the octagonal plate design that provides a continual fall all the way to the waste
Ability to remove octagonal plate makes for quick and easy installation of pipework
Waste installation requires no tedious screw hole drilling
Quick and easy installation
Ribbed underside eliminates slippage or float during installation
Versatile applications
Peace of mind for long term use
Designed with a variety of end-users in mind, able to support chair users and carers
A solid support by the cutting-edge SMC-GRP (Sheet moulding Compound -Glass Reinforced Plastic) composite technology, enabling easy transportation and installation.

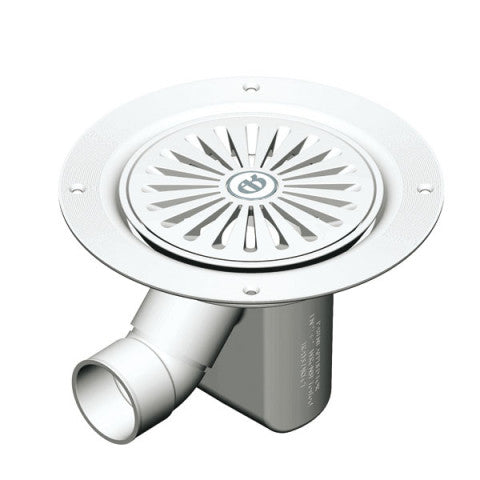

TF75 Gravity Waste for VINYL:

AKW TF75 Waste - Vinyl Floor

  • Opens for easy cleaning and rodding
  • 125mm deep below mounting surface
  • 75mm water trap depth (seal)
  • Adjustable elbow for waste pipe exit
  • Patented design: GB2402946
  • Guaranteed for life*
  • H132 x W200

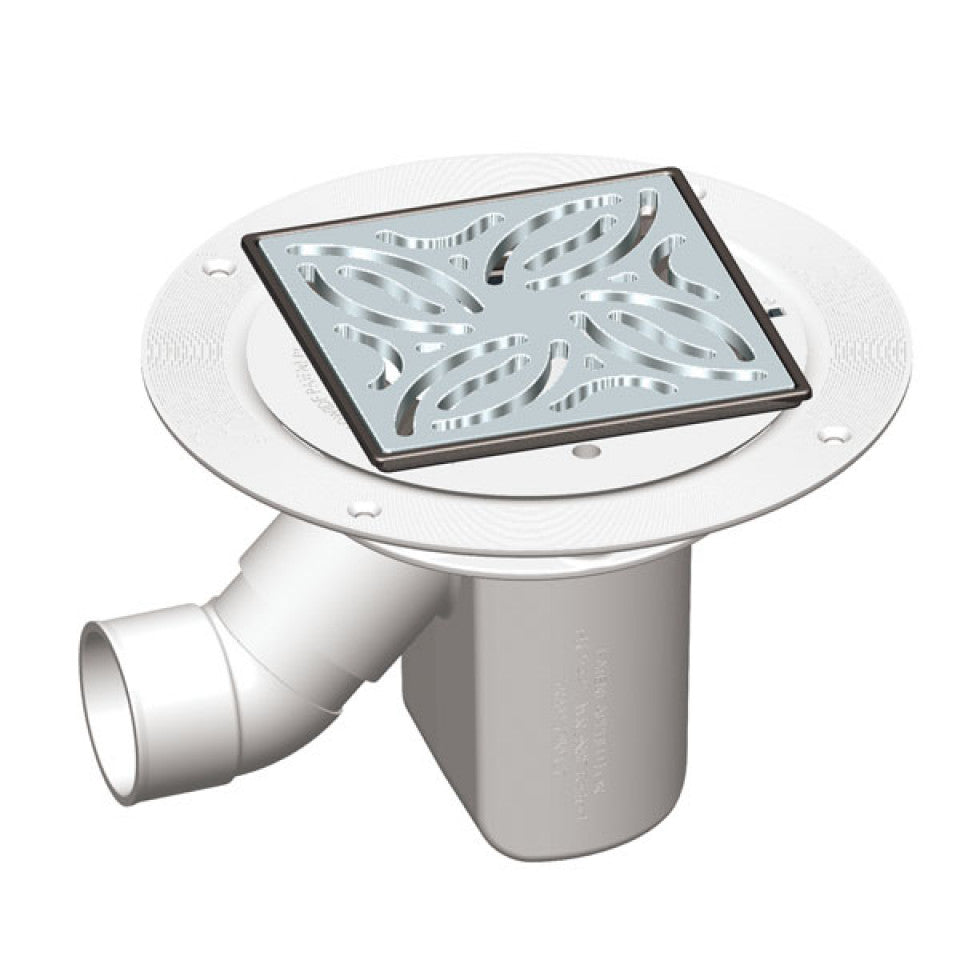

TF75 Gravity Waste for TILES:

AKW TF75 Waste - Tiled Floor (Stainless Steel)

  • For use with Tuff Form former when tiling
  • Opens for easy cleaning and rodding
  • 125mm deep below mounting surface
  • Overall depth 132mm
  • 75mm water trap depth
  • Adjustable elbow for waste pipe exit
  • Stainless steel plate dimensions - 120 x 120mm
  • Stainless steel plate height is adjustable to max of 18mm with adhesive
  • Guaranteed for Life*

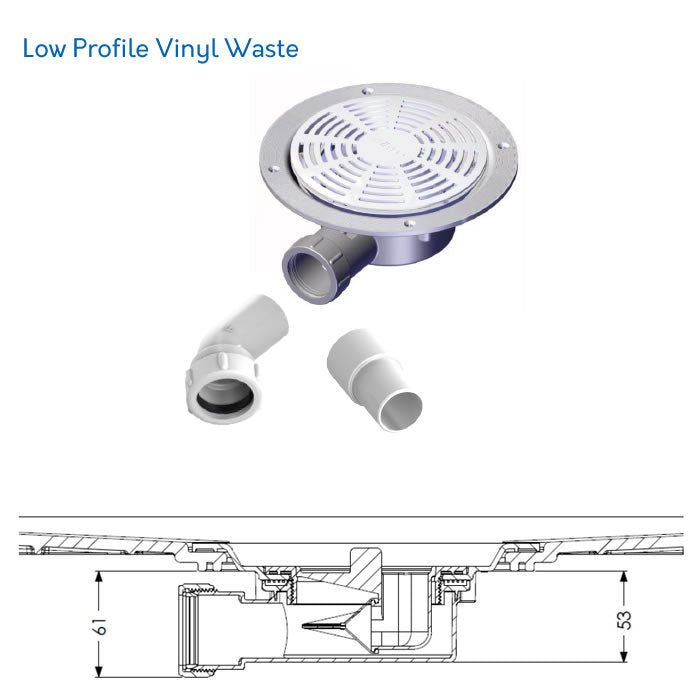

DW90 Low Height Dry Waste for VINYL:

AKW DW90 Low Profile Waste - VINYL

  • Shallow 53mm depth. Useful for solid floors or shallow joists.
  • Trap will not dry out with sporadic use
  • Very compact
  • Good seals and location
  • Non return valve preventing bad odour backflow
  • Suitable for push fit pipe (with included adaptor)
  • Suitable for solvent weld pipe (with included adaptor)
  • Top access for easy cleaning
  • High flow rate (27 l/min with 15mm head and 1m of pipe)
  • Meets the performance requirements of British standards

DW90 Low Height Dry Waste for TILES:

AKW DW90 Low Profile Waste - TILED Stainless Steel

  • Replaces 15mm & 22mm PGTF
  • If you need to reduce the pipework to 15mm please order reducer separately- SKU:25195
  • Quiet performance at all flow rates
  • Integrated 22mm JG fitting
  • Bayonet or screw fit cover
  • Improved aesthetics over existing PGTF
  • Dual chambers balance flow and reduce gulping effect
  • Baffles reduce noise escaping chambers
  • Flow guides encourage linear flow
  • Bayonet cover fits existing TF75
  • Compatible with all AKW shower waste pumps
  • Depth below tray 48mm/overall depth 55mm
  • Pump NOT Included
  • Guaranteed for Life*

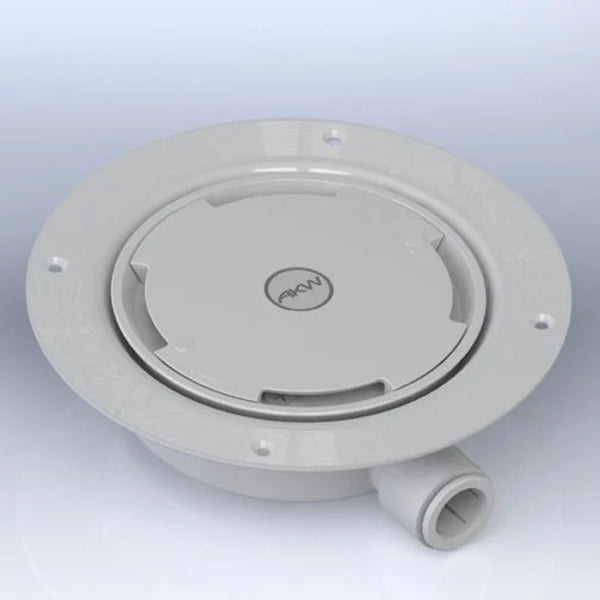

Pumped Silentflow+ PGTF Waste Outlet for VINYL:

AKW SilentFlow Pumped Waste Outlet - VINYL

  • Replaces 15mm & 22mm PGTF
  • If you need to reduce the pipework to 15mm please order reducer separately- SKU:25195
  • Quiet performance at all flow rates
  • Integrated 22mm JG fitting
  • Bayonet or screw fit cover
  • Improved aesthetics over existing PGTF
  • Dual chambers balance flow and reduce gulping effect
  • Baffles reduce noise escaping chambers
  • Flow guides encourage linear flow
  • Bayonet cover fits existing TF75
  • Compatible with all AKW shower waste pumps
  • Depth below tray 48mm/overall depth 55mm
  • Guaranteed for Life*

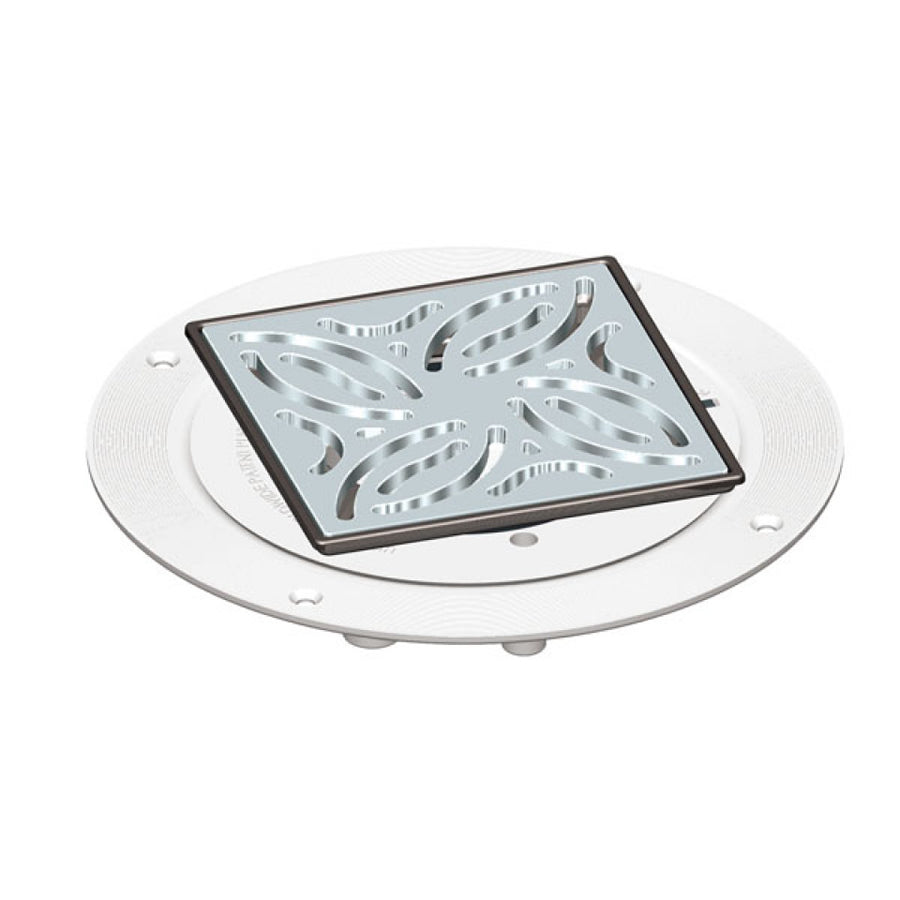

PGTF Pumped Gulley Waste Outlet for TILES:

AKW Pumped Waste Outlet - TILED Stainless Steel

  • For use with Tuff Form former when tiling
  • 22mm outlet pipe versions only
  • Opens for easy cleaning and rodding
  • Pump NOT Included
  • 22mm depth below tray = 44mm
  • 22mm JG Speedfit outlet
  • Stainless steel plate dimensions = 120 x 120mm
  • Stainless steel plate height is adjustable to max of 18mm
  • Guaranteed for Life*

MERLYN 8MM Wetroom Panel

MERLYN 8MM Wetroom Panel

Simple yet stylish, our 8mm Wetroom Panels come in a choice of colours - Matt Black, Brushed Bronze, Brushed Brass, and Chrome. You have the choice to mix and match many combinations of shapes and sizes to any space you require. At MERLYN, we understand that every wetroom space is different, which is why we have designed a modular system of wetroom panels that can be combined to fit any area.

Returns Notice: We are unable to accept returns of this item once the packaging has been opened, unless the product is damaged or faulty.

Features:

  • Height: 2015mm (Including rail)
  • All panels from 700mm & above come with a 1000mm stabilising bar
  • Available Sizes: 300mm, 400mm, 500mm, 600mm, 700mm, 760mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm, 1400mm, 1600mm
  • * All shower screens are nominally sized, see screen adjustment tab for measurements
  • 8mm toughened glass
  • Available Finishes: Standard Chrome, Matt Black, Brushed Brass, and Brushed Bronze
  • Strong & sturdy constructions
  • 3m support post can be retro-fitted to glass thickness of 8mm
  • Suitable for recess or corner situation
  • Optional Swivel panel can be retrofitted to any 8mm wetroom panel
  • Easy clean Mershield Stayclear protected glass
  • Reversible
  • Corner profile option available
  • Wetroom compatible
  • 20-year Guarantee
Merlyn 8mm Sizes
Merlyn 8mm Sizes

Mapei Wetroom Liquid Tanking Kit:

Mapei Wetroom Liquid Tanking Kit

Product Contents

  • 1 x 5 Kg Drum of Mapegum WPS
  • 1 x Mapei Primer G
  • 1 x Mapeband pe120 5m Roll

Ideal for Use On:

  • Moisture-resistant plasterboard
  • Gypsum plaster
  • Cementitious render
  • Tile backer boards
  • Existing ceramic finishes (with Eco Prim T Plus primer application)

AKW FormSafe Tanking Membrane Kit:

AKW FormSafe Tanking Membrane

FormSafe is probably one of the best tanking membranes available for use in wetroom applications as it provides a thick industrial strength impermeable barrier to any water that may escape beneath the tiles. The membrane is self-adhesive and comes on a roll. Once installed tiles can be applied immediately - there is no curing time.

Although particularly suited to floor applications FormSafe can also be applied to walls as an additional precaution. However, there is a maximum weight limit for wall mounted tiles when using FormSafe and this should not exceed 20kg/m2.

FormSafe can be used with under floor heating. Note: Maximum effective temperature for FormSafe is 32oC and should not be exceeded. Electrical heating max 150w.

AKW offer 2 different kit sizes for FormSafe, 5m2 and 10m2.

At A Glance:

  • It is ideal for use on substrates, such as timber, masonry, concrete, plasterboards, gypsum & tile backer boards
  • Once Applied FormSafe is ready to tile immediately, no drying time
  • Quick & easy to apply
  • Factory controlled thickness
  • Self-adhesive mat
  • 100% waterproof
  • No heating equipment required
  • Can be installed over a thermal board. Heating restricted at 32°. Electrical heating max 150w.
  • Lifetime of tile Guarantee

Contains:

  • 5m² or 10m² of FormSafe membrane (m x 1m)
  • 500ml FormSafe primer
  • 10m Reinforcing tape
  • 310ml Jointing compound

FormSafe Fitting Instructions (PDF)

Please note: AKW FormSafe is NOT compatible with the Wetrooms Online WetBase trays.

Contour P12 Shower Waste Pump:

Contour P12 Shower Waste Pump

The Contour P12 Shower Waste Pump is the only quiet, un-blockable, maintenance FREE and variable speed shower waste pump for when gravity drainage is unavailable.

Features:

Silent operation.
Reliable peristaltic pump design. Water travels through a sealed tube reducing the risk of blockage.
Variable speed transformer allows precise control of the pump speed to match the shower flow rate.

Benefits:

  • Maintenance free with a 5 YEAR WARRANTY.
  • Low running costs due to the 24v DC efficient energy motor.
  • Wallplate with quick release pump bracket.
  • Suitable for electric and mixer showers. (Additional flow switch required for mixer shower installations).
  • Complete with a 2-metre length of 22mm flexible pipe for improved performance.
  • Link directly to a Redring Selectronic Premier WP, Mira Advance ATL Flex Extra or Triton Omnicare eliminating the flow switch.
  • Not handed for easy and quick installation.

Box Contents:

  • Contour P12 Shower Pump
  • 1 x Flowswitch
  • Fitting / User Instructions

Full product description:Contour P12 Shower Waste Pump





Description


Copy from Here (this label will be hidden)

Add your 3 titles here (this label will be hidden)

Specification
Suitable For
Not Suitable For

Add your 3 lists here (this label will be hidden)

  • 900 x 900 x 22mm
  • UNDER-SUPPORT NOT REQUIRED
  • CHOOSE DRAIN (TILED, VINYL & PUMPED OPTIONS)
  • ROTATE DRAIN PLATE TO CHANGE DRAIN POSITION
  • SUPPORTS UP TO 381KG
  • CAN BE TRIMMED TO 150MM OF DRAIN PLATE
  • RIBBED UNDERSIDE
  • LIFETIME GUARANTEE*
  • WOOD OR CONCRETE SUBFLOOR
  • TILED FLOOR FINISH
  • VINYL FLOOR FINISH
  • WET ROOMS
  • LEVEL ACCESS
  • RAISED ON PLATFORM
  • USE WITH WHEELCHAIRS
  • FITTING DIRECT ON JOISTS
  • UNDERFLOOR HEATING
  • MICRO CEMENT

To Here (this label will be hidden)

Tuff Form8 is a level-access wet room former from AKW, it combines all of the original Tuff Form’s benefits with a brand new fitting innovation to create AKW's best, most uncompromising wetroom former to date. Designed for incredibly easy installation, Tuff Form8’s innovative rotating octagonal plate provides 15 different waste positions to avoid all obstructing joists during installation. It also provides the increasingly popular option of placing the waste in the centre of the tray.

Designed for incredibly easy installation, the AKW Tuff Form8’s innovative rotating octagonal plate provides 15 different waste positions to avoid all obstructing joists during installation. It also
provides the increasingly popular option of placing the waste in the centre of the tray. The design of the octagonal plate maintains the fall to maximise drainage and eliminate pooling water.

Made from high strength Sheet Moulding Compound (SMC), the quality build and versatility of Tuff Form8 wet room former gives the option of tiling or installing vinyl safety flooring.
Installation is quick and easy as Tuff Form8 has pre-formed fixing points, therefore no measuring is required. An improved weight limit of 381kg / 60 Stone and a lifetime guarantee, the AKW Tuff Form8 has all you need to make the perfect wet room / walk in shower.

Specification:

Size 900 x 900 x 22mm
Thickness: 22mm to suit the 18mm UK timber floor board + 4mm plywood, no extra adjustment needed for installation
Strength: 60 stone (381kg) on joists/ Unlimited on concrete
Manufacturing technique: Compression moulding
Recyclability: Recyclable

Features:

Rotatable waste position
Wide selection of waste options
Suitable for both wooden and concrete floor
Easily trimmable within 150mm from the octagonal plate
No need for under boarding
Pre-formed fixing holes
User friendly step-by-step installation guide
Suitable for use with underfloor heating
Ribbed underside structure
Durably supported for up to 60 stones on timber joists
Level-access with large size options
High strength GRP
Well-engineered 1:16 gradient

Benefits:

Suitable for all UK joist patterns, the adjustable waste positions avoid all obstructing joists
No water pooling in the shower area thanks to the octagonal plate design that provides a continual fall all the way to the waste
Ability to remove octagonal plate makes for quick and easy installation of pipework
Waste installation requires no tedious screw hole drilling
Quick and easy installation
Ribbed underside eliminates slippage or float during installation
Versatile applications
Peace of mind for long term use
Designed with a variety of end-users in mind, able to support chair users and carers
A solid support by the cutting-edge SMC-GRP (Sheet moulding Compound -Glass Reinforced Plastic) composite technology, enabling easy transportation and installation.

Drain Options

TF75 Gravity Waste for VINYL:

AKW TF75 Waste - Vinyl Floor

  • Opens for easy cleaning and rodding
  • 125mm deep below mounting surface
  • 75mm water trap depth (seal)
  • Adjustable elbow for waste pipe exit
  • Patented design: GB2402946
  • Guaranteed for life*
  • H132 x W200

TF75 Gravity Waste for TILES:

AKW TF75 Waste - Tiled Floor (Stainless Steel)

  • For use with Tuff Form former when tiling
  • Opens for easy cleaning and rodding
  • 125mm deep below mounting surface
  • Overall depth 132mm
  • 75mm water trap depth
  • Adjustable elbow for waste pipe exit
  • Stainless steel plate dimensions - 120 x 120mm
  • Stainless steel plate height is adjustable to max of 18mm with adhesive
  • Guaranteed for Life*

DW90 Low Height Dry Waste for VINYL:

AKW DW90 Low Profile Waste - VINYL

  • Shallow 53mm depth. Useful for solid floors or shallow joists.
  • Trap will not dry out with sporadic use
  • Very compact
  • Good seals and location
  • Non return valve preventing bad odour backflow
  • Suitable for push fit pipe (with included adaptor)
  • Suitable for solvent weld pipe (with included adaptor)
  • Top access for easy cleaning
  • High flow rate (27 l/min with 15mm head and 1m of pipe)
  • Meets the performance requirements of British standards

DW90 Low Height Dry Waste for TILES:

AKW DW90 Low Profile Waste - TILED Stainless Steel

  • Replaces 15mm & 22mm PGTF
  • If you need to reduce the pipework to 15mm please order reducer separately- SKU:25195
  • Quiet performance at all flow rates
  • Integrated 22mm JG fitting
  • Bayonet or screw fit cover
  • Improved aesthetics over existing PGTF
  • Dual chambers balance flow and reduce gulping effect
  • Baffles reduce noise escaping chambers
  • Flow guides encourage linear flow
  • Bayonet cover fits existing TF75
  • Compatible with all AKW shower waste pumps
  • Depth below tray 48mm/overall depth 55mm
  • Pump NOT Included
  • Guaranteed for Life*

Pumped Silentflow+ PGTF Waste Outlet for VINYL:

AKW SilentFlow Pumped Waste Outlet - VINYL

  • Replaces 15mm & 22mm PGTF
  • If you need to reduce the pipework to 15mm please order reducer separately- SKU:25195
  • Quiet performance at all flow rates
  • Integrated 22mm JG fitting
  • Bayonet or screw fit cover
  • Improved aesthetics over existing PGTF
  • Dual chambers balance flow and reduce gulping effect
  • Baffles reduce noise escaping chambers
  • Flow guides encourage linear flow
  • Bayonet cover fits existing TF75
  • Compatible with all AKW shower waste pumps
  • Depth below tray 48mm/overall depth 55mm
  • Guaranteed for Life*

PGTF Pumped Gulley Waste Outlet for TILES:

AKW Pumped Waste Outlet - TILED Stainless Steel

  • For use with Tuff Form former when tiling
  • 22mm outlet pipe versions only
  • Opens for easy cleaning and rodding
  • Pump NOT Included
  • 22mm depth below tray = 44mm
  • 22mm JG Speedfit outlet
  • Stainless steel plate dimensions = 120 x 120mm
  • Stainless steel plate height is adjustable to max of 18mm
  • Guaranteed for Life*

Product Downloads
Installation Video
YOU MAY ALSO NEED - OPTIONAL EXTRAS

MERLYN 8MM Wetroom Panel

MERLYN 8MM Wetroom Panel

Simple yet stylish, our 8mm Wetroom Panels come in a choice of colours - Matt Black, Brushed Bronze, Brushed Brass, and Chrome. You have the choice to mix and match many combinations of shapes and sizes to any space you require. At MERLYN, we understand that every wetroom space is different, which is why we have designed a modular system of wetroom panels that can be combined to fit any area.

Returns Notice: We are unable to accept returns of this item once the packaging has been opened, unless the product is damaged or faulty.

Features:

  • Height: 2015mm (Including rail)
  • All panels from 700mm & above come with a 1000mm stabilising bar
  • Available Sizes: 300mm, 400mm, 500mm, 600mm, 700mm, 760mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm, 1400mm, 1600mm
  • * All shower screens are nominally sized, see screen adjustment tab for measurements
  • 8mm toughened glass
  • Available Finishes: Standard Chrome, Matt Black, Brushed Brass, and Brushed Bronze
  • Strong & sturdy constructions
  • 3m support post can be retro-fitted to glass thickness of 8mm
  • Suitable for recess or corner situation
  • Optional Swivel panel can be retrofitted to any 8mm wetroom panel
  • Easy clean Mershield Stayclear protected glass
  • Reversible
  • Corner profile option available
  • Wetroom compatible
  • 20-year Guarantee
Merlyn 8mm Sizes
Merlyn 8mm Sizes

Mapei Wetroom Liquid Tanking Kit:

Mapei Wetroom Liquid Tanking Kit

Product Contents

  • 1 x 5 Kg Drum of Mapegum WPS
  • 1 x Mapei Primer G
  • 1 x Mapeband pe120 5m Roll

Ideal for Use On:

  • Moisture-resistant plasterboard
  • Gypsum plaster
  • Cementitious render
  • Tile backer boards
  • Existing ceramic finishes (with Eco Prim T Plus primer application)

AKW FormSafe Tanking Membrane Kit:

AKW FormSafe Tanking Membrane

FormSafe is probably one of the best tanking membranes available for use in wetroom applications as it provides a thick industrial strength impermeable barrier to any water that may escape beneath the tiles. The membrane is self-adhesive and comes on a roll. Once installed tiles can be applied immediately - there is no curing time.

Although particularly suited to floor applications FormSafe can also be applied to walls as an additional precaution. However, there is a maximum weight limit for wall mounted tiles when using FormSafe and this should not exceed 20kg/m2.

FormSafe can be used with under floor heating. Note: Maximum effective temperature for FormSafe is 32oC and should not be exceeded. Electrical heating max 150w.

AKW offer 2 different kit sizes for FormSafe, 5m2 and 10m2.

At A Glance:

  • It is ideal for use on substrates, such as timber, masonry, concrete, plasterboards, gypsum & tile backer boards
  • Once Applied FormSafe is ready to tile immediately, no drying time
  • Quick & easy to apply
  • Factory controlled thickness
  • Self-adhesive mat
  • 100% waterproof
  • No heating equipment required
  • Can be installed over a thermal board. Heating restricted at 32°. Electrical heating max 150w.
  • Lifetime of tile Guarantee

Contains:

  • 5m² or 10m² of FormSafe membrane (m x 1m)
  • 500ml FormSafe primer
  • 10m Reinforcing tape
  • 310ml Jointing compound

FormSafe Fitting Instructions (PDF)

Please note: AKW FormSafe is NOT compatible with the Wetrooms Online WetBase trays.

Contour P12 Shower Waste Pump:

Contour P12 Shower Waste Pump

The Contour P12 Shower Waste Pump is the only quiet, un-blockable, maintenance FREE and variable speed shower waste pump for when gravity drainage is unavailable.

Features:

Silent operation.
Reliable peristaltic pump design. Water travels through a sealed tube reducing the risk of blockage.
Variable speed transformer allows precise control of the pump speed to match the shower flow rate.

Benefits:

  • Maintenance free with a 5 YEAR WARRANTY.
  • Low running costs due to the 24v DC efficient energy motor.
  • Wallplate with quick release pump bracket.
  • Suitable for electric and mixer showers. (Additional flow switch required for mixer shower installations).
  • Complete with a 2-metre length of 22mm flexible pipe for improved performance.
  • Link directly to a Redring Selectronic Premier WP, Mira Advance ATL Flex Extra or Triton Omnicare eliminating the flow switch.
  • Not handed for easy and quick installation.

Box Contents:

  • Contour P12 Shower Pump
  • 1 x Flowswitch
  • Fitting / User Instructions

Full product description:Contour P12 Shower Waste Pump





Man. Image

AKW

The extensive range of AKW Wetrooms products helps you to create the perfect wet room for every budget and situation. AKW has over 1 million satisfied customers worldwide and their products are used in over 35,000 wet room installations every year! AKW offer lifetime guarantees on many of their products, giving you reassurance in AKW wet rooms.

Learn More

Our Reviews

View All Reviews
