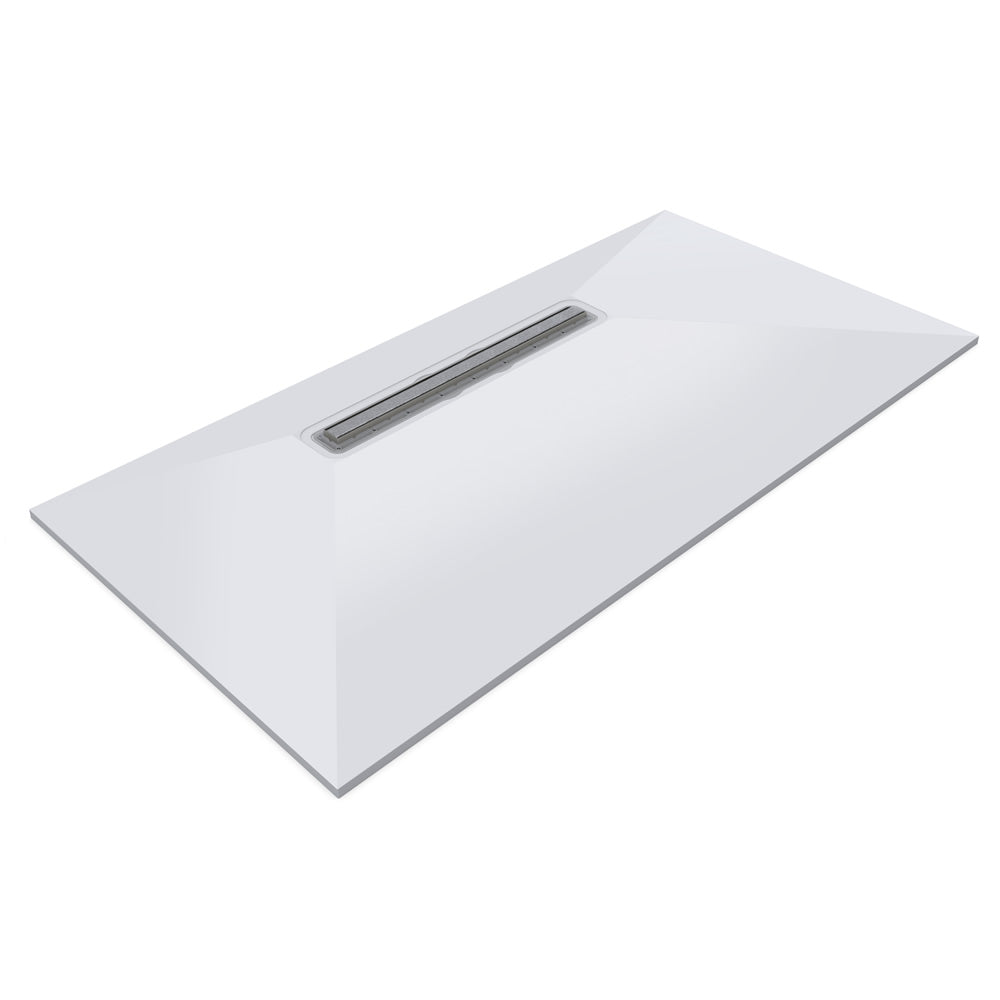

Impey Aqua Dec Linear 4 wet room tray, 2000 x 1000 x 22mm, with a linear drain and four-way gradient for level access wetroom flooring.

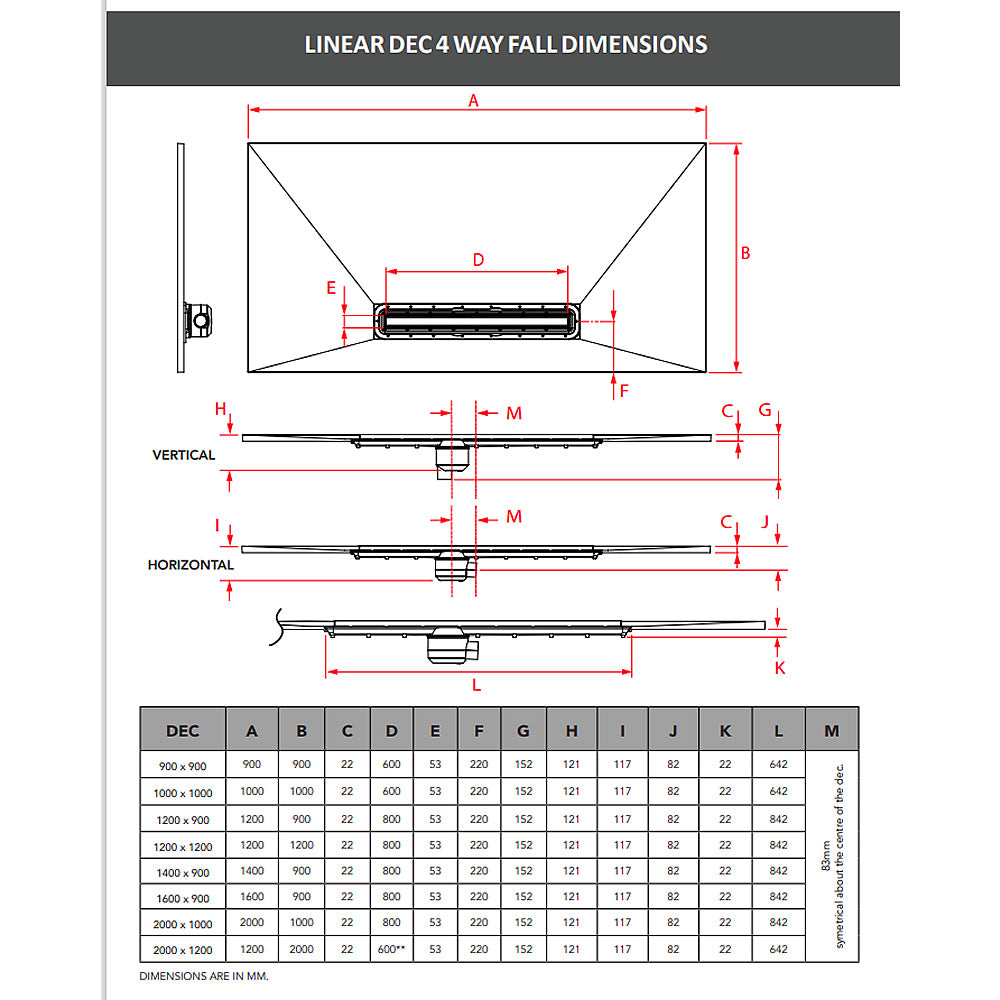

Technical diagram of Impey Aqua Dec Linear 4 wet room tray, showing dimensions, drainage gradients, and installation specifications.

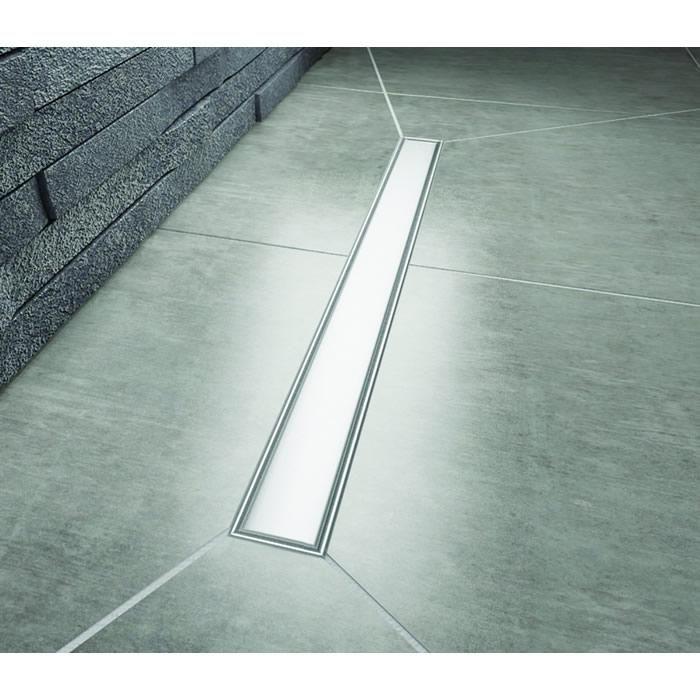

Installed Impey Aqua Dec Linear 4 wet room tray with a sleek linear drain, seamlessly integrated into a tiled wetroom floor.

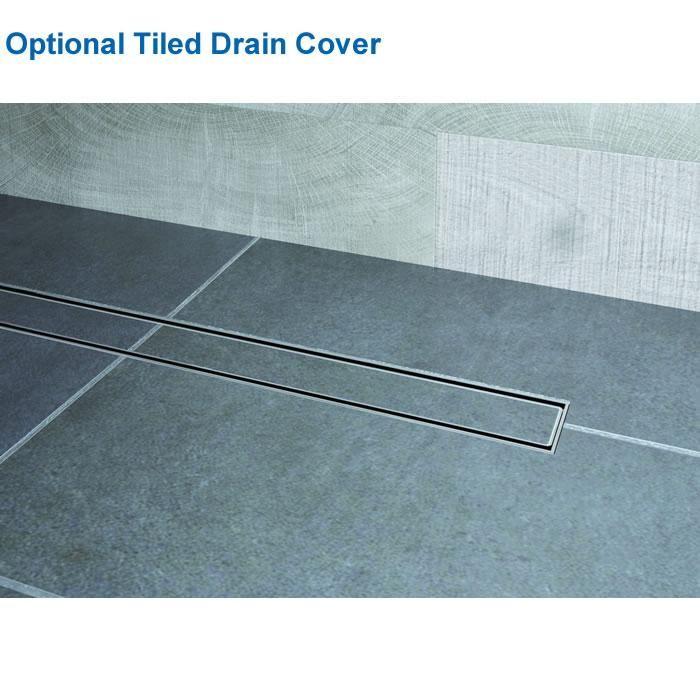

Optional tiled drain cover for Impey Aqua Dec Linear 4 wet room tray, designed for a discreet and seamless wetroom floor finish.
Impey Aqua Dec Linear 4 wet room tray, 2000 x 1000 x 22mm, with a linear drain and four-way gradient for level access wetroom flooring.
Technical diagram of Impey Aqua Dec Linear 4 wet room tray, showing dimensions, drainage gradients, and installation specifications.
Installed Impey Aqua Dec Linear 4 wet room tray with a sleek linear drain, seamlessly integrated into a tiled wetroom floor.
Optional tiled drain cover for Impey Aqua Dec Linear 4 wet room tray, designed for a discreet and seamless wetroom floor finish.

Impey Aqua Dec Linear 4 Wet Room Tray & Drain - 2000 x 1000 x 22mm

  • Vendor:
    Impey Wetrooms
  • Availability:
    In Stock
  • SKU:
    AD4L2010-LNR80S/H
Regular price £1,164.00
Sale price £1,164.00 Regular price £1,510.39
Unit price
Save £346.39
Tax included.

  • Free Shipping On all orders over £300

Estimated Delivery: 1-3 Working Days
Impey Aqua Dec Linear 4 wet room tray, 2000 x 1000 x 22mm, with a linear drain and four-way gradient for level access wetroom flooring.

Impey Aqua Dec Linear 4 Wet Room Tray & Drain - 2000 x 1000 x 22mm

DESCRIPTION

Copy from Here (this label will be hidden)

Add your 3 titles here (this label will be hidden)

Specification
Suitable For
Not Suitable For

Add your 3 lists here (this label will be hidden)

  • 2000 x 1000 x 22mm - NEW SIZE
  • LINEAR Drain - 800mm length
  • Brushed Stainless Steel Channel Cover
  • Optional Channel Covers Available
  • Under Support Required
  • Height Adjustable Tiling Frame
  • 4 Way Fall to Drain
  • Lifetime Guarantee*
  • Wood or Concrete Subfloor
  • Tiled Floor Finish**
  • Wet Rooms
  • Level Access
  • Modern Look
  • Underfloor Heating
  • Vinyl Floor Finish
  • Micro Cement
  • Use with Wheelchairs
  • Fitting Direct on Joists
  • Cutting to Size

To Here (this label will be hidden)

The Aqua-Dec Linear 4 Wetroom Floor Former is a strong 22mm thick wet room tray with 4 pre-formed drainage gradients that provide a level access wetroom floor suitable for a tiled covering.

Featuring four gradients to assist flow to the linear drain and has a stylish 40mm wide stainless steel linear drain to create a more defined finish and allow for a higher water flow rate - ideal for use with the most powerful showers with body jets.

The linear 4 comes complete with a 800mm linear drain capable of flows of 42 litres per minute (depending on room layout and size of the Aqua Dec). The linear drain is shipped with a brushed stainless steel drain cover as standard. Other optional inserts are also available.

Optional Tiled Insert

The Linear Tiled Insert Top is an alternative option from the brushed stainless top supplied as standard with any of the Aqua-Dec Linear and Aqua-Grade Linear floor formers. The Tile insert option is available in a 13mm fixed height from the floor former to the top of the tiling frame.

Impey Designer Drain Covers & Inserts

In addition to the standard brushed stainless steel channel cover, and tileable inserts, Impey also offer a range of designer drain channel covers and inserts

All designer drain tops are manufactured in the UK and laser cut from the highest quality stainless steel specially for Impey wetroom floor formers. The range of designs and finishes add a touch of individual style to the wetroom.

A combination of contemporary and modern patterns provides choice and the option to add a lustrous, high-end designer style to any bathroom. Designed with choice in mind, the Aqua-Dec Linear floor former range helps to achieve the desired look of each unique wetroom.

Black Metallic & Polished Stainless Steel inserts are 13mm fixed height from the floor former to the top of the tiling frame.

Important:
NOT suitable for VINYL floor finish
It is NOT possible to trim the Aqua Dec Linear 4 to size.
Under boarding of the Aqua Dec Linear is required.
The Linear flow drain requires a minimum 95mm clearance below the Aqua Dec.
A tanking membrane such as Impey WaterGuard will need to be laid prior to tiling.

*All Impey Aqua-Dec EasyFit bases carry a lifetime guarantee if installed according to the manufacturers instructions.

**If finishing the floor with TILES a tanking membrane such as Impey WaterGuard should be laid first.
