- 1200 x 900 x 40mm
- SINGLE FALL to Drain
- LINEAR Channel - End Position
- 750mm Channel Length
- Complete with Drain & Channel Cover
- Brushed Stainless Steel Cover - Invert to Tile
- Under Support Required
- Can be trimmed by 50mm off each edge
- 20 Year Guarantee
- Wood or Concrete Subfloor
- Tiled Floor Finish
- Wet Rooms
- Level Access
- Raised on Platform
- Underfloor Heating
- Vinyl Floor Finish
- Micro Cement
- Use with Wheelchairs
- Fitting Direct on Joists
To Here (this label will be hidden)

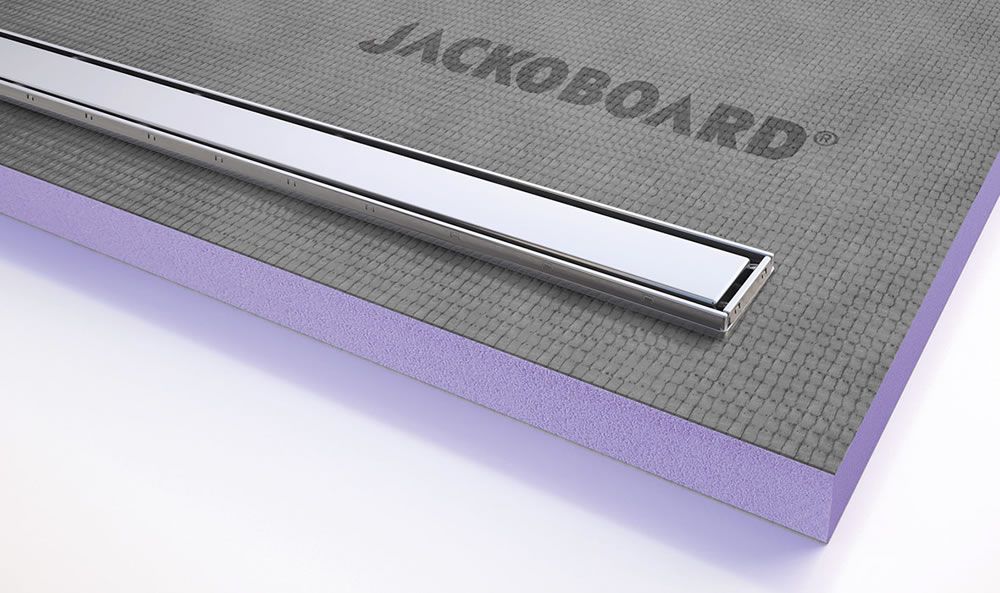

The Jackoboard Aqua Line Easy linear wet room floor / shower base is an easy to install linear level access ‘walk in shower’ floor tray, with a 750mm drain channel length. The fall to drain is a single, 1 side fall, as such the tray differs in height from 40mm at the end to 25mm at the drain end. The tray comes complete with a 0.6 l/s fast flow drain, stainless steel channel cover, which when reversed is fully tileable to match the surrounding floor.
JACKOBOARD® wet room shower elements stand out not only due to their functionality – they are also an attractive design element making floor-level showers both practical and aesthetic. This combination is in demand in modern bathroom architecture because the bathroom has long since been more than a functional room and becomes a place to unwind and relax - ideally done in a stylish ambience.

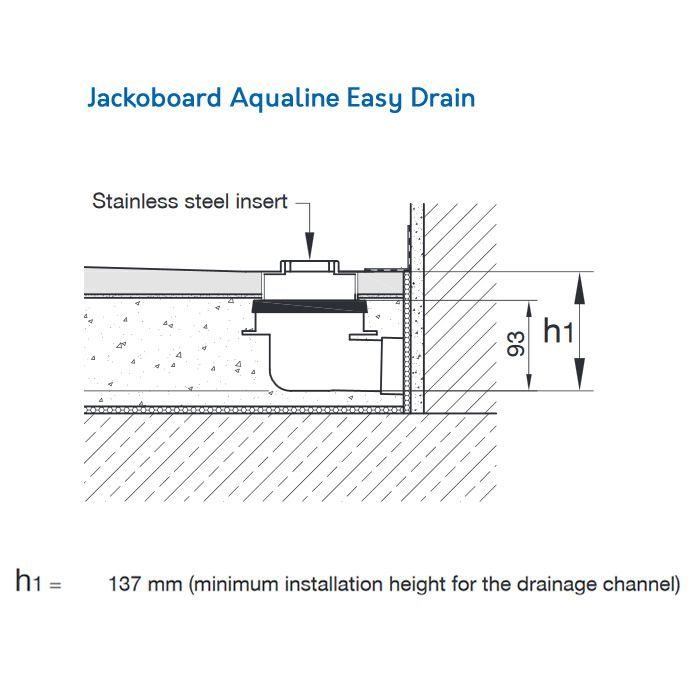

The new channel drain board combines all the properties the bathroom and sanitary industry requires: incorporated fall, high drainage rate of up to 0.6 l/s with a low installation height. The drain channel is a fixed height of 15mm. Excellent appearance and availability in different dimensions, shapes and channel lengths.
Fully Reversible & Tileable Drain Cover:
The upside of the drain cover is a brushed stainless-steel finish, if you prefer to tile the drain cover to match the surrounding floor, simply turn it over. The drain cover is ideal for tiling to match the surrounding floor, with a 12mm internal depth when reversed, suitable for use with 10mm thick tiles.
It can be installed by any competent DIY person and as the drain trough is already installed into the tray cuts down on install time.
If you have a concrete floor or if there is no access under the flooring to locate the shower drain, then the tray can still be used by using a separate raised substrate.
Notes for laying tiles and boards on JACKOBOARD® Aqua Line easy:
JACKOBOARD® Aqua Line easy is immediately tileable. All types and sizes of tiles can be used in principle. Special care must only be taken when using mosaic tiles less than 25 mm thick. In such cases, we recommend using epoxy resin grout for the tile joints.
If showers are to be wheelchair-accessible, they must be covered with tiles measuring a minimum 50 x 50 mm.
The tiles must be laid with a fall between the channel and the wall.
Important:

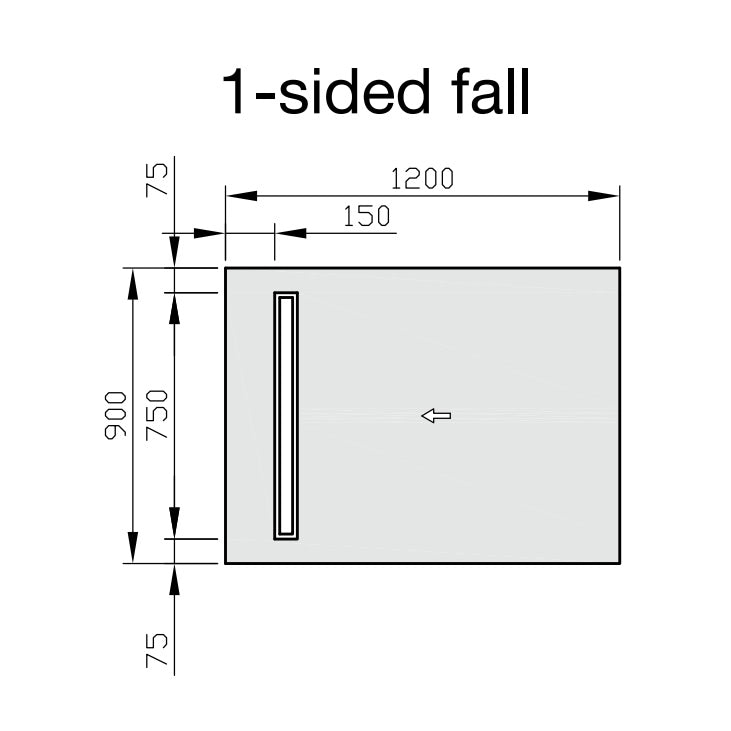

This tray has a single fall to drain, as such the thickness varies from 40mm to 25mm thick at the drain end. This means that in most circumstances it will sit above the floor boards when fitted. Therefore, tile backer board should be used to bring the remainder of the floor up to level prior to tanking and tiling.
The drain outlet is located in the CENTRE of the linear channel.
Further help & advice:
If you need further help or advice, please consult the documents in the 'Product Downloads' section or give our experts a call on 0800 280 8008, use the live chat function (in the bottom right corner) or send an email to info@wetrooms-online.com
Features:
- Shower element with brushed stainless steel drain channel
- SINGLE Fall to Drain
- Linear Channel Position - END
- 750mm Linear Channel Width
- Drain OUTLET Position - CENTRE of Channel
- Drainage rate of up to 0.6 l/s
- Stainless steel bar can be inverted and tiled on the back
- Fixed grate height of 15mm
- Bar and frame made of stainless steel
- Smooth, easy-clean surface with self-cleaning effect
- Low installation height
- Water trap height: 22 mm
- Specifically developed for installation on suspended timber floors

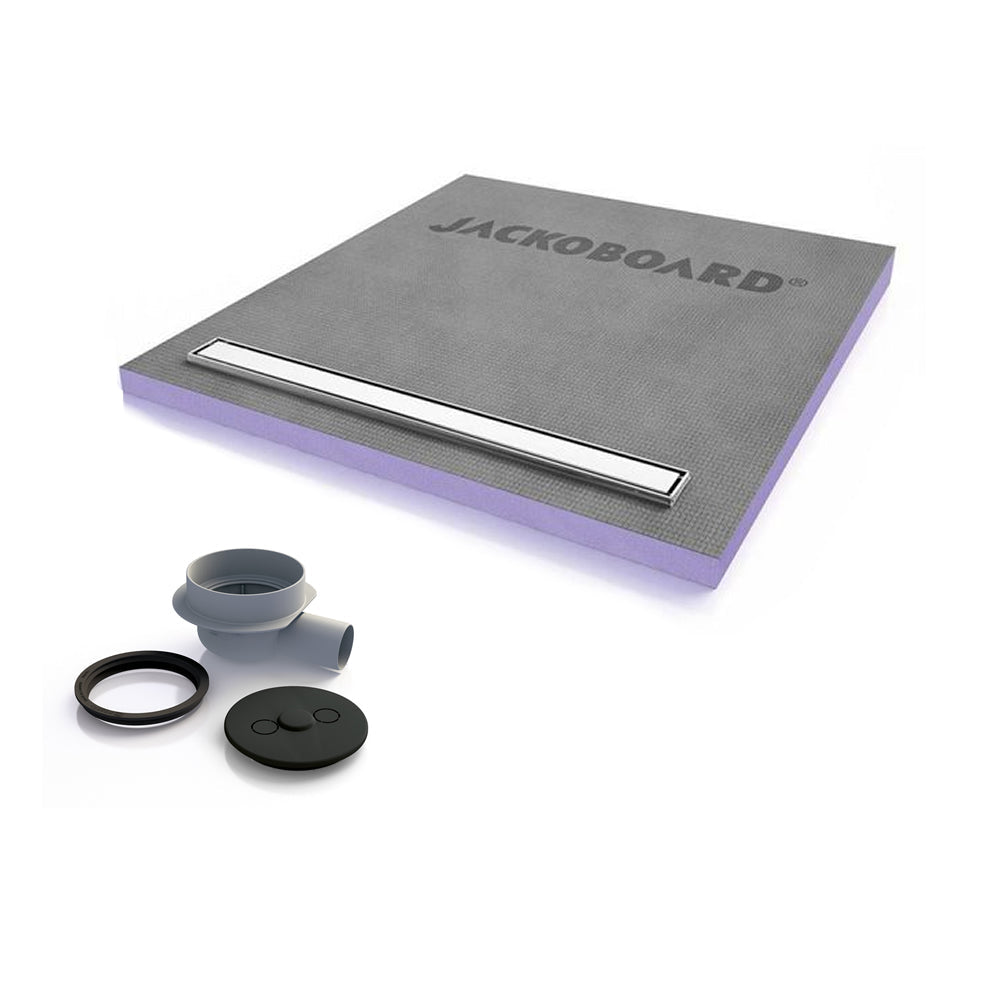

Ships With:
- 1200 x 900 x 30mm linear tray former with END drain trough.
- Linear channel cover
- Fast flow drain outlet
- Fitting Instructions
Aqua Line Easy Fitting Instructions - Suspended Timber Floor
Aqua Line Easy Fitting Instructions - Solid Floor
Choosing the Correct Wet Room Tray
Wet Room FAQ's
