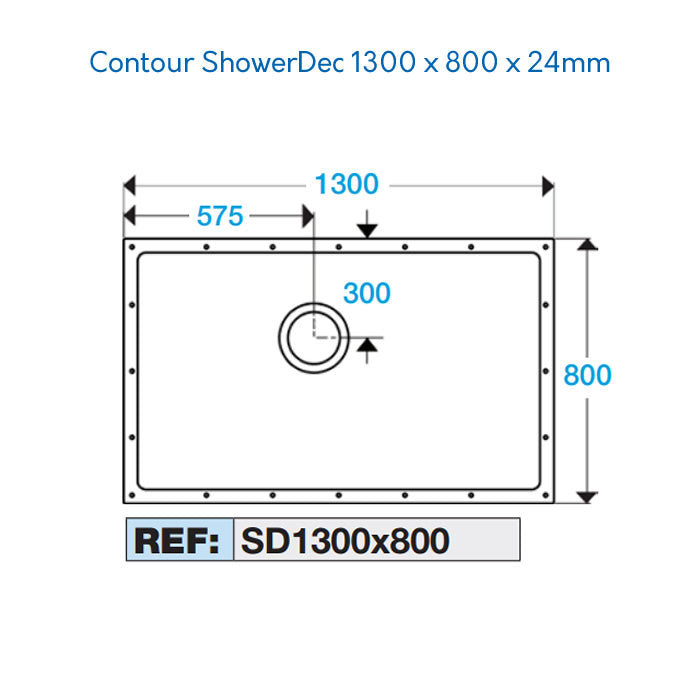

- 1300 x 800 x 24mm
- Under Support NOT Required
- Tiled, Vinyl & Pumped Drain Options
- Supports up to 100st / 653kg
- Can be trimmed
- Lifetime Guarantee*
- Wood or Concrete Subfloor
- Tiled Floor Finish
- Vinyl Floor Finish
- Wet Rooms
- Level Access
- Raised on Platform
- Use with Wheelchair
- Fitting direct on Joists
- Underfloor Heating
- Micro Cement
To Here (this label will be hidden)

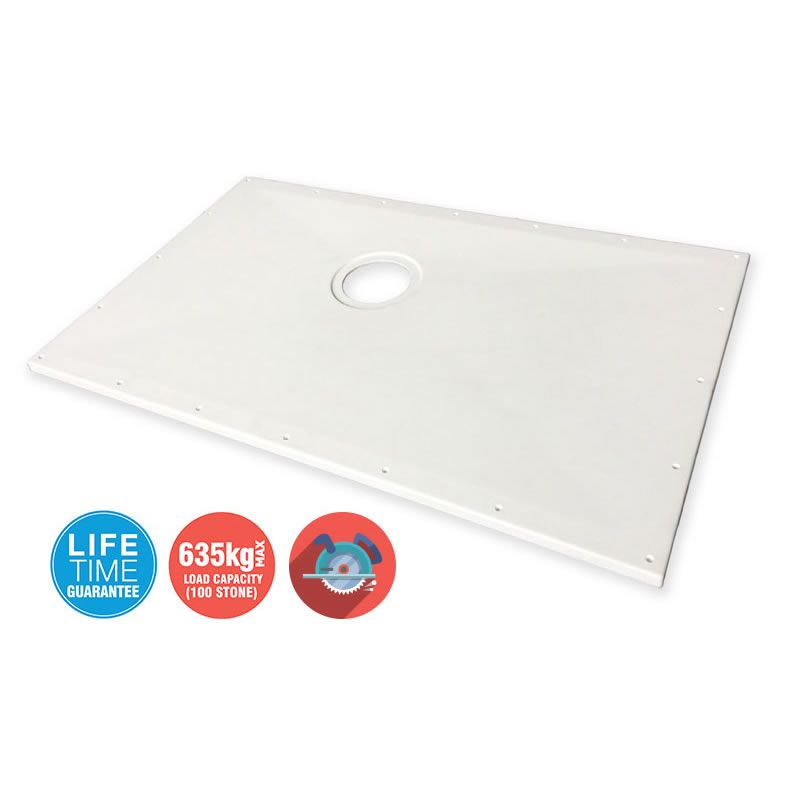

The ShowerDec from Contour is an incredibly strong wet room / walk in shower former tray that is suitable for tiled or vinyl floor finish, and can be installed in wooden or concrete sub floors. Designed for level access wet rooms and shower areas, the ShowerDec is suitable for use with wheelchairs and similar devices, with out the need for under supporting.
The ShowerDec is tested to withstand 100 stone / 635Kg across the entire surface area to simulate a standing person. At just 24mm thick the ShowerDec is suitable for installing direct onto floor joists, the remaining floor should then be boarded to the same level.
ShowerDec floor formers are available in 12 size options and can be further cut to size using a circular saw or jigsaw. The ShowerDec features offset drain positions designed to avoid joists, trays are not handed. A standard vinyl waste and stainless steel tile and vinyl waste options are available, in addition to a pumped outlet (pump available separately

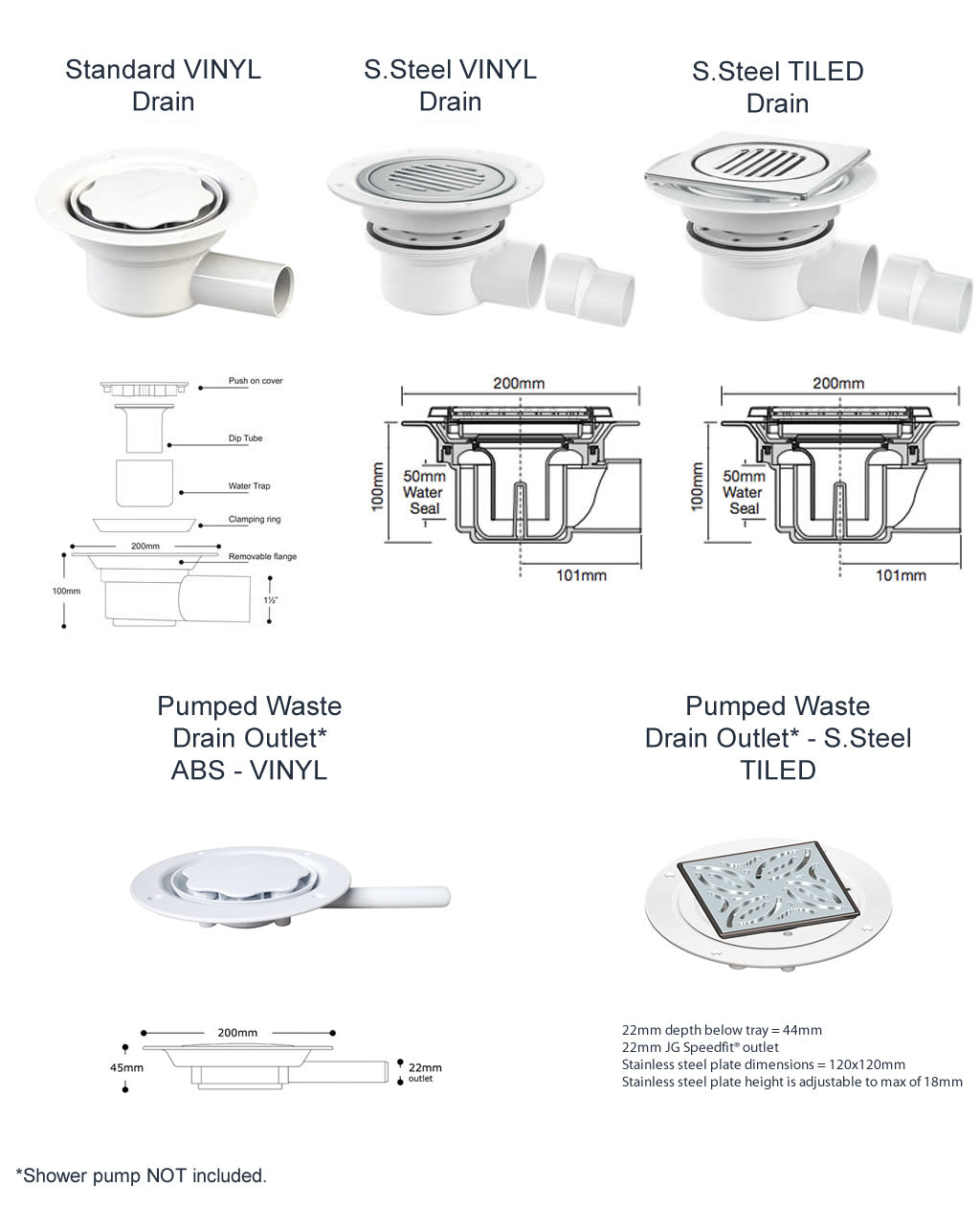

Waste Options:
The Contour Shower Dec is NOT supplied with a waste as standard. Please specific your option when ordering.
CTW01 - ABS white VINYL drain:
- 2 part, 50mm water seal trapped waste for use with a wet room floor former.
- Bolts together for easy installation.
- Push on cover plate with removable inner cup for cleaning.
- Flow rate in excess of 26 litres per minute.
- 1½” outlet.
- Tested in accordance with EN274-2:2002
- Top access, easy to clean.
- Manufactured in white ABS, will withstand wheelchair loadings.
- 100mm deep.
TSG52 - ABS drain body with Stainless steel grate for vinyl (round) or tiled (square) floor (please specify):
- Stainless steel option for use with vinyl safety flooring (round grate) or tiled floor (square grate).
- 2 part, 50mm water seal trapped gully.
- Flow rate in excess of 40 litres per minute.
- 1½” outlet.
- Top access, easy to clean.
- Gully manufactured in white ABS, will withstand wheelchair loadings.
- 100mm deep.
CUW01 - Outlet for use with shower waste pumps (does not include pump):
- Use with a wet room floor former and flexible vinyl sheet flooring.
- To be used in conjunction with a shower waste pump.
- Push on cover plate, with 22mm outlet.
- Top access, easy to clean.
- Manufactured in white ABS, will withstand wheelchair loadings.
- Increased outlet length for easier installation.
- 45mm deep.
LB00104 - Stainless Steel PGTF Pumped Gulley Waste for TILED Floors - Pump NOT included
- 22mm depth below tray = 44mm - Low level waste option for unbreachable floors
- 22mm JG Speedfit® outlet
- Opens for easy cleaning and rodding - Ensuring easy maintenance
- Stainless steel plate dimensions = 120x120mm - Provides an easy fitting for ceramic tiles
- Stainless steel plate height is adjustable to max of 18mm - Designed to accommodate variants in ceramic tile finishes
- Lifetime Warranty - Provides peace of mind
|
Installer Friendly:

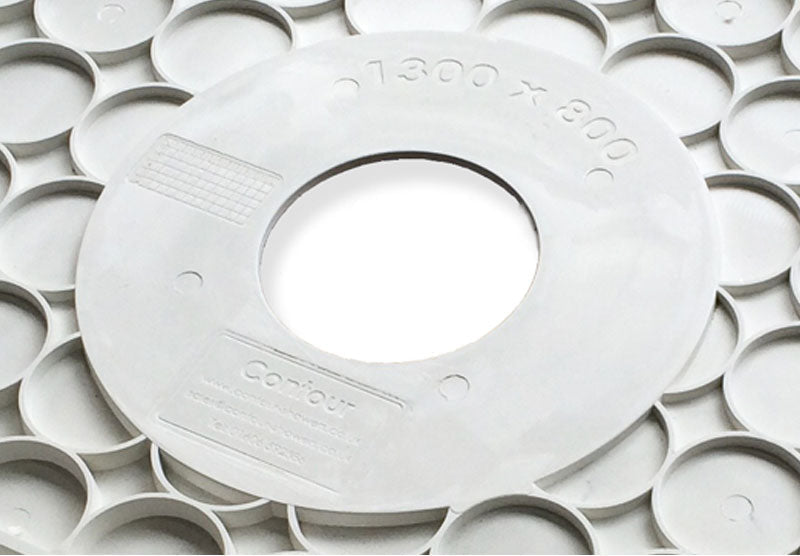

- No raised collar around the underside of the waste making installation on timber floors easier.
- 40mm flat area around the floor former perimeter for door placement and water retention.
- Larger shower area, ideal for wheelchairs.

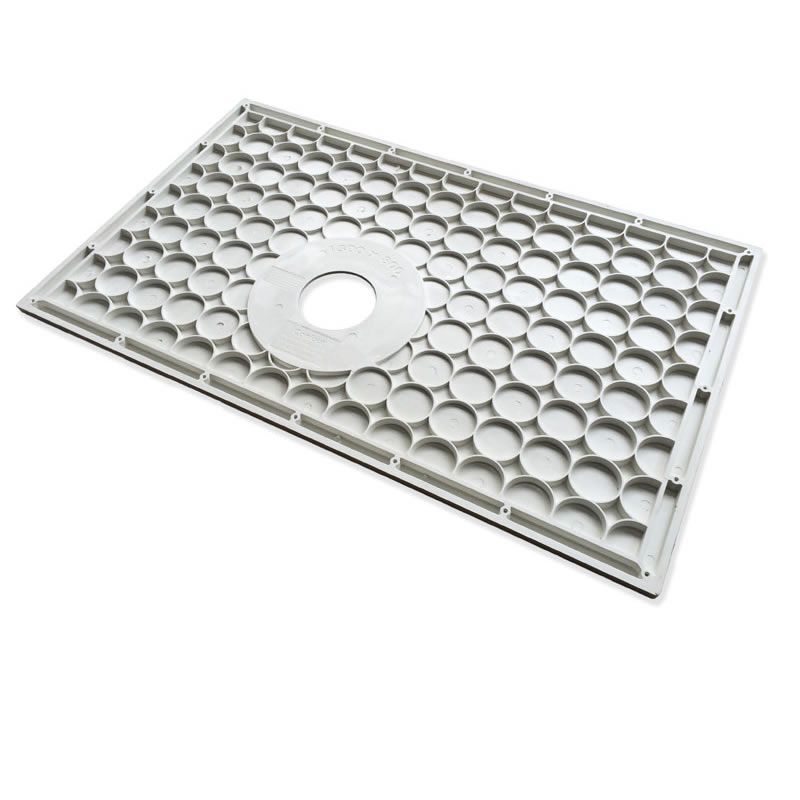

- Circular ribbed underside designed for setting into a concrete or screed base and eliminates slippage when installing.
- Textured top surface allows excellent adhesion of vinyl flooring.
- Offset waste positions to avoid joists.
- Excellent falls of approximately 2% - 2.5% built into the top surface - ‘BEST IN CLASS’.
- Pre-formed semi-drilled fixing points for secure installation.
- Can be cut to size in virtually any position using a circular saw or jigsaw.
- Suitable for timber & screeded floors
*Tested in accordance with a standard floor with 16” joist centres of 47mm width and supported around the floor former outer edges.
MERLYN 8MM Wetroom Panel
Simple yet stylish, our 8mm Wetroom Panels come in a choice of colours - Matt Black, Brushed Bronze, Brushed Brass, and Chrome. You have the choice to mix and match many combinations of shapes and sizes to any space you require. At MERLYN, we understand that every wetroom space is different, which is why we have designed a modular system of wetroom panels that can be combined to fit any area.
Returns Notice: We are unable to accept returns of this item once the packaging has been opened, unless the product is damaged or faulty.
Features:
- Height: 2015mm (Including rail)
- All panels from 700mm & above come with a 1000mm stabilising bar
- Available Sizes: 300mm, 400mm, 500mm, 600mm, 700mm, 760mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm, 1400mm, 1600mm
- * All shower screens are nominally sized, see screen adjustment tab for measurements
- 8mm toughened glass
- Available Finishes: Standard Chrome, Matt Black, Brushed Brass, and Brushed Bronze
- Strong & sturdy constructions
- 3m support post can be retro-fitted to glass thickness of 8mm
- Suitable for recess or corner situation
- Optional Swivel panel can be retrofitted to any 8mm wetroom panel
- Easy clean Mershield Stayclear protected glass
- Reversible
- Corner profile option available
- Wetroom compatible
- 20-year Guarantee
