- 900 x 900 x 22mm
- Rotating Drain for Avoidance of Joists
- Under Support NOT Required - (≤ 400mm Centres)
- Complete with Drain for TILED floors**
- Can be trimmed - See Guide
- Lifetime Guarantee*
- Wood or Concrete Subfloor
- Tiled Floor Finish
- Wet Rooms
- Level Access
- Raised on Platform
- Underfloor Heating
- Fitting Direct on Joists
- Micro Cement
- Vinyl Floor Finish
To Here (this label will be hidden)

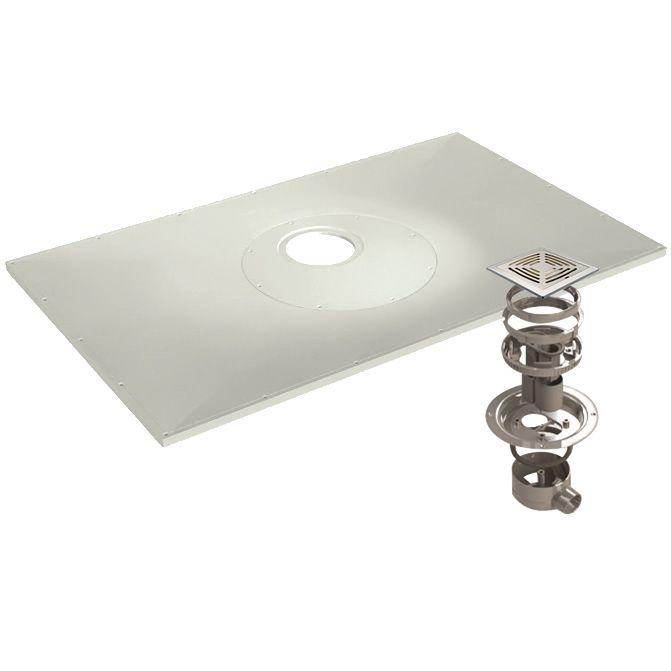

The Impey Aqua-Dec EasyFit solves the potential installation problem of the drainage point being obstructed by joists within timber floors. A unique, patent protected drainage feature allows the installer to rotate the drain aperture to any position that will avoid the joist, or any other under floor obstruction. The Aqua-Dec EasyFit requires no under-boarding and will support over 300kg (47 stone) when fitted directly to standard floor joists.
The Impey Aqua-Dec EasyFit has a computer designed cellular structure, which is compression moulded from high glass content SMC to provide the strongest most rigid construction on the market. Can be installed directly onto floor joists (at 400mm centres, joists that exceed this will require under-boarding) with no additional support or bedded into screeded floors, and will support over 300kg (47 stone) when fixed directly to standard floor joists.
The Aqua-Dec EasyFit is designed to provide the gradient required in the showering area for water drainage. What makes them so special is their extreme strength and rigidity, whilst only being 22mm thick at the outer rim. The low profile is specially engineered to be the same depth as standard floorboards. You simply remove the floorboards and fix the Aqua Dec to the floor joists (at 400mm centres, joists that exceed this will require under-boarding).
The revolutionary rotating drain point allows the drain position to be rotated through 360° to any position to avoid joists. If you need to trim or cut the Aqua Dec to avoid an obstruction it can be cut with a universal hand saw and drilled to provide additional screw fixing holes.

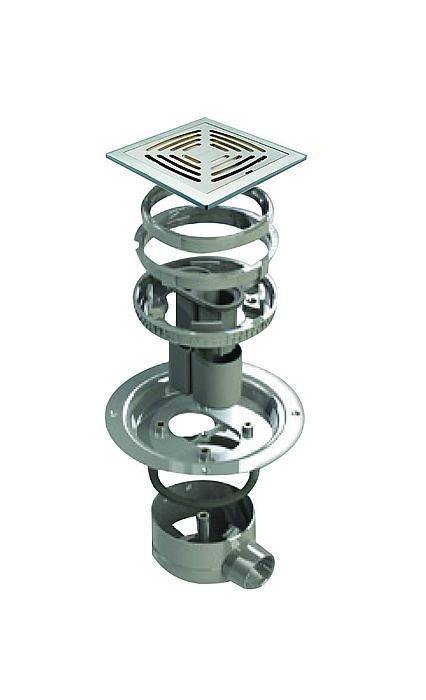

All Aqua-Dec EasyFit's come with a tiled** floor gully horizontal outlet drain as standard. The gully is a high quality water trap featuring a 50mm water seal, flexible 50mm outlet and a 50-40mm solvent weld reducer.

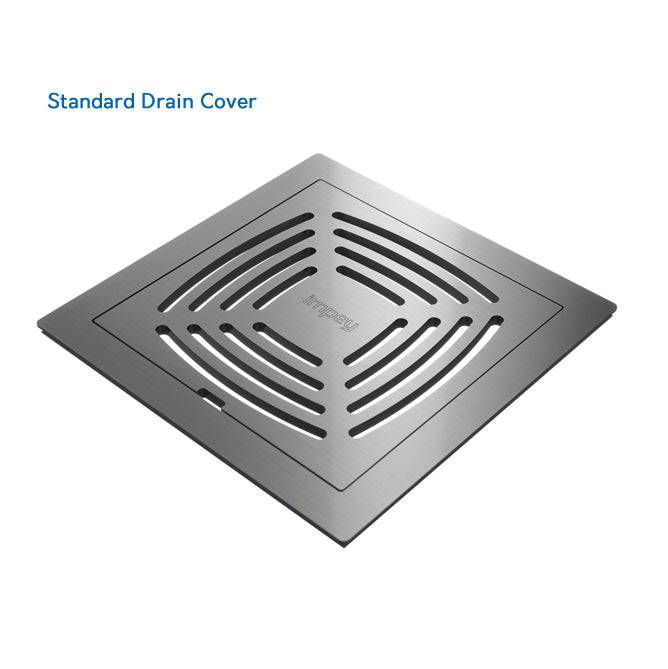

The height adjustable rings adjust to suit tile depths between 6mm and 26mm depending on waterproof membrane and adhesive thickness. The tanking ring secures the waterproofing membrane into place creating a secure watertight seal at the drainage point. The drain comes complete with a high quality, 4mm thick, stainless steel grate. Alternatives are available for vinyl flooring etc.

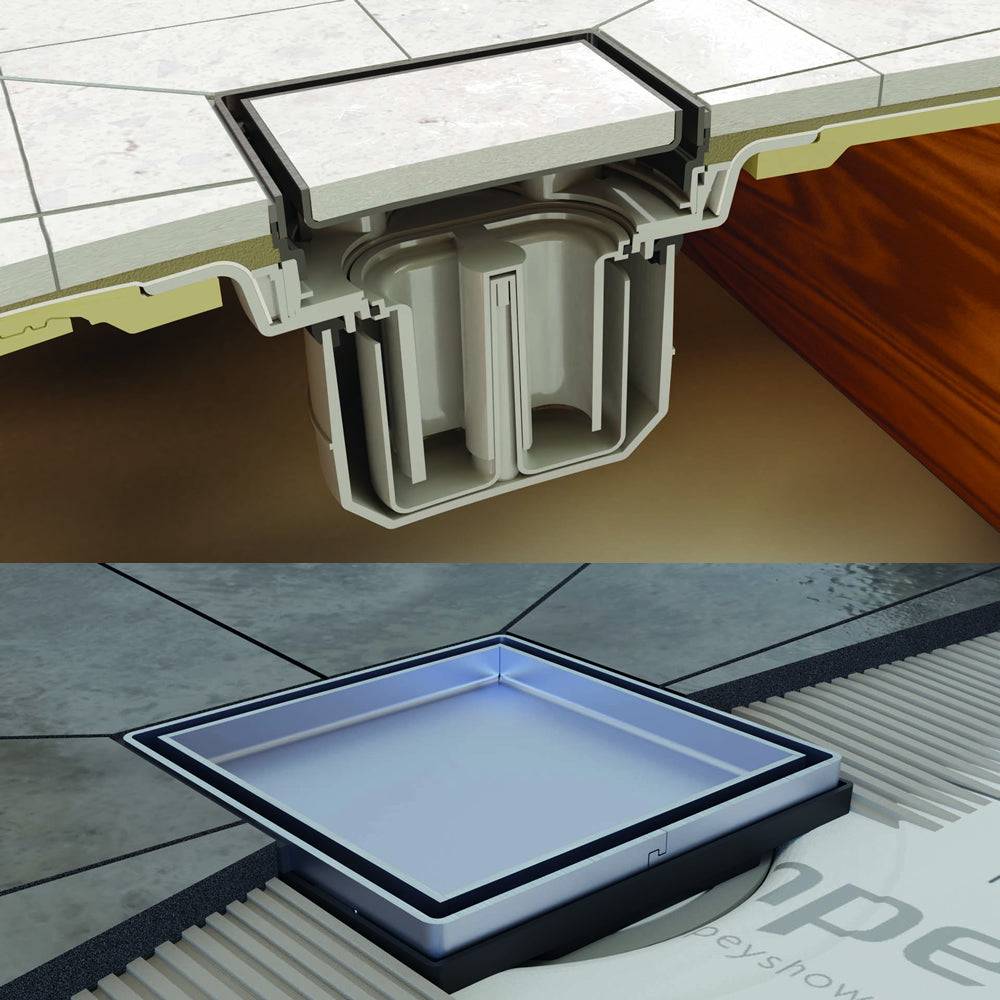

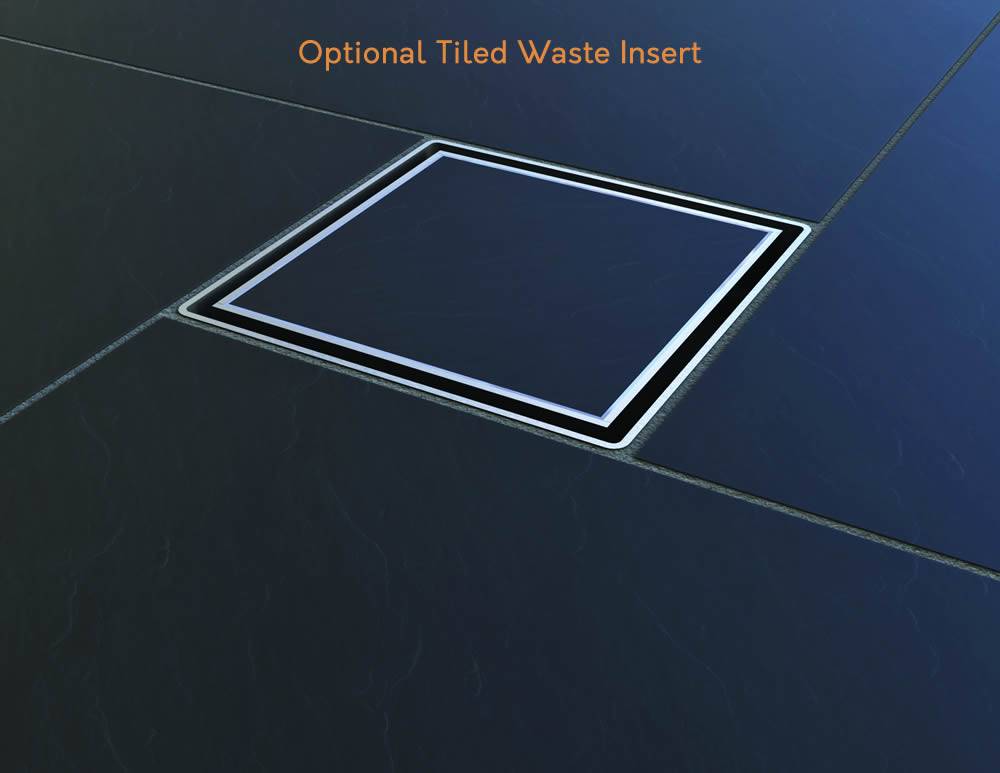

NEW FROM IMPEY WETROOMS - TILED INSERT FOR AQUA DEC EASY FIT
The NEW Tiled Insert option for the Impey Aqua Dec Easy Fit allows the drain top to coordinate with the same tiles as the rest of the wetroom floor, creating a truly seamless aesthetic. Designed and engineered to work directly with the award-winning Aqua-Dec EasyFit wetroom floor former, providing 2mm thick high grade 304 stainless steel Tile Tray and Outer Frame, created by Impey’s in-house Research & Development team, this new tiled insert boasts style, elegance and innovation throughout.
Tiled Insert Key Points & Features:
10mm adjustment range (14mm - 24mm)
Up to 10mm thick tiles
Fine adjustment after tiling
Allowance for Underfloor Heating
Flow rate of up to 33 L/min
Impact tested to 300kg
In-built ledge for grouting
Solvent weld cement in position
2mm thick high grade 304 Stainless Steel
All visible faces are Stainless Steel
Tile size: 107mm x 107mm
Outer frame 125mm x 125mm
Easy assembly and installation
5 year guarantee
Drain Outlets
The Impey Aqua Dec Easy Fit is supplied with a waste outlet to suit a TILED** floor. Other drain outlets including, vertical, low profile and pumped waste outlets are also available. Please call 0800 280 8008 to request these drain outlets.
Vinyl Floor
For Impey Level Dec for VINYL floors please click here: Impey Level Dec - Vinyl floor
*All Impey Aqua-Dec EasyFit bases carry a lifetime guarantee if installed according to the manufacturers instructions.

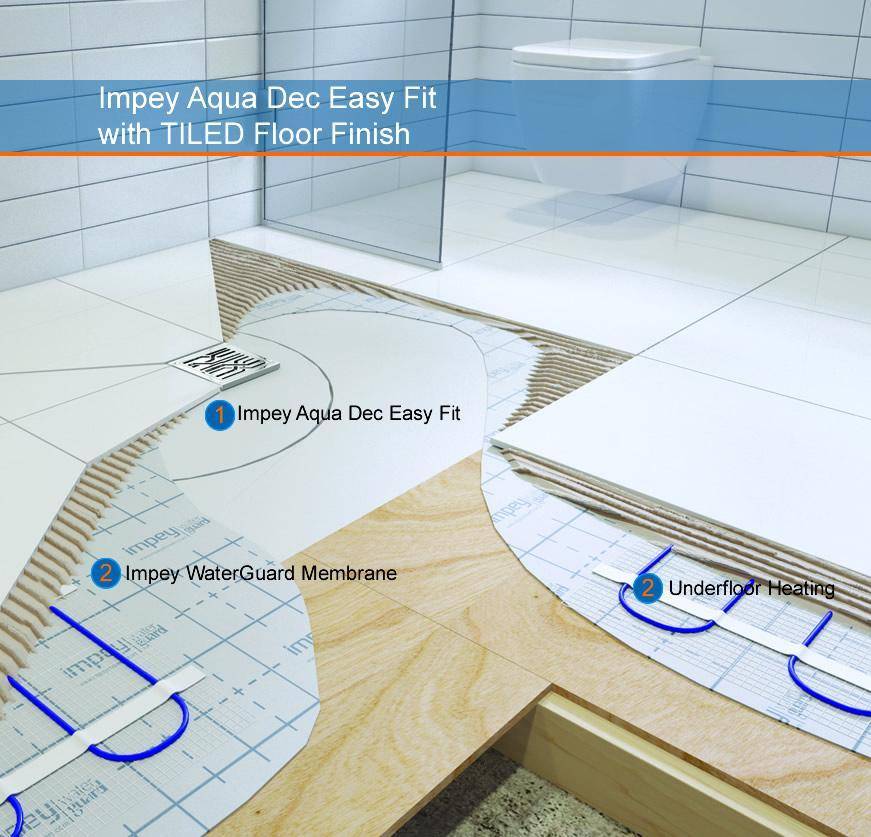

**If finishing the floor with TILES a tanking membrane such as Impey WaterGuard should be laid first.
Key Points

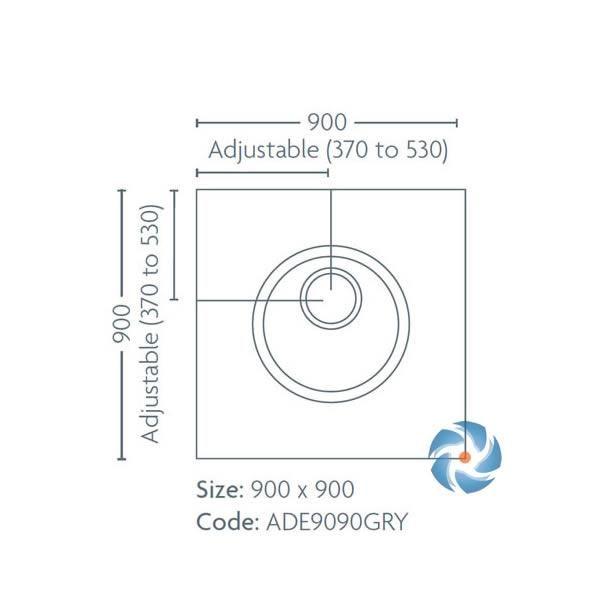

- Size: 900 x 900mm
- 22mm thick
- Suitable for TILED* floors
- No under boarding required
- Supports over 300kg (47 Stone)
- Lightweight yet strong
- Rotating drain through 360° to allow for the avoidance of joists
- Can be cut to size - See Guide.
- Lifetime Guarantee
- Drain Included - Tiled / Horizontal outlet.
- Designed & Manufactured in the UK
*Tiled floors will require a tanking membrane such as Impey WaterGuard to be laid before the tiles.
AquaDec Benefits
Rotating drain
The EasyFit drain plate can rotate 360 degrees and avoid all underfloor wet room obstructions. The eccentric drain also features three locating rings, to provide superior hold between the Dec and the rotating drain plate.
Unbeatable strengthThe new Aqua Dec Fit wet room Dec is stronger than the original Aqua-Dec and requires NO UNDER BOARDING
PortableThe Aqua Dec EasyFit is over 20% lighter than the original Aqua-Dec. The unique EasyFit material is also stronger but lighter.
Easily trimmableThe Aqua Dec EasyFit wet room Dec can be cut anywhere up to the solid surround with a standard handsaw.
EasyFit is 22mm thickThe new Aqua Dec EasyFit is consistently 22m thick around the perimeter.
Underside cellular structureThe underside spoke pattern provides increased rigidity to the structure of the Dec.
Wooden or concrete floor installationAqua Dec EasyFit can be fitted on wood and concrete floors as the spoke structure bonds well with wet concrete.
MERLYN 8MM Wetroom Panel
Simple yet stylish, our 8mm Wetroom Panels come in a choice of colours - Matt Black, Brushed Bronze, Brushed Brass, and Chrome. You have the choice to mix and match many combinations of shapes and sizes to any space you require. At MERLYN, we understand that every wetroom space is different, which is why we have designed a modular system of wetroom panels that can be combined to fit any area.
Returns Notice: We are unable to accept returns of this item once the packaging has been opened, unless the product is damaged or faulty.
Features:
- Height: 2015mm (Including rail)
- All panels from 700mm & above come with a 1000mm stabilising bar
- Available Sizes: 300mm, 400mm, 500mm, 600mm, 700mm, 760mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm, 1400mm, 1600mm
- * All shower screens are nominally sized, see screen adjustment tab for measurements
- 8mm toughened glass
- Available Finishes: Standard Chrome, Matt Black, Brushed Brass, and Brushed Bronze
- Strong & sturdy constructions
- 3m support post can be retro-fitted to glass thickness of 8mm
- Suitable for recess or corner situation
- Optional Swivel panel can be retrofitted to any 8mm wetroom panel
- Easy clean Mershield Stayclear protected glass
- Reversible
- Corner profile option available
- Wetroom compatible
- 20-year Guarantee
Impey WaterGuard Wet Room Tanking Membrane
Impey WaterGuard membrane is the next generation of wetroom waterproofing systems. It provides a faster and easier method of tanking a leak-free wetroom area. WaterGuard® features a new fleece membrane with a self-adhesive butyl rubber backing, which is fast and easy to install.
WaterGuard provides the complete leak-proof sealing solution, at just 1mm thick WaterGuard is strong, flexible and versatile making tanking a wet room faster and easier. It comes with a lifetime guarantee*, so you can install with complete confidence.
Unlike many other systems Impey WaterGuard® can be tiled as soon as it has been fitted saving both installation time and cost.
Full product details: Impey WaterGuard Wet Room Tanking Membrane
